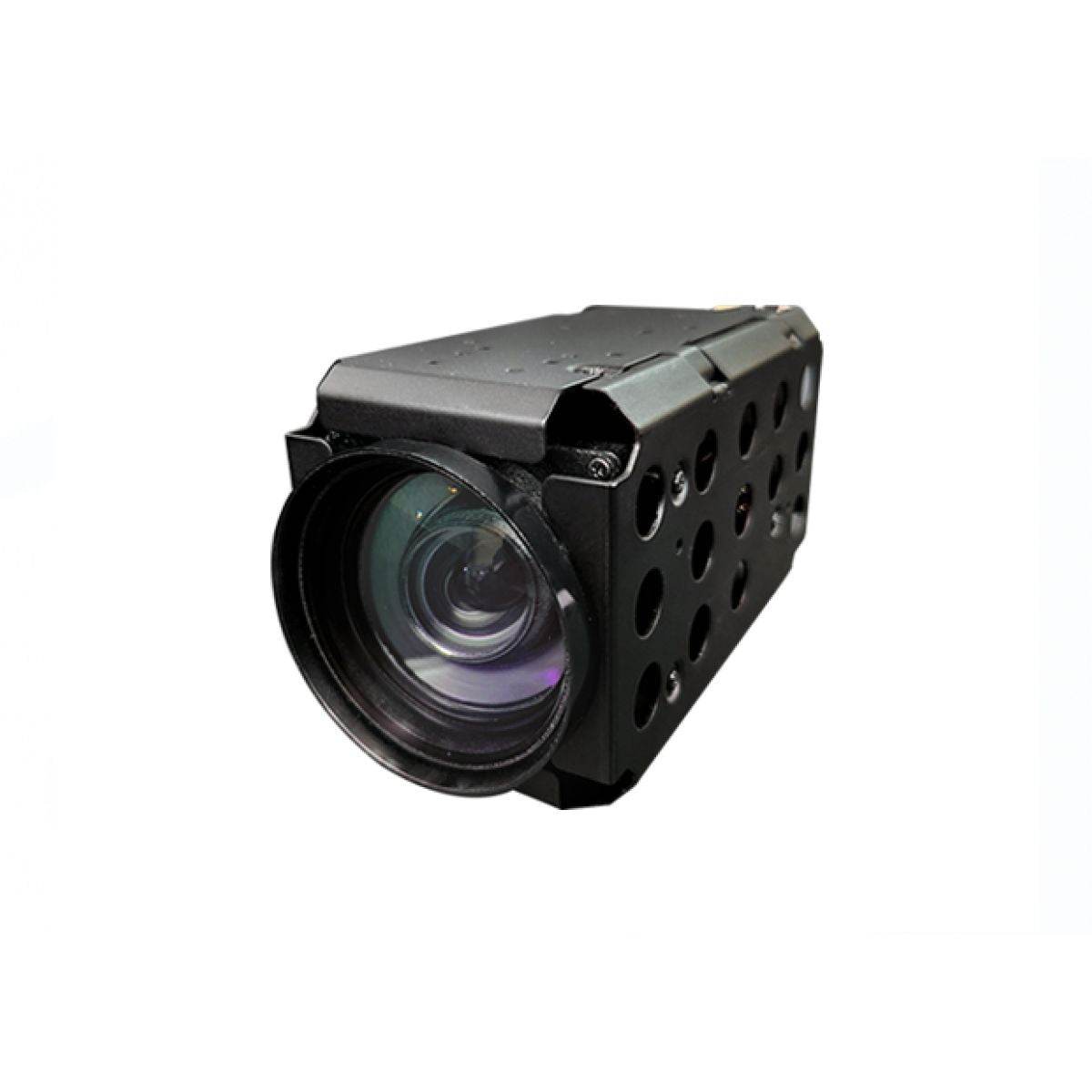

KT&C ATC-HZ8230T-LTN 1080P60 HD Camera with 1/2.8” 2.13M SONY STARVIS CMOS Sensor

The KT&C ATC-HZ8230T-LTN is a cutting-edge surveillance camera designed for superior imaging and adaptability in various conditions. It features a 1/2.8” 2.13M SONY Progressive Scan STARVIS CMOS sensor, delivering an impressive resolution of 1945(H)x1097(V) pixels, with a unit cell size of 2.9µm x 2.9µm. This camera supports multiple output formats, including LVDS and HD-SDI, with video output capabilities of 1080P60, ensuring compatibility with various display systems. With a minimum illumination of just 0.02 Lux during the day and 0.01 Lux at night (with the IR-cut filter engaged), it excels in low-light environments.

The ATC-HZ8230T-LTN offers a powerful optical zoom capability of 30x, with a focal length range of 4.3 to 129 mm and a wide horizontal angle of 66.9° down to a tight 2.5° for extreme zoom. Additionally, it includes advanced features such as digital slow shutter, auto/manual exposure control, and 3D noise reduction, enhancing image clarity. Compact and efficient, the camera operates under a power supply of DC 12V with a consumption rate of just 3.0W. Its robust design ensures reliable performance in diverse environmental conditions, making it the ideal choice for demanding surveillance applications.

Features:

• 1/2.8” 2.13M STARVIS CMOS Image Sensor: Delivers high-definition images with exceptional clarity.
• 30x Optical Zoom + 12x Digital Zoom (360x Total): Allows precise focus on distant subjects.
• Wide Dynamic Range (WDR): Captures clear images in varying lighting conditions.
• F1.6 Aperture: Enhances light sensitivity for better low-light performance.
• Noise Reduction (3DNR/2DNR/2DNR+3DNR): Minimizes noise in low-light environments.
• Digital Output Options: Supports HD-SDI/EX-SDI (V1.0/V2.0/V2.1/V3.0), LVDS, CVBS, AVI, and TVI for versatile connectivity.
• Resolution Support: Offers various resolutions including 1080p/60, 1080p/50, 1080p/30, 720p/60, 720p/50, 720p/30, 1080i/50, and 1080i/60.
• Infrared (IR) Cut-Filter: Automatically engages or disengages based on ambient light for day/night functionality.
• Privacy Zone Masking: Supports up to 8 masked areas for privacy protection.
• Motion Detection: Alerts for movement within the camera’s view.
• Customizable Title Display: Up to 21 lines of text for on-screen titles (VISCA).
• 256 Internal Zoom/Focus Presets: Allows for quick recall of specific zoom and focus settings.
• Digital Image Stabilizer: Reduces image blurring from vibration.

Applications:

• Surveillance: Ideal for monitoring large areas with detailed zoom and high-definition imaging.
• Security: Effective for both indoor and outdoor security systems, providing clarity in various lighting conditions.
• Data Viewing: Useful for detailed inspections and data capture.
• Video Presentation: High-quality video output suitable for presentations and live feeds.
• Speed Dome: Suitable for applications requiring rapid pan and tilt movements.
• Industrial: Excellent for monitoring industrial processes and machinery.

ATC-HZ8230T-LTN Spec Sheet
