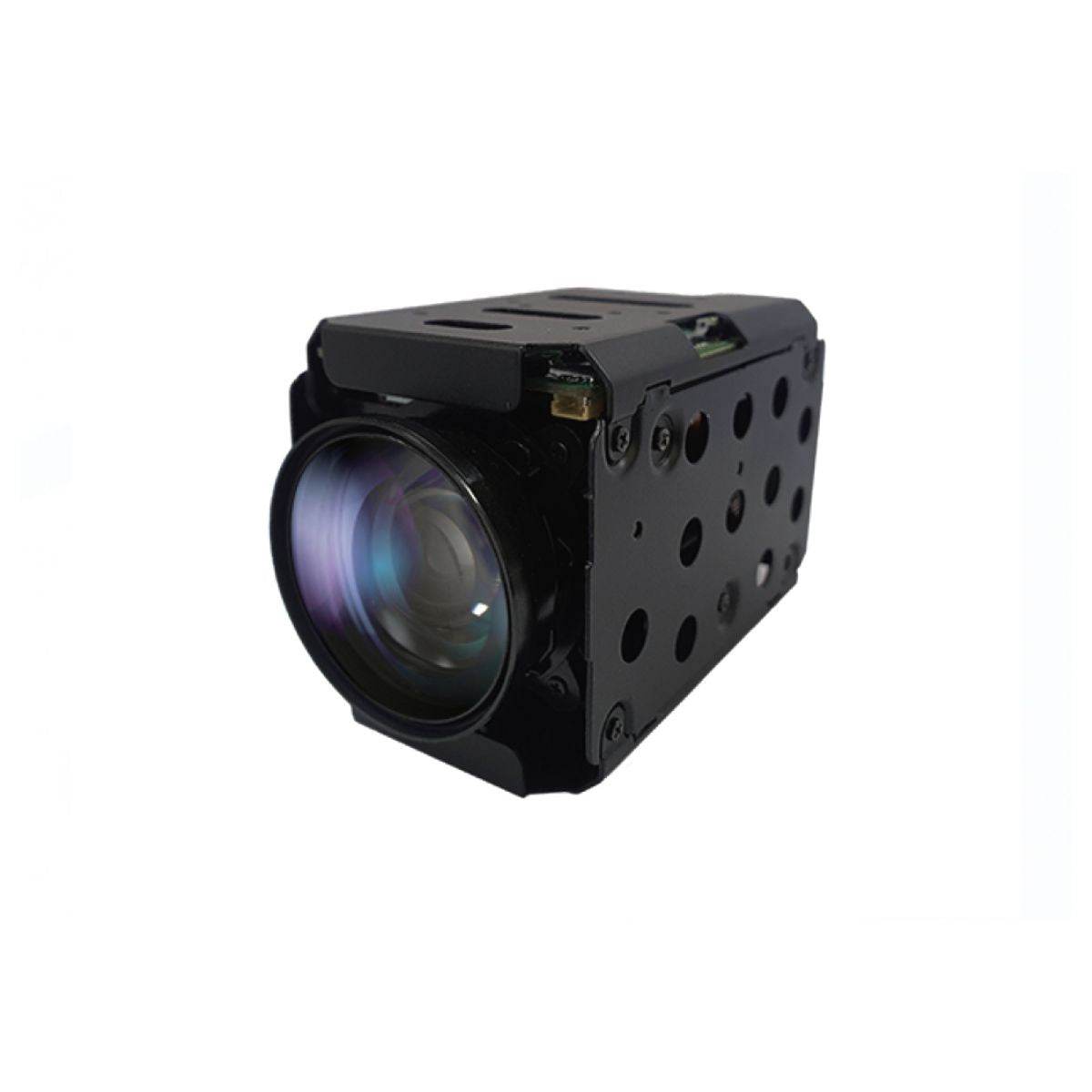

KT&C ATC-HZ8240T-LCN 1080P60 HD-SDI Camera 2.13MP STARVIS CMOS with 40x Optical Zoom

The KT&C ATC-HZ8240T-LCN is a high-performance 1080P60 surveillance camera equipped with a 1/2.8" SONY Progressive Scan STARVIS CMOS sensor, offering 2.13MP (1945(H) x 1097(V)) resolution. Supporting HD-SDI, EX-SDI (V1.0, V2.0, V3.0), and CVBS output modes, it provides flexible integration into various security systems.

This camera captures clear, high-definition video at 1080p up to 60fps, ideal for detailed monitoring. Its AF optical zoom lens (f=4.25~170mm) supports a powerful 40x optical and 12x digital zoom, covering a wide range of focal lengths from F1.6 to F4.95. The horizontal and vertical viewing angles span from 65.7° to 1.9° and 39.4° to 1.1°, respectively, delivering excellent versatility in coverage.

For low-light conditions, the KT&C ATC-HZ8240T-LCN operates with a minimum illumination of 0.1Lux in day mode and 0.07Lux in night mode, enhanced by advanced AGC (up to 58dB), 2D-DNR, and 3D-DNR for superior noise reduction. WDR with adjustable levels, defog options, digital image stabilization, and motion detection across 4 zones further refine image quality, making this camera a robust solution for demanding surveillance environments.

Features:

• 1/2.8" SONY Progressive Scan STARVIS CMOS
• 480x AF Zoom(40x optical zoom, 12x digital zoom)
• 1080p 60/50/30/25fps
• Mechanical Day & Night
• True WDR
• 3D DNR, Defog
• UART RS232-TTL(Pelco-D, Pelco C, VISCA, Hitachi)

Applications:

• Traffic and Transportation: Real-time monitoring for traffic flow and incidents.
• City-Wide Surveillance: Urban safety with True WDR and low-light performance.
• Perimeter Security: Secure large facilities like airports and industrial sites.
• Critical Infrastructure: Protect power plants and communication towers with reliable surveillance.
• Event Security: Manage crowds at public events with high-definition video.
• Border and Coastal Surveillance: Effective monitoring across diverse terrains.
• Port Security: Oversee harbor operations and shipping lanes.
• Covert Operations: Gather intelligence with high-resolution imaging.
• Industrial Monitoring: Ensure safety and efficiency in industrial settings.
• Marine Surveillance: Monitor offshore platforms and coastal areas, even in bad weather.

ATC-HZ8240T-LCN Spec Sheet
