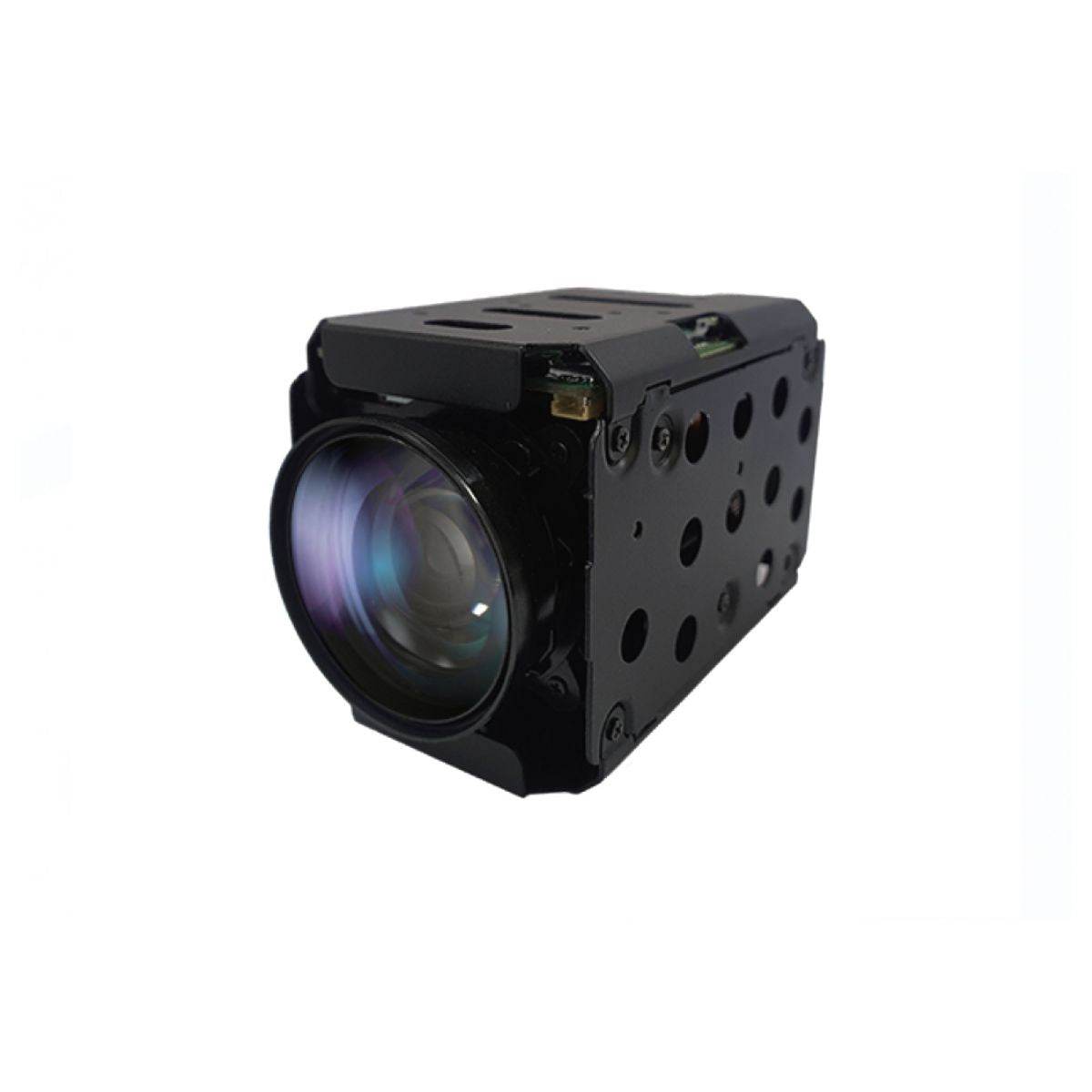

KT&C ATC-HZ5530T-LPN HD Network Camera with 1/2.9” CMOS Sensor, 1080P60, and 30x Optical Zoom

The KT&C ATC-HZ5530T-LPN is an advanced network camera featuring a 1/2.9” Progressive Scan Global Shutter CMOS sensor with 1.58MP effective pixels. It delivers stunning video quality with a maximum resolution of 1080p at 60fps via LVDS and parallel video output modes. The camera’s 30x optical zoom lens, with a focal length of 4.3mm to 129mm and an F-value from F1.6 to F5.0, offers flexible viewing angles from 60.7° to 2.2° horizontally and 46.8° to 1.7° vertically.

Exceptional low-light performance is achieved with 0.1Lux in day mode and 0.08Lux in night mode (IR-cut filter activated). The camera includes features such as digital image stabilization, 3D-DNR, and adjustable WDR for clear imaging in challenging environments. Connectivity options include UART remote control over RS232 and compatibility with VISCA and Pelco protocols. With a maximum power consumption of 7.3W, dimensions of 50x58.8x90.5mm, and an operating temperature range of -10°C to +50°C, this camera is ideal for various security applications.

Features:

• 1/2.9 Progressive Scan Global Shutter CMOS
• 360x AF Zoom(30x optical zoom, 12x digital zoom)
• 720p 60/50/30/25fps
• Mechanical Day&Night
• True WDR
• 3D DNR, Defog
• Global Shutter, Trigger In&Strobe Out
• UART RS232-TTL(Pleco-D, Pelco C, VISCA, Hitachi)

Applications:
