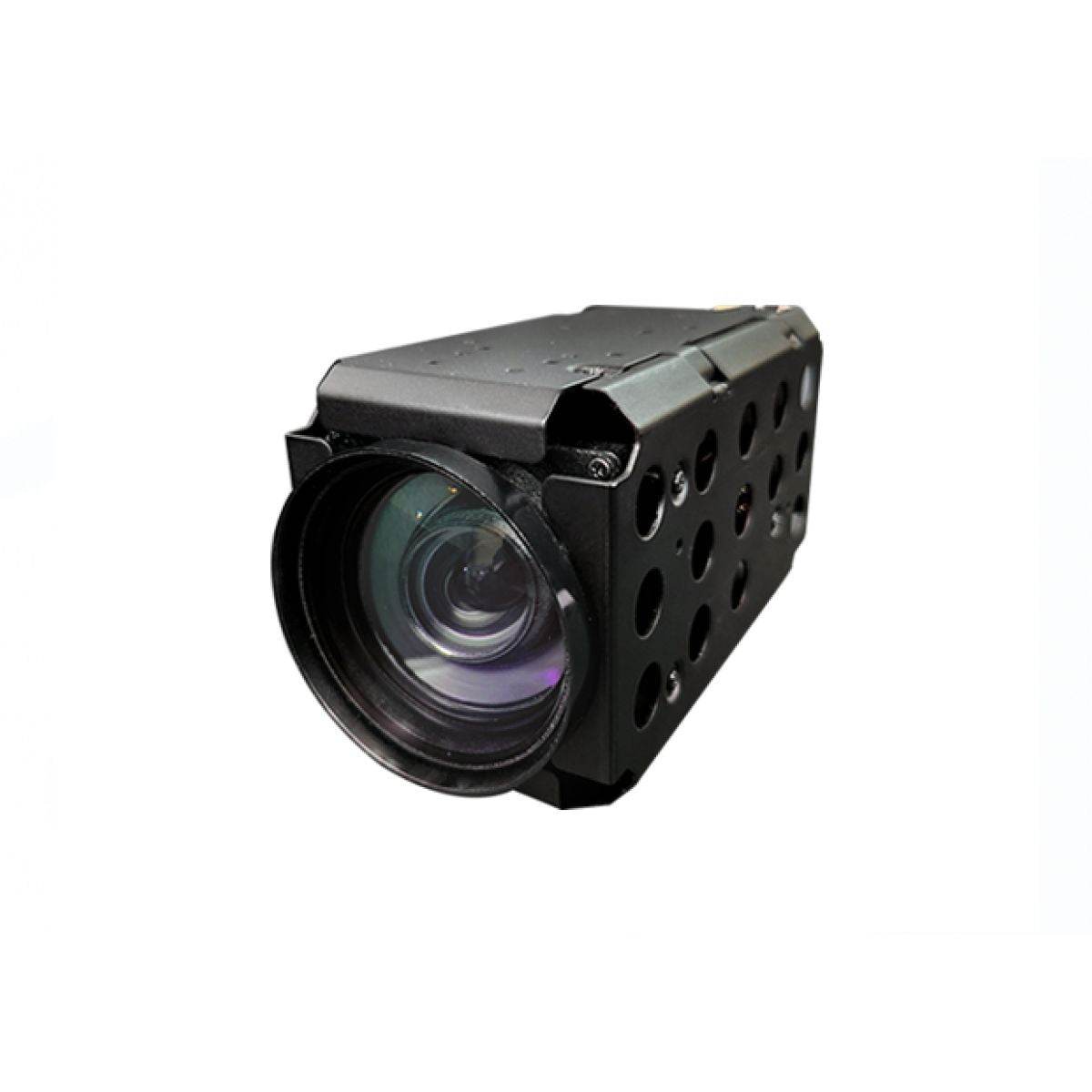

KT&C ATC-HZ8340T-LTA 2.3MP 1080P60 HD Camera with 40x Optical Zoom

The KT&C ATC-HZ8340T-LTA is a high-performance PTZ camera featuring a 1/2.6" Progressive Scan Global Shutter CMOS sensor, delivering an impressive resolution of 1920x1200 pixels (2.3MP) with 1080p60 video output. This camera supports multiple formats including HD-SDI, EX-SDI (up to version 3.0), CVBS, TVI, and AVI, ensuring seamless integration into any surveillance system.

With a powerful 480x AF Zoom lens offering 40x optical and 12x digital zoom, the ATC-HZ8340T-LTA allows for detailed close-ups, with a minimum working distance of just 0.01m. The camera is equipped with True WDR (Wide Dynamic Range), 2D/3D DNR (Digital Noise Reduction), and Defog technology, providing clear imaging in various lighting conditions. Its mechanical Day/Night functionality automatically switches between color and B&W modes.

The KT&C ATC-HZ8340T-LTA supports UART RS232-TTL for Pelco-D/P/C and VISCA protocols, making it ideal for professional surveillance setups. Additional features include adjustable brightness, 192 preset positions, image stabilization, and motion detection across four zones. With a compact design (53.2 x 62.0 x 101.2mm) and a maximum power consumption of 6.4W, this camera is reliable across operating temperatures of -10℃ to +50℃.

Features:

• 1/2.6" CMOS Sensor: Provides high-quality image capture with excellent clarity in various lighting conditions.
• 1080p Resolution: Ensures detailed and crisp visuals, capturing every element with precision.
• Global Shutter Technology: Eliminates rolling shutter effects for distortion-free imaging, ideal for dynamic scenes.
• 40x Optical Zoom: Allows for precise focusing on specific areas, making it suitable for both broad surveillance and detailed inspections.
• Connectivity Options: Includes LVDS and CVBS outputs for versatile integration with different systems.
• RS 232 TTL VISCA/Hitachi Control: Facilitates easy integration and control with existing surveillance setups.
• DC12V Power Supply: Flexible power requirements (7~15V) for straightforward installation.
• Compact Design: Adaptable for a variety of environments and installation scenarios.

Applications:

• Security Surveillance: Ideal for both commercial and residential settings, providing high-resolution monitoring and detailed zoom capabilities.
• Traffic Monitoring: Effective for capturing detailed images of vehicle movement and license plates.
• Public Safety: Useful for monitoring public areas and ensuring safety in crowded or high-traffic locations.
• Retail Loss Prevention: Helps in preventing theft and monitoring customer behavior in stores.
• Industrial Monitoring: Suitable for overseeing machinery and operations in manufacturing environments.

ATC-HZ8340T-LTA Spec Sheet
