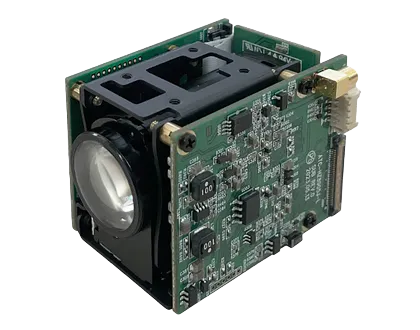

KT&C ATC-HZ8905J-L 2MP 1/3.1” Progressive CMOS Global Shutter AF Camera with 5x Optical Zoom

ATC-HZ8905J-L Spec Sheet

The KT&C ATC-HZ8905J-L combines a 1/3.1” Progressive CMOS sensor with a 2MP global shutter for sharp, low-noise imaging in demanding environments. Its autofocus lens delivers 5x optical and 16x digital zoom, capturing clear details at variable distances. Enhanced with true WDR, 2D/3D DNR, defog, and digital image stabilization, this camera ensures high-quality images even under challenging lighting conditions.

Engineered for professional applications, the ATC-HZ8905J-L supports multiple video outputs, including HD-SDI, EX-SDI, and LVDS, and remote control via UART RS232-TTL using VISCA or PELCO-D/P protocols. Compact and energy-efficient, it operates on 12VDC with a max consumption of 3.3W. Its versatile features—including preset positions, motion detection, and adjustable AE/white balance—make it ideal for industrial inspection, security monitoring, ITS, underwater imaging, gimbal systems, and pipe inspection.

Features:

• 2MP Global Shutter
• 1/3.1” Progressive CMOS
• 5x Optical Zoom / 16x Digital Zoom
• 1080p60 / 720p60 HD Video
• True WDR & 2D/3D DNR
• Defog & DIS
• Auto/Manual Focus & Presets
• Motion Detection & Privacy Mask
• Multi-language Support
• UART RS232-TTL Control

Applications:

• Industrial Inspection
• Security Monitoring
• Traffic ITS
• Underwater Imaging
• Gimbal Systems
• Pipe Inspection
