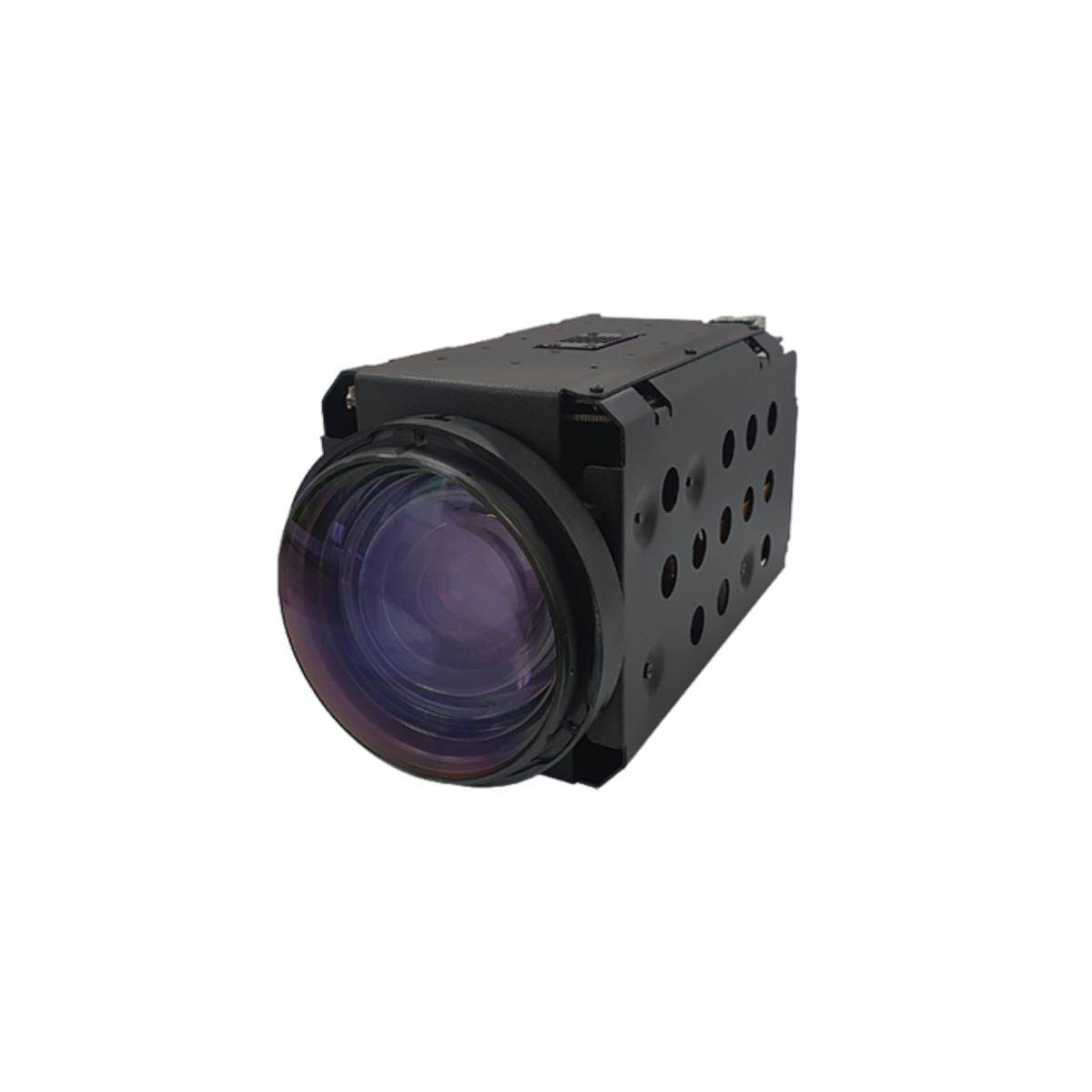

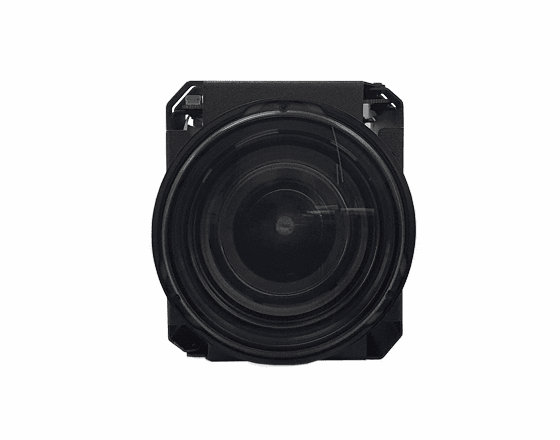

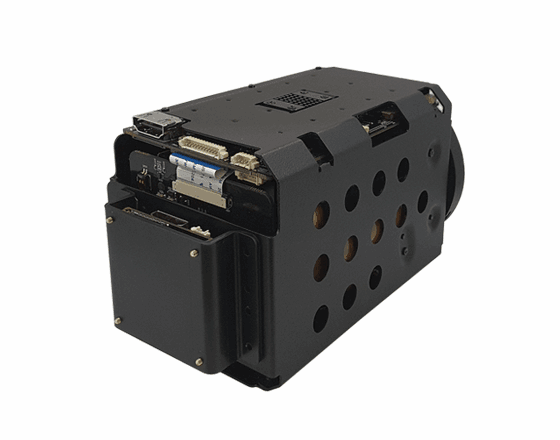

KT&C ATC-UZ5722U 8.95MP Global Shutter CMOS Camera With 22x Optical Zoom HDMI Output
KT&C ATC-UZ5722U 8.95MP Global Shutter CMOS Camera With 22x Optical Zoom HDMI Output
Couldn't load pickup availability
The KT&C ATC-UZ5722U is a high-performance surveillance camera equipped with a 1/1” Progressive Scan Global Shutter CMOS sensor, delivering 8.95MP resolution (4112x2176). It supports HDMI (1.4b) and CVBS video output, achieving a maximum resolution of 3840x2160 at 30fps. This camera excels in low-light conditions, with a minimum illumination of 0.1 Lux in day mode and 0.06 Lux in night mode (IR-cut filter on), providing a signal-to-noise ratio over 52dB.
Featuring a 22x optical zoom and 12x digital zoom through an autofocus optical zoom lens (P-Iris) with a focal length of 9.9mm to 217mm, the ATC-UZ5722U offers versatility in capturing wide and narrow views. It supports multiple exposure modes, including Auto, Shutter Priority, and Manual, alongside extensive white balance options. The compact design (79.5 x 86.2 x 175.4 mm) and lightweight build (497g) make it suitable for a range of installations, operating effectively in temperatures from -10℃ to +50℃.
Features:
- 1" Progressive Scan CMOS Sensor: Superior image quality and detail.
- 264x Autofocus Zoom: 22x optical and 12x digital zoom for clear, distant viewing.
- 4K UHD Resolution at 30/25fps: High-definition clarity for precise observation.
- P-Iris Technology: Enhances exposure and sharpness.
- Mechanical Day & Night: Adapts to different lighting conditions.
- True WDR: Balanced images in high-contrast scenarios.
- 3D DNR & Defog: Reduces noise and clears foggy images.
- UART RS232-TTL Interface: Supports Pleco-D, Pelco C, VISCA, and Hitachi protocols.
- Dual Mipi CSI-2 Ports: Flexible video connectivity.
Applications:
- High-Resolution Surveillance: Ideal for city surveillance, airports, and critical infrastructure.
- Wide-Area Monitoring: Perfect for large areas like parking lots and borders.
- Low-Light and Night-Time: Effective for 24/7 monitoring in varying light conditions.
- Dynamic Environments: Suitable for locations with changing lighting, such as retail spaces.
- System Integration: Compatible with existing systems for seamless setup.
| Image Sensor | 1/1” Progressive Scan Global Shutter CMOS |
| Effective Pixels | 8.95MP 4112(H) x 2176(V) |
| Video Output Mode | HDMI(1.4b) / CVBS |
| Max. Video Resolution | HDMI(1.4b) : 3840x2160@30fps |
| Synchronization System | Internal |
| Min.Illumination | Day mode: 0.1(Lux(F1.6) Night mode: 0.06Lux(F1.6/ IR-cut filter on) Sens-Up off, AGC28dB |
| S/N Rate | More than 52dB(AGC off, Sens-Up off) |
| Lens | AF Optical zoom lens(P-Iris) |
| Focal Length | f=9.9mm~217mm |
| F-Value | F1.62(W)~5.4(T) |
| Angle Of View | Horizontal 71.26°(W)~3.75°(T), Vertical 41.54°(W)~1.98°(T) |
| Zoom Ratio | Optical 22x / Digital 12x |
| Focus Min.Working Distance | 0.5m(Wide)/10.0m(Tele)~∞ |
| Focus Control | Auto/Manual/Interval/One Shot/Preset |
| AE mode | Auto/Shutter Priority/Iris Priority/AGC Priority/Manual |
| Brightness | 0~14 |
| Manual Shutter | 1/1, 1/2, 1/4(3), 1/8(6), 1/15(12), 1/30(25), 1/60(50)~1/10000 |
| Manual Iris | F1.6~F32, Close |
| Sense-up | Off~32fields |
| ETC | Spot AE, Slow AE |
| D&N Mode | Auto/Day(Color)/Night(BW)/External-H or L |
| White Balance | AUTO/ATW/Indoor/Outdoor/OnePush/Manual |
| Image Freeze | Off/On |
| Image Flip | Off/Horizontal/Vertical/H+V(180° Flip) |
| Privacy Mask Zone | 16 Zones/14 mask color selectable, semi-transparency |
| Digital Image Stabilization | Yes |
| Motion Detection | 4 Zones |
| D-WDR | Off/Low/Middle/High |
| WDR | Off/Low/Middle/High |
| BLC | Off/On, Area selectable |
| HLC | Off/0~20, Color selectable |
| AGC | Max.48dB |
| Sharpness | Adjustable(0~15) |
| 3D-DNR | On/Off(1~5) |
| 2D-DNR | Auto/Manual |
| Defog | Off/Low/Middle/High |
| Preset Position | 256 position Presets(Zoom,Focus), 16Memory Presets, Custom Preset |
| Language | English |
| Remote | RS232 TTL +5.0V(+3.3V compatible) |
| Protocol | VISCA/Pelco-D/Pelco-P/Hitachi: Automatic detection |
| Baud Rate | 2400/4800/9600/19200/38400/57600/115200bps |
| Supply Voltage | 12VDC(9V to 15VDC) |
| Power Consumption | Max.8.7W / Non-working zoom&focus 6.9W |

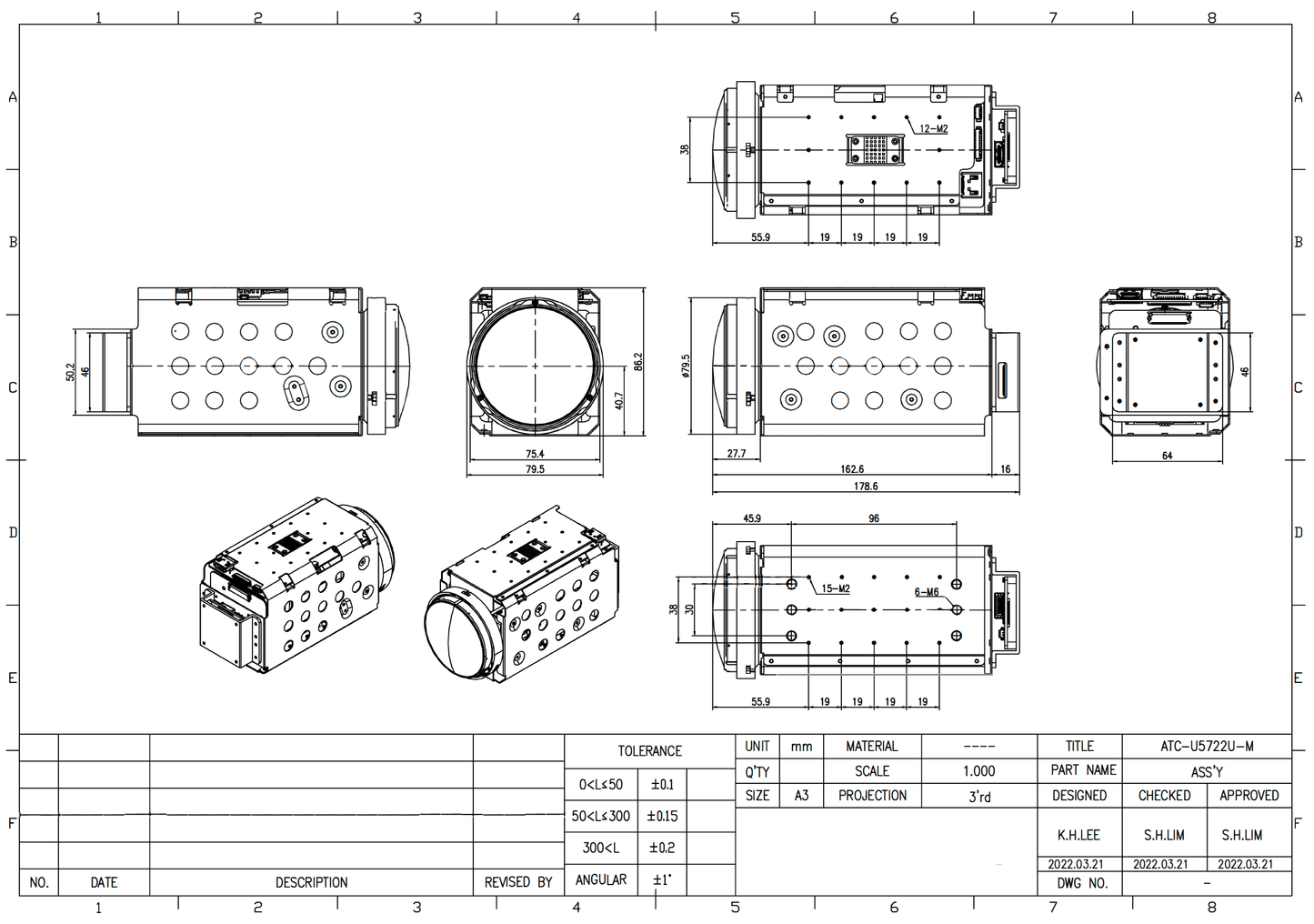

| Dimension (mm) | 79.5x86.2x175.4mm |
| Weight | Approx. 497g |
| Operating Temperature | -10℃~+50℃, Humidity(20~80%) |
| Storage Temperature | -20℃~+60℃, Humidity(20~95%) |
