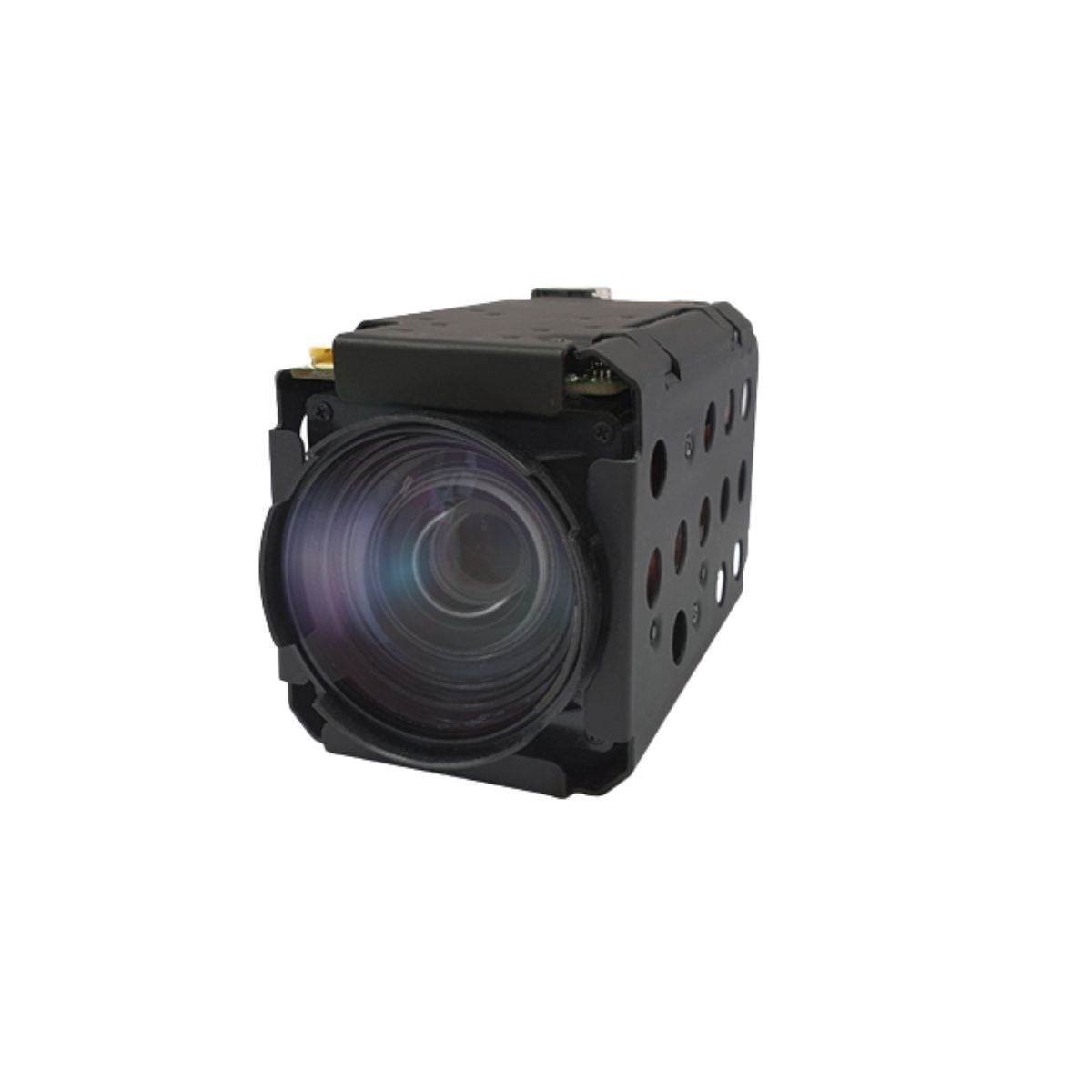

KT&C ATC-UZ5818M-H 4K 18X Zoom Block Camera
KT&C ATC-UZ5818M-H 4K 18X Zoom Block Camera
Couldn't load pickup availability
ATC-UZ5818M-H Specification Sheet
The KT&C ATC-UZ5818M-H is a top-tier 4K block camera designed for superior surveillance and imaging performance. Equipped with a 1/1.8" Progressive Scan CMOS sensor, it captures intricate details with outstanding clarity. The 4K resolution (3840x2160) at 30/25fps ensures sharp, high-definition visuals.
Featuring a powerful 216x autofocus zoom, including 18x optical and 12x digital zoom, this camera delivers exceptional detail even from a distance. Its Mechanical Day & Night functionality allows seamless operation in various lighting conditions, while True WDR, 3D DNR, and Defog features enhance image clarity in challenging environments.
The ATC-UZ5818M-H also supports multiple control protocols via UART RS232-TTL, such as Pleco-D, Pelco C, VISCA, and Hitachi, making it easy to integrate into existing systems. Ideal for high-resolution surveillance, traffic monitoring, public safety, and nighttime observation, it stands as a reliable choice for advanced imaging needs.
Features:
- 1/1.8" Progressive Scan CMOS Sensor
- 216x Autofocus Zoom (18x optical, 12x digital)
- 4K Resolution (3840x2160) at 30/25fps
- Mechanical Day & Night Functionality
- True WDR, 3D DNR, and Defog
- UART RS232-TTL Compatibility (Pleco-D, Pelco C, VISCA, Hitachi)
Applications:
- Surveillance & Security
- Traffic Monitoring
- Public Safety
- Remote Observation
- Nighttime Surveillance
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Effective Pixels | 8.42MP 3864(H) x 2180(V) |
| Video Output Mode | HDMI(1.4a)/CVBS |
| Max. Video Resolution | HDMI(1.4a) : 4K(3840x2160)@30(25fps) |
| Synchronization System | Internal |
| Min.Illumination | Day mode: 0.1Lux(F1.61) Night mode: 0.07Lux(F1.61/ IR-cut filter on) |
| S/N Rate | More than 55dB(AGC off, Sense-up off) |
| Lens | AF Optical zoom lens(DC Iris), IR Corrective f=6.8mm~120mm F1.61(W)~4.13(T) Horizontal 58.5°(W)~3.7°(T), Vertical 35.0°(W)~2.1°(T) |
| Zoom Ratio | Optical 18x / Digital 12x |
| Focus Min.Working Distance | 0.1m(Wide)/2.0m(Tele)~Infinite |
| Focus Control | Auto/Interval/One Push/Manual/Preset |
| AE mode | Auto/Shutter Priority/Iris Priority/AGC Priority/Manual |
| Brightness | 0~14 |
| Manual Shutter | 1/1, 1/2, 1/4(3), 1/8(6), 1/15(12), 1/30(25), 1/60(50)~1/10000 |
| Manual Iris | F1.6~F32, Close |
| Sense-up | Off~32fields |
| ETC | Spot AE, Slow AE |
| D&N Mode | Auto/Day(Color)/Night(BW)/External-H or L |
| White Balance | AUTO/One Push/Indoor/Outdoor/ATW/Manual |
| Image Freeze | Off/On |
| Image Flip | Off/Horizontal/Vertical/H+V(180° Flip) |
| Privacy Mask Zone | 4 Zones, Color: Black/White |
| Network Protocol | IPv4, TCP/IP, UDP, DHCP, DNS, RTP/RTSP, HTTP, HTTPS, ICMP |
| Network Port | 10/100/1000M Ethernet |
| Network Security | IP Filtering, HTTPs, Password Protection |
| Web Browser | Internet Explorer 11.0, Safari, Google Chrome, Firefox |
| Streaming Protocol | RTSP/RTP/UDP |
| Control Protocol | Pelco-D, Pelco-P |
| Backup | Micro SD/SDHC/SDXC Memory Card(Up to 128GB) |
| Operation Temperature | -10°C ~ +50°C |
| Power Supply | AC 24V/1A or PoE(IEEE 802.3af) |
| Power Consumption | 24V: 8W PoE: 12W |
| Weight | 1.7kg |
| Dimension | 247.5(W) x 138(H) x 115.5(D) mm |
| Construction | Die-cast Aluminum |
| Color | White |
| Ingress Protection | IP66 |
