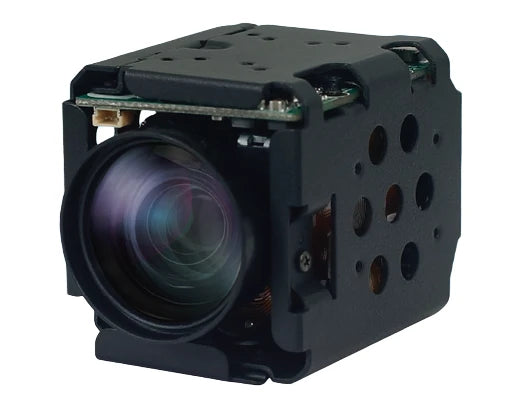

KT&C ATC-HZ5508C-LC 1.58MP Global Shutter 8x AF Zoom Block Camera

ATC-HZ5508C-LC Spec Sheet

The KT&C ATC-HZ5508C-LC is a compact FHD 1.58MP global shutter AF zoom block camera designed for embedded and industrial imaging systems that require sharp motion capture, flexible video output, compact size, and reliable remote camera control. Built around a 1/2.9" progressive scan global shutter CMOS sensor, this camera is well suited for robotics, UAV/drone imaging, machine vision, industrial inspection, surveillance, intelligent traffic systems, security, and OEM camera integration.

With LVDS video output up to 1080p at 60fps, CVBS output, 8x optical zoom, 12x digital zoom, mechanical Day/Night operation, True WDR, 3D digital noise reduction, defog, digital image stabilization, and UART RS232-TTL control, the ATC-HZ5508C-LC gives integrators a compact global shutter zoom camera platform for motion-sensitive imaging applications.

Key Features:

• 1.58MP 1/2.9" progressive scan global shutter CMOS sensor
• LVDS output up to 1080p at 60/50fps
• CVBS video output for analog integration
• 96x total AF zoom: 8x optical zoom + 12x digital zoom
• Global shutter performance for reduced motion distortion
• Internal / external synchronization option
• Mechanical Day/Night with IR corrective lens
• True WDR, D-WDR, BLC, HLC, Defog, 2D-DNR, and 3D-DNR
• Digital image stabilization
• 256 position presets, 16 memory presets, and custom preset support
• UART RS232-TTL control with VISCA, Pelco-D, Pelco-P, and Hitachi protocol support
• Compact 41.6 x 45 x 61.6 mm block camera design
• Approx. 124g lightweight OEM camera module

Compact Global Shutter Camera for Motion-Sensitive Imaging

The ATC-HZ5508C-LC uses a global shutter image sensor, making it useful for applications where motion, vibration, moving objects, conveyors, robotics, vehicles, or airborne platforms can create distortion with rolling shutter cameras.

Global shutter capture helps preserve object shape during motion, making this camera a practical option for machine vision, inspection, robotics, traffic monitoring, industrial automation, and embedded vision systems where clean frame capture matters.

LVDS and CVBS Output Flexibility

The ATC-HZ5508C-LC supports LVDS and CVBS video output, giving integrators both digital and analog video options in a compact block camera format. LVDS output supports up to 1080p at 60/50fps, while CVBS provides compatibility for analog video systems, legacy equipment, and service-monitor workflows.

This makes the camera a strong fit for OEM camera designs that need the motion accuracy of global shutter imaging but still require flexible output options for different platforms.

8x Optical Zoom with Compact Integration

The integrated autofocus zoom lens provides a focal range of 5.6mm to 43.7mm, giving the camera a horizontal field of view from approximately 50.19° wide to 6.43° telephoto. With 8x optical zoom and 12x digital zoom, the ATC-HZ5508C-LC supports both wider scene viewing and tighter inspection or surveillance detail.

Focus control options include Auto, Manual, Interval, One Push, and Preset, giving integrators useful control for fixed installations, remote-controlled imaging platforms, compact surveillance systems, robotics, and OEM camera designs.

Advanced Image Processing

The ATC-HZ5508C-LC includes image enhancement features designed to improve usability in challenging lighting and environmental conditions:

• True WDR with adjustable level, contrast, and brightness
• D-WDR with Low, Middle, and High settings
• 3D-DNR and 2D-DNR for cleaner low-light images
• Defog with Off, On, and Auto modes
• BLC and HLC for backlight and highlight compensation
• Digital image stabilization for vibration-prone systems
• Mechanical Day/Night for color daytime imaging and black-and-white night operation
• Privacy masking and motion detection

These tools help the camera maintain more usable video when dealing with glare, haze, vibration, low light, and high-contrast scenes.

Presets and Remote Camera Control

The ATC-HZ5508C-LC supports 256 position presets for zoom and focus, 16 memory presets, and custom preset control, making it useful for systems that need repeatable camera positions or preset imaging configurations.

The camera also supports UART RS232-TTL control with automatic protocol detection for VISCA, Pelco-D, Pelco-P, and Hitachi. Supported baud rates include 2400, 4800, 9600, 19200, 38400, 57600, and 115200bps.

Ideal Applications:

The KT&C ATC-HZ5508C-LC is well suited for:

• Compact OEM embedded vision systems
• Robotics and autonomous systems
• UAV and drone imaging payloads
• Machine vision and factory automation
• Industrial inspection systems
• Intelligent traffic and transportation monitoring
• Security and surveillance systems
• LVDS camera integration
• Analog CVBS video systems
• Remote-controlled imaging platforms
• Low-light and high-contrast video applications

Technical Highlights:

• Image Sensor: 1/2.9" Progressive Scan Global Shutter CMOS
• Effective Pixels: 1.58MP, 1456(H) x 1088(V)
• Video Output: LVDS / CVBS
• Max Video Resolution: LVDS 1080p at 60/50fps
• Synchronization: Internal / External Option
• Lens: AF optical zoom lens, DC iris, IR corrective
• Focal Length: 5.6mm to 43.7mm
• Aperture: F1.7 wide to F1.9 tele
• Zoom Ratio: 8x optical, 12x digital
• Minimum Illumination: 0.1 lux day mode, 0.08 lux night mode
• S/N Ratio: More than 55dB
• Focus Control: Auto, Manual, Interval, One Push, Preset
• Day/Night: Auto, Day, Night, External-H or L
• WDR: Off / On, adjustable level, contrast, and brightness
• Noise Reduction: 2D-DNR and 3D-DNR
• Defog: Off / On / Auto
• Preset Support: 256 position presets, 16 memory presets, custom preset
• Control: UART RS232-TTL, VISCA, Pelco-D, Pelco-P, Hitachi
• Power: 12VDC, 9V to 15VDC supported
• Power Consumption: Max. 4.7W / 3.0W when zoom and focus are not operating
• Dimensions: 41.6 x 45 x 61.6 mm
• Weight: Approx. 124g
• Operating Temperature: -10°C to +50°C
• Storage Temperature: -20°C to +60°C

Why Choose the KT&C ATC-HZ5508C-LC?

The ATC-HZ5508C-LC combines the motion accuracy of a global shutter sensor, the flexibility of an 8x AF zoom lens, and the integration versatility of LVDS and CVBS video output. For OEMs and system designers who need a compact zoom block camera for robotics, industrial inspection, surveillance, traffic, analog video, or embedded vision applications, this model is a strong fit.

Contact Block Cameras today for pricing, availability, and integration support for the KT&C ATC-HZ5508C-LC 1.58MP Global Shutter 8x AF Zoom Block Camera.
