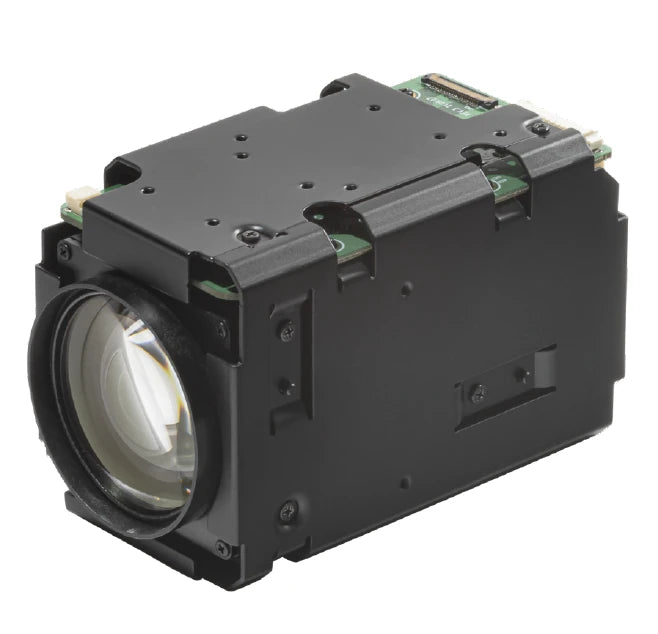

KT&C ATC-HZ5509W-UE 3MP USB Global Shutter AF Zoom Block Camera

ATC-HZ5509W-UE Spec Sheet

The KT&C ATC-HZ5509W-UE is a compact 3MP USB global shutter AF zoom block camera designed for industrial imaging systems that require sharp motion capture, high-speed video output, remote control, and dependable image performance. Built around a 1/1.8" progressive scan global shutter CMOS sensor, this camera is a strong fit for robotics, UAV/drone imaging, machine vision, industrial inspection, intelligent traffic systems, surveillance, security, and OEM embedded vision applications.

With 1080p video at 60/50/30/25fps, USB 3.0 output, CVBS output, 9x optical zoom, 12x digital zoom, mechanical Day/Night operation, True WDR, 3D digital noise reduction, defog, and external synchronization, the ATC-HZ5509W-UE gives integrators a flexible zoom camera platform in a compact 50.3 x 58.4 x 92.0 mm block camera design.

Key Features:

• 3.19MP 1/1.8" progressive scan global shutter CMOS sensor
• 1080p output at 60/50/30/25fps
• USB 3.0 and CVBS video output
• 108x total AF zoom: 9x optical zoom + 12x digital zoom
• Global shutter performance for reduced motion distortion
• External synchronization support
• Mechanical Day/Night with IR corrective lens
• True WDR, D-WDR, BLC, HLC, Defog, 2D-DNR, and 3D-DNR
• Digital image stabilization
• UART RS232-TTL control with VISCA, Pelco-D/P, and AFP/EAP protocol support
• 12VDC power input with low power consumption
• Compact OEM block camera design for embedded systems

USB Global Shutter Camera for Motion-Critical Applications

The ATC-HZ5509W-UE uses a global shutter image sensor, making it a smart choice for applications where rolling shutter distortion can cause problems. This is especially useful when capturing moving objects, mobile platforms, robotic systems, production lines, traffic scenes, or airborne imaging from UAVs and drones.

Global shutter capture helps preserve object shape during motion, making this camera better suited for timing-sensitive imaging than a standard rolling shutter camera. For machine vision, inspection, automation, and robotics, that can make the difference between usable image data and distorted footage.

USB 3.0 Output for Modern Embedded Vision Systems

One of the biggest advantages of the ATC-HZ5509W-UE is its USB 3.0 video output, making it easier to integrate into modern industrial and embedded imaging platforms. USB 3.0 provides a practical interface for systems that need high-quality video without the added complexity of some board-level digital video outputs.

The camera also includes CVBS output, giving integrators added flexibility for legacy video systems, service monitors, or applications where analog video is still required.

AF Zoom Lens with Long-Range Detail

The integrated autofocus zoom lens provides a focal range of 8.0mm to 70mm, giving the camera a horizontal field of view from approximately 50.0° wide to 5.6° telephoto. With 9x optical zoom and 12x digital zoom, the ATC-HZ5509W-UE supports both wide-area viewing and detailed long-range observation.

Focus control options include Auto, Interval, One Push, Manual, and Preset, giving integrators flexibility for fixed installations, remote-controlled platforms, PTZ-style systems, and automated imaging applications.

External Sync for Timing-Sensitive Imaging

The ATC-HZ5509W-UE supports internal and external synchronization, making it useful for applications where camera timing matters. External sync can be valuable in multi-camera systems, machine vision inspection, traffic monitoring, robotics, and industrial automation environments where image capture needs to align with other sensors, triggers, lighting, or system events.

Advanced Image Processing

Designed for challenging real-world lighting conditions, the ATC-HZ5509W-UE includes a strong set of image enhancement features:

• True WDR for high-contrast scenes
• D-WDR with Auto, Low, Middle, and High settings
• 3D-DNR and 2D-DNR for cleaner images in low-light environments
• Defog with Auto, Low, Middle, and High settings
• BLC and HLC for backlight and highlight compensation
• Digital image stabilization for vibration-prone systems
• Mechanical Day/Night for color daytime imaging and black-and-white night operation
• Privacy masking and motion detection

These features help the camera deliver clearer, more usable video in lighting conditions that are difficult for basic block cameras.

Remote Camera Control

The ATC-HZ5509W-UE supports UART RS232-TTL control with automatic protocol detection for VISCA, Pelco-D/P, and AFP/EAP. Supported baud rates include 2400, 4800, 9600, 19200, 38400, 57600, and 115200bps.

This makes the camera suitable for remote zoom, focus, exposure, and image control in robotics platforms, security systems, inspection equipment, embedded controllers, and OEM imaging devices.

Ideal Applications:

The KT&C ATC-HZ5509W-UE is well suited for:

• Robotics and autonomous systems
• UAV and drone imaging payloads
• Machine vision and factory automation
• Industrial inspection systems
• Intelligent traffic and transportation monitoring
• Security and surveillance systems
• Long-range observation
• Remote-controlled imaging platforms
• USB-based embedded vision systems
• OEM camera integration
• Medical and scientific imaging equipment
• Low-light and high-contrast video applications

Technical Highlights:

• Image Sensor: 1/1.8" Progressive Scan Global Shutter CMOS
• Effective Pixels: 3.19MP, 2064(H) x 1544(V)
• Video Output: USB / CVBS
• Max Video Interface: USB 3.0
• Frame Rates: 1080p at 60/50/30/25fps
• Synchronization: Internal / External
• Lens: AF optical zoom lens, DC iris, IR corrective
• Focal Length: 8.0mm to 70mm
• Aperture: F1.5 wide to F2.1 tele
• Zoom Ratio: 9x optical, 12x digital
• Minimum Illumination: 0.1 lux day mode, 0.05 lux night mode
• S/N Ratio: More than 55dB
• Focus Control: Auto, Interval, One Push, Manual, Preset
• Day/Night: Auto, Day, Night, EXT-H, EXT-L
• WDR: True WDR adjustable
• Noise Reduction: 2D-DNR and 3D-DNR
• Defog: Off, On, Auto
• Control: UART RS232-TTL, VISCA, Pelco-D/P, AFP/EAP
• Power: 12VDC, 9V to 15VDC supported
• Power Consumption: Max. 5.2W / 3.4W when zoom and focus are not operating
• Dimensions: 50.3 x 58.4 x 92.0 mm
• Weight: Approx. 253g
• Operating Temperature: -10°C to +50°C
• Storage Temperature: -20°C to +60°C

Why Choose the KT&C ATC-HZ5509W-UE?

The ATC-HZ5509W-UE combines the motion accuracy of a global shutter sensor, the integration convenience of USB 3.0 output, and the flexibility of an AF zoom block camera. With external sync, CVBS output, mechanical Day/Night, True WDR, defog, digital image stabilization, and UART camera control, this model is a strong option for industrial, robotic, surveillance, inspection, and OEM embedded vision systems.
