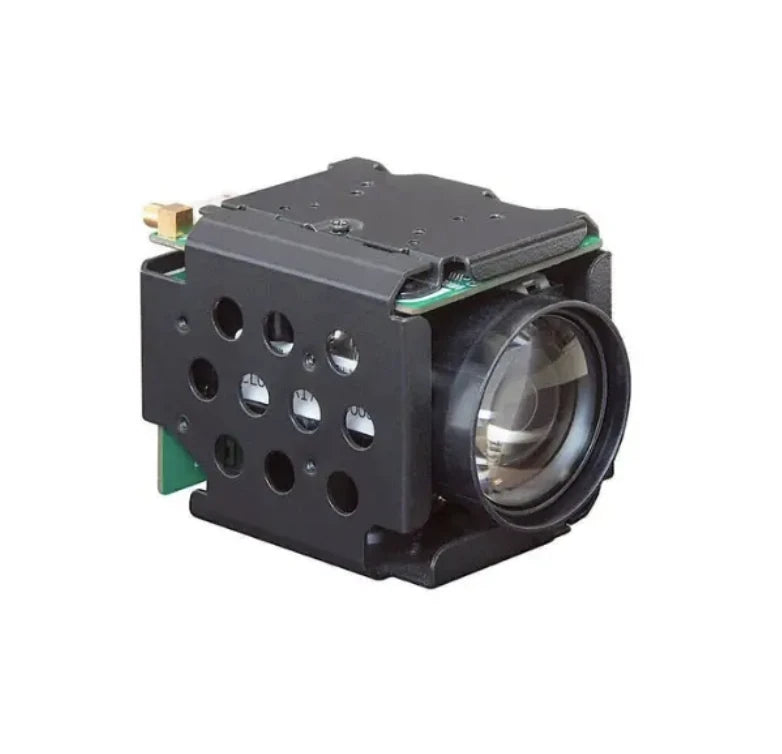

KT&C ATC-HZ5510C-LC 1.58MP Global Shutter 10x AF Zoom Block Camera

ATC-HZ5510C-LC Spec Sheet
ATC-HZ5510C-LC Dimensions

The KT&C ATC-HZ5510C-LC is a compact 1.58MP global shutter AF zoom block camera designed for embedded and industrial imaging systems that need sharp motion capture, flexible LVDS/CVBS video output, compact size, and reliable remote camera control. Built around a 1/2.9" progressive scan global shutter CMOS sensor, this camera is ideal for robotics, UAV/drone imaging, machine vision, industrial inspection, intelligent traffic systems, surveillance, security, and OEM embedded vision applications.

With 720p video output up to 60fps, 10x optical zoom, 12x digital zoom, LVDS and CVBS output, mechanical Day/Night operation, True WDR, 2D/3D digital noise reduction, defog, digital image stabilization, and internal/external sync support, the ATC-HZ5510C-LC gives system designers a compact zoom camera platform for both digital HD and analog video integration.

Key Features:

• 1.58MP 1/2.9" progressive scan global shutter CMOS sensor
• 720p output at 60/50/30/25fps
• 120x total AF zoom: 10x optical zoom + 12x digital zoom
• Global shutter performance for reduced motion distortion
• LVDS and CVBS video output
• Internal / external synchronization option
• Mechanical Day/Night with IR corrective lens
• True WDR, D-WDR, BLC, HLC, Defog, 2D-DNR, and 3D-DNR
• Digital image stabilization
• 256 position presets, 16 memory presets, and custom preset support
• Motion detection and privacy masking
• UART RS232-TTL control with VISCA, Pelco-D, Pelco-P, and Hitachi protocol support
• Compact 41.6 x 45 x 61.6 mm OEM block camera design
• Approx. 124g lightweight camera module

Global Shutter Imaging for Motion-Critical Applications

The ATC-HZ5510C-LC uses a global shutter image sensor, making it a strong choice for applications where moving objects, vibration, mobile platforms, conveyors, or traffic scenes can create distortion with rolling shutter cameras.

Global shutter capture helps preserve object shape during motion, making this model useful for machine vision, robotics, UAV imaging, traffic monitoring, industrial inspection, and other systems where clean frame capture matters.

10x Optical Zoom in a Compact Design

The integrated autofocus zoom lens provides a focal range of 5.1mm to 51mm, giving the camera a horizontal field of view from approximately 54.0° wide to 4.9° telephoto. With 10x optical zoom and 12x digital zoom, the ATC-HZ5510C-LC supports both wider scene coverage and tighter long-distance detail.

Focus control options include Auto, Interval, One Push, Manual, and Preset, giving integrators flexible control for fixed installations, automated systems, remote-controlled imaging platforms, and OEM camera designs.

LVDS and CVBS Output Flexibility

The ATC-HZ5510C-LC supports both LVDS and CVBS video output, making it a practical option for systems that need digital HD video and analog compatibility in the same compact block camera platform.

LVDS output supports up to 720p at 60/50fps, while CVBS provides useful compatibility for legacy analog video systems, service monitors, and existing CCD-style workflows. This makes the camera especially useful for integrators upgrading from analog systems while still needing flexible output options.

External Sync for Multi-Camera Systems

The ATC-HZ5510C-LC includes internal / external synchronization support, which can be valuable for multi-camera imaging systems, machine vision, robotics, industrial automation, and synchronized inspection environments.

For OEM systems where timing matters, external sync gives designers another layer of control beyond standard video output and camera communication.

Advanced Image Processing

The ATC-HZ5510C-LC includes image enhancement tools designed to improve video usability in difficult lighting and environmental conditions:

• True WDR with adjustable level, contrast, and brightness
• D-WDR with Low, Middle, and High settings
• 3D-DNR and 2D-DNR for cleaner low-light images
• Defog with Off, On, and Auto modes
• BLC and HLC for backlight and highlight compensation
• Digital image stabilization for vibration-prone platforms
• Mechanical Day/Night for color daytime imaging and black-and-white night operation
• Privacy masking and motion detection

These features help the camera maintain clearer, more usable images when dealing with glare, haze, vibration, low light, and high-contrast scenes.

Presets and Remote Camera Control

The ATC-HZ5510C-LC supports 256 position presets for zoom and focus, 16 memory presets, and custom preset control, making it useful for repeatable camera positioning and stored imaging views.

The camera also supports UART RS232-TTL control with automatic protocol detection for VISCA, Pelco-D, Pelco-P, and Hitachi. Supported baud rates include 2400, 4800, 9600, 19200, 38400, 57600, and 115200bps.

Ideal Applications:

The KT&C ATC-HZ5510C-LC is well suited for:

• OEM embedded vision systems
• Robotics and autonomous systems
• UAV and drone imaging payloads
• Machine vision and factory automation
• Industrial inspection systems
• Intelligent traffic and transportation monitoring
• Security and surveillance systems
• Multi-camera synchronized imaging systems
• LVDS camera integration
• CVBS analog video systems
• Remote-controlled imaging platforms
• Low-light and high-contrast video applications

Technical Highlights:

• Image Sensor: 1/2.9" Progressive Scan Global Shutter CMOS
• Effective Pixels: 1.58MP, 1456(H) x 1088(V)
• Video Output: LVDS / CVBS
• Max Video Resolution: 720p at 60/50fps
• Synchronization: Internal / External Option
• Lens: AF optical zoom lens, DC iris, IR corrective
• Focal Length: 5.1mm to 51mm
• Aperture: F1.6 wide to F1.8 tele
• Zoom Ratio: 10x optical, 12x digital
• Minimum Illumination: 0.01 lux day mode, 0.08 lux night mode
• S/N Ratio: More than 55dB
• Focus Control: Auto, Interval, One Push, Manual, Preset
• Day/Night: Auto, Day, Night, External-H or L
• WDR: Off / On, adjustable level, contrast, and brightness
• Noise Reduction: 2D-DNR and 3D-DNR
• Defog: Off / On / Auto
• Preset Support: 256 position presets, 16 memory presets, custom preset
• Control: UART RS232-TTL, VISCA, Pelco-D, Pelco-P, Hitachi
• Power: 12VDC, 9V to 15VDC supported
• Power Consumption: Max. 4.74W / 3.0W when zoom and focus are not operating
• Dimensions: 41.6 x 45 x 61.6 mm
• Weight: Approx. 124g
• Operating Temperature: -10°C to +50°C
• Storage Temperature: -20°C to +60°C

Why Choose the KT&C ATC-HZ5510C-LC?

The ATC-HZ5510C-LC combines the motion accuracy of a global shutter sensor, the flexibility of a 10x AF optical zoom lens, and the integration versatility of LVDS, CVBS, external sync, preset support, and UART control. For OEMs and system designers who need a compact zoom block camera for robotics, industrial inspection, surveillance, traffic, analog video, or embedded vision applications, this model is a strong fit.

Contact Block Cameras today for pricing, availability, and integration support for the KT&C ATC-HZ5510C-LC 1.58MP Global Shutter 10x AF Zoom Block Camera.
