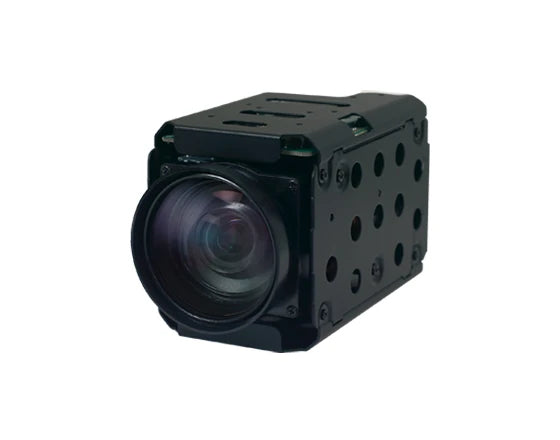

KT&C ATC-HZ5525Z-LP 1.5MP Global Shutter 25x AF Zoom Block Camera

ATC-HZ5525Z-LP Spec Sheet
ATC-HZ5525Z-LP Dimensions

The KT&C ATC-HZ5525Z-LP is a compact 1.5MP global shutter AF zoom block camera designed for imaging systems that need long-range optical zoom, accurate motion capture, flexible video output, synchronized imaging support, and reliable remote camera control. Built around a 1/2.9" progressive scan global shutter CMOS sensor, this camera is well suited for robotics, UAV/drone imaging, machine vision, industrial inspection, intelligent traffic systems, surveillance, security, and OEM embedded vision applications.

With 720p video output up to 60fps, 25x optical zoom, 12x digital zoom, mechanical Day/Night operation, True WDR, 3D digital noise reduction, defog, digital image stabilization, and trigger in/strobe out support, the ATC-HZ5525Z-LP gives integrators a flexible long-range zoom camera platform in a compact block camera design.

Key Features:

• 1.58MP 1/2.9" progressive scan global shutter CMOS sensor
• 720p output at 60/50/30/25fps
• 300x total AF zoom: 25x optical zoom + 12x digital zoom
• Global shutter performance for reduced motion distortion
• Parallel, LVDS, and CVBS video output
• Trigger input and strobe output for synchronized imaging
• Internal / external synchronization option
• Mechanical Day/Night with IR corrective lens
• True WDR, D-WDR, BLC, HLC, Defog, 2D-DNR, and 3D-DNR
• Digital image stabilization
• UART RS232-TTL control with VISCA and Pelco-D/P protocol support
• Compact 50 x 58.8 x 96.1 mm block camera design
• Approx. 240g OEM camera module

Long-Range Global Shutter Imaging

The ATC-HZ5525Z-LP combines a global shutter image sensor with a 25x optical zoom lens, making it useful for applications where long-range viewing and motion accuracy both matter.

Global shutter capture helps reduce image distortion when viewing moving objects, vehicles, conveyors, UAVs, robotic platforms, or vibration-prone systems. This makes the camera a practical fit for machine vision, industrial automation, traffic monitoring, inspection, surveillance, and other motion-sensitive imaging environments.

25x Optical Zoom with 720p60 Output

The integrated autofocus zoom lens provides a focal range of 5.3mm to 130mm, giving the camera a horizontal field of view from approximately 53.4° wide to 2.2° telephoto. With 25x optical zoom and 12x digital zoom, the ATC-HZ5525Z-LP supports both wide-area viewing and tight long-distance detail.

Focus control options include Auto, Manual, Interval, One Shot, and Preset, giving integrators flexibility for fixed installations, remote-controlled systems, PTZ-style platforms, and automated imaging applications.

Flexible Output for OEM Integration

The ATC-HZ5525Z-LP supports Parallel, LVDS, and CVBS video output, making it suitable for both embedded digital video systems and analog video workflows. LVDS and Parallel output support up to 720p at 60/50fps, while CVBS provides additional compatibility for analog or legacy video systems.

This flexibility makes the camera a strong option for OEMs and system designers building compact imaging systems for robotics, inspection, surveillance, industrial monitoring, traffic systems, and embedded vision.

Trigger, Strobe, and External Sync Support

For synchronized imaging applications, the ATC-HZ5525Z-LP includes trigger input, strobe output, and internal / external synchronization options. These features are valuable in machine vision, inspection, traffic monitoring, automation, and multi-device imaging systems where timing control matters.

Advanced Image Processing

The ATC-HZ5525Z-LP includes image enhancement tools designed to improve video usability in challenging environments:

• True WDR with adjustable level, contrast, and brightness
• D-WDR with Low, Middle, and High settings
• 3D-DNR and 2D-DNR for cleaner low-light images
• Defog with Off, On, and Auto modes
• BLC and HLC for backlight and highlight compensation
• Digital image stabilization for vibration-prone systems
• Mechanical Day/Night for color daytime imaging and black-and-white night operation
• Privacy masking and motion detection

These features help the camera maintain more usable video when dealing with glare, haze, low light, vibration, and high-contrast scenes.

Remote Camera Control

The ATC-HZ5525Z-LP supports UART RS232-TTL control with support for VISCA and Pelco-D/P. Supported baud rates include 2400, 4800, 9600, 19200, 38400, 57600, and 115200bps.

This makes the camera easier to integrate into embedded controllers, robotic systems, inspection platforms, surveillance equipment, and OEM products that require remote zoom, focus, exposure, and image control.

Ideal Applications:

The KT&C ATC-HZ5525Z-LP is well suited for:

• Robotics and autonomous systems
• UAV and drone imaging payloads
• Machine vision and factory automation
• Industrial inspection systems
• Intelligent traffic and transportation monitoring
• Security and surveillance systems
• Long-range observation
• Remote-controlled imaging platforms
• Synchronized imaging systems
• OEM embedded vision designs
• Analog and digital video integration
• Low-light and high-contrast video applications

Technical Highlights:

• Image Sensor: 1/2.9" Progressive Scan Global Shutter CMOS
• Effective Pixels: 1.58MP, 1456(H) x 1088(V)
• Video Output: Parallel / LVDS / CVBS
• Max Resolution: LVDS / Parallel 720p at 60/50fps
• Synchronization: Internal / External Option
• Lens: AF optical zoom lens, DC iris, IR corrective
• Focal Length: 5.3mm to 130mm
• Aperture: F1.6 wide to F4.3 tele
• Zoom Ratio: 25x optical, 12x digital
• Minimum Illumination: 0.1 lux day mode
• S/N Ratio: More than 55dB
• Focus Control: Auto, Manual, Interval, One Shot, Preset
• Day/Night: Auto, Day, Night, External-H or L
• WDR: Off / On, adjustable level, contrast, and brightness
• Noise Reduction: 2D-DNR and 3D-DNR
• Defog: Off / On / Auto
• Trigger/Strobe: Trigger In / Strobe Out
• Control: UART RS232-TTL, VISCA, Pelco-D/P
• Power: 12VDC, 9V to 15VDC supported
• Power Consumption: Max. 6.4W / 4.7W when zoom and focus are not operating
• Dimensions: 50 x 58.8 x 96.1 mm
• Weight: Approx. 240g
• Operating Temperature: -10°C to +50°C
• Storage Temperature: -20°C to +60°C

Why Choose the KT&C ATC-HZ5525Z-LP?

The ATC-HZ5525Z-LP combines the motion accuracy of a global shutter sensor, the long-range reach of a 25x optical AF zoom lens, and the integration flexibility of Parallel, LVDS, CVBS, trigger/strobe, external sync, and UART control. For OEMs and system designers who need a compact long-range block camera for robotics, industrial inspection, surveillance, traffic, or embedded vision applications, this model is a strong fit.

Contact Block Cameras today for pricing, availability, and integration support for the KT&C ATC-HZ5525Z-LP 1.5MP Global Shutter 25x AF Zoom Block Camera.
