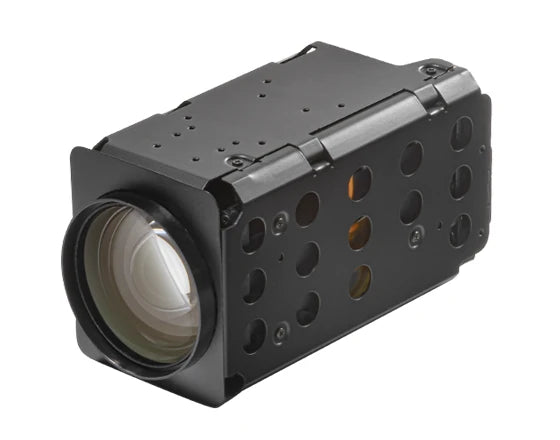

KT&C ATC-HZ5528W-M 3MP MIPI CSI-2 Global Shutter 28x AF Zoom Block Camera

ATC-HZ5528W-M Spec Sheet

The KT&C ATC-HZ5528W-M is a compact 3MP MIPI CSI-2 global shutter AF zoom block camera designed for embedded vision systems that need long-range optical zoom, sharp motion capture, high-speed digital video output, and reliable camera control. Built around a 1/1.8" progressive scan global shutter CMOS sensor, this camera is ideal for robotics, UAV/drone imaging, machine vision, industrial inspection, intelligent traffic systems, surveillance, security, and OEM camera integration.

With MIPI CSI-2 4-lane output, 1080p video up to 60fps, 28x optical zoom, 12x digital zoom, mechanical Day/Night operation, True WDR, 3D digital noise reduction, defog, and UART RS232-TTL control, the ATC-HZ5528W-M gives integrators a powerful long-range zoom camera platform for modern embedded imaging designs.

Key Features:

• 3.19MP 1/1.8" progressive scan global shutter CMOS sensor
• MIPI CSI-2 4-lane digital video output
• CVBS output for additional integration flexibility
• 1080p output at 60/50/30/25fps
• 336x total AF zoom: 28x optical zoom + 12x digital zoom
• Global shutter performance for reduced motion distortion
• Mechanical Day/Night with IR corrective lens
• True WDR, D-WDR, BLC, HLC, Defog, 2D-DNR, and 3D-DNR
• Digital image stabilization
• UART RS232-TTL control with VISCA, Pelco-D/P, and AFP/EAP protocol support
• 12VDC power input
• Compact long-range OEM block camera design for embedded systems

MIPI CSI-2 Global Shutter Camera for Embedded Vision

The ATC-HZ5528W-M is built for systems that need a compact digital camera module with MIPI CSI-2 4-lane output. MIPI CSI-2 is commonly used in embedded vision designs where direct digital video connection, small form factor, and efficient integration matter.

This makes the ATC-HZ5528W-M a strong option for OEM camera systems, robotics platforms, AI vision devices, inspection equipment, intelligent traffic systems, and custom embedded imaging applications.

Long-Range 28x Optical Zoom

The integrated autofocus zoom lens provides a focal range of 6.7mm to 190mm, giving the camera a horizontal field of view from approximately 54.3° wide to 2.0° telephoto. With 28x optical zoom and 12x digital zoom, the ATC-HZ5528W-M can support both wide-area viewing and tight long-distance detail.

Focus control options include Auto, Interval, One Push, Manual, and Preset, giving system designers flexibility for fixed installations, remote-controlled platforms, PTZ-style systems, and automated imaging applications.

Global Shutter Performance for Motion-Critical Imaging

The ATC-HZ5528W-M uses a global shutter image sensor, making it a better fit for applications where moving objects, vibration, vehicles, drones, robotics, conveyors, or fast scene changes can create image distortion.

Global shutter capture helps preserve object shape during motion, making this camera valuable for machine vision, industrial automation, traffic monitoring, robotic navigation, inspection, and other timing-sensitive imaging applications.

Advanced Image Processing

The ATC-HZ5528W-M includes a strong image processing feature set for difficult lighting and environmental conditions:

• True WDR for high-contrast scenes
• D-WDR with Auto, Low, Middle, and High settings
• 3D-DNR and 2D-DNR for cleaner low-light video
• Defog with Auto, Low, Middle, and High settings
• BLC and HLC for backlight and highlight compensation
• Digital image stabilization for vibration-prone systems
• Mechanical Day/Night for color daytime imaging and black-and-white night operation
• Privacy masking and motion detection

These features help improve image usability in real-world conditions where lighting, haze, glare, movement, and contrast can reduce performance.

Remote Camera Control

The ATC-HZ5528W-M supports UART RS232-TTL control with automatic protocol detection for VISCA, Pelco-D/P, and AFP/EAP. Supported baud rates include 2400, 4800, 9600, 19200, 38400, 57600, and 115200bps.

This makes the camera easier to integrate into embedded controllers, robotics platforms, inspection equipment, surveillance systems, and OEM devices that require remote zoom, focus, exposure, and imaging control.

Ideal Applications:

The KT&C ATC-HZ5528W-M is well suited for:

• Robotics and autonomous systems
• UAV and drone imaging payloads
• MIPI CSI-2 embedded vision systems
• Machine vision and factory automation
• Industrial inspection systems
• Intelligent traffic and transportation monitoring
• Security and surveillance systems
• Long-range observation
• Remote-controlled imaging platforms
• OEM camera integration
• Medical and scientific imaging equipment
• Low-light and high-contrast video applications

Technical Highlights:

• Image Sensor: 1/1.8" Progressive Scan Global Shutter CMOS
• Effective Pixels: 3.19MP, 2064(H) x 1544(V)
• Video Output: MIPI CSI-2 4 Lane / CVBS
• Max Resolution: MIPI 1080p at 60/50fps
• Lens: AF optical zoom lens, DC iris, IR corrective
• Focal Length: 6.7mm to 190mm
• Aperture: F1.6 wide to F4.7 tele
• Zoom Ratio: 28x optical, 12x digital
• Minimum Illumination: 0.1 lux day mode, 0.05 lux night mode
• S/N Ratio: More than 55dB
• Focus Control: Auto, Interval, One Push, Manual, Preset
• Day/Night: Auto, Day, Night, EXT-H, EXT-L
• WDR: True WDR adjustable
• Noise Reduction: 2D-DNR and 3D-DNR
• Defog: Off, On, Auto
• Control: UART RS232-TTL, VISCA, Pelco-D/P, AFP/EAP
• Power: 12VDC, 9V to 15VDC supported
• Power Consumption: Max. 5.9W / 4.2W when zoom and focus are not operating
• Dimensions: 55.0 x 64.0 x 123 mm
• Weight: Approx. 380g
• Operating Temperature: -10°C to +50°C
• Storage Temperature: -20°C to +60°C

Why Choose the KT&C ATC-HZ5528W-M?

The ATC-HZ5528W-M combines the motion accuracy of a global shutter sensor, the long-range detail of a 28x optical AF zoom lens, and the embedded integration advantages of MIPI CSI-2 4-lane output. With CVBS output, True WDR, defog, digital image stabilization, mechanical Day/Night, and UART camera control, this model is a strong choice for OEMs and system designers building advanced robotic, industrial, surveillance, inspection, and embedded vision systems.

Contact Block Cameras today for pricing, availability, and integration support for the KT&C ATC-HZ5528W-M 3MP MIPI CSI-2 Global Shutter 28x AF Zoom Block Camera.
