KT&C ATC-HZ8240T-LTA 2MP 40x Zoom Rolling Shutter Block Camera

ATC-HZ8240T-LTA Spec Sheet
ATC-HZ8240T-LTA Dimensions

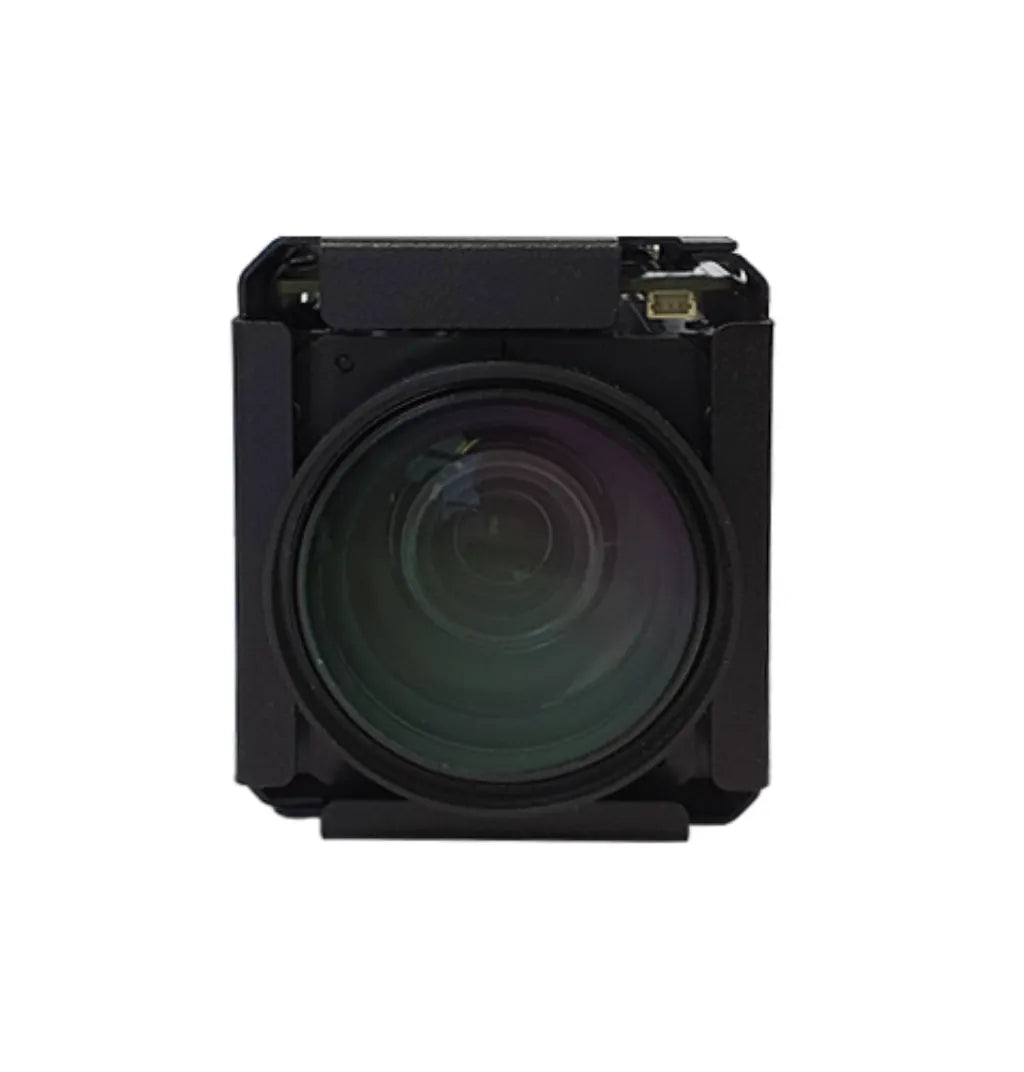

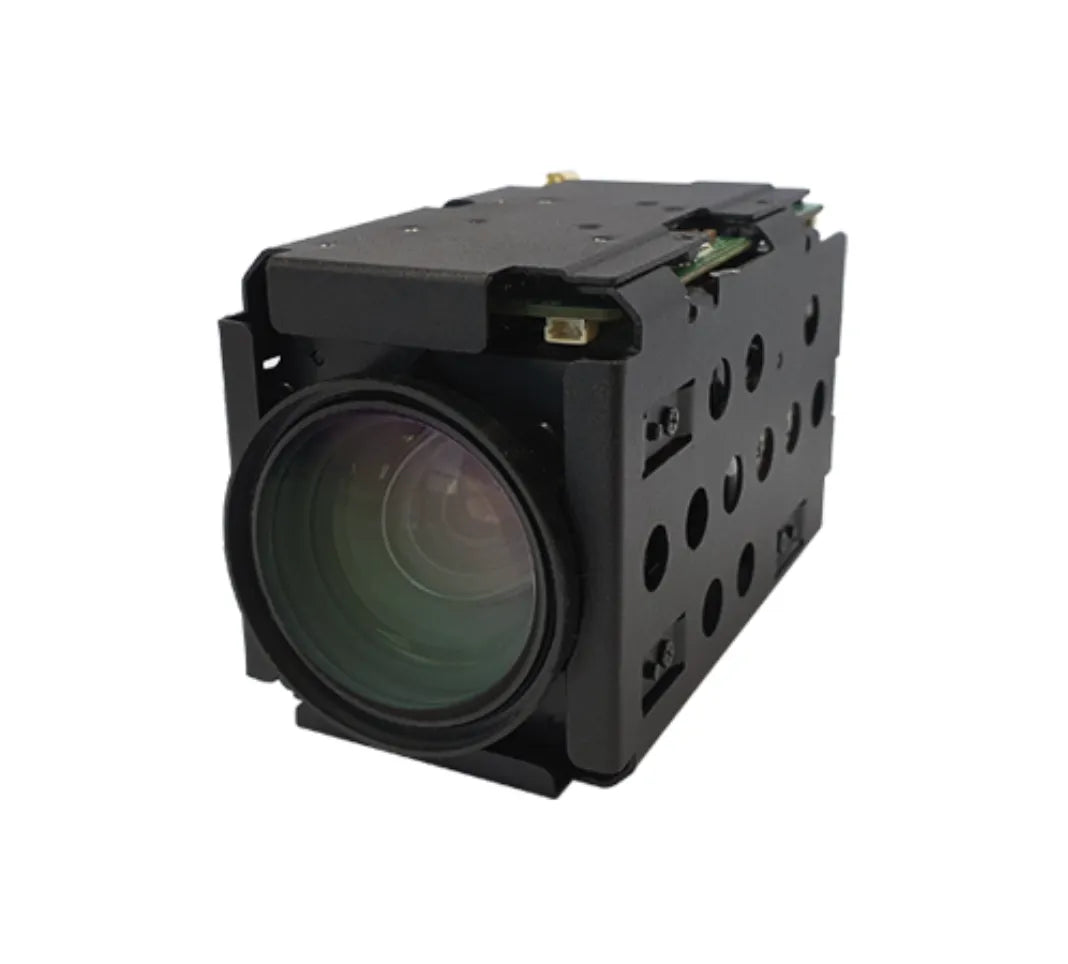

The KT&C ATC-HZ8240T-LTA is a compact 2MP 40x optical zoom block camera designed for long-range imaging, surveillance, robotics, UAV/drone systems, intelligent traffic, machine vision, inspection, and embedded vision applications.

Built around a 1/2.8" Progressive Scan STARVIS CMOS sensor, this camera delivers clear 1080p video at up to 60fps with strong low-light performance, mechanical Day & Night operation, True WDR, 3D DNR, defog, and digital image stabilization. Its flexible output options and UART control support make it a practical choice for OEMs and integrators who need a reliable zoom camera module for demanding imaging environments.

Key Features:

• 2MP 1/2.8" Progressive Scan STARVIS CMOS sensor
• 1080p HD video output at 60/30fps
• 40x optical zoom and 12x digital zoom
• AF optical zoom lens with DC iris
• Mechanical Day & Night with IR-cut filter
• True WDR for high-contrast lighting
• 3D DNR, 2D DNR, Defog, BLC, HLC, and D-WDR
• Digital image stabilization
• Multiple video output modes: LVDS, TVI, AVI, HD-SDI, EX-SDI, and CVBS
• UART RS232-TTL control
• VISCA, Pelco-D, Pelco-P, and Hitachi protocol support
• Compact 53.2 x 62 x 101.2 mm design

Applications:

• Long-range surveillance and security
• UAV/drone imaging
• Robotics and autonomous vision
• Intelligent traffic monitoring
• Machine vision inspection
• Industrial automation
• Embedded vision systems
• PTZ camera systems
• Perimeter and facility monitoring
• Transportation, infrastructure, and remote observation

Long-Range 40x Optical Zoom

The ATC-HZ8240T-LTA features a built-in autofocus optical zoom lens with a 4.25mm to 170mm focal length range. This gives the camera a wide field of view for general monitoring and a narrow telephoto view for long-distance detail.

With 40x optical zoom and 12x digital zoom, this KT&C block camera is ideal for applications that require close-up image detail without moving the camera closer to the subject.

Reliable 1080p Imaging in Challenging Conditions

The STARVIS CMOS sensor, mechanical Day & Night function, True WDR, DNR, defog, and image stabilization help maintain usable image quality in real-world environments with low light, glare, shadows, fog, vibration, or changing outdoor conditions.

The camera supports minimum illumination down to 0.03 Lux in Day mode and 0.02 Lux in Night mode, making it suitable for 24/7 security, traffic, robotics, and industrial monitoring applications.

Flexible Output and Camera Control

The ATC-HZ8240T-LTA supports multiple video output modes, including LVDS, TVI, AVI, HD-SDI, EX-SDI V3.0, and CVBS, giving integrators flexibility across digital, analog, and embedded video systems.

For remote camera control, the unit supports UART RS232-TTL with automatic detection for VISCA, Pelco-D, Pelco-P, and Hitachi protocols. This allows zoom, focus, exposure, day/night, and imaging settings to be controlled through compatible host systems.

Why Choose the KT&C ATC-HZ8240T-LTA?

The KT&C ATC-HZ8240T-LTA is a strong choice for engineers, OEMs, and system integrators who need a compact 2MP zoom block camera with long-range optical zoom, flexible video output, serial camera control, and reliable imaging performance.

Its mix of 40x optical zoom, 1080p60 output, True WDR, mechanical Day & Night, defog, and VISCA/Pelco UART control makes it well suited for surveillance, robotics, UAV/drone, traffic, machine vision, and embedded imaging systems.
