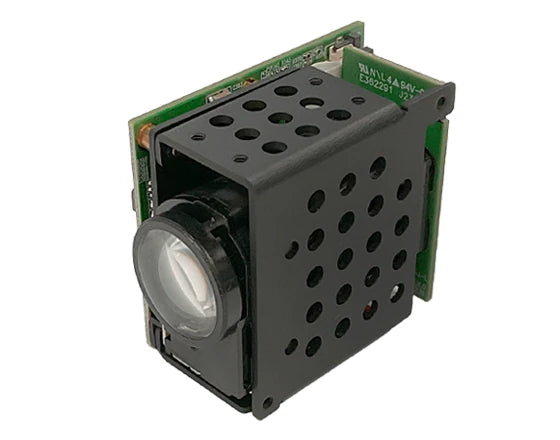

KT&C ATC-HZ8305J-L 2MP Global Shutter 5x AF Zoom Block Camera

ATC-HZ8305J-L Spec Sheet

The KT&C ATC-HZ8305J-L is a compact 2MP global shutter AF zoom block camera designed for space-limited imaging systems that need sharp motion capture, flexible video output, remote camera control, and reliable image processing. Built around a 1/2.6" progressive scan global shutter CMOS sensor, this camera is well suited for machine vision, robotics, UAV/drone imaging, industrial inspection, security, surveillance, intelligent traffic systems, and OEM embedded vision applications.

With 1080p video output up to 60fps, 5x optical zoom, 12x digital zoom, True WDR, 2D/3D digital noise reduction, defog, digital image stabilization, and multiple video output options including HD-SDI, EX-SDI, LVDS, and CVBS, the ATC-HZ8305J-L gives integrators a small but capable block camera platform for compact imaging designs.

Key Features:

• 2.3MP 1/2.6" progressive scan global shutter CMOS sensor
• 1080p output at 60/50/30/25fps
• 720p output at 60/50/30/25fps
• 1080i output at 60/50fps
• 60x total AF zoom: 5x optical zoom + 12x digital zoom
• Global shutter performance for reduced motion distortion
• HD-SDI, EX-SDI, LVDS, and CVBS video output
• Compact 28.2 x 39 x 54.7 mm block camera design
• True WDR, D-WDR, BLC, HLC, Defog, 2D-DNR, and 3D-DNR
• Digital image stabilization
• UART RS232-TTL control with VISCA, Pelco-D, and Pelco-P protocol support
• Low power consumption
• Lightweight OEM camera module at approx. 41g

Compact Global Shutter Imaging

The ATC-HZ8305J-L uses a global shutter image sensor, making it a strong choice for applications where moving subjects, vibration, mobile platforms, conveyors, robotics, or traffic scenes can create distortion with rolling shutter cameras.

Global shutter capture helps preserve object shape during motion, giving system designers a more stable imaging option for machine vision, robotics, inspection, traffic monitoring, and industrial automation applications.

Small Form Factor for OEM Integration

At only 28.2 x 39 x 54.7 mm and approximately 41g, the ATC-HZ8305J-L is one of the more compact options for systems that need a zoom block camera but cannot fit a larger long-range camera module.

This makes it useful for embedded systems, small robotics platforms, compact surveillance devices, inspection equipment, and OEM imaging products where size and weight matter.

5x Optical Zoom with 1080p60 Output

The integrated autofocus zoom lens provides a focal range of 5mm to 25mm, giving the camera a horizontal field of view from approximately 52.3° wide to 10.9° telephoto. With 5x optical zoom and 12x digital zoom, the ATC-HZ8305J-L supports flexible viewing in compact imaging systems.

Focus control options include Auto, Interval, One Shot, Manual, and Preset, giving integrators practical control for fixed installations, remote viewing systems, inspection equipment, and automated imaging platforms.

Flexible Video Output Options

The ATC-HZ8305J-L supports a wide range of output formats, including HD-SDI, EX-SDI, LVDS, and CVBS, making it a flexible option for both modern and legacy video systems.

Digital output supports up to 1080p at 60fps over HD-SDI, LVDS, or EX-SDI. That makes this camera a practical choice for surveillance systems, industrial video platforms, embedded camera designs, machine vision equipment, and custom OEM camera integration.

Advanced Image Processing

The ATC-HZ8305J-L includes image enhancement tools designed to improve usability in real-world environments:

• True WDR for high-contrast scenes
• D-WDR with Low, Middle, and High settings
• 3D-DNR and 2D-DNR for cleaner images
• Defog for haze, mist, dust, or reduced-visibility environments
• BLC and HLC for backlight and highlight compensation
• Digital image stabilization for vibration-prone platforms
• Privacy masking and motion detection

These features help the camera maintain clear, usable video in environments where lighting, glare, motion, or haze can affect image quality.

Remote Camera Control

The ATC-HZ8305J-L supports UART RS232-TTL control with automatic protocol detection for VISCA, Pelco-D, and Pelco-P. Supported baud rates include 2400, 4800, 9600, 19200, 38400, 57600, and 115200bps.

This makes the camera easier to integrate into embedded controllers, inspection platforms, compact robotics systems, surveillance devices, and OEM products that require remote zoom, focus, exposure, and image control.

Ideal Applications:

The KT&C ATC-HZ8305J-L is well suited for:

• Compact OEM embedded vision systems
• Robotics and autonomous systems
• UAV and drone imaging payloads
• Machine vision and factory automation
• Industrial inspection systems
• Intelligent traffic and transportation monitoring
• Security and surveillance systems
• Compact remote-controlled imaging platforms
• HD-SDI and EX-SDI video systems
• Low-light and high-contrast video applications

Technical Highlights:

• Image Sensor: 1/2.6" Progressive Scan Global Shutter CMOS
• Effective Pixels: 2.3MP, 1920(H) x 1200(V)
• Video Output: HD-SDI / EX-SDI / CVBS / LVDS
• Max Resolution: 1080p at 60/50fps via HD-SDI, LVDS, or EX-SDI
• Additional Video Modes: 720p 60/50/30/25fps, 1080i 60/50fps
• Synchronization: Internal
• Lens: AF optical zoom lens, DC iris
• Focal Length: 5mm to 25mm
• Aperture: F3.2 wide to F3.7 tele
• Zoom Ratio: 5x optical, 12x digital
• Minimum Illumination: 1.1 lux day mode
• S/N Ratio: More than 52dB
• Focus Control: Auto, Interval, One Shot, Manual, Preset
• Day/Night: Color Day
• WDR: Off / On, Low / Middle / High
• Noise Reduction: 2D-DNR and 3D-DNR
• Defog: Off / Auto / Manual
• Control: UART RS232-TTL, VISCA, Pelco-D/P
• Power: 12VDC, 9V to 15VDC supported
• Power Consumption: Max. 2.7W / 2.4W when zoom and focus are not operating
• Dimensions: 28.2 x 39 x 54.7 mm
• Weight: Approx. 41g
• Operating Temperature: 0°C to +40°C
• Storage Temperature: -20°C to +60°C

Why Choose the KT&C ATC-HZ8305J-L?

The ATC-HZ8305J-L combines the motion accuracy of a global shutter sensor, the compact flexibility of a 5x AF zoom block camera, and the integration versatility of HD-SDI, EX-SDI, LVDS, CVBS, and UART control. For OEMs and system designers who need a small, lightweight zoom camera for industrial, robotic, surveillance, inspection, or embedded vision systems, this model is a strong fit.

Contact Block Cameras today for pricing, availability, and integration support for the KT&C ATC-HZ8305J-L 2MP Global Shutter 5x AF Zoom Block Camera.
