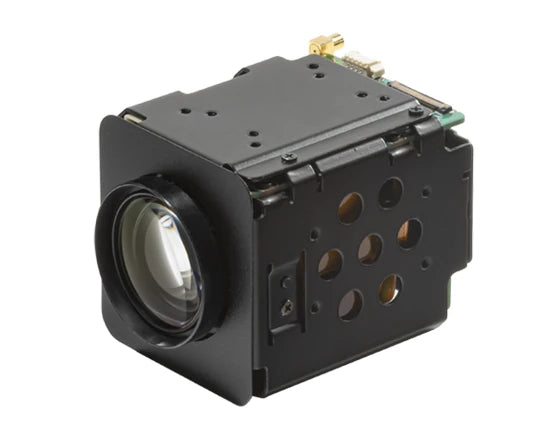

KT&C ATC-HZ8309Z-LC 2MP Global Shutter 8.5x AF Zoom Block Camera

ATC-HZ8309Z-LC Spec Sheet

The KT&C ATC-HZ8309Z-LC is a compact 2MP global shutter AF zoom block camera designed for industrial and embedded imaging systems that need sharp motion capture, flexible digital video output, analog fallback, and reliable camera control. Built around a 1/2.6" ON Semi progressive scan global shutter CMOS sensor, this camera is well suited for robotics, UAV/drone imaging, machine vision, industrial inspection, surveillance, security, intelligent traffic systems, and OEM embedded vision applications.

With 1080p video output up to 60fps, 8.5x optical zoom, 12x digital zoom, external Day/Night support, True WDR, 3D digital noise reduction, defog, digital image stabilization, and video output options including LVDS, SDI, and CVBS, the ATC-HZ8309Z-LC gives integrators a compact zoom camera platform for demanding imaging designs.

Key Features:

• 1/2.6" ON Semi progressive scan global shutter CMOS sensor
• 2.13MP effective pixels with 2MP-class output
• 1080p output at 60fps and 30fps
• 102x total AF zoom: 8.5x optical zoom + 12x digital zoom
• Global shutter performance for reduced motion distortion
• Digital LVDS and SDI video output
• Analog CVBS output
• External Day/Night support
• True WDR, D-WDR, BLC, HLC, Defog, 2D-DNR, and 3D-DNR
• Digital image stabilization
• UART RS232-TTL control with VISCA and Pelco-D/P protocol support
• Compact OEM block camera design

Compact Global Shutter Imaging

The ATC-HZ8309Z-LC uses a global shutter image sensor, making it a strong option for applications where motion, vibration, vehicles, robotics, conveyors, or fast-moving objects can create rolling shutter distortion.

Global shutter capture helps preserve object shape during motion, which makes this camera useful for machine vision, industrial automation, traffic monitoring, robotics, inspection, and security applications where accurate frame capture matters.

8.5x Optical Zoom for Flexible Viewing

The integrated autofocus zoom lens provides a focal range of 8.0mm to 70mm, giving the camera a horizontal field of view from approximately 50° wide to 5.6° telephoto. With 8.5x optical zoom and 12x digital zoom, the ATC-HZ8309Z-LC supports both wide-area viewing and tighter long-distance detail.

Focus control options include Auto, Interval, One Push, and Manual, giving system designers practical control for fixed installations, remote-controlled imaging platforms, surveillance systems, and OEM camera integration.

LVDS, SDI, and CVBS Output Flexibility

The ATC-HZ8309Z-LC supports digital LVDS and SDI output, along with analog CVBS output, making it a flexible choice for both modern and legacy video systems. With support for 1080p at 60fps, the camera is suitable for applications that need smooth HD video from a compact zoom camera module.

This makes the camera a practical fit for embedded camera systems, industrial video platforms, inspection equipment, surveillance designs, robotics, and custom OEM products.

Advanced Image Processing

The ATC-HZ8309Z-LC includes a strong set of image enhancement features for challenging real-world environments:

• True WDR for high-contrast scenes
• D-WDR with Low, Middle, and High settings
• 3D-DNR and 2D-DNR for cleaner low-light images
• Defog with Auto and Manual control
• BLC and HLC for backlight and highlight compensation
• Digital image stabilization for vibration-prone systems
• External Day/Night support
• Privacy masking and motion detection

These features help the camera maintain clearer, more usable video in environments where glare, contrast, haze, movement, or uneven lighting can affect image quality.

Remote Camera Control

The ATC-HZ8309Z-LC supports UART RS232-TTL control with support for VISCA and Pelco-D/P. Supported baud rates include 2400, 4800, 9600, 19200, 38400, 57600, and 115200bps.

This makes the camera easier to integrate into embedded controllers, inspection systems, robotics platforms, surveillance devices, and OEM equipment that require remote zoom, focus, exposure, and image control.

Ideal Applications:

The KT&C ATC-HZ8309Z-LC is well suited for:

• Robotics and autonomous systems
• UAV and drone imaging payloads
• Machine vision and factory automation
• Industrial inspection systems
• Intelligent traffic and transportation monitoring
• Security and surveillance systems
• Remote-controlled imaging platforms
• Embedded vision systems
• OEM camera integration
• Low-light and high-contrast video applications

Technical Highlights:

• Image Sensor: 1/2.6" ON Semi Progressive Scan Global Shutter CMOS
• Effective Pixels: 2.13MP, 1945(H) x 1097(V)
• Video Output: Digital LVDS / SDI, Analog CVBS
• Max Resolution: 1080p at 60fps
• Synchronization: Internal
• Lens: AF optical zoom lens, DC iris, IR corrective
• Focal Length: 8.0mm to 70mm
• Aperture: F1.5 wide to F2.1 tele
• Zoom Ratio: 8.5x optical, 12x digital
• Minimum Illumination: 0.4 lux day mode, 0.3 lux night mode
• S/N Ratio: More than 36dB
• Focus Control: Auto, Interval, One Push, Manual
• Day/Night: Auto, Day, Night, External-H or L
• WDR: Off / On, adjustable level, contrast, and brightness
• Noise Reduction: 2D-DNR and 3D-DNR
• Defog: Off / Auto / Manual
• Control: UART RS232-TTL, VISCA, Pelco-D/P
• Power: 12VDC, 9V to 15VDC supported
• Power Consumption: Max. 6.0W / 4.5W when zoom and focus are not operating
• Dimensions: 50.3 x 58.4 x 92.0 mm
• Weight: Approx. 121g
• Operating Temperature: -10°C to +50°C
• Storage Temperature: -20°C to +60°C

Why Choose the KT&C ATC-HZ8309Z-LC?

The ATC-HZ8309Z-LC combines the motion accuracy of a global shutter sensor, the flexibility of an 8.5x AF zoom lens, and the integration versatility of LVDS, SDI, CVBS, and UART control. For OEMs and system designers who need a compact zoom camera for industrial, robotic, surveillance, inspection, traffic, or embedded vision applications, this model is a strong fit.

Contact Block Cameras today for pricing, availability, and integration support for the KT&C ATC-HZ8309Z-LC 2MP Global Shutter 8.5x AF Zoom Block Camera.
