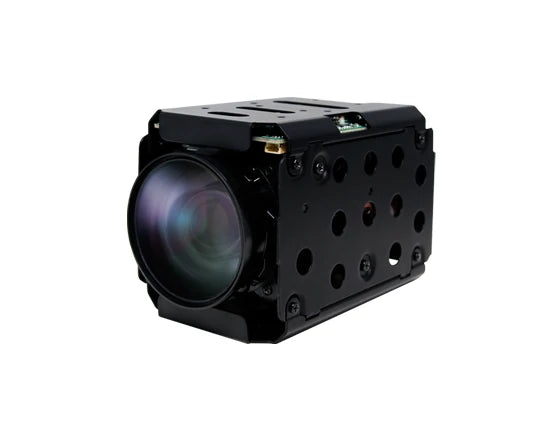

KT&C ATC-HZ8325Z-LTA 2MP Global Shutter 25x AF Zoom Block Camera

ATC-HZ8325Z-LTA Spec Sheet

The KT&C ATC-HZ8325Z-LTA is a compact 2MP global shutter AF zoom block camera designed for imaging systems that need long-range optical zoom, sharp motion capture, multiple video output options, and reliable remote camera control. Built around a 1/2.6" progressive scan global shutter CMOS sensor, this camera is well suited for robotics, UAV/drone imaging, machine vision, industrial inspection, intelligent traffic systems, surveillance, security, and OEM embedded vision applications.

With 1080p video output up to 60fps, 25x optical zoom, 12x digital zoom, mechanical Day/Night operation, True WDR, 2D/3D digital noise reduction, defog, digital image stabilization, and a wide range of output options including HD-SDI, EX-SDI, TVI, AVI, LVDS, and CVBS, the ATC-HZ8325Z-LTA gives integrators a flexible long-range zoom camera platform in a compact block camera design.

Key Features:

• 2.3MP 1/2.6" progressive scan global shutter CMOS sensor
• 1080p output at 60/50/30/25fps
• 720p output at 60/50/30/25fps
• 1080i output at 60/50fps
• 300x total AF zoom: 25x optical zoom + 12x digital zoom
• Global shutter performance for reduced motion distortion
• HD-SDI, EX-SDI, TVI, AVI, LVDS, and CVBS video output
• Mechanical Day/Night with IR corrective lens
• True WDR, D-WDR, BLC, HLC, Defog, 2D-DNR, and 3D-DNR
• Digital image stabilization
• 192 position presets, 16 memory presets, and custom preset support
• UART RS232-TTL control with VISCA and Pelco-D/P/C protocol support
• UTC support for TVI-UTC and AVI-UTC
• Compact OEM block camera design

Long-Range Global Shutter Imaging

The ATC-HZ8325Z-LTA combines a global shutter image sensor with a powerful 25x optical zoom lens, making it a strong option for applications where motion accuracy and long-range detail both matter.

Global shutter capture helps reduce image distortion when viewing moving objects, vehicles, conveyors, UAVs, robotics platforms, or vibration-prone systems. This makes the camera a practical choice for machine vision, intelligent traffic, industrial automation, inspection, surveillance, and security applications.

25x Optical Zoom for Detailed Observation

The integrated autofocus zoom lens provides a focal range of 5.3mm to 130mm, giving the camera a horizontal field of view from approximately 60.8° wide to 2.5° telephoto. With 25x optical zoom and 12x digital zoom, the ATC-HZ8325Z-LTA supports both wide-area viewing and detailed long-distance observation.

Focus control options include Auto, Interval, One Shot, Manual, and Preset, giving integrators flexibility for fixed installations, remote-controlled platforms, PTZ-style systems, and automated imaging applications.

Flexible Video Output Options

The ATC-HZ8325Z-LTA supports a wide set of video outputs, including HD-SDI, EX-SDI, TVI, AVI, LVDS, and CVBS. Digital output supports up to 1080p at 60fps over HD-SDI, LVDS, or EX-SDI.

This output flexibility makes the camera useful for modern HD video systems, legacy analog systems, embedded camera designs, industrial video platforms, surveillance systems, and OEM integration projects.

Advanced Image Processing

The ATC-HZ8325Z-LTA includes imaging features designed to improve video usability in difficult lighting and environmental conditions:

• True WDR for high-contrast scenes
• D-WDR with Low, Middle, and High settings
• 3D-DNR and 2D-DNR for cleaner low-light images
• Defog with Auto Low, Middle, and High settings
• BLC and HLC for backlight and highlight compensation
• Digital image stabilization for vibration-prone platforms
• Mechanical Day/Night for color daytime imaging and black-and-white night operation
• Privacy masking and motion detection

These tools help the camera maintain clearer video when dealing with glare, uneven lighting, haze, vibration, and moving subjects.

Presets and Remote Camera Control

The ATC-HZ8325Z-LTA supports 192 position presets for zoom and focus, 16 memory presets, and custom preset control, making it useful for systems that need repeatable zoom/focus positions.

The camera supports UART RS232-TTL control with automatic detection for VISCA and Pelco-D/P/C. Supported baud rates include 2400, 4800, 9600, 19200, 38400, 57600, and 115200bps. It also supports TVI-UTC and AVI-UTC control options.

Ideal Applications:

The KT&C ATC-HZ8325Z-LTA is well suited for:

• Robotics and autonomous systems
• UAV and drone imaging payloads
• Machine vision and factory automation
• Industrial inspection systems
• Intelligent traffic and transportation monitoring
• Security and surveillance systems
• Long-range observation
• Remote-controlled imaging platforms
• HD-SDI and EX-SDI video systems
• OEM embedded vision designs
• Low-light and high-contrast video applications

Technical Highlights:

• Image Sensor: 1/2.6" Progressive Scan Global Shutter CMOS
• Effective Pixels: 2.3MP, 1920(H) x 1200(V)
• Video Output: HD-SDI / EX-SDI / CVBS / TVI / AVI / LVDS
• Max Resolution: 1080p at 60/50fps via HD-SDI, LVDS, or EX-SDI
• Additional Video Modes: 720p 60/50/30/25fps, 1080i 60/50fps
• Synchronization: Internal
• Lens: AF optical zoom lens, DC iris, IR corrective
• Focal Length: 5.3mm to 130mm
• Aperture: F1.6 wide to F4.3 tele
• Zoom Ratio: 25x optical, 12x digital
• Minimum Illumination: 0.5 lux day mode, 0.2 lux night mode
• S/N Ratio: More than 55dB
• Focus Control: Auto, Interval, One Shot, Manual, Preset
• Day/Night: Auto, Color, B&W, EXT-H, EXT-L
• WDR: Off / On, Low / Middle / High
• Noise Reduction: 2D-DNR and 3D-DNR
• Defog: Off / Auto
• Preset Support: 192 position presets, 16 memory presets, custom preset
• Control: UART RS232-TTL, VISCA, Pelco-D/P/C, TVI-UTC, AVI-UTC
• Power: 12VDC, 9V to 15VDC supported
• Power Consumption: Max. 5.4W / 3.0W when zoom and focus are not operating
• Dimensions: 50 x 58.8 x 96.1 mm
• Weight: Approx. 241g
• Operating Temperature: -10°C to +50°C
• Storage Temperature: -20°C to +60°C

Why Choose the KT&C ATC-HZ8325Z-LTA?

The ATC-HZ8325Z-LTA combines the motion accuracy of a global shutter sensor, the long-range reach of a 25x optical AF zoom lens, and the integration flexibility of HD-SDI, EX-SDI, TVI, AVI, LVDS, CVBS, and UART control. For OEMs and system designers who need a compact long-range block camera for industrial, robotic, traffic, surveillance, inspection, or embedded vision systems, this model is a strong fit.

Contact Block Cameras today for pricing, availability, and integration support for the KT&C ATC-HZ8325Z-LTA 2MP Global Shutter 25x AF Zoom Block Camera.
