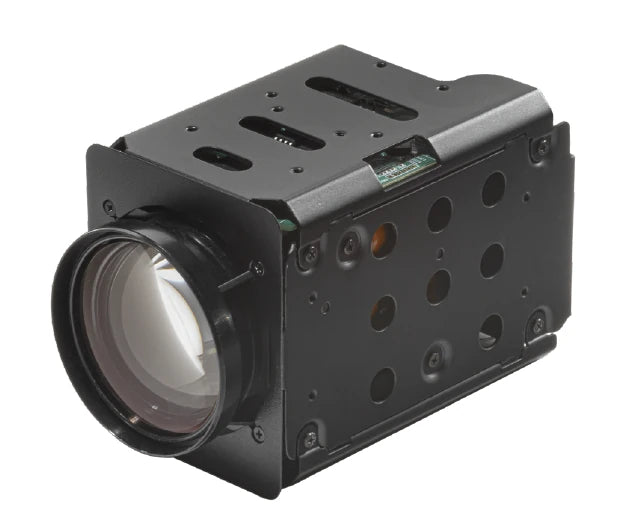

KT&C ATC-HZ8630T-i 2MP IP Zoom Rolling Shutter Camera

ATC-HZ8630T-i Spec Sheet

The KT&C ATC-HZ8630T-i is a compact 2MP IP zoom rolling shutter camera designed for high-performance network video applications that require long-range optical zoom, strong low-light performance, flexible streaming, and reliable system integration. Built around a 1/2.8" progressive scan STARVIS 2 CMOS sensor, this camera is ideal for surveillance, security, intelligent traffic systems, industrial monitoring, robotics, UAV/drone imaging, remote inspection, and OEM embedded vision applications.

With 1080p video at up to 30fps, 30x optical zoom, 12x digital zoom, H.264 Main and Baseline profile support, MJPEG, PoE or 12VDC power, True WDR, 2D/3D noise reduction, defog, digital image stabilization, and ONVIF support, the ATC-HZ8630T-i gives integrators a flexible IP zoom camera platform in a compact block camera form factor.

Key Features:

• 2.12MP 1/2.8" progressive scan STARVIS 2 CMOS sensor
• 1080p video output at 30/25fps
• 360x total AF zoom: 30x optical zoom + 12x digital zoom
• IP network video output via Ethernet
• Analog CVBS output
• H.264 Baseline / Main profile and MJPEG compression
• Multiple streaming with up to 3 profiles
• PoE (IEEE802.3af) or 12VDC power input
• Mechanical Day/Night operation
• True WDR, BLC, D-WDR, 2D/3D DNR, and Defog
• Digital image stabilization
• ONVIF and KT&C API support
• Compact black aluminum camera housing

STARVIS 2 Low-Light Performance

The ATC-HZ8630T-i is built around a Sony STARVIS 2-class 1/2.8" progressive scan CMOS sensor, making it a strong option for applications that need solid low-light imaging. With minimum illumination down to 0.04 lux in day mode and 0.01 lux in night mode, this camera is well suited for demanding environments where lighting conditions can change quickly or remain limited.

This makes it useful for security surveillance, traffic monitoring, industrial sites, perimeter observation, and remote viewing applications where consistent image quality matters.

30x Optical Zoom for Long-Range Viewing

The integrated autofocus zoom lens provides a focal range of 4.3mm to 129mm, giving the camera a horizontal field of view from approximately 66.9° wide to 2.5° telephoto. With 30x optical zoom and 12x digital zoom, the ATC-HZ8630T-i can cover both wide-area scenes and tight long-distance detail.

That makes it a strong fit for long-range observation, intelligent traffic, perimeter security, industrial monitoring, and robotics systems that need flexible scene coverage.

IP Network Streaming with Flexible Compression

The ATC-HZ8630T-i supports 10/100 Base-T Ethernet network connectivity and offers H.264 Baseline, H.264 Main, and MJPEG compression. It supports multiple streaming with up to 3 profiles, giving system designers flexibility for recording, live monitoring, and lower-bandwidth viewing.

Supported video resolutions include:

• 1920 x 1080
• 1280 x 720
• 800 x 600
• 704 x 480
• 704 x 400
• 640 x 480
• 640 x 360
• 320 x 240

The camera supports CBR, VBR, and CVBR bitrate control, which helps optimize bandwidth and storage for different application requirements.

ONVIF and Network Integration

The ATC-HZ8630T-i supports ONVIF and KT&C API integration, making it easier to deploy into network video systems, VMS platforms, and custom imaging applications. Supported protocols include:

• HTTP
• UPnP
• DNS
• RTP/RTSP
• TCP/IP
• UDP
• DHCP
• RARP
• NTP

The camera supports IPv4, up to 5 users, and web browser viewing through Internet Explorer, Edge, Chrome, Safari, Firefox, and Opera.

Advanced Image Processing

The ATC-HZ8630T-i includes a strong set of image enhancement features designed to improve video usability in real-world environments:

• True WDR with adjustable Low, Middle, and High settings
• BLC and D-WDR
• 2D and 3D noise reduction
• Defog with Low, Middle, and High settings
• Digital image stabilization
• Mechanical Day/Night operation
• Image rotation: Horizontal, Vertical, or 180° flip

These features help the camera maintain better image quality in high-contrast, low-light, hazy, or vibration-prone environments.

Power and Installation Flexibility

The ATC-HZ8630T-i supports both 12VDC (±10%) and PoE (IEEE802.3af) power. This gives installers and OEM designers more flexibility depending on the deployment environment and system architecture.

With a compact footprint of 50 x 58.8 x 90.5 mm and a weight of approximately 290g with PoE cable, this model is suitable for embedded camera projects, compact surveillance systems, and industrial video integration.

Ideal Applications:

The KT&C ATC-HZ8630T-i is well suited for:

• IP surveillance and security systems
• Intelligent traffic and transportation monitoring
• Industrial monitoring and remote inspection
• Robotics and autonomous systems
• UAV and drone imaging payloads
• Perimeter and long-range observation
• OEM embedded network camera integration
• Low-light video applications
• Multi-stream network video systems

Technical Highlights:

• Image Sensor: 1/2.8" Progressive Scan STARVIS 2 CMOS
• Effective Pixels: 2.12MP, 1936(H) x 1100(V)
• Scanning: Progressive Scan
• Video Output: Network Ethernet / Analog CVBS
• Compression: H.264 Baseline, H.264 Main, MJPEG
• Video Resolution: 1920x1080, 1280x720, 800x600, 704x480, 704x400, 640x480, 640x360, 320x240
• Max Frame Rate: Up to 30fps / 25fps
• Streaming: Multiple streaming, up to 3 profiles
• Streaming Method: Unicast
• Bitrate Control: CBR, VBR, CVBR
• Network: 10/100 Base-T Ethernet, IPv4
• Max User Access: 5
• Supported Protocols: HTTP, UPnP, DNS, RTP/RTSP, TCP/IP, UDP, DHCP, RARP, NTP
• API / Integration: ONVIF, KT&C API
• Lens: AF optical zoom lens, DC iris, IR corrective
• Focal Length: 4.3mm to 129mm
• Aperture: F1.6 wide to F5.0 tele
• Zoom Ratio: 30x optical, 12x digital
• Minimum Illumination: 0.04 lux day mode, 0.01 lux night mode
• S/N Ratio: More than 55dB
• Dynamic Range: WDR, adjustable Low / Middle / High
• Electronic Shutter: 1/1 to 1/30000
• AGC: Max. 80dB
• Day/Night: Auto, Color, B&W, EXT-H, EXT-L
• DSS: Off to 32 fields
• Noise Reduction: 2D / 3D DNR
• Digital Image Stabilization: Yes
• Power: 12VDC ±10%, PoE IEEE802.3af
• Power Consumption: 12VDC Max. 470mA / PoE Max. 5.4W
• Dimensions: 50 x 58.8 x 90.5 mm
• Weight: Approx. 290g with PoE cable
• Operating Temperature: -10°C to +50°C
• Storage Temperature: -20°C to +60°C

Why Choose the KT&C ATC-HZ8630T-i?

The ATC-HZ8630T-i combines 2MP IP video, STARVIS 2 low-light performance, a 30x optical AF zoom lens, and the integration advantages of H.264 streaming, ONVIF support, Ethernet connectivity, CVBS output, and PoE power. For OEMs and system designers who need a compact network zoom camera for surveillance, industrial monitoring, traffic, robotics, or inspection applications, this model is a strong fit.

Contact Block Cameras today for pricing, availability, and integration support for the KT&C ATC-HZ8630T-i 2MP IP Zoom Rolling Shutter Camera.
