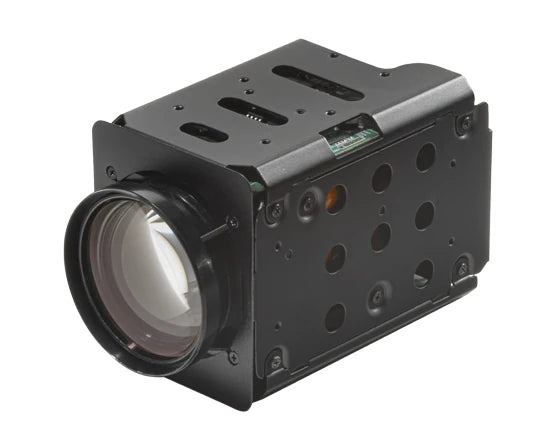

KT&C ATC-HZ8930M-LP 2MP Global Shutter 30x AF Zoom Block Camera

ATC-HZ8930M-LP Spec Sheet

The KT&C ATC-HZ8930M-LP is a compact 2MP global shutter AF zoom block camera designed for demanding imaging systems that need long-range optical zoom, sharp motion capture, flexible video output, and dependable remote camera control. Built around a 1/3.1" progressive scan global shutter CMOS sensor, this camera is well suited for robotics, UAV/drone imaging, machine vision, industrial inspection, intelligent traffic systems, surveillance, security, and OEM embedded vision applications.

With 1080p video output up to 60fps, 30x optical zoom, 12x digital zoom, mechanical Day/Night operation, True WDR, 2D/3D digital noise reduction, defog, digital image stabilization, and trigger in/strobe out support, the ATC-HZ8930M-LP gives integrators a powerful long-range zoom camera platform in a compact block camera design.

Key Features:

• 1/3.1" progressive scan global shutter CMOS sensor
• 3.2MP effective pixels with 2MP class video output
• 1080p output at 60/50/30/25fps
• 720p output at 60/50/30/25fps
• 1080i output at 60/50fps
• 360x total AF zoom: 30x optical zoom + 12x digital zoom
• Global shutter performance for reduced motion distortion
• LVDS, Parallel, and CVBS video output
• Trigger input and strobe output for synchronized imaging
• Mechanical Day/Night with IR corrective lens
• True WDR, D-WDR, BLC, HLC, Defog, 2D-DNR, and 3D-DNR
• Digital image stabilization
• UART RS232-TTL control with VISCA, Pelco-D, and Pelco-P protocol support
• Compact OEM block camera design for embedded systems

Long-Range Global Shutter Imaging

The ATC-HZ8930M-LP combines a global shutter image sensor with a powerful 30x optical zoom lens, making it a strong choice for applications where long-range detail and accurate motion capture both matter.

Global shutter capture helps reduce the distortion that can occur when imaging moving objects, vehicles, drones, conveyors, robotics platforms, or vibration-prone systems. This makes the camera useful for machine vision, industrial automation, intelligent traffic, inspection, surveillance, and other motion-sensitive imaging applications.

30x Optical Zoom for Detailed Observation

The integrated autofocus zoom lens provides a focal range of 4.6mm to 136mm, giving the camera a horizontal field of view from approximately 55.6° wide to 1.9° telephoto. With 30x optical zoom and 12x digital zoom, the ATC-HZ8930M-LP supports wide-area viewing as well as tight long-distance detail.

Focus control options include Auto, Interval, One Shot, Manual, and Preset, giving integrators flexibility for fixed installations, remote-controlled platforms, PTZ-style systems, and automated imaging applications.

Flexible Video Output for OEM Integration

The ATC-HZ8930M-LP supports LVDS, Parallel, and CVBS video output, making it suitable for custom embedded camera systems, industrial video platforms, machine vision equipment, and legacy video applications. Digital output supports up to 1080p at 60fps over LVDS or Parallel.

This interface flexibility makes the camera a practical option for OEM designs that need a compact long-range zoom module with strong imaging performance and multiple output options.

Trigger and Strobe Support

For timing-sensitive applications, the ATC-HZ8930M-LP includes trigger input and strobe output support. This is especially useful in machine vision, industrial inspection, automation, traffic monitoring, and synchronized imaging systems where camera capture needs to align with lighting or external events.

Advanced Image Processing

The ATC-HZ8930M-LP includes a strong feature set for difficult lighting and real-world imaging environments:

• True WDR for high-contrast scenes
• D-WDR with Low, Middle, and High settings
• 3D-DNR and 2D-DNR for cleaner low-light images
• Defog for haze, mist, dust, and reduced-visibility environments
• BLC and HLC for backlight and highlight compensation
• Digital image stabilization for vibration-prone platforms
• Mechanical Day/Night for color daytime imaging and black-and-white night operation
• Privacy masking and motion detection

These features help improve image usability in environments where glare, motion, low light, haze, and contrast can affect video quality.

Remote Camera Control

The ATC-HZ8930M-LP supports UART RS232-TTL control with automatic protocol detection for VISCA, Pelco-D, and Pelco-P. Supported baud rates include 2400, 4800, 9600, 19200, 38400, 57600, and 115200bps.

This makes the camera easier to integrate into embedded controllers, robotics platforms, inspection equipment, surveillance systems, and OEM devices that require remote zoom, focus, exposure, preset, and image control.

Ideal Applications:

The KT&C ATC-HZ8930M-LP is well suited for:

• Robotics and autonomous systems
• UAV and drone imaging payloads
• Machine vision and factory automation
• Industrial inspection systems
• Intelligent traffic and transportation monitoring
• Security and surveillance systems
• Long-range observation
• Remote-controlled imaging platforms
• Synchronized imaging systems
• OEM embedded vision designs
• Medical and scientific imaging equipment
• Low-light and high-contrast video applications

Technical Highlights:

• Image Sensor: 1/3.1" Progressive Scan Global Shutter CMOS
• Effective Pixels: 3.2MP, 2064(H) x 1552(V)
• Video Output: LVDS / Parallel / CVBS
• Max Resolution: 1080p at 60/50fps via LVDS or Parallel
• Additional Video Modes: 720p 60/50/30/25fps, 1080i 60/50fps
• Synchronization: Internal
• Lens: AF optical zoom lens, DC iris, IR corrective
• Focal Length: 4.6mm to 136mm
• Aperture: F1.63 wide to F4.85 tele
• Zoom Ratio: 30x optical, 12x digital
• Minimum Illumination: 0.03 lux day mode, 0.01 lux night mode
• S/N Ratio: More than 52dB
• Focus Control: Auto, Interval, One Shot, Manual, Preset
• Day/Night: Auto, Color, B&W, EXT-H, EXT-L
• WDR: Low, Middle, High
• Noise Reduction: 2D-DNR and 3D-DNR
• Defog: Off, On
• Trigger Input: Off / Normal
• Strobe Output: Off / Free Run
• Preset Positions: 192 zoom/focus position presets, 16 memory presets, custom preset
• Control: UART RS232-TTL, VISCA, Pelco-D/P
• Power: 12VDC, 9V to 15VDC supported
• Power Consumption: Max. 8.4W / 3.3W when zoom and focus are not operating
• Dimensions: 50 x 58.8 x 90.8 mm
• Weight: Approx. 261g
• Operating Temperature: -10°C to +50°C
• Storage Temperature: -20°C to +60°C

Why Choose the KT&C ATC-HZ8930M-LP?

The ATC-HZ8930M-LP combines the motion accuracy of a global shutter sensor, the long-range reach of a 30x optical AF zoom lens, and the integration flexibility of LVDS, Parallel, CVBS, trigger/strobe, and UART control. For OEMs and system designers who need a compact long-range block camera for industrial, robotic, traffic, surveillance, inspection, or embedded vision systems, this model is a strong fit.

Contact Block Cameras today for pricing, availability, and integration support for the KT&C ATC-HZ8930M-LP 2MP Global Shutter 30x AF Zoom Block Camera.
