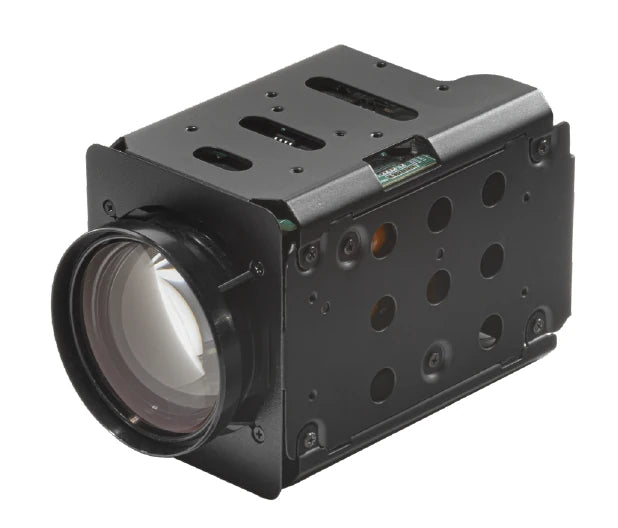

KT&C ATC-HZ8930T-i 2MP IP Global Shutter 30x AF Zoom Camera

ATC-HZ8930T-i Spec Sheet

The KT&C ATC-HZ8930T-i is a compact IP zoom global shutter camera designed for network video systems that need long-range optical zoom, accurate motion capture, low-light performance, flexible streaming, and dependable system integration. Built around a 1/3.1" progressive scan global shutter CMOS sensor with 3.2MP effective pixels, this camera is well suited for surveillance, intelligent traffic, industrial monitoring, robotics, UAV/drone imaging, inspection systems, and OEM embedded vision applications.

With 1080p video at up to 30fps, 30x optical zoom, 12x digital zoom, H.264 Main and Baseline profile support, MJPEG, PoE or 12VDC power, True WDR, 2D/3D noise reduction, DSS, defog, digital image stabilization, and ONVIF support, the ATC-HZ8930T-i gives integrators a powerful IP zoom camera platform in a compact block camera form factor.

Key Features:

• 1/3.1" progressive scan global shutter CMOS sensor
• 3.2MP effective pixels with 1080p network video output
• 1080p video at 30/25fps
• 360x total AF zoom: 30x optical zoom + 12x digital zoom
• Global shutter performance for reduced motion distortion
• IP network video output via Ethernet
• Analog CVBS output
• H.264 Baseline / Main profile and MJPEG compression
• Multiple streaming with up to 3 profiles
• PoE IEEE802.3af or 12VDC power input
• Mechanical Day/Night operation
• True WDR, BLC, D-WDR, DSS, Defog, 2D-DNR, and 3D-DNR
• Digital image stabilization
• ONVIF and KT&C API support
• Compact black aluminum camera housing

IP Global Shutter Camera for Motion-Sensitive Video

The ATC-HZ8930T-i uses a global shutter image sensor, making it a strong option for applications where motion distortion can create problems. This is especially useful for traffic monitoring, robotics, machine vision, industrial inspection, mobile platforms, and surveillance scenes with moving vehicles or objects.

Global shutter capture helps preserve object shape during motion, making this camera a better fit than rolling shutter models when accurate frame capture matters.

30x Optical Zoom for Long-Range Detail

The integrated autofocus zoom lens provides a focal range of 4.3mm to 129mm, giving the camera a horizontal field of view from approximately 53.62° wide to 1.91° telephoto. With 30x optical zoom and 12x digital zoom, the ATC-HZ8930T-i can support both wide-area viewing and tight long-distance observation.

This makes it a strong fit for intelligent traffic systems, perimeter observation, industrial monitoring, remote inspection, transportation systems, and security applications that require flexible long-range imaging.

Network Video with H.264 and MJPEG

The ATC-HZ8930T-i supports 10/100 Base-T Ethernet network connectivity with H.264 Baseline, H.264 Main, and MJPEG compression. It supports multiple streaming with up to 3 profiles, giving system designers flexibility for live monitoring, recording, and lower-bandwidth viewing.

Supported video resolutions include:

• 1920 x 1080
• 1280 x 720
• 800 x 600
• 704 x 480
• 704 x 400
• 640 x 480
• 640 x 360
• 320 x 240

The camera also supports CBR, VBR, and CVBR bitrate control, helping optimize video quality, bandwidth, and storage requirements.

ONVIF and System Integration

The ATC-HZ8930T-i supports ONVIF and KT&C API integration, making it easier to deploy into network video systems, VMS platforms, and custom OEM applications.

Supported protocols include:

• HTTP
• UPnP
• DNS
• RTP/RTSP
• TCP/IP
• UDP
• DHCP
• RARP
• NTP

The camera supports IPv4, up to 5 users, and web browser viewing through Internet Explorer, Edge, Chrome, Safari, Firefox, and Opera.

Advanced Image Processing

The ATC-HZ8930T-i includes a strong set of image enhancement tools for difficult lighting and real-world environments:

• True WDR with adjustable Low, Middle, and High settings
• BLC and D-WDR
• DSS digital slow shutter
• 2D and 3D noise reduction
• Defog with Low, Middle, and High settings
• Digital image stabilization
• Mechanical Day/Night operation
• Image rotation: Horizontal, Vertical, or 180° flip

These features help maintain more usable video in low-light, high-contrast, hazy, or vibration-prone environments.

PoE and 12VDC Power Flexibility

The ATC-HZ8930T-i supports both 12VDC ±10% and PoE IEEE802.3af power. This gives installers and OEM designers more flexibility depending on the deployment environment and system architecture.

With a compact footprint of 50 x 58.8 x 90.5 mm and a weight of approximately 290g with PoE cable, this model is suitable for network camera integration, compact surveillance systems, traffic monitoring devices, and industrial video projects.

Ideal Applications:

The KT&C ATC-HZ8930T-i is well suited for:

• IP surveillance and security systems
• Intelligent traffic and transportation monitoring
• Industrial monitoring and remote inspection
• Robotics and autonomous systems
• UAV and drone imaging payloads
• Machine vision and motion-sensitive imaging
• Perimeter and long-range observation
• OEM embedded network camera integration
• Low-light video applications
• Multi-stream network video systems

Technical Highlights:

• Image Sensor: 1/3.1" Progressive Scan Global Shutter CMOS
• Effective Pixels: 3.2MP, 2064(H) x 1552(V)
• Scanning: Progressive Scan
• Video Output: Network Ethernet / Analog CVBS
• Compression: H.264 Baseline, H.264 Main, MJPEG
• Video Resolution: 1920x1080, 1280x720, 800x600, 704x480, 704x400, 640x480, 640x360, 320x240
• Max Frame Rate: Up to 30fps / 25fps
• Streaming: Multiple streaming, up to 3 profiles
• Streaming Method: Unicast
• Bitrate Control: CBR, VBR, CVBR
• Network: 10/100 Base-T Ethernet, IPv4
• Max User Access: 5
• Supported Protocols: HTTP, UPnP, DNS, RTP/RTSP, TCP/IP, UDP, DHCP, RARP, NTP
• API / Integration: ONVIF, KT&C API
• Lens: AF optical zoom lens, DC iris, IR corrective
• Focal Length: 4.3mm to 129mm
• Aperture: F1.6 wide to F5.0 tele
• Zoom Ratio: 30x optical, 12x digital
• Minimum Illumination: 0.03 lux day mode, 0.01 lux night mode
• S/N Ratio: More than 52dB
• Dynamic Range: WDR, adjustable Low / Middle / High
• Electronic Shutter: 1/1 to 1/30000
• AGC: Max. 48dB
• Day/Night: Auto, Color, B&W, EXT-H, EXT-L
• DSS: Off to 32 fields
• Noise Reduction: 2D / 3D DNR
• Digital Image Stabilization: Yes
• Defog: Off / On, Low / Middle / High
• Power: 12VDC ±10%, PoE IEEE802.3af
• Power Consumption: 12VDC Max. 480mA / PoE Max. 5.4W
• Color / Material: Black / Aluminum
• Dimensions: 50 x 58.8 x 90.5 mm
• Weight: Approx. 290g with PoE cable
• Operating Temperature: -10°C to +50°C
• Storage Temperature: -20°C to +60°C

Why Choose the KT&C ATC-HZ8930T-i?

The ATC-HZ8930T-i combines the motion accuracy of a global shutter sensor, the reach of a 30x optical AF zoom lens, and the integration advantages of IP network video, H.264 streaming, ONVIF support, Ethernet connectivity, CVBS output, and PoE power. For OEMs and system designers who need a compact network zoom camera for traffic, surveillance, robotics, industrial monitoring, inspection, or embedded vision applications, this model is a strong fit.

Contact Block Cameras today for pricing, availability, and integration support for the KT&C ATC-HZ8930T-i 2MP IP Global Shutter 30x AF Zoom Camera.
