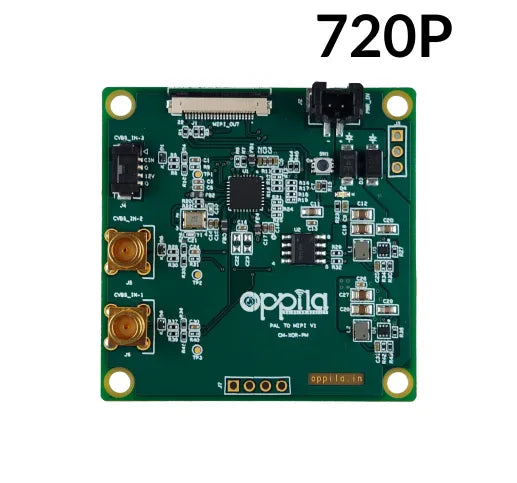

PAL/NTSC to MIPI CSI-2 Bridge Board

PAL/NTSC to MIPI CSI-2 Bridge Board

SKU: PAL/NTSC to MIPI
Tax included.

PAL/NTSC to MIPI CSI-2 Spec Sheet

The PAL/NTSC to MIPI CSI-2 Bridge Board converts analog composite video from legacy PAL and NTSC cameras into a single-lane MIPI CSI-2 output for modern embedded vision platforms.

It supports up to three analog video inputs and allows the host processor to select the active camera through I²C. This makes it suitable for integrating existing CVBS cameras with NVIDIA Jetson Orin, Raspberry Pi 5, and other supported embedded systems.

Quick Overview

  • Converts PAL/NTSC analog video to MIPI CSI-2

  • Supports CVBS analog cameras

  • Three independent video inputs

  • Host-controlled video switching over I²C

  • Single-lane MIPI CSI-2 output

  • YUV422 video output

  • Up to 720 × 576 PAL / 720 × 480 NTSC

  • Compatible with NVIDIA Jetson Orin and Raspberry Pi 5 platforms

  • 12 V DC regulated input

  • Compact 50 × 50 mm form factor

  • –20°C to +85°C operating temperature

  • RoHS compliant

Key Features

  • PAL and NTSC composite video conversion

  • Two MCX camera inputs

  • One Molex Micro-Lock Plus camera input

  • Three selectable analog video sources

  • I²C-controlled video switching

  • Single-lane MIPI CSI-2 FFC/FPC output

  • YUV422 output format

  • Green power-status LED

  • Approx. 1 A typical current draw

  • Compact 50 × 50 mm board

  • 12.4 g weight

  • Designed for embedded and edge vision systems

Compatible Host Platforms

Supported platforms include:

  • NVIDIA Jetson Orin Nano Super Developer Kit

  • AVerMedia D133 Carrier Board

  • Waveshare Jetson Orin IO-Base Carrier Board

  • Raspberry Pi 5

Host compatibility should be confirmed for the final system configuration.

Applications

  • Edge AI vision

  • Robotics and autonomous systems

  • Legacy camera integration

  • UAV and ROV imaging

  • Industrial machine vision

  • Defense and surveillance systems

  • Medical and diagnostic imaging

  • Broadcast and multimedia systems

  • Research and prototyping

Technical Specifications

Specification Details
Function PAL/NTSC to MIPI CSI-2 Bridge Board
Video Input PAL / NTSC composite video
Camera Inputs 2 × MCX, 1 × Molex Micro-Lock Plus
MIPI Output Single-lane MIPI CSI-2, FFC/FPC
Output Format YUV422
PAL Resolution Up to 720 × 576
NTSC Resolution Up to 720 × 480
Video Switching Host-controlled through I²C
Input Voltage 12 V DC regulated
Input Current Approx. 1 A typical
Recommended Supply 12 V / 1 A regulated
Indicators Green Power LED
Dimensions 50 × 50 mm
Weight 12.4 g
Operating Temperature –20°C to +85°C
Compliance MIPI CSI-2 Specification, RoHS

FAQ

What does the PAL/NTSC to MIPI CSI-2 Bridge Board do?

It converts analog PAL or NTSC composite video into a single-lane MIPI CSI-2 signal for supported embedded computing platforms.

How many analog cameras can be connected?

The board provides three analog video inputs: two MCX connectors and one Molex Micro-Lock Plus connector.

Can the active camera input be selected in software?

Yes. The host processor can select the active video input through I²C.

What resolutions are supported?

The board supports up to 720 × 576 for PAL and 720 × 480 for NTSC video.

Does it work with NVIDIA Jetson Orin?

Yes. It supports the NVIDIA Jetson Orin Nano Super Developer Kit and compatible carrier-board platforms listed above.

What power supply does it require?

The board requires regulated 12 V DC input. A 12 V / 1 A regulated supply is recommended.
