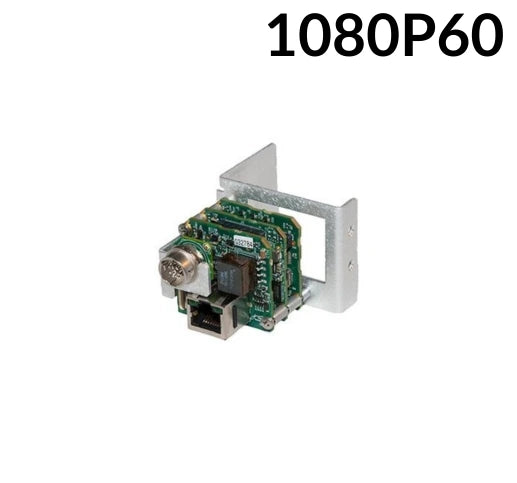

Pleora iPORT™ SB-GigE-EV7520A – External GigE Frame Grabber for Sony Block Cameras
Pleora iPORT™ SB-GigE-EV7520A – External GigE Frame Grabber for Sony Block Cameras
Couldn't load pickup availability

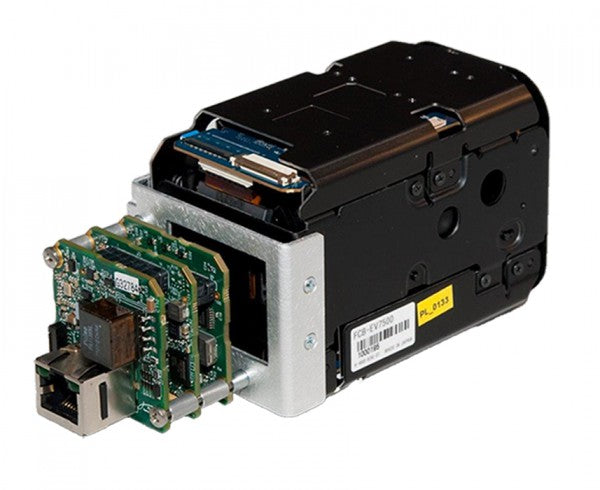

Pleora’s iPORT™ SB-GigE-EV7520A converts the Sony FCB-EV7520A block camera into a GigE Vision®-compliant device, enabling full-resolution, low-latency video transmission over standard Gigabit Ethernet. Eliminating the need for a PCIe frame grabber, it simplifies integration with laptops, embedded PCs, and single-board computers, reducing system size, cost, and power consumption. Supporting resolutions up to 1080p60 and multiple pixel formats (Mono8, BayerGR8, YUV 4:2:2, YUV 4:1:1), it ensures high-quality image acquisition with GigE Vision and GenICam compliance for interoperability in multi-vendor environments.
With power, control, and video over a single cable, the SB-GigE-EV7520A enables flexible deployment with 100m reach via CAT5e/6 and extended distances using Ethernet switches. The included eBUS SDK offers a user-friendly VISCA interface for rapid prototyping and deployment. Designed for industrial, robotic, and security applications, it features PoE and external power options (4.8V-16V), compact 37mm x 37mm x 34.3mm form factor, and 1,189,775-hour MTBF for long-term reliability.
Features:
- Converts Sony FCB-EV7520A into a GigE Vision® camera
- Full-resolution video transmission with low, predictable latency
- Supports resolutions up to 1080p60, 1080i, and 720p
- Multiple pixel formats: Mono8, BayerGR8, YUV 4:2:2, YUV 4:1:1
- GigE Vision and GenICam compliant for multi-vendor interoperability
- Power, control, and video over a single Ethernet cable
- No PCIe frame grabber required, compatible with laptops, embedded PCs, and SBCs
- 100m reach over CAT5e/6 with Ethernet switch support
- Power over Ethernet (PoE) and external power options (4.8V-16V)
- Compact design: 37mm x 37mm x 34.3mm
- High reliability with 1,189,775-hour MTBF
Applications:
- Telepresence robots
- Industrial automation and robotics
- Ship-to-shore cranes
- Security and surveillance systems
- Embedded and portable vision systems
- OEM systems and embedded camera solutions
| iPORT External Frame Grabbers | • Highly reliable, 1 Gb/s data transfer rate with low, end-to-end latency • OEM, in-camera board set |
| eBUS SDK | • eBUS Universal Pro driver • Sample applications, including NetCommand™ sample application, a demonstration of multi-device network connectivity • Driver installation tool • Documentation |
| GigE Vision and GenICam™ | • Fully-compliant firmware load • Guarantees delivery of all packets • Comprehensive data transfer diagnostics |
| Video acquisition | • Digital video interface |
| Input Resolutions | • Full resolution images • 1080p, 25/29.97/30Hz • 1080i, 50/59.94/60Hz • 720p, 25/29.97/30/50/59.94/60HZ • 1080p, 50/59.94/60Hz |
| Pixel formats |
|
| Gigabit Ethernet based |
|
| Multicast capability | Enables advanced distributed processing and control architectures |
| Mechanical Bracket | • Easy assembly with Sony block cameras |
| 12-pin circular connector |
• GPIO |
| RJ-45 jack |
|
| 30-pin connector |
• Sony block camera interface |
| Size (Without bracket) | • 37 mm X 37 mm X 34.3 mm |
| Operating Temperature | Commercial1 |
| Storage temperature | • -40°C to 85°C |
| External power supply | • 4.8 V to 16 V |
| Power consumption | • Up to approximately 7.0 W |
| MTBF @ 40o C | • 1,189,775 hours |
| ECCN | • EAR99 |
