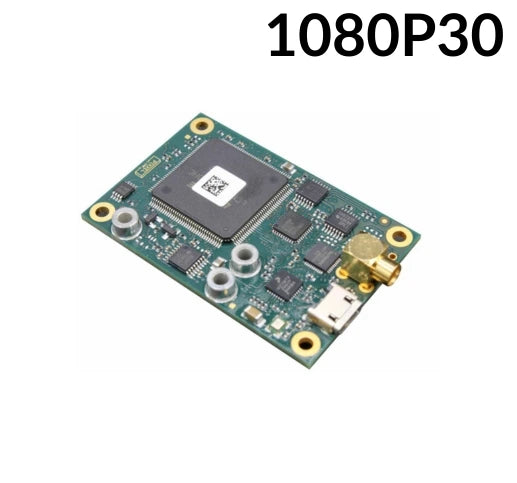

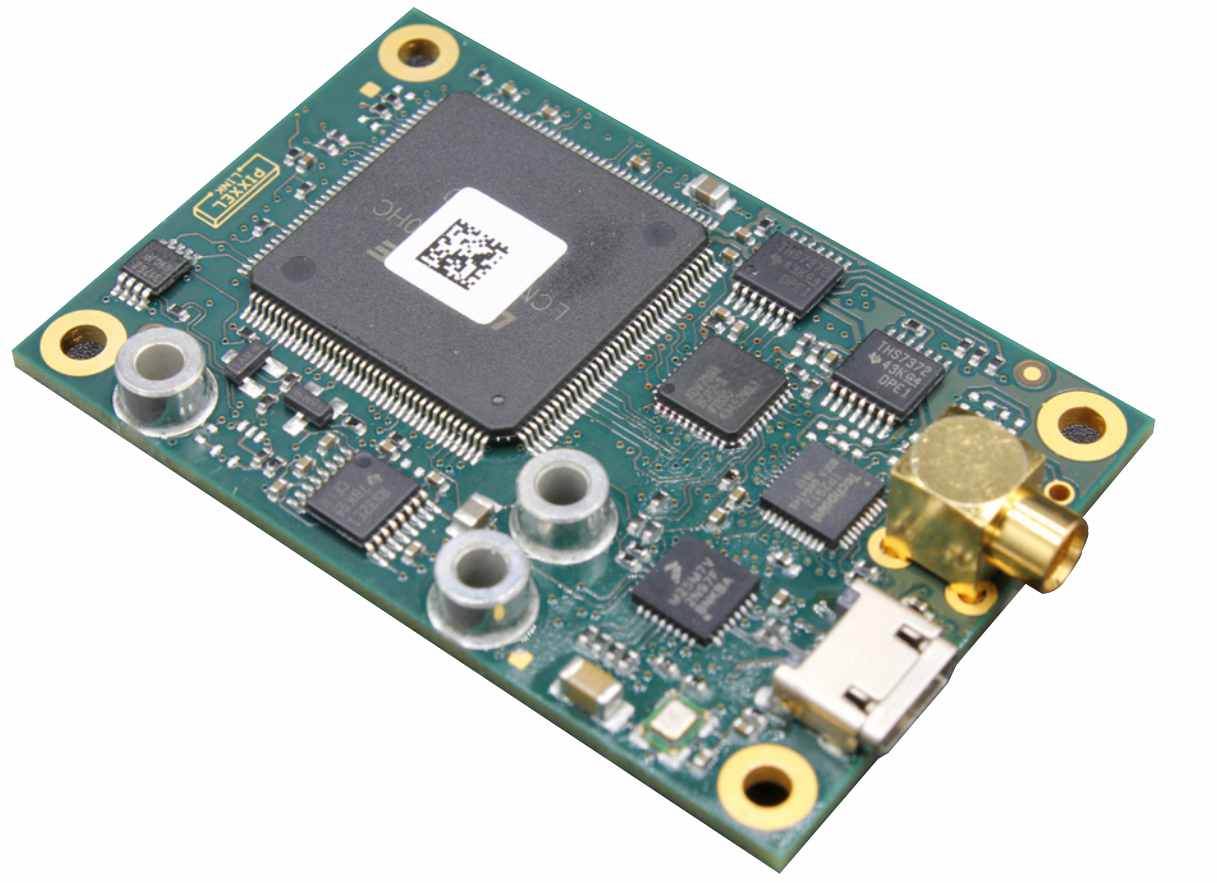

SL4651 Analog HD Video Transmitter with LVDS Interface with Right Angle MCX for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras

SL4651 Spec Sheet

The SL4651 Analog HD Video Transmitter is a robust and high-performance solution designed for seamless integration with HD-TVI and AHD cameras, including Sony FCB-EV9520L, FCB-EV9500L, and Tamron MP3010M-EV HD Block Cameras. This transmitter supports 1080p resolution at 30fps, delivering exceptional video clarity and real-time transmission.

It incorporates a LVDS interface, ideal for high-quality video signal integration, ensuring compatibility with zoom cameras. The SL4651 utilizes MCX 75 Ohm coaxial connectors for stable and reliable video output and features multiple camera control options through RS232, 3.3V CMOS (LVTTL compatible), or optional RS485 interfaces. The device also includes a CVBS loop-out, depending on the camera used.

Powered by a 9V to 12V DC regulated supply, the SL4651 offers flexible installation and usage across a range of applications, including industrial, medical, security, and law enforcement. It operates in a wide ambient temperature range from -10°C to +60°C and is compliant with RoHS and UL/UR standards. The product also includes a TLCK-B-0200 cable kit for easy setup.

Features:

• 1080p HD Video Output: Supports HD-TVI/AHD up to 1080p30 resolution.
• LVDS Interface: Seamless integration with zoom cameras.
• Multiple Camera Control Options: RS232, 3.3V CMOS (LVTTL), RS485 (optional).
• MCX Coaxial Connectors: 75 Ohm, right angle for reliable video transmission.
• Regulated Power Supply: Operates on 9V-12V DC.
• Compact Design: 55mm x 36mm (L x W).
• Low Power Consumption: 4.56W at 12V DC.
• Wide Operating Range: -10°C to +60°C temperature, 20% to 80% humidity.
• RoHS & UL/UR Compliant: Meets industry standards.
• Cable Kit Included: TLCK-B-0200 for easy installation.

Applications:

• Industrial Systems
• Medical Imaging
• Security & Surveillance
• Law Enforcement
• HD Video Transmission
