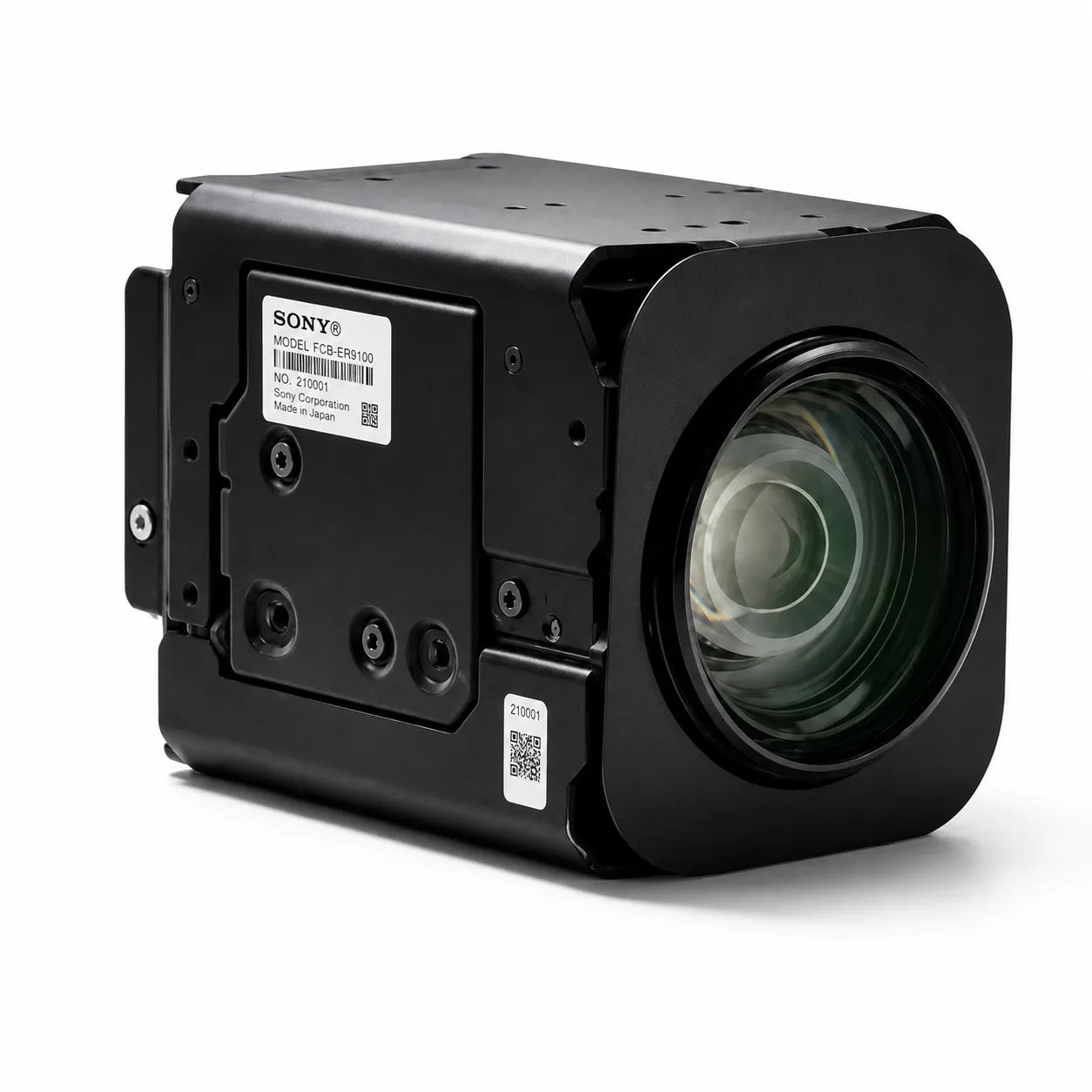

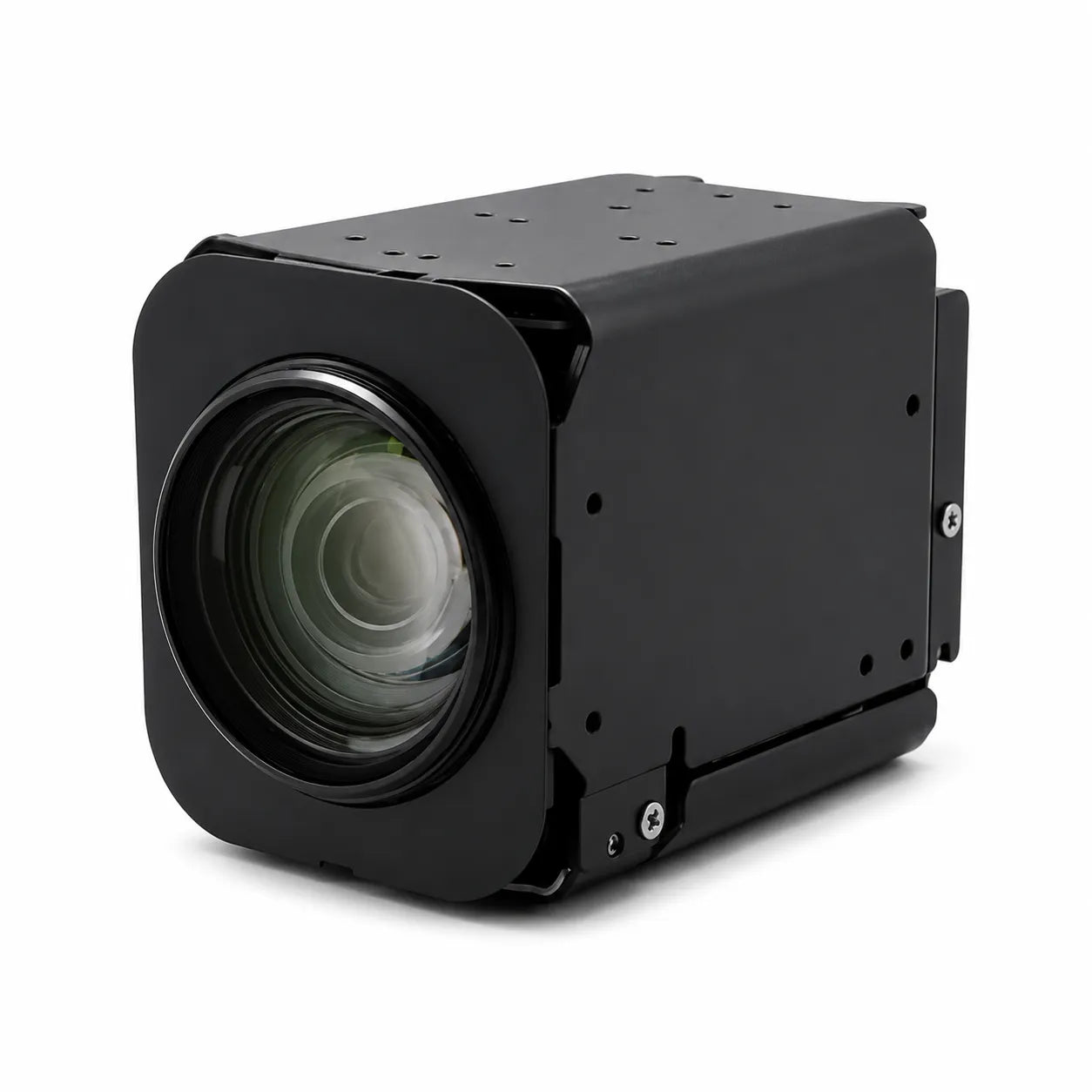

Sony FCB-ER9100 10x 4K60P CMOS Block Camera

The Sony FCB-ER9100 is a compact 4K60P CMOS block camera module built for OEM imaging systems that need sharp detail, smooth motion, optical zoom, and advanced image processing in a small embedded camera format.

Designed around a 1/2.8" STARVIS™ CMOS sensor with approximately 8.39 million effective pixels, the FCB-ER9100 delivers high-quality 4K imaging for demanding vision applications including UAV/drone payloads, robotics, remote inspection, industrial monitoring, medical imaging, surveillance, and security systems.

With 4K 60 fps output, 10x optical zoom, 12x digital zoom, a bright F1.8 wide-angle 4K lens, VISCA protocol control, and digital TMDS video output, this Sony block camera gives system designers a strong imaging core for compact, high-performance OEM products.

Why Choose the Sony FCB-ER9100?

The FCB-ER9100 is built for projects where image quality, zoom flexibility, and compact integration all matter. It is not just a high-resolution camera module — it is a complete optical imaging block designed to be built into larger systems.

For engineers and integrators, that means fewer optical design challenges, flexible camera control, and a proven Sony FCB platform for applications where reliability and image performance are critical.

Key Features:

• 4K/60p ultra-high-definition output for smooth, detailed video capture
• 1/2.8" STARVIS™ CMOS sensor with approx. 8.39 million effective pixels
• 10x optical zoom for flexible wide-to-tele viewing
• 12x digital zoom for additional viewing reach
• Bright F1.8 wide-angle 4K lens
• Super+ Image Stabilizer for vibration-prone or moving systems
• Noise Reduction for cleaner image output
• Wide Dynamic Range Mode for scenes with bright and dark areas
• Visibility Enhancer to improve image clarity in difficult lighting
• Defog for improved visibility in low-contrast scenes
• VISCA protocol control for camera integration and command control
• Digital TMDS video output
• Compact 50 × 58 × 80 mm design for embedded OEM systems
• 7 V to 12 V DC power input
• Lead-free and halogen-free circuit boards

Built for 4K60P OEM Imaging

The FCB-ER9100 supports 4K 60 fps and Full HD 60 fps output, making it a strong choice for systems that need both resolution and motion clarity. This is especially valuable in applications where the camera, subject, or platform may be moving, including drones, robotics, inspection systems, intelligent traffic platforms, and vehicle-mounted imaging.

The STARVIS™ CMOS sensor supports high-quality image capture in a compact camera block, making the FCB-ER9100 well suited for embedded vision designs where space is limited but image performance still matters.

10x Optical Zoom for Flexible Field Viewing

The integrated 10x optical zoom lens gives system designers the ability to capture both wide-area scenes and closer subject detail without adding an external lens assembly. This makes the camera useful for remote visual inspection, surveillance, UAV imaging, mobile robotics, perimeter monitoring, and other applications where viewing distance may change.

Digital zoom support adds additional flexibility when a system needs more reach from a compact camera module.

Advanced Image Processing for Real-World Conditions

Industrial and embedded vision systems often operate in imperfect environments. Lighting may shift, haze may reduce contrast, vibration may affect image stability, or bright backlight may make important details harder to see.

The Sony FCB-ER9100 includes several image enhancement tools designed to help maintain usable image quality in these conditions, including Noise Reduction, Wide Dynamic Range Mode, Visibility Enhancer, Defog, Backlight Compensation, Highlight Compensation, High Sensitivity mode, and Super+ Image Stabilizer.

Applications:

• UAV and drone imaging payloads
• Robotics and autonomous systems
• Remote visual inspection
• Industrial inspection
• Machine vision support systems
• Medical and surgical imaging
• Security monitoring
• Perimeter surveillance
• Intelligent traffic and transportation systems
• Video conferencing and remote viewing systems
• OEM embedded vision products

Related Products and Accessories

The FCB-ER9100 is an OEM block camera module and may require supporting components depending on the final system design. Aegis Electronic Group can help match this camera with related integration products such as:

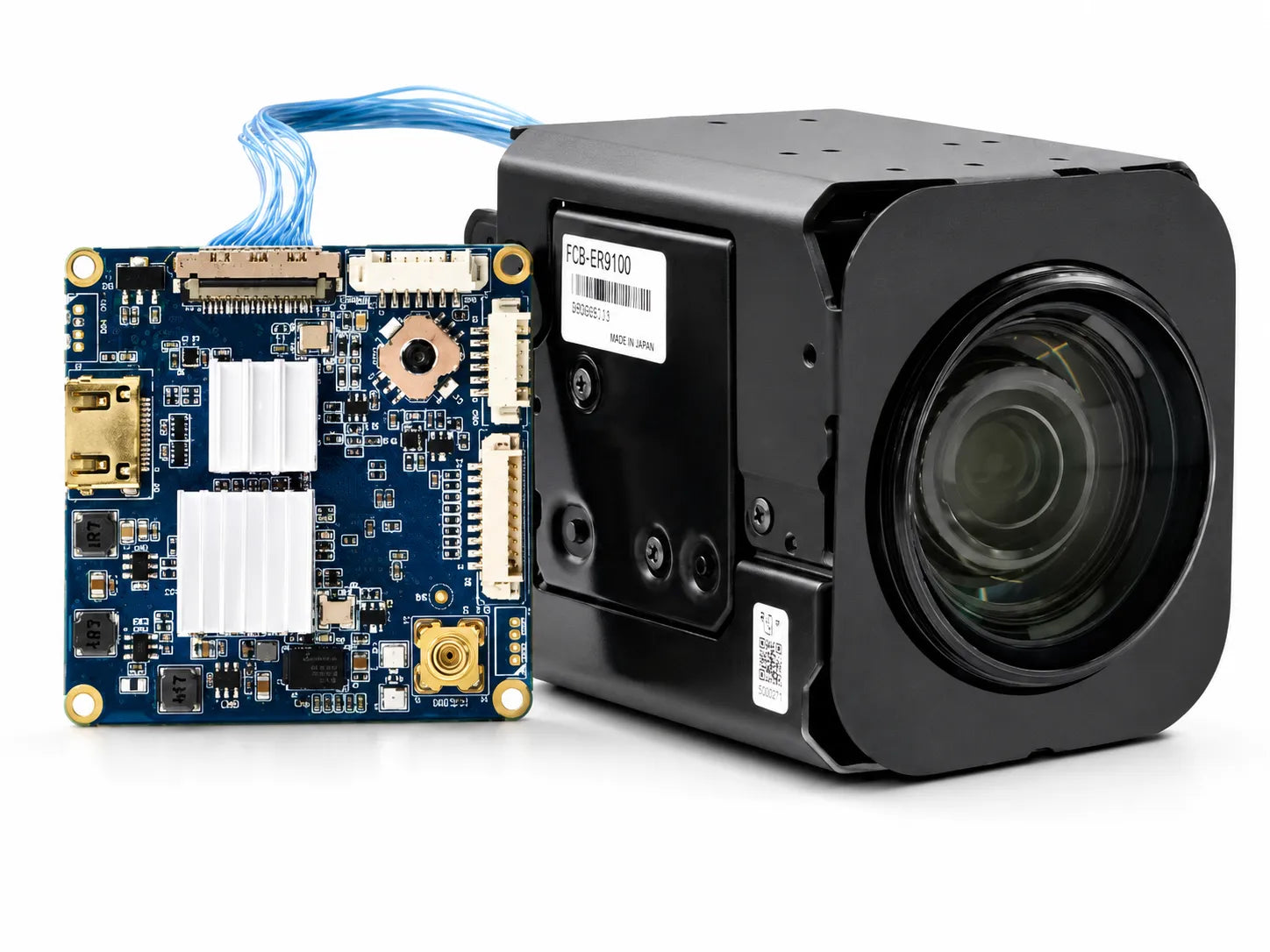

• Compatible Sony FCB interface or evaluation boards
• Digital output interface boards for TMDS/HDMI-style signal handling
• VISCA serial control boards or control cable assemblies
• Power cable assemblies for 7–12 VDC input
• Video conversion boards, if required by the host system
• MIPI CSI-2 bridge solutions for embedded platforms such as NVIDIA Jetson or Raspberry Pi systems, when applicable
• Custom mounting hardware or enclosure components
• Thermal management accessories for enclosed OEM designs
• Integration support for UAV, robotics, inspection, surveillance, and medical imaging systems

Compatibility should be confirmed before purchase, especially when pairing the FCB-ER9100 with interface boards, embedded processors, bridge boards, or custom control electronics.

Specifications

Why Buy from Aegis Electronic Group?

Aegis Electronic Group supports OEMs, engineers, and system integrators with industrial camera selection, embedded vision components, interface solutions, and application-focused product support. If you are building around the Sony FCB-ER9100, Aegis can help identify the right accessories, interface path, and integration approach for your application.

Contact Aegis Electronic Group today to request pricing, availability, and support for the Sony FCB-ER9100 10x 4K60P CMOS Block Camera.

*Product information is based on available Sony FCB-ER9100 technical documentation. Specifications are subject to change without notice.
