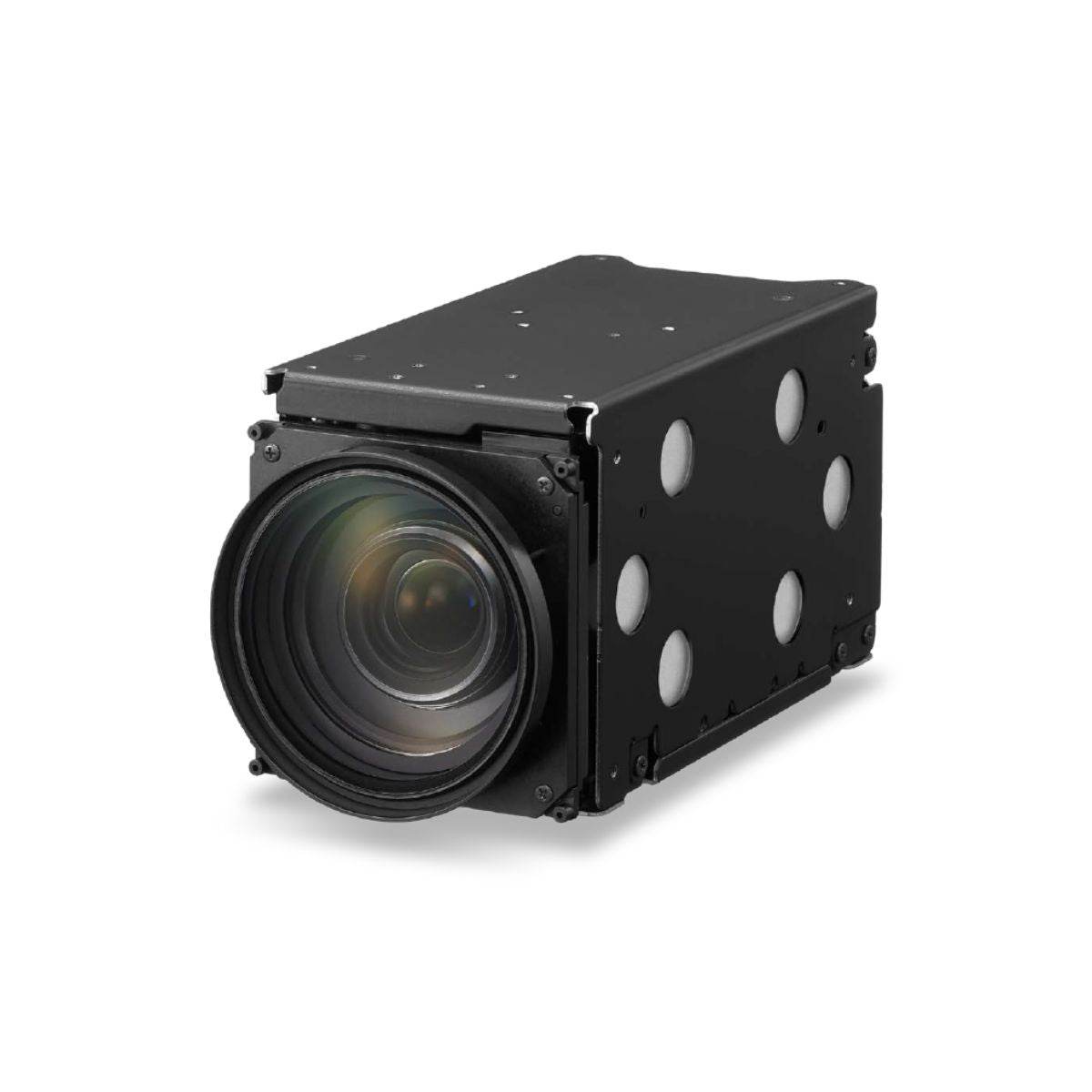

Sony FCB-ER9500 4K Block Camera, 8.4MP, 25x Optical Zoom, 4K/60p, LVDS, STARVIS2 Sensor, WDR & Stabilization

FCB-ER9500 Spec Sheet
FCB-ER9500 Technical Manual

High-Performance 4K/60p Imaging with STARVIS™2 Sensor and 25x Optical Zoom

The Sony FCB-ER9500 delivers exceptional 4K video performance with advanced image processing, superior low-light capabilities, and seamless zoom functionality. Designed for OEM integration, this compact, high-resolution block camera is ideal for demanding environments such as robotics, UAVs, industrial inspection, medical imaging, and security applications.

Key Features and Benefits

• True 4K/60p Ultra HD Output
  Capture smooth, high-resolution video at up to 3840 x 2160 at 60 frames per second.

• STARVIS™2 CMOS Sensor (IMX678)
  Excellent low-light sensitivity and high dynamic range ensure clear, detailed images in various lighting conditions.

• 25x Optical Zoom with Super Stabilization
  Precise zoom from wide-angle to telephoto with built-in stabilization for reduced blur in dynamic environments.

• Flexible Video Output
  Multiple formats including 4K, 1080p, and 720p for seamless system integration.

• Advanced Autofocus and Exposure
  Includes normal, interval, one-push AF modes, backlight compensation, wide dynamic range (WDR), and visibility enhancer.

• Compact and Lightweight
  Easy to integrate with dimensions of 56 x 64 x 125 mm and a weight of approximately 464 g.

Applications

• UAV and drone surveillance

• Robotics and automated vision systems

• Industrial inspection and quality control

• Medical imaging and diagnostics

• Security and perimeter monitoring

• Broadcasting and remote video production

• Underwater and harsh environment imaging

• Intelligent traffic monitoring and ANPR

Technical Specifications

Image Sensor:
1/1.8" STARVIS™2 CMOS (IMX678), approx. 8.40 MP (3856 × 2180)

Zoom:
25x Optical Zoom (f = 6.5 mm – 162.5 mm, F1.6 – 4.8)
30x StableZoom, 12x Digital Zoom

Output Formats:
2160p/60, 59.94, 50, 30, 29.97, 25
1080p/60, 59.94, 50, 30, 29.97, 25
1080i/60, 59.94, 50
720p/60, 59.94, 50, 30, 29.97, 25

Minimum Illumination:
0.028 lx (High Sens ON, 50 IRE)

Focus:
Auto (Normal, Interval, Trigger), Manual, One-Push, Spot Focus

Stabilization:
Super Image Stabilizer (Super / Super+)

Video Output:
Digital Y/Pb/Pr 4:2:2, RGB 4:4:4 over HDMI

Control Interface:
VISCA protocol, CMOS 3.3V, baud rates from 9.6 kbps to 115.2 kbps

Power Requirements:
7.0 V to 12.0 V DC, approx. 5.8 W typical

Operating Conditions:
Temperature: -5 °C to +60 °C
Humidity: 20% to 80% (absolute humidity: 36 g/m³)

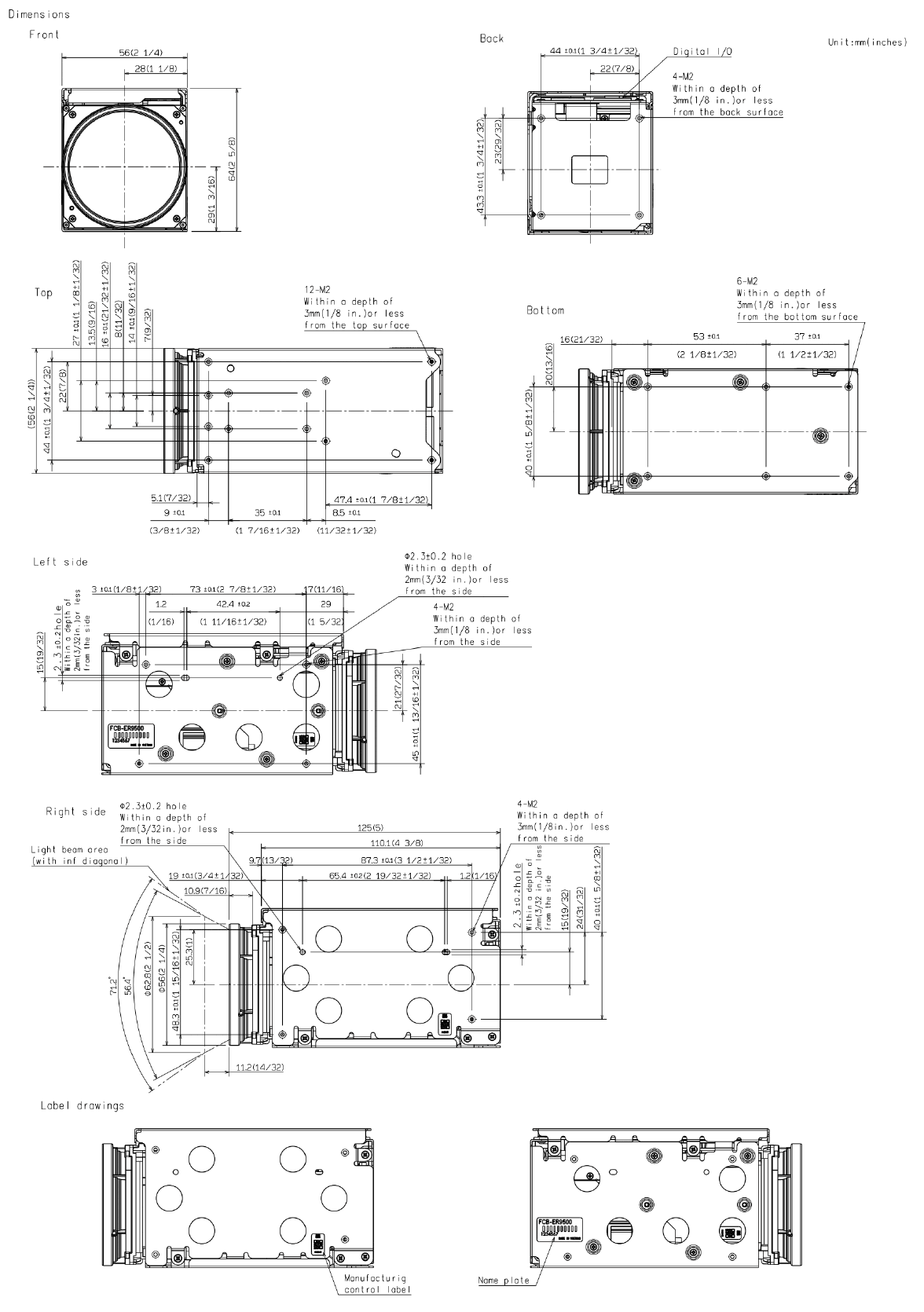

Dimensions:
56 × 64 × 125 mm

Weight:
Approx. 464 g

Why Buy from Block Cameras?

We offer full technical support, flexible pricing for OEMs, and fast delivery. Whether you're prototyping or scaling to production, our team can help you integrate the Sony FCB-ER9500 into your system with confidence.

Request a quote or purchase online today.
