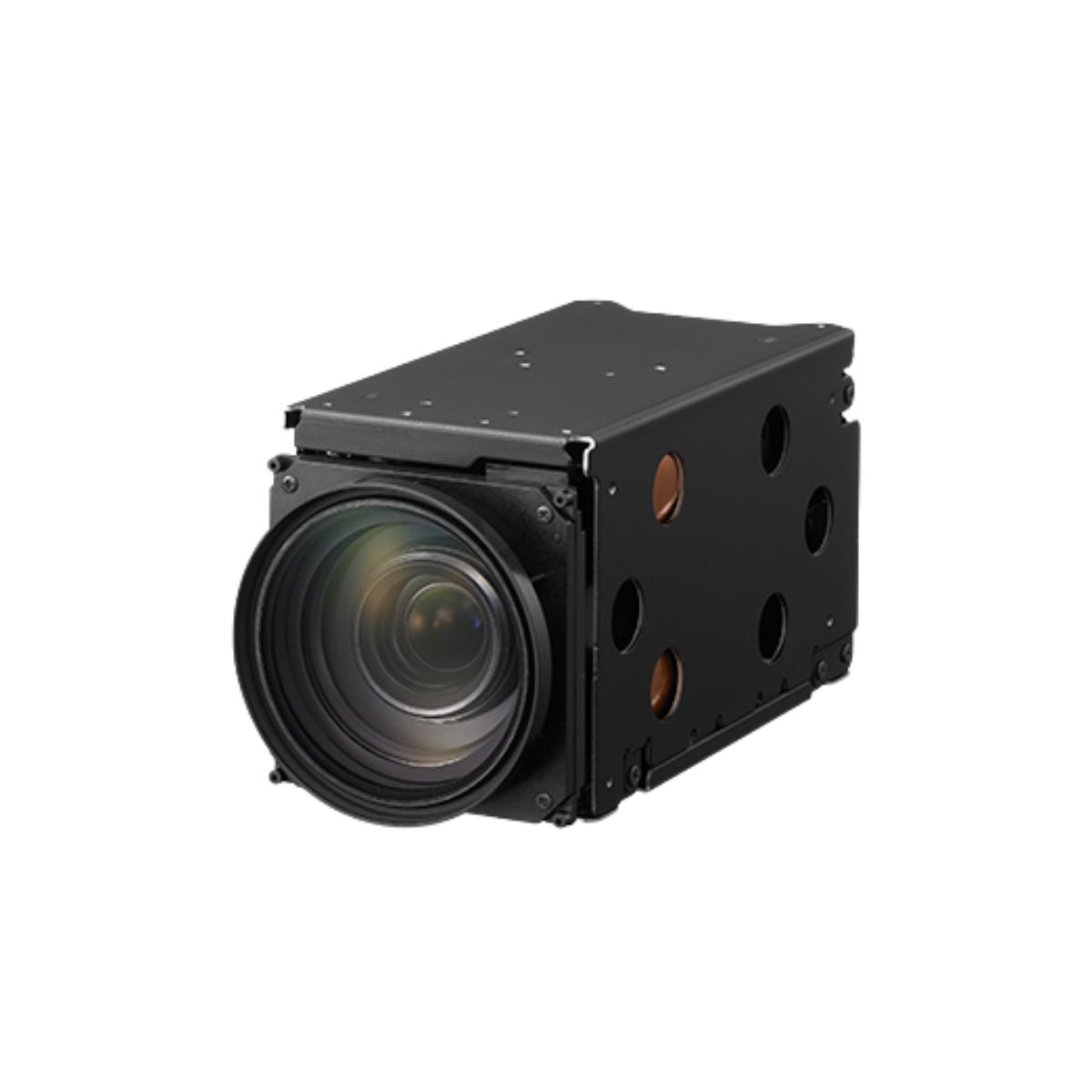

Sony FCB-EV9500L 2.1 MP Block Camera (1080p/60fps), 30x Optical Zoom, 1/1.8" STARVIS Sensor, Advanced Low-Light & Image Stabilization
Sony FCB-EV9500L 2.1 MP Block Camera (1080p/60fps), 30x Optical Zoom, 1/1.8" STARVIS Sensor, Advanced Low-Light & Image Stabilization
Couldn't load pickup availability
FCB-EV9500L Specification Sheet
FCB-EV9500L Product Brochure
FCB-EV9500L Technical Manual
The Sony FCB-EV9500L Block Camera is engineered for exceptional versatility and image quality, featuring a 1/1.8-type STARVIS CMOS sensor with 4.17 million pixels. Designed to excel in various environments, it delivers crisp, high-definition video in resolutions up to 1080p at 60fps, making it ideal for professional surveillance, robotics, broadcasting, and industrial inspections. The camera's 30x optical zoom, coupled with a 36x stable zoom and 12x digital zoom, provides remarkable clarity and flexibility for detailed observation across a wide range of distances.
In addition to its impressive optical capabilities, the FCB-EV9500L offers outstanding performance in low-light conditions, with a minimum illumination of just 0.009 lx in ICR-Off mode. This makes it a perfect solution for security systems that require reliable performance in night-time or low-light environments. The camera also features advanced image processing technologies, including Wide Dynamic Range (WDR), Noise Reduction (2D/3D), and Motion Detection, ensuring crisp, clear video even in challenging lighting situations. With robust build quality, wide operating temperature ranges, and integration with VISCA control systems, the FCB-EV9500L is a reliable and powerful solution for a variety of professional applications.
Features:
- New image stabilization modes
- Enhanced 30x optical zoom
- Spectral sensitivity
- Wide-dynamic range
- Privacy zone masking
- New seven-blade iris
- Anti-reflection technology
- Improved low-light performance
- Digital 2D/3D Noise Reduction
- Spherical Privacy Zone Masking
- Motion Detection Alarm
- Camera Mode Display Feature
- Picture Effects: E-Flip, Nega Art, Black & White, Mirror Image, Color Enhancement
- Electronic Shutter/Slow Shutter
- TTL signal-level control (VISCA protocol)
Applications:
- Robotics: Enhance robotic vision with precision zoom and stability.
- Surveillance: Monitor vast areas and detailed scenes with high clarity.
- Industrial Inspection: Ensure accurate inspections with superior image quality.
- Drones: Capture stable and detailed aerial footage in dynamic environments.
- Broadcasting: Achieve high-quality visuals even in low-light conditions.
- Scientific Research: Document and analyze with advanced imaging capabilities.
- Traffic Monitoring: Maintain clarity and stability in traffic management systems.
| Image Sensor | 1/1.8-type STARVIS CMOS Sensor (4.17M pixels) |
| Output Image Size (H x V) | 1920 x 1080, 1280 x 720 |
| Signal System | 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50, 720p/30, 720p/29.97, 720p/25 |
| Minimum Illumination (50%, High Sensitivity MOde ON) |
ICR-Off mode: 0.009 lx (Shutter Speed: 1/30 s), 0.0012 lx (1/4 s or 1/3 s) ICR-Off mode: 0.00008 lx (Shutter Speed: 1/30 s), 0.00005 lx (1/4 s or 1/3 s, 30%) |
| Minimum Illumination (50%, High Sensitivity MOde OFF) |
ICR-Off mode: 0.09 lx (Shutter Speed: 1/30 s), 0.012 lx (1/4 s or 1/3 s) ICR-Off mode: 0.00063 lx (Shutter Speed: 1/30 s) |
| Recommended Illumination | 100 lx - 100,000 lx |
| Gain | Auto/Manual (0 dB - 50.0 dB), 0 - 28 steps |
| Shutter Speed | 1/1 - 1/10000 s, 22 steps |
| Sync System | Internal |
| Exposure Control | 0 dB - +- 10.5 dB, 15 steps |
| Backlight Compensation | Yes |
| Gamma | Standar/Straight Gamma |
| Aperture Control | 16 steps |
| White Balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), Spot AWB |
| AE (Auto Exposure Mode) | Full Auto, Manual, Priority Mode (shutter/iris), EV compensation, Spot AE, Slow AE |
| Zoom | 30x Enhanced Optical Zoom 36x Stable Zoom 12x Digital Zoom |

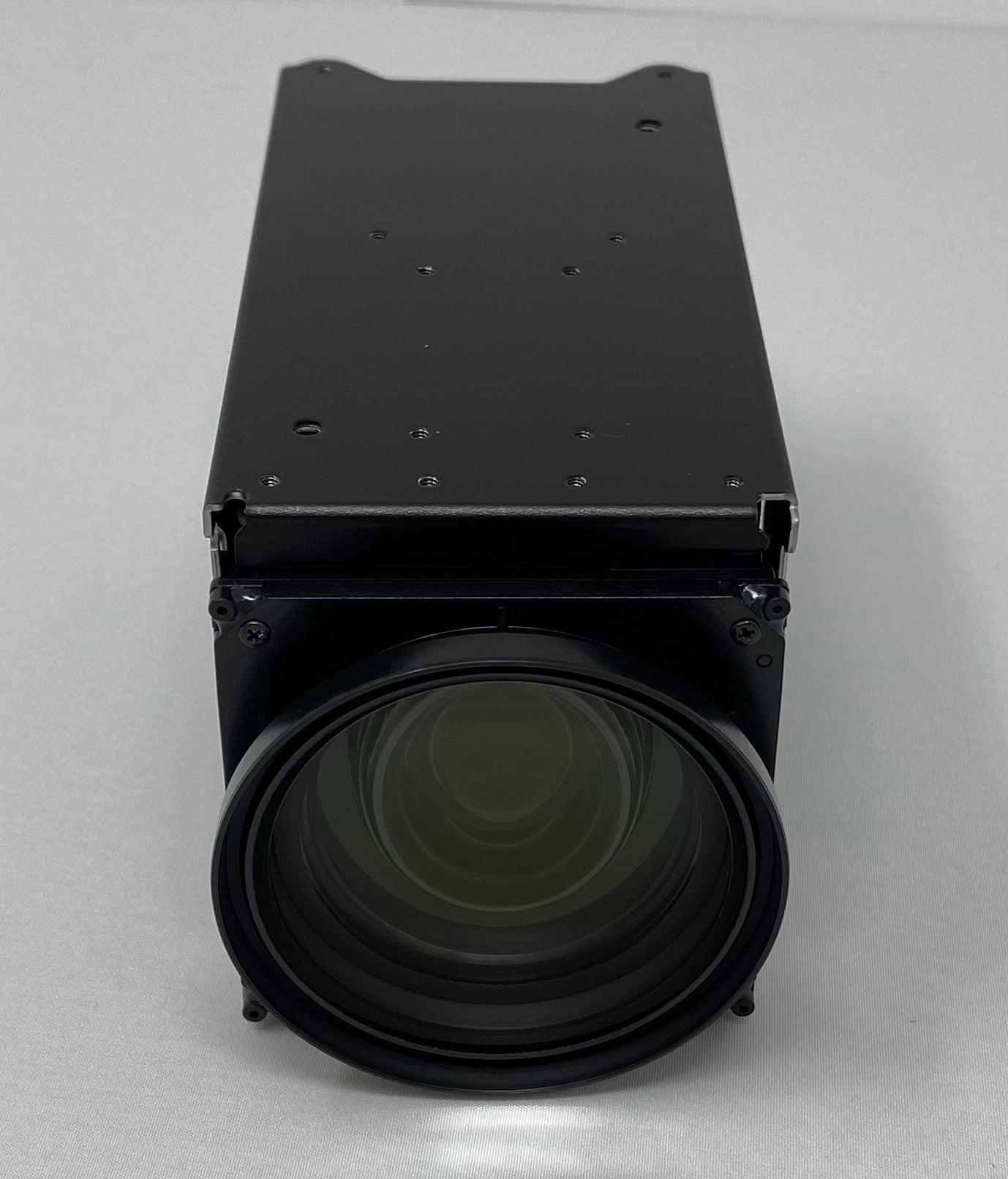

| Lens | f = 6.5 mm (wide) to 162.5 mm (tele), F1.6 - 4.8 |
| Zoom Mode | Standard Mode / Variable Mode / Direct Mode |
| Zoom Movement Speed |
Wide end - Tele end - 4.8 sec. (Focus Tracking ON), 2.9 sec (Focus tracking OFF) Wide end - Digital 12x tele - 6.1 sec. (29.97p/59.94p), 6.4 sec (25p/50p) Digital wide - Digital 12x tele - 1.4 sec. (29.97p/59.94p), 1.6 sec (25p/50p) |
| Focusing System | Auto Focus (Normal AF, Interval AF, Zoom Trigger AF (Sensitivity: normal, low), Manual (Standard, Variable, Direct), One Push Trigger, Full Scan One Push, Near Limit, ICR-on Correction, Spot Focus |
| Focus Movement Time | ∞-Near: 1.4 sec. |
| Horizontal Viewing Angle | 58.1°-2.3° |
| Minimum Object Distance (wide end to tele end) | 100 mm - 1200 mm |
| Auto ICR | Yes |
| Wide Dynamic Range (Wide-D) | Yes |
| Visibility Enhancer | Yes |
| Defog | Yes (low/mid/high) |
| Noise Reduction | Yes (3D + 2D / Independent setting (3D, 2D) |
| Progressive Scan Mode | Yes |
| Image Stabilization | Yes |
| Spot Light Avoidance | Yes |
| Motion Detection | Yes |
| Privacy Zone Masking | Yes |
| Alarm | Yes |
| Slow AE Response | Yes |
| Picture Effects | Black White (Monochrome Image) |
| Picture Freeze | Yes |
| Electronic-Flip (E-FLIP) | Yes |
| Mirror Image | Yes |
| Slow Shutter | Yes |
| Temperature Readout | Yes |
| Title Display | Yes (20 characters / line, max. 11 lines) |
| Camera Mode Display | Yes (English) |
| Video Output | Digital: Y/Pb/Pr 4:2:(HDMI) Y:8bit. C:8bit RGB 4:4:4(HDMI) R:8bit G:8bit B:8bit |
| Camera Control Interface | VISCA protocol (CMOS 3.3V Level, 5.5V tolerance); Baud Rate : 9.6 kbps, 19.2 kbps, 38.4 kbps, 115.2 kbps, Stop bit: 1 bit |
| Power Requirements | 7.0 V - 12.0 V DC |
| Power Consumption | 4.6 W (When motor operates: 6.3W) |
| Operating Temperature | -5 °C - +60 °C |
| Storage Temperature | -20 °C - +60 °C |
| Operating Humidity | 20% - 95% (Absolute humidity : 36 g/m3) |
| Storage Humidity | 20% - 95% (Absolute humidity : 36 g/m3) |

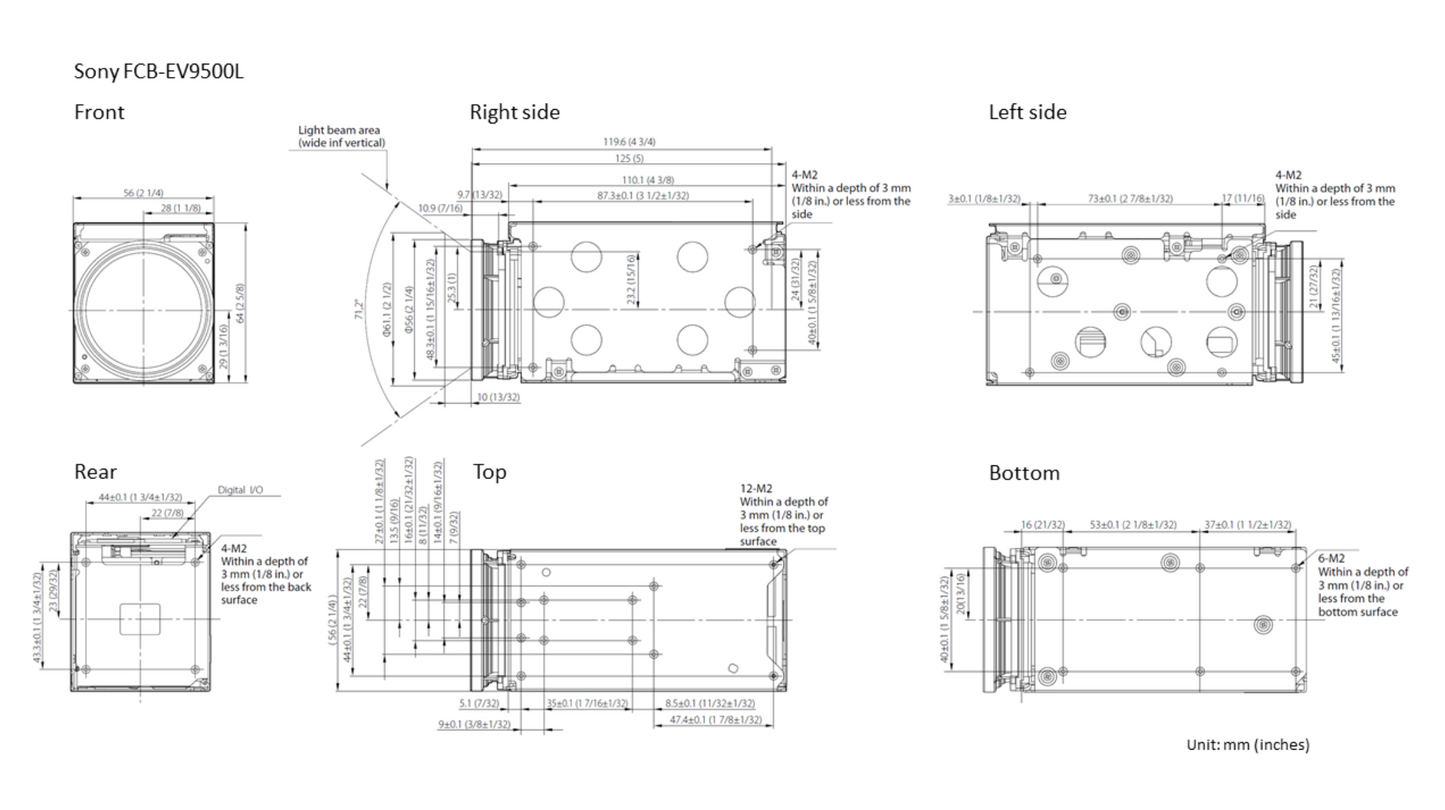

| Dimensions (W x H x D) | 56.0 x 64.0 x 125 mm |
| Mass | Approx. 439 g |
