Sony FCB-EV9520L High-Performance 1080P60 30x Optical Zoom Camera with STARVIS 2 CMOS Sensor
Sony FCB-EV9520L High-Performance 1080P60 30x Optical Zoom Camera with STARVIS 2 CMOS Sensor
Couldn't load pickup availability

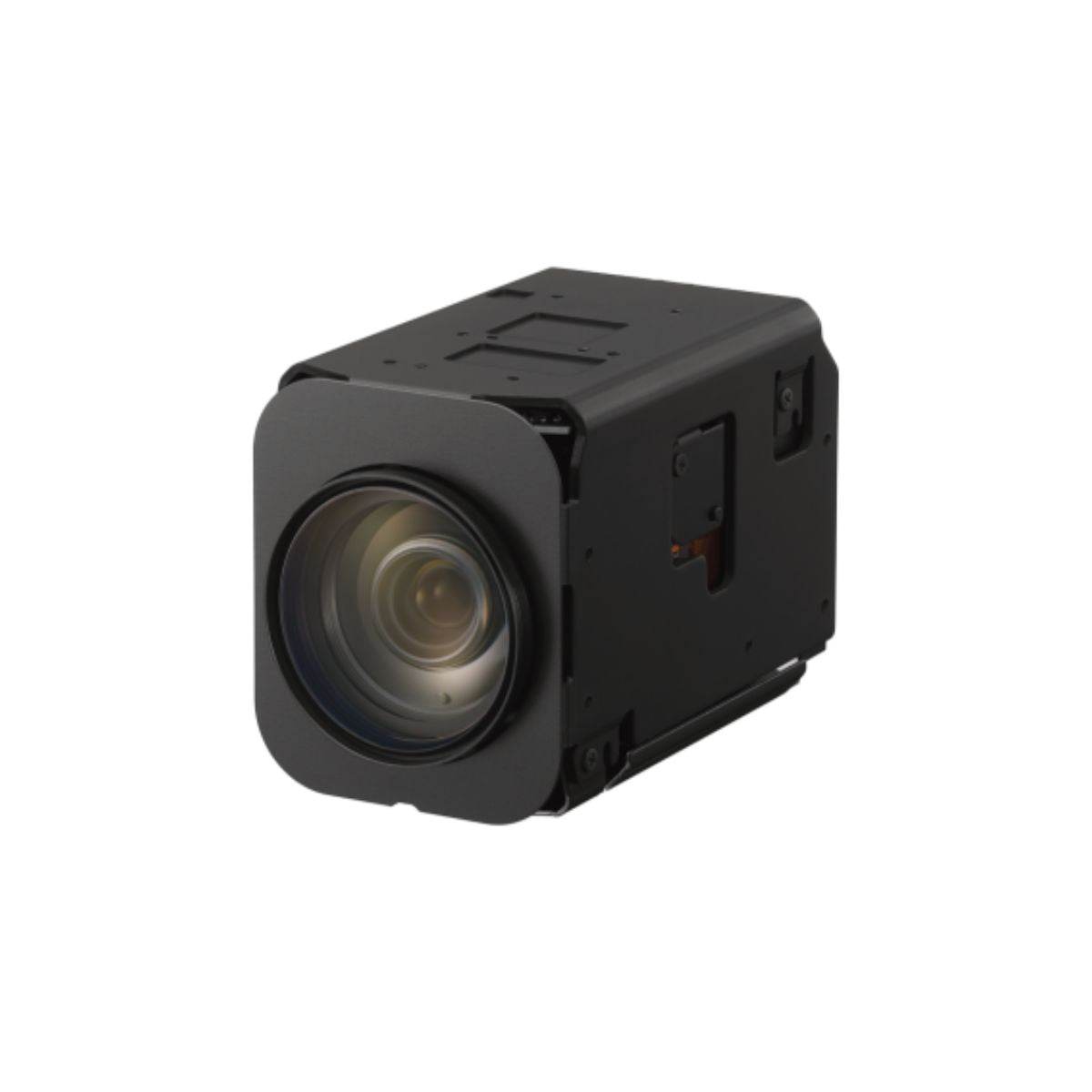

The Sony FCB-EV9520L camera is equipped with a 1/2.8" STARVIS 2 CMOS sensor, providing approximately 2.13 million effective pixels for exceptional image quality. It delivers high-definition output at a resolution of 1920x1080, supporting frame rates of up to 60 frames per second across multiple signal formats, including 1080p (60/59.94/50/30/29.97/25) and 720p (60/59.94/50/30/29.97/25).
In low-light conditions, the camera achieves impressive minimum illumination levels of 0.00008 lux in ICR-On mode (at 1/30 s). It offers a gain range from 0 dB to 50 dB, allowing for adaptable exposure settings. The integrated 30x optical zoom lens (f=4.3 mm to 129 mm, F1.6 to F4.7) enhances detail capture, with an additional digital zoom capability of up to 12x.
Shutter speed options range from 1/1 to 1/10,000 seconds, providing flexibility for various shooting scenarios. The camera features an advanced Auto Focus system, Wide Dynamic Range (Wide-D), and Super Image Stabilization for superior performance. Control is facilitated via the VISCA protocol, enabling seamless integration into existing systems. The FCB-EV9520L operates within a temperature range of -5 °C to +60 °C, has compact dimensions of 50 x 60 x 89.7 mm, and weighs approximately 239 g.
Features:
- Imager: Starvis 2 1/2.8 CMOS
- Output: 1080 60p
- WDR: 130 dB
- Optical zoom : x30
- H FOV:: 63,7°
- Super image Stabilizer
- I/F: LVDS
- Size: 50 x 60 x 89,7 mm
Applications:
- Security
- Surveillance
- Intelligent Traffic
- Remote Monitoring
- Video Conferencing
- Drones
- UAV's
- Medical
- Robotics
- Aircraft
- Police Vehicle Camera
- RVI Industrial Camera
- House of Worship Camera
- Off-Line Industrial Inspection
- Medical Imaging
- Autonomous Vehicles
- Shipborne Systems
FCB-EV9520L Specification Sheet
FCB-EV9520L Product Brochure
FCB-EV9520L Technical Manual
|
Image Sensor (Number of effective pixels) |
1/2.8-type STARVIS 2 CMOS Sensor (Approx. 2.13M pixels) |
| Output Image Size (H x V) | 1920x1080, 1280x720 |
| Signal System | 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50, 720p/30, 720p/29.97, 720p/25 |
|
Minimum Illumination (50%, High Sensitivity Mode ON) |
ICR-Off mode: 0.009 lx (Shutter Speed: 1/30 s), 0.0012 lx (Shutter Speed: 1/4 s or 1/3 s) ICR-On mode: 0.00008 lx (Shutter Speed: 1/30 s), 0.000005 lx (Shutter Speed: 1/4 s or 1/3 s, 30%) |
| Minimum Illumination (50%, High Sensitivity Mode OFF) | ICR-Off mode: 0.09 lx (Shutter Speed: 1/30 s), 0.012 lx (Shutter Speed: 1/4 s or 1/3 s) ICR-On mode: 0.00063 lx (Shutter Speed: 1/30 s) |
| Recommended Illumination | 100 lx to 100,000 lx |
| Image S/N | 50 dB (Weight On) |
| Gain | Auto/Manual (0 dB to 50.0 dB), 0 to 28 steps |
| Shutter Speed | 1/1 to 1/10000 s, 22 steps |
| Sync System | Internal |
| Exposure Control | 0 dB to ± 10.5 dB, 15 steps |
| Backlight Compensation | Yes |
| Gamma | Standard/Straight Gamma |
| Aperture Control | 16 steps |
| White Balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), Spot AWB |
| AE (Auto Exposure Mode) | Full Auto, Manual, Priority mode (shutter/iris), EV compensation, Spot AE, Slow AE |
| Lens (wide to tele) | 30x optical zoom f= 4.3 mm to 129 mm, F1.6 to F4.7 |
| Zoom Mode | Standard Mode / Variable Mode / Direct Mode |
| Digital Zoom | 12x (360x with optical zoom) |
| Zoom Movement Speed | |
| Wide end to Tele end | 4.8 s (Focus Tracking ON) 3.0 s (Focus Tracking OFF) |
| Wide end to Digital 12x tele | 5.7 s (Focus Tracking ON) 3.0 s (Focus Tracking OFF) |
| Digital wide to Digital 12x tele | 6.0 s (59.94p mode) 6.3 s (50p mode) 7.0 s (29.97p mode) 7.3 s (25p mode) |
| Focusing System | Auto Focus (Normal AF, Interval AF, Zoom Trigger AF [Sensitivity: normal, low]), Manual (Standard, Variable, Direct), One Push Trigger, Full Scan One Push Trigger, Near Limit, ICR-on Correction, Spot Focus |
| Focus Movement Time | ∞ to Near:1.4 s |
| Horizontal Viewing Angle (wide to tele) | Distortion Compensation Off : 64.0° to 2.4° Distortion Compensation On : 61.5° to 2.3° |
| Minimum Object Distance (wide end to tele end) | 10 mm to 1200 mm |
| Camera Features | |
| Auto ICR | Yes:ON (B&W/Color) |
| Wide Dynamic Range (Wide-D) | Yes |
| Visibility Enhancer | Yes |
| Defog | Yes (low/mid/high) |
| Noise Reduction | Yes (3D + 2D / Independent setting (3D, 2D)) |
| Progressive Scan Mode | Yes |
| Image Stabilization | Yes: Super image stabilizer (Super / Super+) |
| StableZoom*1 | Yes |
| Spot Light Avoidance | Yes |
| Motion Detection | Yes |
| Privacy Zone Masking | Yes |
| Alarm | Yes |
| Slow AE Response | Yes |
| Picture Effects | Black White (Monochrome Image) |
| Picture Freeze | Yes |
| Electronic-Flip (E-FLIP) | Yes |
| Mirror Image | Yes |
| Slow Shutter | Yes |
| Temperature Readout | Yes |
| Title Display | Yes (20 characters / line, max. 11 lines) |
| Camera Mode Display | Yes (English) |
| Video Output | Digital : Y/Pb/Pr 4:2:2 (LVDS) (Y: 8 bit, C: 8 bit, Vsync, Hsync, Field, Clock) (SMPTE274M/SMPTE296M) |
| Camera Control Interface | VISCA protocol (CMOS 3.3V Level, 5.5V tolerance); Baud Rate : 9.6 kbps, 19.2 kbps, 38.4 kbps, 115.2 kbps, Stop bit: 1 bit |
| Power Requirements | 7.0 V to 12.0 V DC |
| Power Consumption | 4.4 W (during motor operation: 5.4 W) |
| Operating Temperature | -5 °C to +60 °C (23 °F to +140 °F) |
| Storage Temperature | -20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 20% to 80% (Absolute humidity: 36 g/m3) |
| Storage Humidity | 20% to 95% (Absolute humidity: 36 g/m3) |

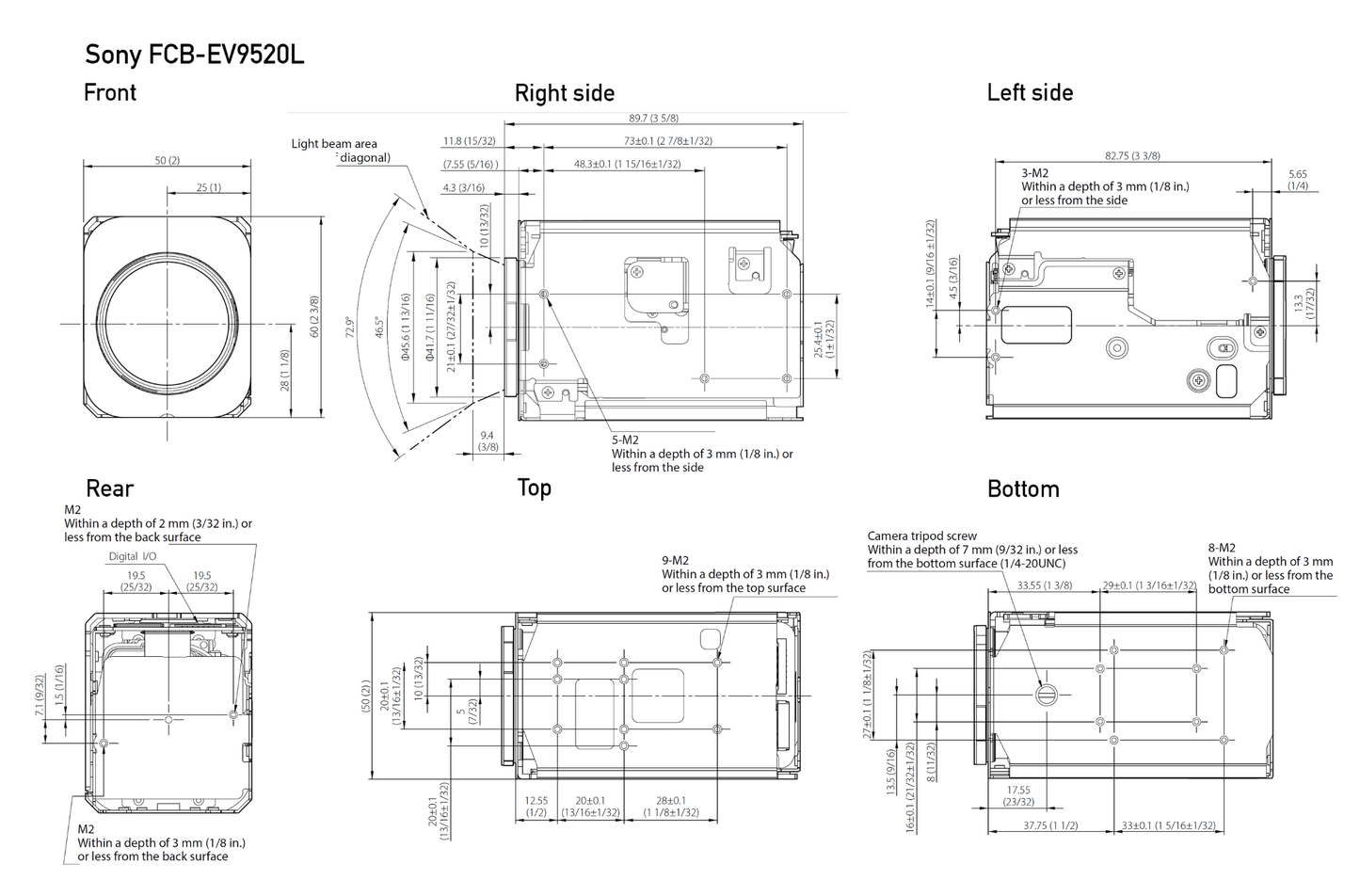

| Dimensions (W x H x D) | 50 x 60 x 89.7 (2 x 2 3/8 x 3 5/8 in.) |
| Mass | Approx. 239 g (8.4 oz) |
