Sony FCB-EW9500H 4 MP (2160p/60) Block Camera, 30x Optical Zoom, HDMI Output, 1/1.8" Sensor, High Sensitivity, Super Image Stabilizer
Sony FCB-EW9500H 4 MP (2160p/60) Block Camera, 30x Optical Zoom, HDMI Output, 1/1.8" Sensor, High Sensitivity, Super Image Stabilizer
Regular price
$783.00 USD
Regular price
Sale price
$783.00 USD
Unit price
per
Tax included.
Couldn't load pickup availability
FCB-EW9500H Specification Sheet
FCB-EW9500H Product Brochure
FCB-EW9500H Technical Manual

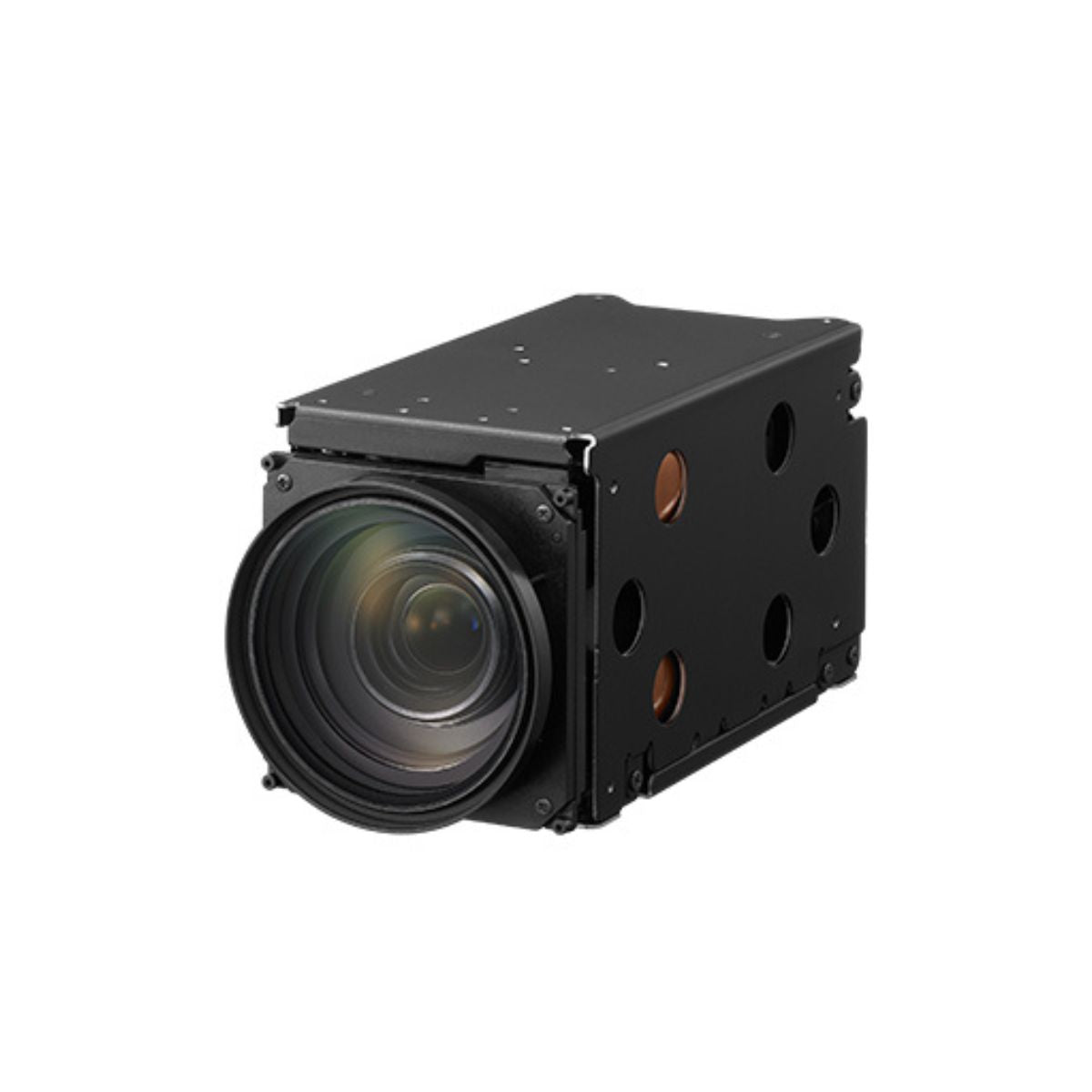

The Sony FCB-EW9500H is a high-performance 4K block camera with a 1/1.8" STARVIS CMOS sensor, offering exceptional low-light sensitivity (0.00008 lx). It supports 2160p/60 video resolution and features a 30x optical zoom, 36x stable zoom, and 12x digital zoom. Equipped with a super image stabilizer, HDMI output, and multiple control protocols (VISCA), this versatile camera is perfect for security, surveillance, remote monitoring, and video conferencing. Ideal for harsh environments, it ensures clear, reliable performance across a wide range of professional applications.
Features:
- New image stabilization modes
- Enhanced optical zoom
- Spectral sensitivity
- Wide-dynamic range
- Privacy zone masking
- New seven blade iris
- Anti-reflection technology
- Improved low light from prior generation FCBs
- Digital 2D/3D Noise Reduction
- Spherical Privacy Zone Masking
- Motion Detection Alarm
- Camera Mode Display Feature
- Picture Effects: E-Flip, Nega Art, Black & White, Mirror Image, Color Enhancement
- Electronic Shutter/Slow Shutter
- TTL signal-level control (VISCA protocol)
Applications:
- Security & Surveillance
- Intelligent Traffic
- Remote Monitoring
- Video Conferencing
- Inspection Robots
- Unmanned Aerial Vehicles
| Image Sensor | 1/1.8-type STARVIS CMOS Sensor (4.17M pixels) |
| Output Image Size (H x V) | 2688 x 1512 2560 x 1440 1920 x 1080, 1280 x 720 |
| Signal System | 2160p/60, 2160p/59.94, 2160p/50, 2160p/30, 2160p/29.97, 2160p/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50, 720p/30, 720p/29.97, 720p/25 |
| Minimum Illumination (50%, High Sensitivity MOde ON) |
ICR-Off mode: 0.009 lx (Shutter Speed: 1/30 s), 0.0012 lx (1/4 s or 1/3 s) ICR-Off mode: 0.00008 lx (Shutter Speed: 1/30 s), 0.00005 lx (1/4 s or 1/3 s, 30%) |
| Minimum Illumination (50%, High Sensitivity MOde OFF) |
ICR-Off mode: 0.09 lx (Shutter Speed: 1/30 s), 0.012 lx (1/4 s or 1/3 s) ICR-Off mode: 0.00063 lx (Shutter Speed: 1/30 s) |
| Recommended Illumination | 100 lx - 100,000 lx |
| Gain | Auto/Manual (0 dB - 50.0 dB), 0 - 28 steps |
| Shutter Speed | 1/1 - 1/10000 s, 22 steps |
| Sync System | Internal |
| Exposure Control | 0 dB - +- 10.5 dB, 15 steps |
| Backlight Compensation | Yes |
| Gamma | Standar/Straight Gamma |
| Aperture Control | 16 steps |
| White Balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), Spot AWB |
| AE (Auto Exposure Mode) | Full Auto, Manual, Priority Mode (shutter/iris), EV compensation, Spot AE, Slow AE |
| Zoom | 30x Enhanced Optical Zoom 36x Stable Zoom 12x Digital Zoom |
| Lens | f = 6.5 mm (wide) to 162.5 mm (tele), F1.6 - 4.8 |
| Zoom Mode | Standard Mode / Variable Mode / Direct Mode |
| Zoom Movement Speed |
Wide end - Tele end - 4.8 sec. (Focus Tracking ON), 2.9 sec (Focus tracking OFF) Wide end - Digital 12x tele - 6.1 sec. (29.97p/59.94p), 6.4 sec (25p/50p) Digital wide - Digital 12x tele - 1.4 sec. (29.97p/59.94p), 1.6 sec (25p/50p) |
| Focusing System | Auto Focus (Normal AF, Interval AF, Zoom Trigger AF (Sensitivity: normal, low), Manual (Standard, Variable, Direct), One Push Trigger, Full Scan One Push, Near Limit, ICR-on Correction, Spot Focus |
| Focus Movement Time | ∞-Near: 1.4 sec. |
| Horizontal Viewing Angle | 58.1°-2.3° |
| Minimum Object Distance (wide end to tele end) | 100 mm - 1200 mm |
| Auto ICR | Yes |
| Wide Dynamic Range (Wide-D) | Yes |
| Visibility Enhancer | Yes |
| Defog | Yes (low/mid/high) |
| Noise Reduction | Yes (3D + 2D / Independent setting (3D, 2D) |
| Progressive Scan Mode | Yes |
| Image Stabilization | Yes |
| Spot Light Avoidance | Yes |
| Motion Detection | Yes |
| Privacy Zone Masking | Yes |
| Alarm | Yes |
| Slow AE Response | Yes |
| Picture Effects | Black White (Monochrome Image) |
| Picture Freeze | Yes |
| Electronic-Flip (E-FLIP) | Yes |
| Mirror Image | Yes |
| Slow Shutter | Yes |
| Temperature Readout | Yes |
| Title Display | Yes (20 characters / line, max. 11 lines) |
| Camera Mode Display | Yes (English) |
| Video Output | Digital: Y/Pb/Pr 4:2:(HDMI) Y:8bit. C:8bit RGB 4:4:4(HDMI) R:8bit G:8bit B:8bit |
| Camera Control Interface | VISCA protocol (CMOS 3.3V Level, 5.5V tolerance); Baud Rate : 9.6 kbps, 19.2 kbps, 38.4 kbps, 115.2 kbps, Stop bit: 1 bit |
| Power Requirements | 7.0 V - 12.0 V DC |
| Power Consumption | 4.6 W (When motor operates: 6.3W) |
| Operating Temperature | -5 °C - +60 °C |
| Storage Temperature | -20 °C - +60 °C |
| Operating Humidity | 20% - 95% (Absolute humidity : 36 g/m3) |
| Storage Humidity | 20% - 95% (Absolute humidity : 36 g/m3) |

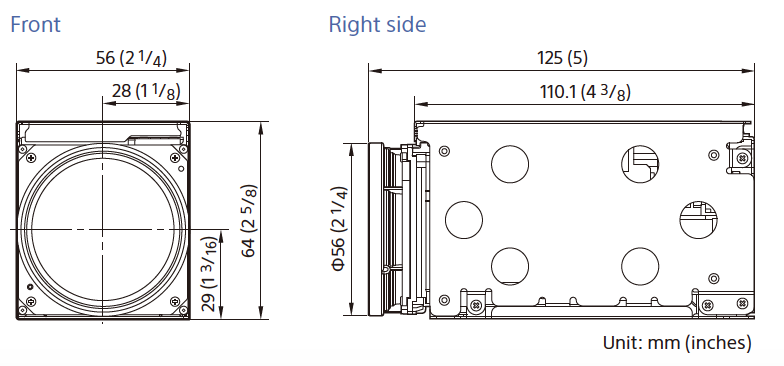

| Dimensions (W x H x D) | 56.0 x 64.0 x 125 mm |
| Mass | Approx. 439 g |
