Tamron MP3010M-EV 1080P60 Output Camera with Sony STARVIS™ Sensor, 10x Optical Zoom, and HDMI/UVC Output
Tamron MP3010M-EV 1080P60 Output Camera with Sony STARVIS™ Sensor, 10x Optical Zoom, and HDMI/UVC Output
Couldn't load pickup availability

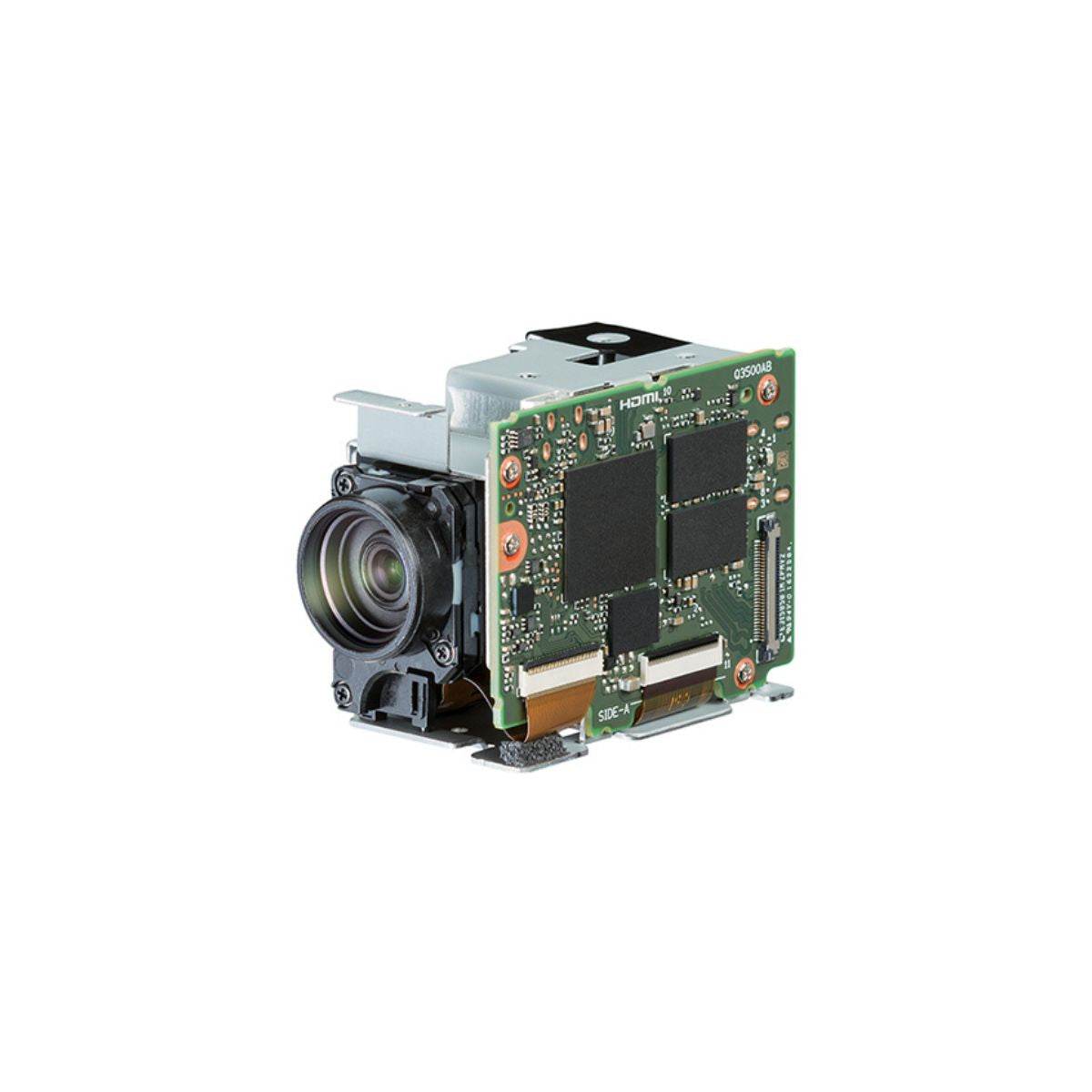

The Tamron MP3010M-EV is a compact yet powerful surveillance camera module, featuring Sony’s STARVIS™ sensor for high sensitivity in low-light conditions, providing HD video up to 1080p/60. Equipped with 10x optical zoom (f=3.3–33mm) and LVDS, HDMI, and UVC output options, it offers flexible connectivity and clear, detailed imagery in a range of formats, including NTSC/PAL.
This 70g module supports Enhanced Electronic Image Stabilization (EIS) for smooth visuals, Day/Night ICR switching, and VISCA™ protocol compatibility via TTL/RS-232/RS-485 for remote control. With advanced features like 16-step aperture control, 3D + 2D noise reduction, and defogging, it delivers high-quality video across challenging conditions and temperatures from -5°C to 60°C, making it ideal for versatile, 24/7 outdoor monitoring.
Features:
- Compatible design with MP1010/MP1110 series
- High Sensitivity (utilize Sony STARVIS™ High sensitivity image sensor )
- Day/Night function (ICR) for outdoor surveillance
- LVDS/HDMI/UVC video output (UVC only up to 1080/30p)
- Supports all HD modes up to 1080/60p.
- Enhanced EIS (Electric Image Stabilizer)
- Use of VISCA™ protocol TTL/RS-232/RS-485 serial for camera control
- 10x optical zoom
- Only ~70g of weight
Applications:
- Industrial Automation
- Robotics
- Surveillance
- Video Conferencing
- Transportation Systems
| Image Sensor | Sony's CMOS image sensor with STARVIS™ technology |
| Pixel Output (HxV) | 1920x1080 or 1280x720 |
| Signal system HD | 1080p/60, 1080p/59.94 1080p/50,1080p/30, 1080p/29.97,1080p/25, 720p/60, 720p/59.94, 720p/50, 720p/30, 720p/29.97, 720p/25 (interlace not supported) |
| Signal system SD | NTSC/PAL |
| Minimum Illumination | 0.1 lx (1/30sec,F/1.8,50%,Color,Typical ) 0.025 lx (1/30sec,F/1.8,50%,B&W,Typical ) |
| S/N | More than 50dB |
| Gain | Auto/Manual |
| Shutter Speed | 1/1～1/10,000 sec |
| Exposure Compensation | -12dB 〜 +12dB ( Total 13 steps ) |
| Backlight Compensation | OFF/ON |
| Gamma | standard/straight/narrow/wide |
| Aperture Control | 16 steps |
| White Balance | ATW1(Narrow), ATW2(Wide), INDOOR, OUTDOOR, One push, Manual |
| AE (Auto exposure mode) | Auto, Manual, Priority mode (shutter/iris) |
| Lens (wide〜tele) | 10x optical zoom f=3.3～33mm F/1.8～3.4 |
| Zoom Mode | Standard/Variable/Direct |
| Zoom movement speed (wide to tele) |
1.7 sec (Focus Tracking ON) |
| Digital Zoom | Up to 16x |
| Focus | Auto/Manual/One-push, AF sensitivity |
| Minimum Object Distance (MOD) | Visible light: 10mm(wide)～800mm(tele) 850nm: 10mm(wide)～1200mm(tele) |
| Horizontal Viewing Angle | 59.2°(w)～6.7°(t) ※ except when EIS is operated) |
| Day/Night | ON/OFF (ICR switching) |
| Horizontal Resolution | Center : 800TV lines (Typical) |
| Video Output HD | LVDS: digital Y/Pb/Pr 4:2:2 HDMI*3: digital Y/Pb/Pr 4:2:2 (HDMI Type D) |
| Video Output SD | CVBS 1.0V(p-p,75Ω) |
| EIS (Electronic Image Stabilization) | OFF/ON |
| Picture Effects (Black White) | OFF/ON |
| Wide-dynamic Range (Gamma) | OFF/ON |
| Picture Freeze | OFF/ON |
| Day/Night (ICR) | OFF/ON/AUTO |
| Electronic Flip (E-Flip) | OFF/ON |
| Defog | OFF/ON (Level : 1〜3) |
| Noise Reduction (3D + 2D) | OFF/ON (Level : 1〜5) |
| Temperature Readout | available |
| Privacy Zone Mask | Up to 8 places |
| Title Display | OFF/ON (20 characters/line, max. 12 lines) |
| Slow Shutter | OFF/ON (Max 1sec) |
| Power Requirements | DC 8～12±10% |
| Power Consumption | Approx.2.5W (Approx 4.4W in the zoom and focus operation) |
| Operating Temperature | -5℃～+60℃ |
| Recommended Temperature | 0〜+40°C |
| Operating Humidity | 30%〜80% (no condensation) |
| Storage Temperature | -40〜+60°C |

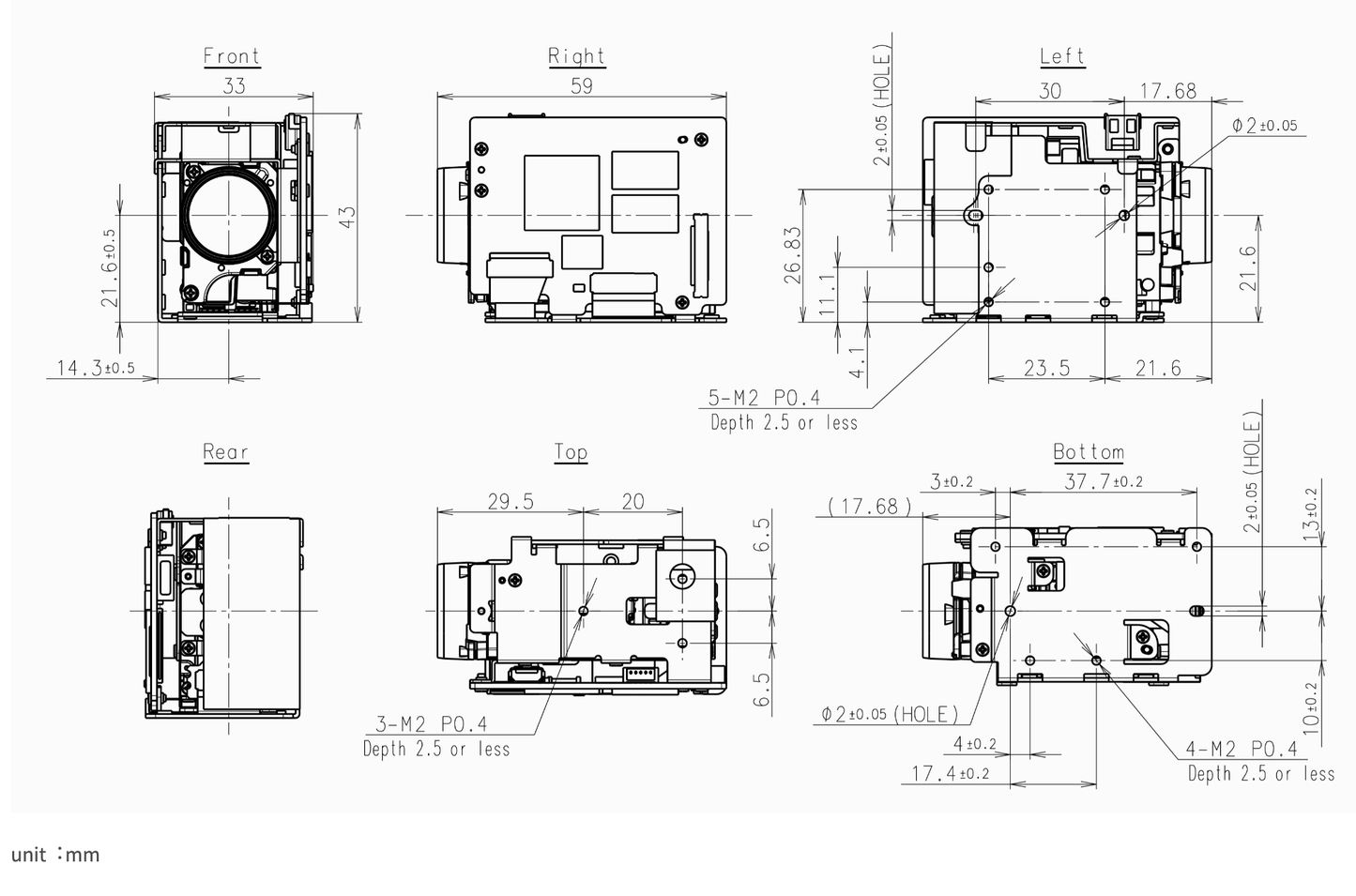

| Dimensions (W x H x D) | 33 x 43 x 59 mm |
| Weight | Approx.70g |
