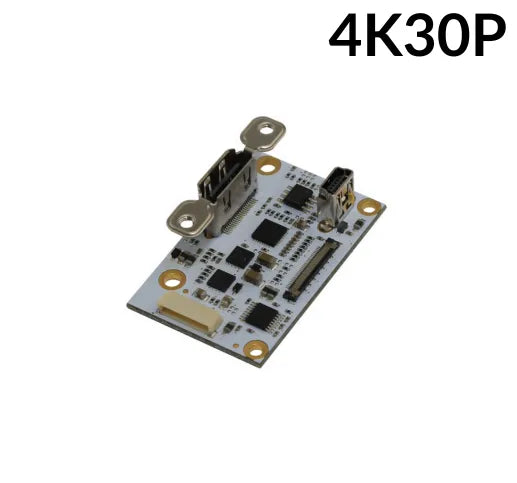

TL4K1152 3.4Gbps HDMI 1.4b Output Video Transmitter with RS232/TTL Control for Sony FCB-ER9500 & FCB-ER8530 4K Block Cameras

TL4K1152 Spec Sheet

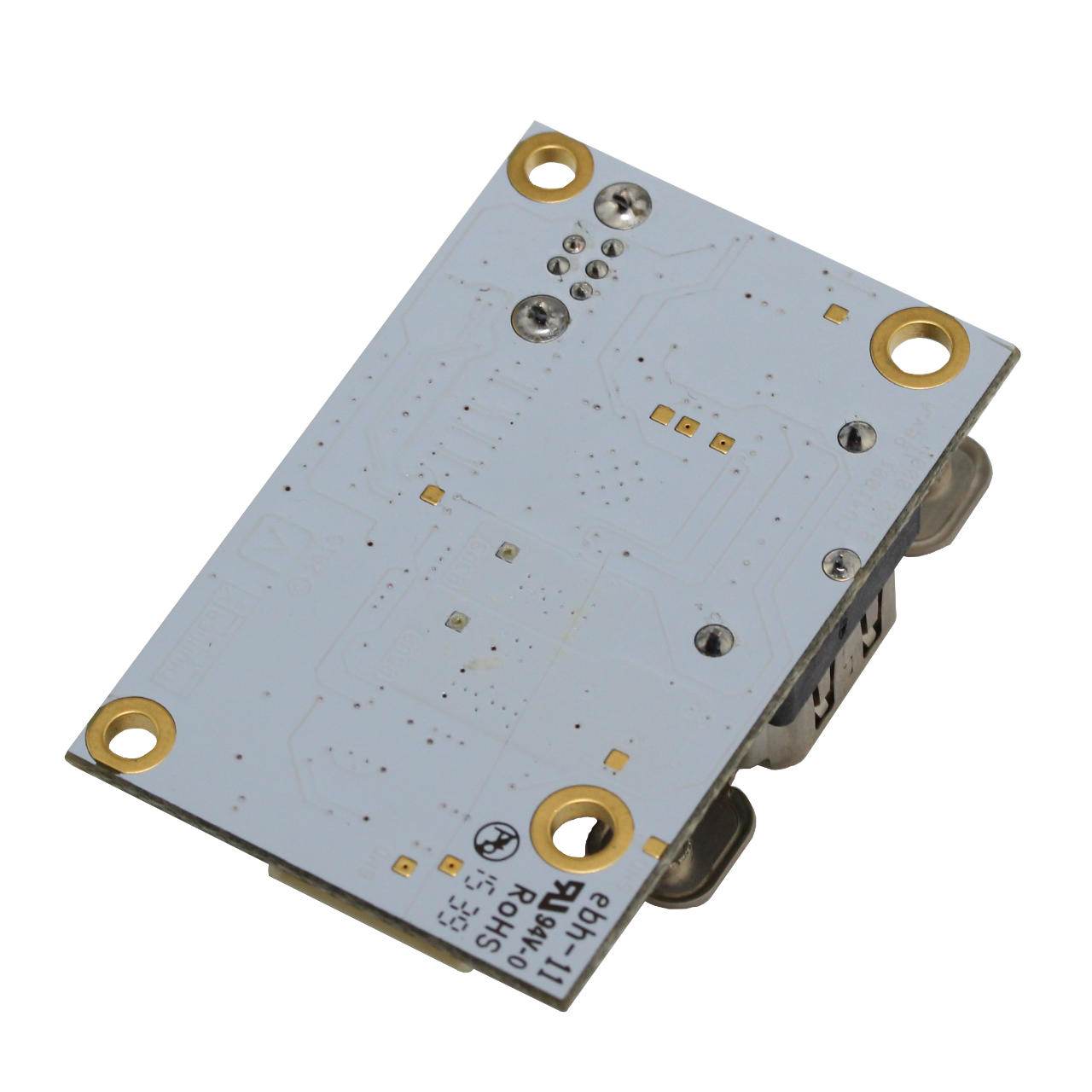

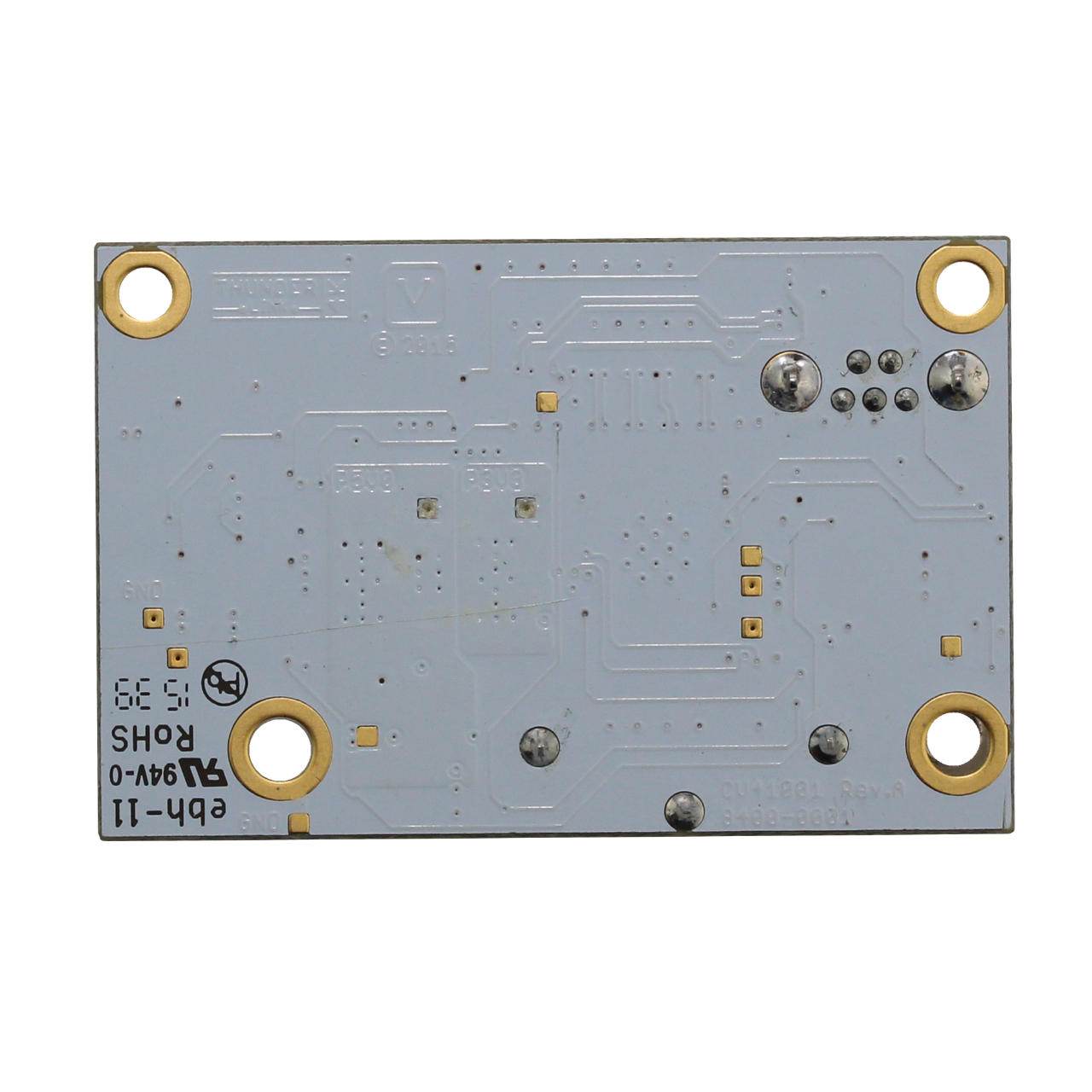

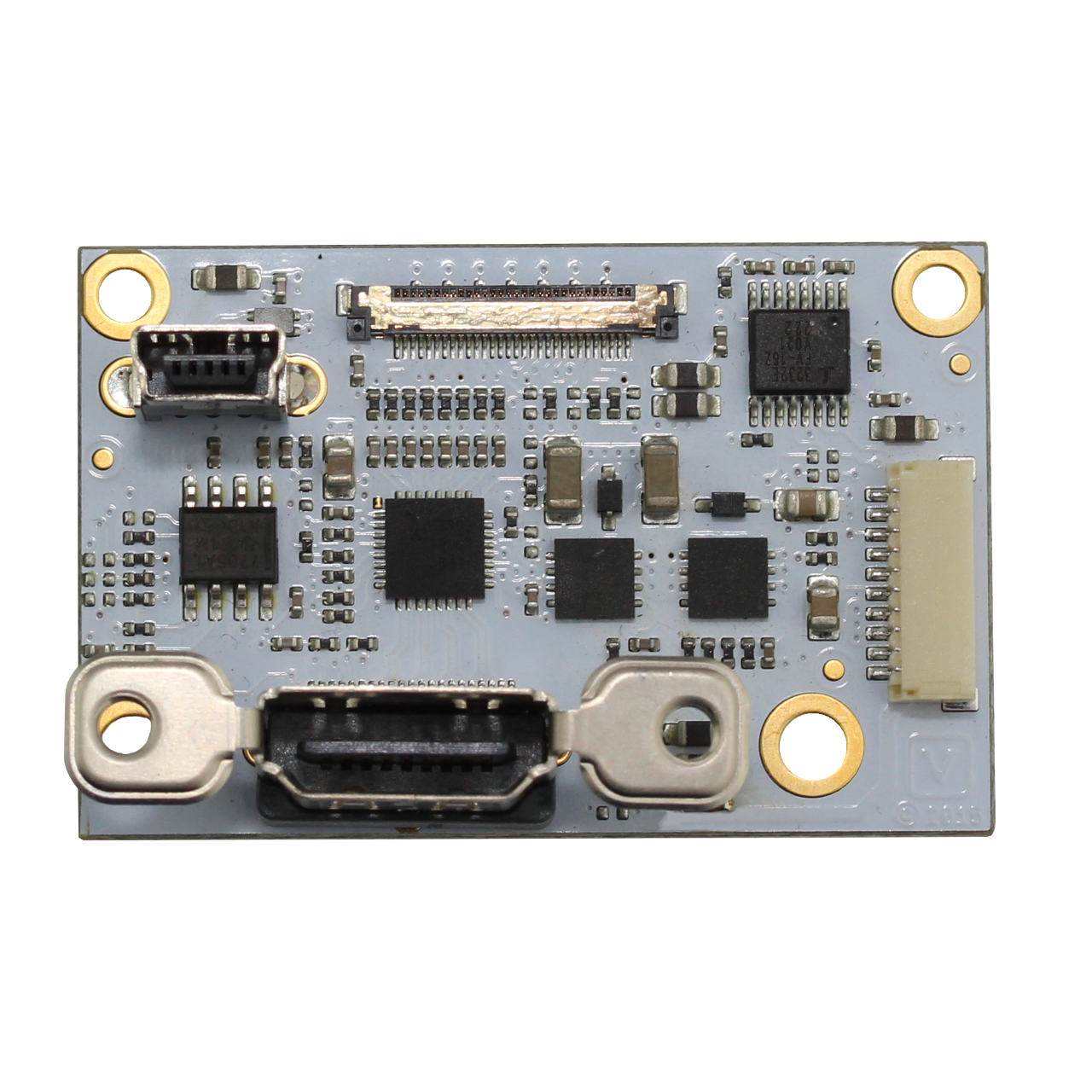

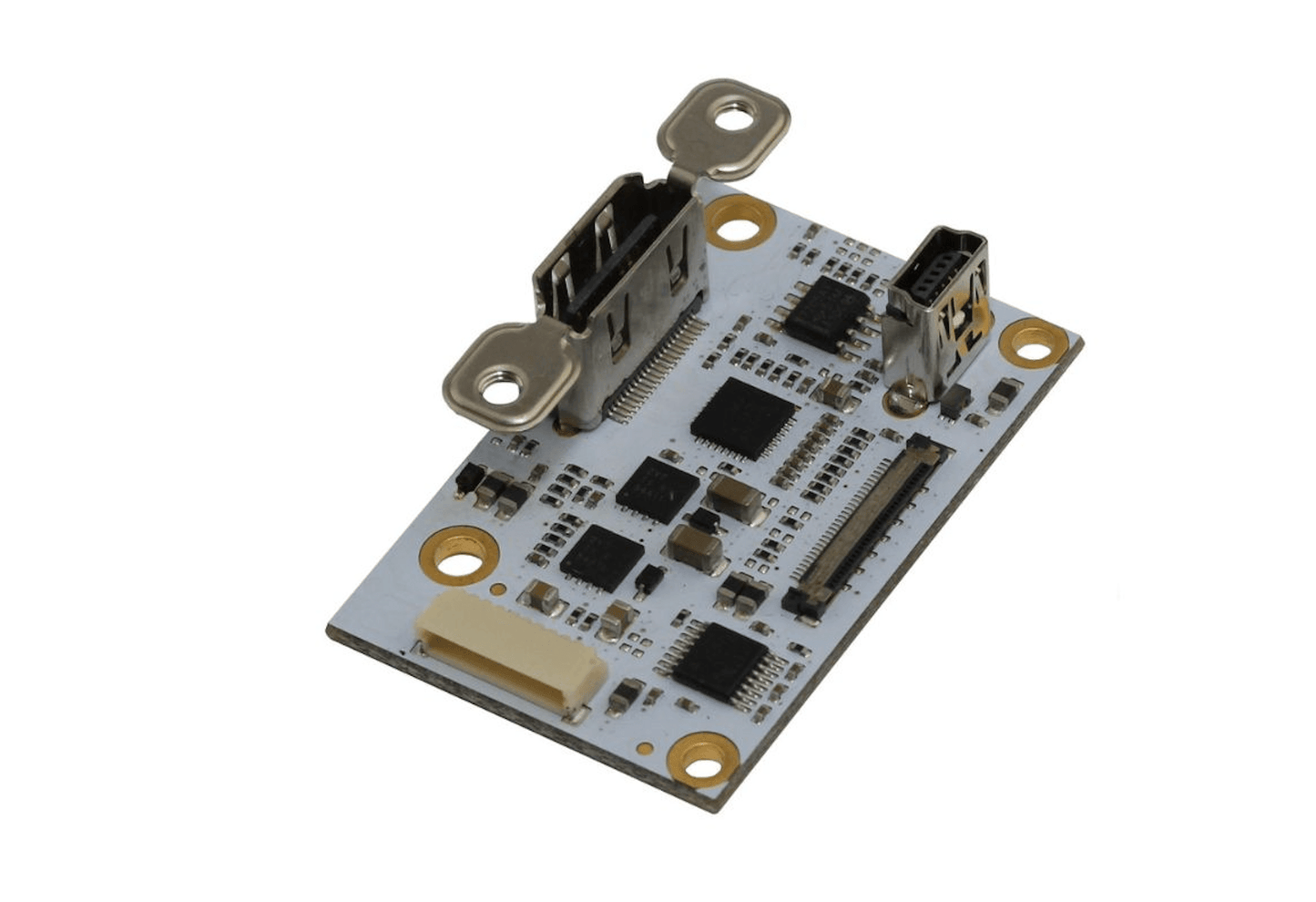

The TL4K1152 is a high-performance HDMI 1.4b transmitter designed for seamless integration with Sony FCB-ER9500 & FCB-ER8530 4K Block Cameras. It delivers up to 4K UHD video output (3840x2160p at 30fps) through HDMI, utilizing ultra-high-speed 3.4Gbps cable driving to ensure robust signal transmission. The integrated input signal equalizer ensures video integrity even in challenging environments, and support for UHD, Full HD, and HD video formats makes it versatile across multiple applications.

For easy camera control, the TL4K1152 offers transparent, full-duplex RS232 or 3.3V TTL-level serial interfaces, enabling seamless integration with camera systems. It operates with a wide supply voltage range (7V to 12V DC, with 8V DC recommended) and ultra-low power consumption of just 150mW at 8V, making it highly efficient for long-term use. The compact module (46mm x 30mm) is ideal for space-constrained installations and is fully RoHS compliant and UL/UR certified.

Designed for industrial, medical, security, and video production applications, the TL4K1152 functions within a wide temperature range (-10°C to +60°C) and humidity range (20% to 80%), ensuring reliable performance in diverse environments.

Features:

• HDMI 1.4b output supporting up to 4K UHD (3840x2160 @ 30fps)
• Ultra-high-speed 3.4Gbps cable driver for stable signal transmission
• RS232 and 3.3V TTL serial interfaces for camera control
• Integrated input signal equalizer for robust video processing
• Wide 7V to 12V DC supply voltage range (8V DC recommended)
• Ultra-low power consumption (150mW at 8V DC)
• Compact design (46mm x 30mm) for space-constrained installations
• Operating temperature range: -10°C to +60°C
• RoHS and UL/UR compliant

Applications:

• Industrial video systems
• Medical imaging solutions
• Security and surveillance
• Law enforcement and defense systems
• Video production and broadcasting
• Remote camera control for automation
• High-definition video transmission

Quick Specification:

• FCB-ER8300 interface on 30pin microcoax connector
• Up to 4K 3840x2160@30fps HDMI 1.4b video output
• RS232 and 3.3V TTL camera control interface
• Supply voltage 7V to 12V DC, 8V DC recommended
• Operating ambient temperature range -10°C to +60°C
• Operating humidity range 20% to 80%
• Power consumption only 0.15W with 8V DC supply voltage
• Board size (L x W) 46mm x 30mm
• Wire/cable kit for camera and external interconnect
• RoHS compliant (2002/05/EG and 2011/65/EU)
• UL/UR compliant
