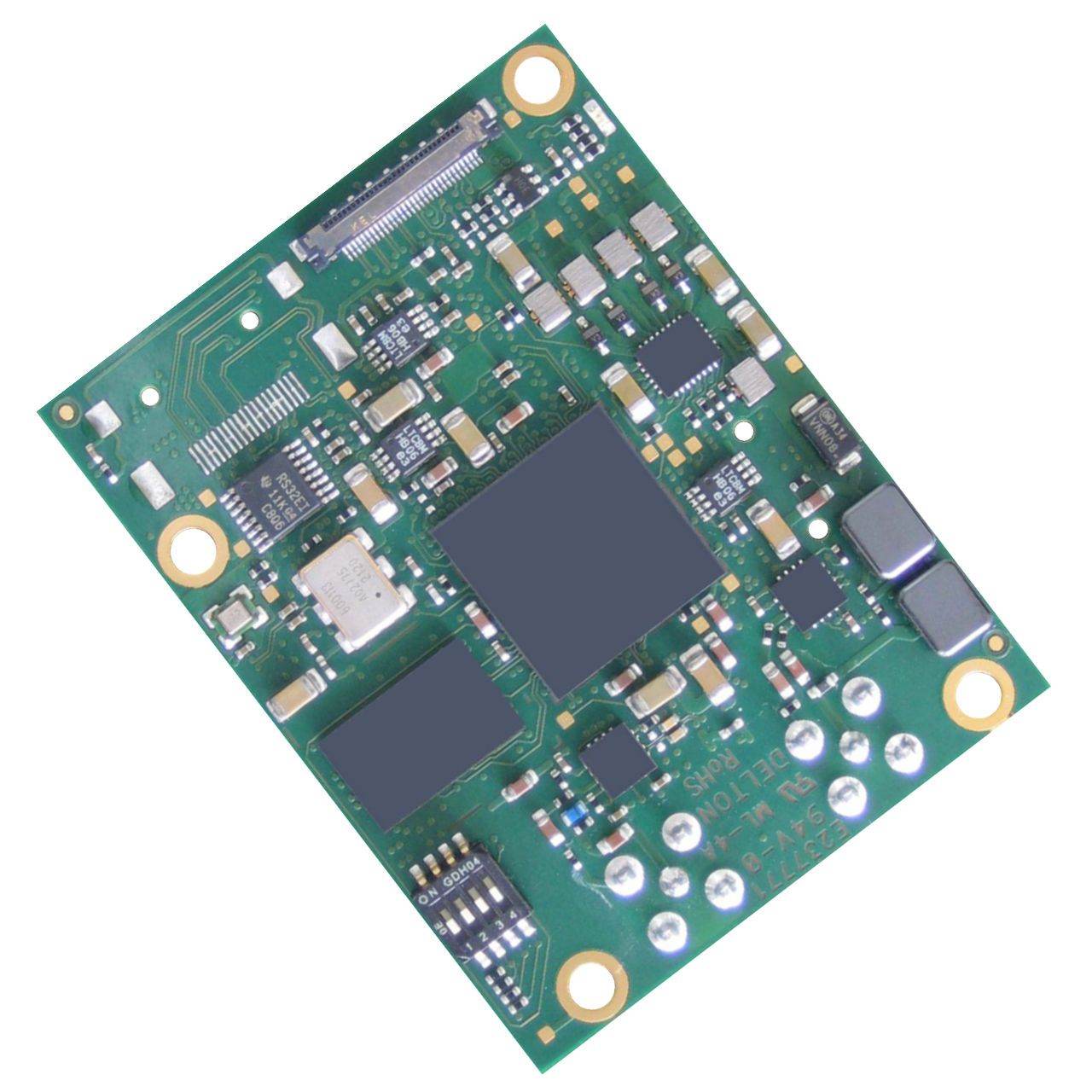

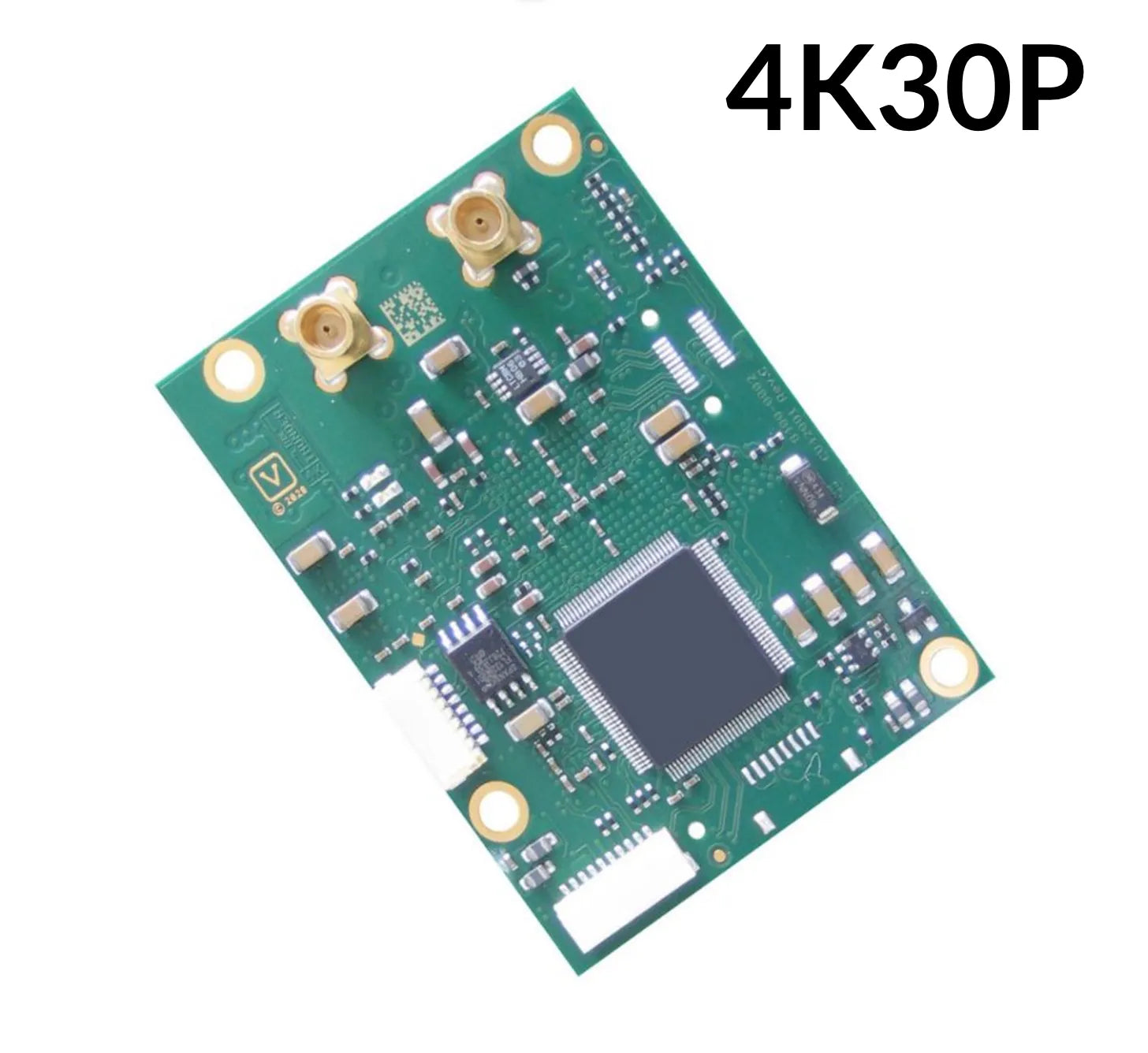

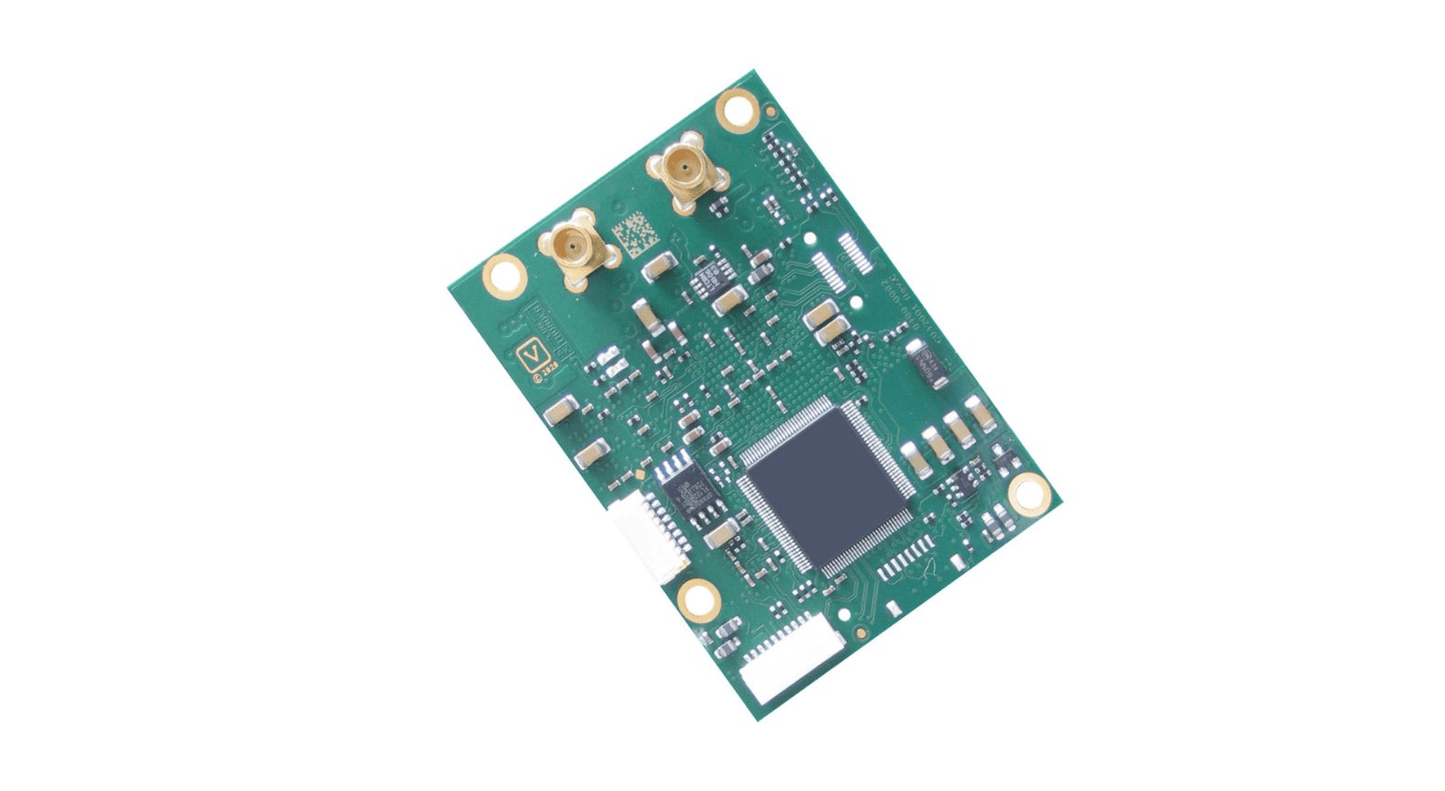

TL4K1161 3G/HD UHD-SDI Output Transmitter with Dual Link and RS232/TTL Control for Sony FCB-ER9500 & FCB-ER8530 4K Block Cameras

TL4K1161 Spec Sheet

The TL4K1161 is a high-performance 3G/HD UHD-SDI transmitter engineered for seamless video integration with Sony FCB-ER9500 and FCB-ER8530 4K block cameras. Supporting up to 4K UHD (3840x2160p @ 30fps) resolution, this module delivers ultra-high-speed 3.4Gbps HDMI 1.4b signal transmission with automatic format detection for UHD, Full HD, and HD video formats. The Dual Link 3G-SDI output ensures robust and high-quality UHD signal delivery.

Designed for industrial, security, medical, and broadcasting applications, the TL4K1161 offers full-duplex RS232/3.3V TTL serial camera control, enabling precise remote operation. It features low power consumption (150mW @ 8V DC) and operates within a 9V to 12V DC regulated power supply. The compact 46mm x 60mm board size allows easy integration into space-constrained environments. Engineered for reliability, it operates in -5°C to +60°C temperature and 20%-80% humidity conditions. RoHS and UL/UR compliant, this module meets global safety and environmental standards.

Features:

• Ultra High Definition video output up to 4K UHD (3840x2160p @ 30fps)
• Dual Link 3G-SDI output for UHD video formats
• 3G-SDI output for Full HD (FHD) formats
• 1.5G-SDI output for HD formats
• Automatic format detection for seamless video processing
• High-speed 3.4Gbps HDMI 1.4b signal transmission
• MCX 75Ω straight coaxial connectors for secure SDI connections
• RS232 and 3.3V TTL serial camera control interface for full-duplex remote operation
• Wide input voltage range: 9V to 12V DC regulated (8V DC recommended)
• Ultra-low power consumption: 150mW at 8V DC
• Compact and lightweight design: 46mm x 60mm PCB size
• Operational temperature range: -5°C to +60°C, humidity 20%-80%
• RoHS and UL/UR compliant for environmental and safety standards
• 3D CAD model available upon request

Applications:

• Industrial video systems
• Medical video solutions
• Security and surveillance
• Law enforcement applications
• Broadcasting and video production
• Remote camera control
• High-definition video transmission

Quick Specification

• FCB-ER/ES/EW series interface on 30pin microcoax connector
• Up to 4K 3840x2160@30fps SDI video output
• Supply voltage 9V to 12V DC
• Operating ambient temperature range -5°C to +60°C
• Operating humidity range 20% to 80%
• Power consumption 3.72W with 12V DC supply voltage
• Power consumption 6.72W with 12V DC supply voltage incl.FCB-ER8530 camera block
• Board size (L x W) 46mm x 60mm
• Wire/cable kit for camera and external interconnect
• RoHS compliant (2002/05/EG and 2011/65/EU)
• UL/UR compliant
• 3D CAD model (step format) available on request
