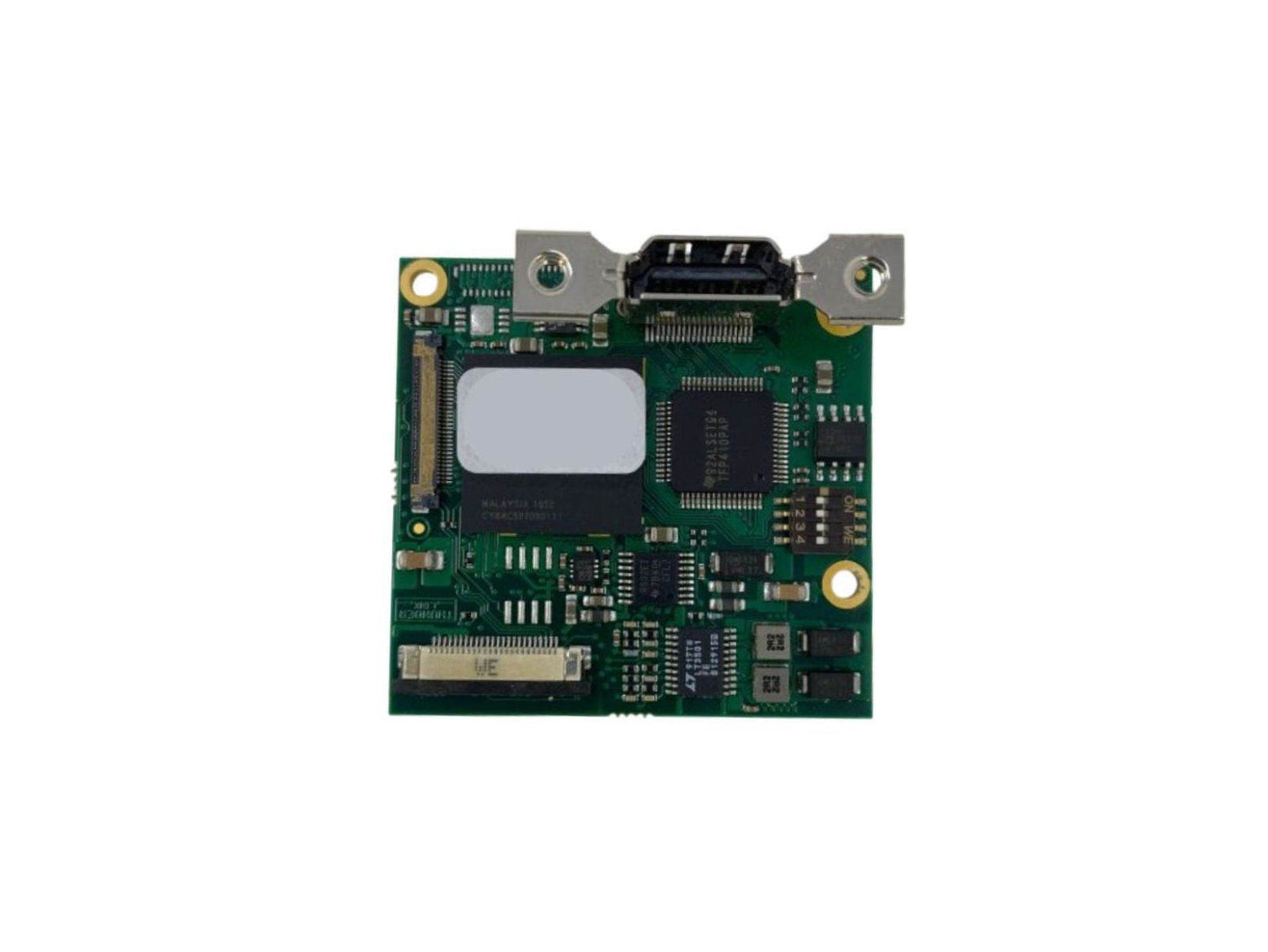

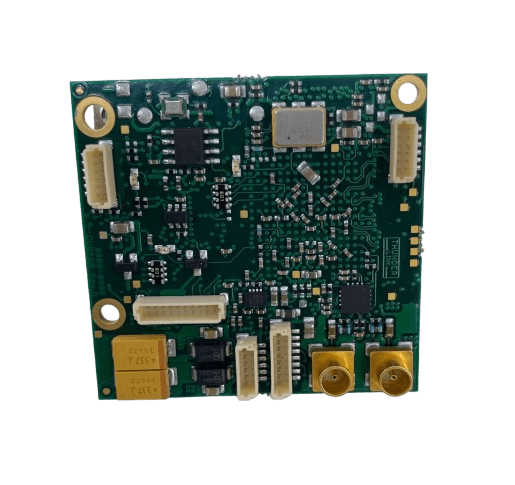

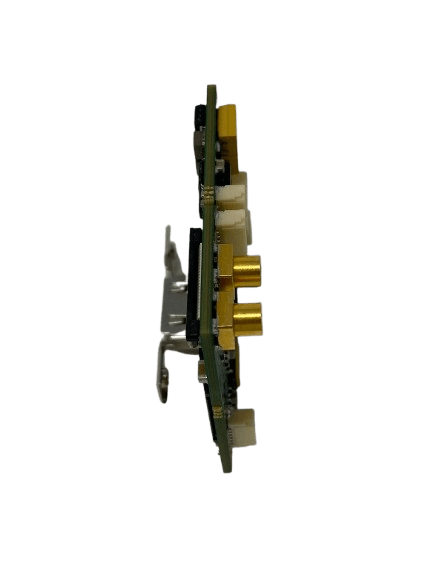

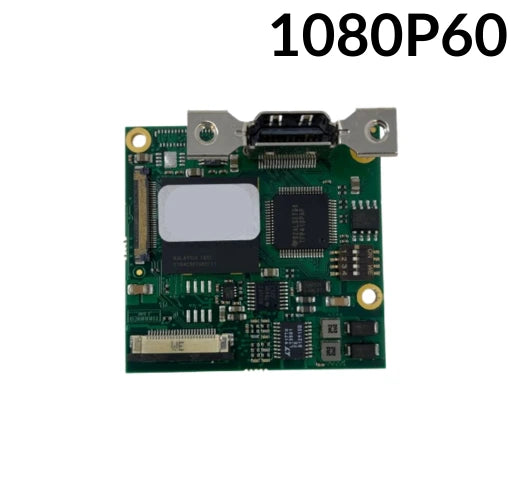

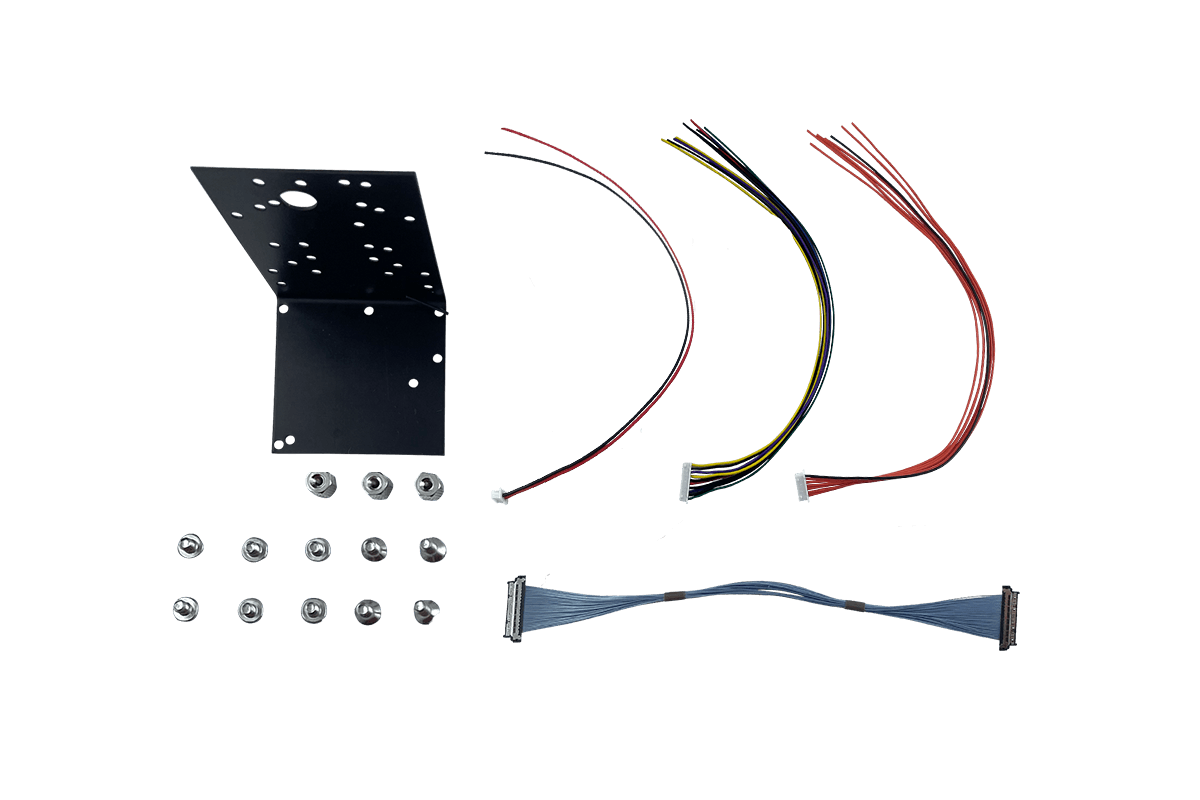

TL7050 Dual HD-SDI & HDMI Interface Board for Sony FCB-EV, FCB-EH Series Block Cameras with LVDS Video Input
TL7050 Dual HD-SDI & HDMI Interface Board for Sony FCB-EV, FCB-EH Series Block Cameras with LVDS Video Input
Couldn't load pickup availability
The TL7050 is a cutting-edge interface board specifically designed to enhance the performance of Sony FCB-EV and FCB-EH series block cameras. Engineered to seamlessly connect via the camera's 4/8-channel LVDS digital video input, this module supports a wide range of progressive and interlaced HDTV formats, including 1080p at 60Hz, 59.94Hz, 50Hz, 30Hz, 29.97Hz, and 25Hz, as well as 1080i and 720p outputs at multiple frame rates.
Equipped with dual 3G/HD-SDI outputs compliant with SMPTE 424M and SMPTE 292M standards, the TL7050 guarantees superior video transmission quality. Additionally, its HDMI connector provides DVI output compatibility, broadening its integration capabilities across professional AV and broadcast systems. The module features native digital signal processing, ensuring unmatched image clarity and fidelity.
For analog requirements, it offers a video breakout with YPbPr and CVBS outputs, while robust RS232, TTL, and RS485 control interfaces facilitate flexible device management. The TL7050 operates on a regulated 12V DC power supply and includes integrated temperature monitoring with alerts for reliable operation in demanding environments. With power consumption as low as 260mA at 12V DC, it maintains efficiency without compromising performance.
Designed for versatile applications, the TL7050 excels in broadcast systems, surveillance, medical imaging, and professional AV settings, offering a reliable and high-quality video interface solution.
Features:
- Dual SDI & HDMI Outputs
- 4/8 Channel LVDS Input
- Automatic Video Detection
- 1080p/1080i, 720p Outputs
- Native Digital Signal Processing
- Analog YPbPr & CVBS Breakout
- RS232/TTL Serial Control
- RS485 Differential Control
- 12V DC Power Supply
- Temperature Monitoring & Alerts
Applications:
- Block Cameras
- Broadcast Video Systems
- Security Camera Systems
- Pro AV Equipment
- Camera Control Interfaces
- Surveillance & Monitoring
- Medical Imaging
| INPUTS | |
| Data | 8/4 CH. LVDS digital video (from camera) |
| Clock | LVDS (from camera) |
| Control Rx | 3.3V TTL serial control interface |
| Analog | YPbPr and CVBS video 1Vpp into 75ohms |
| OUTPUTS | |
| Control Tx | 3.3V TTL serial control interface |
| Reset | 3.3V TTL, active low |
| Power Input | 7V to 12V DC regulated (13V DC absolute maximum) for other camera blocks Power consumption (FCB-EV7500 + SDI-HDMI-EV-GM) 6W (cam motors inactive) Power consumption (FCB-EV7100 + SDI-HDMI-EV-GM) 6.2 W (cam motors inactive) Power consumption (FCB-EV5500 + SDI-HDMI-EV-GM) 5.4 W (cam motors inactive) Power consumption TL7050: 260mA @ 12V DC (typ.) Power consumption value conditions: Power 12V DC, video mode 1080p59.94 (720p59.94 for FCB-EV5500) Ambient temperature +25°C/77°F Humidity 30% |
| Operating Conditions | Ambient temperature (min/max): -5°C/+60°C = 23°F/140°F Humidity: 20%-80% |
| Storage Conditions | Temperature (min/max): -20°C/+60°C = -4°F/140°F Humidity: 20%-80% |
