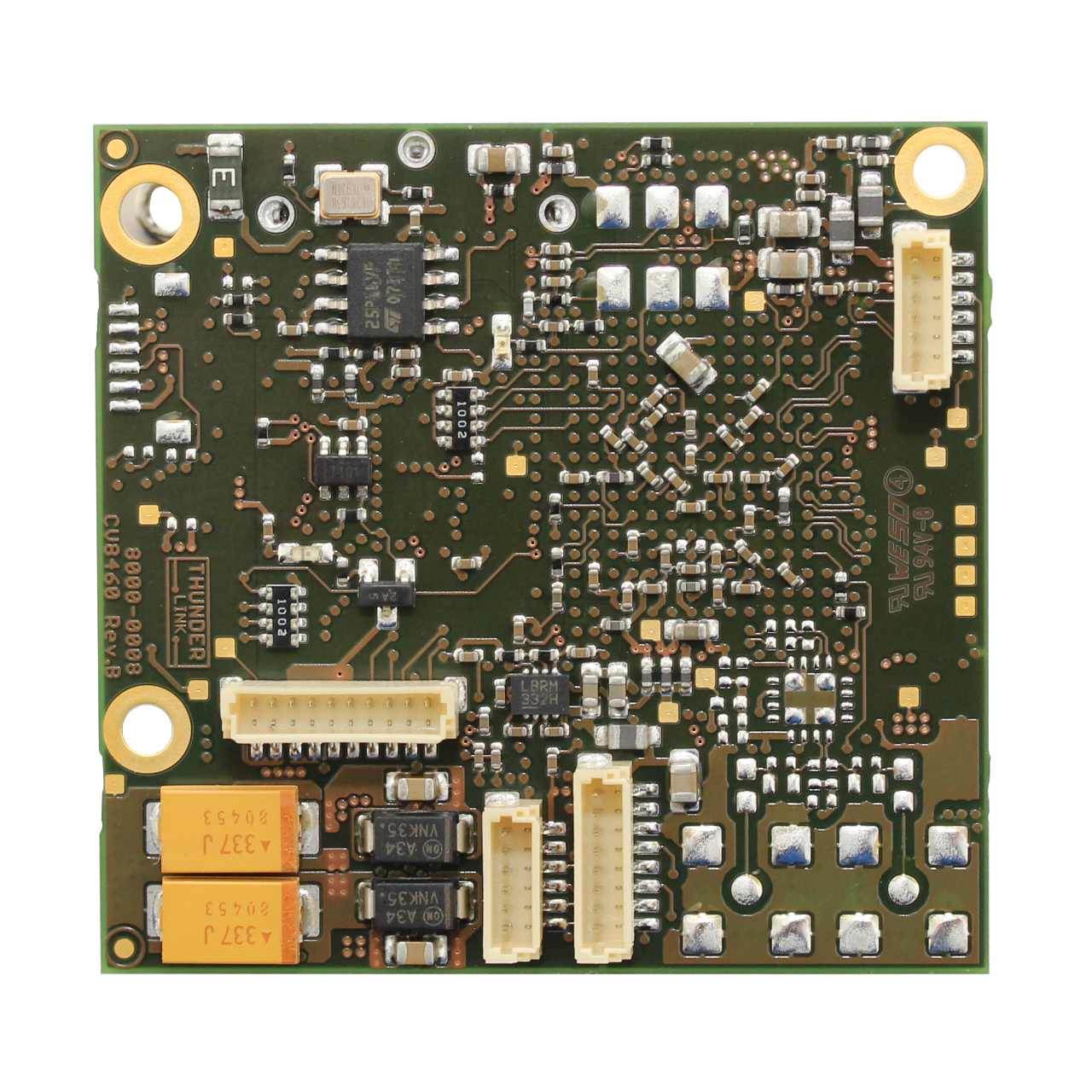

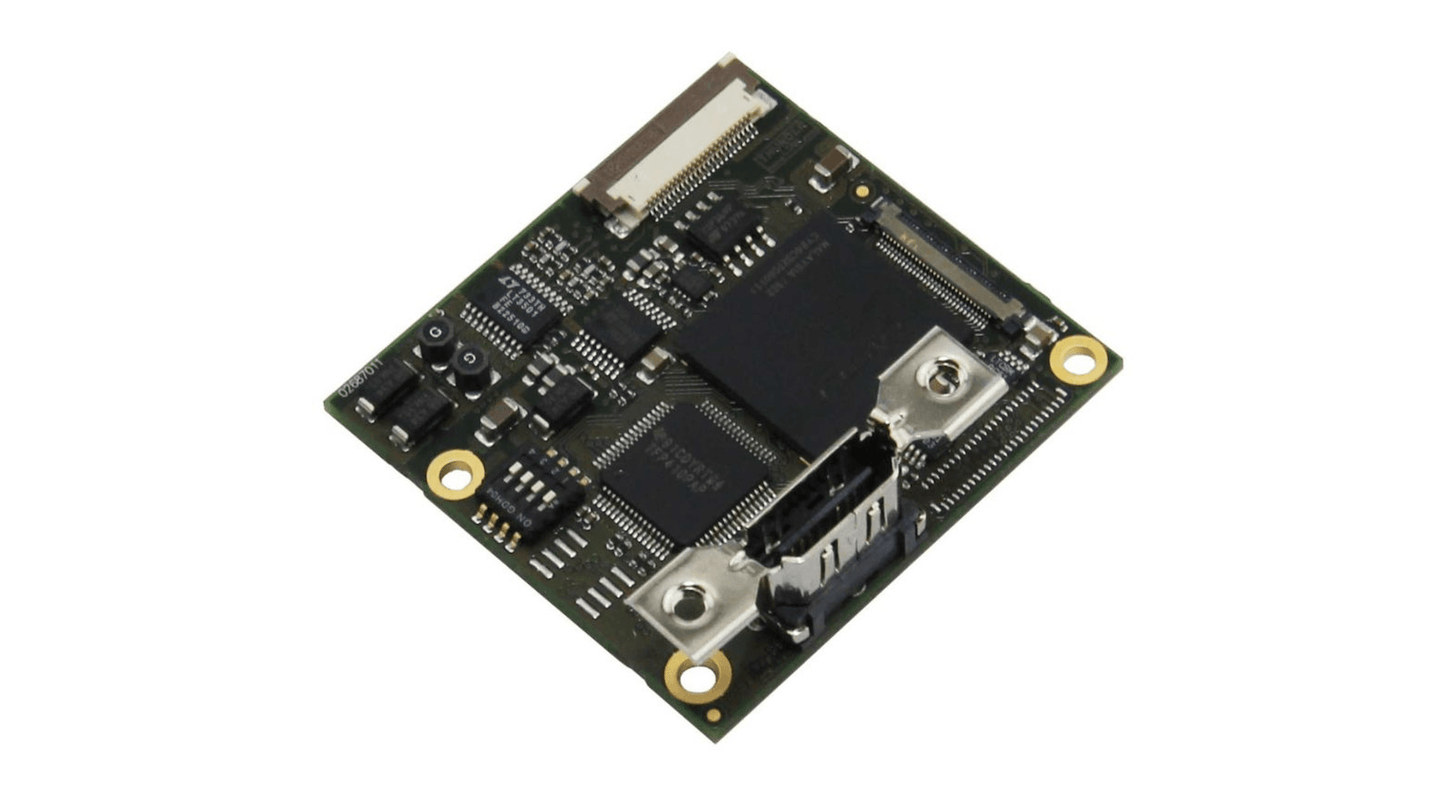

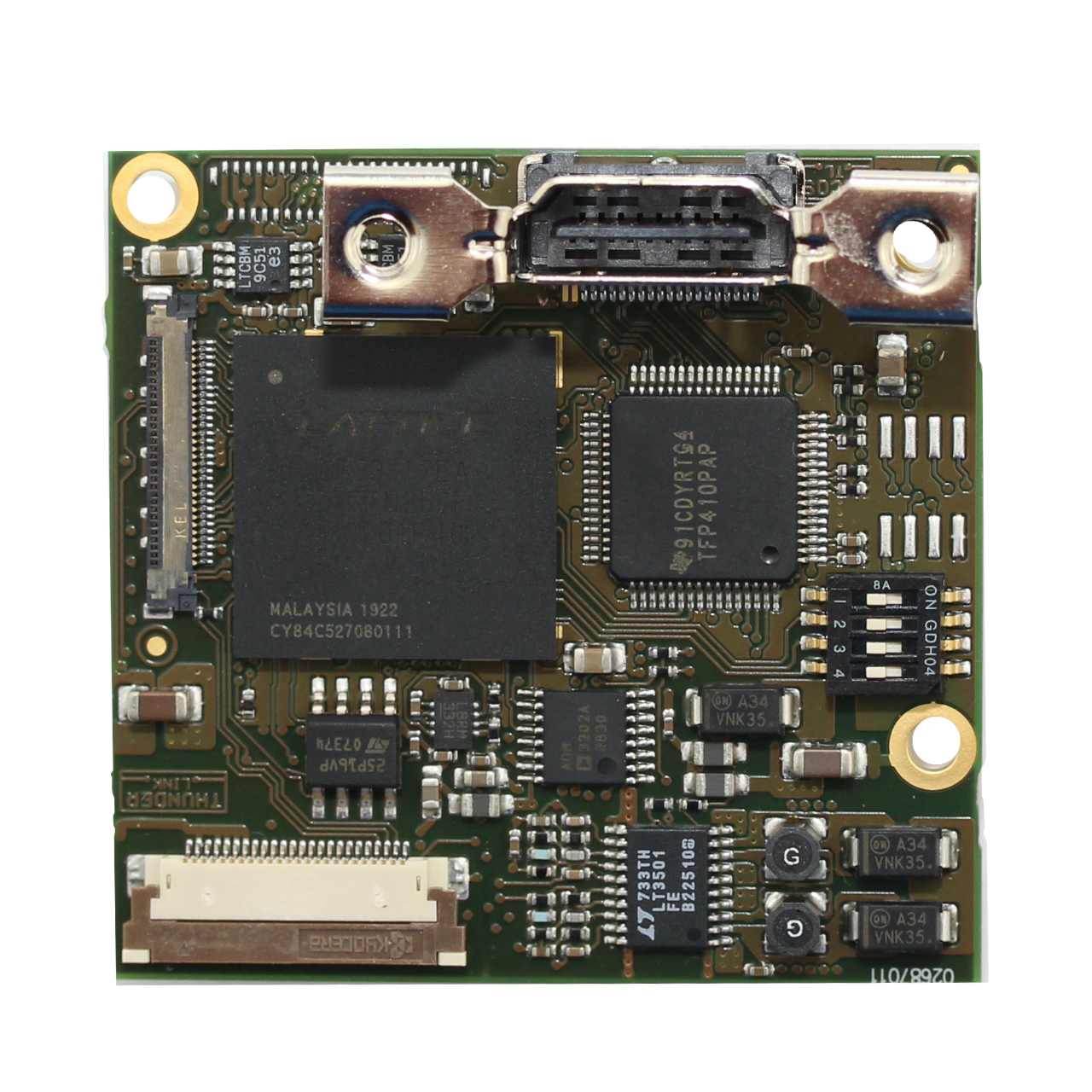

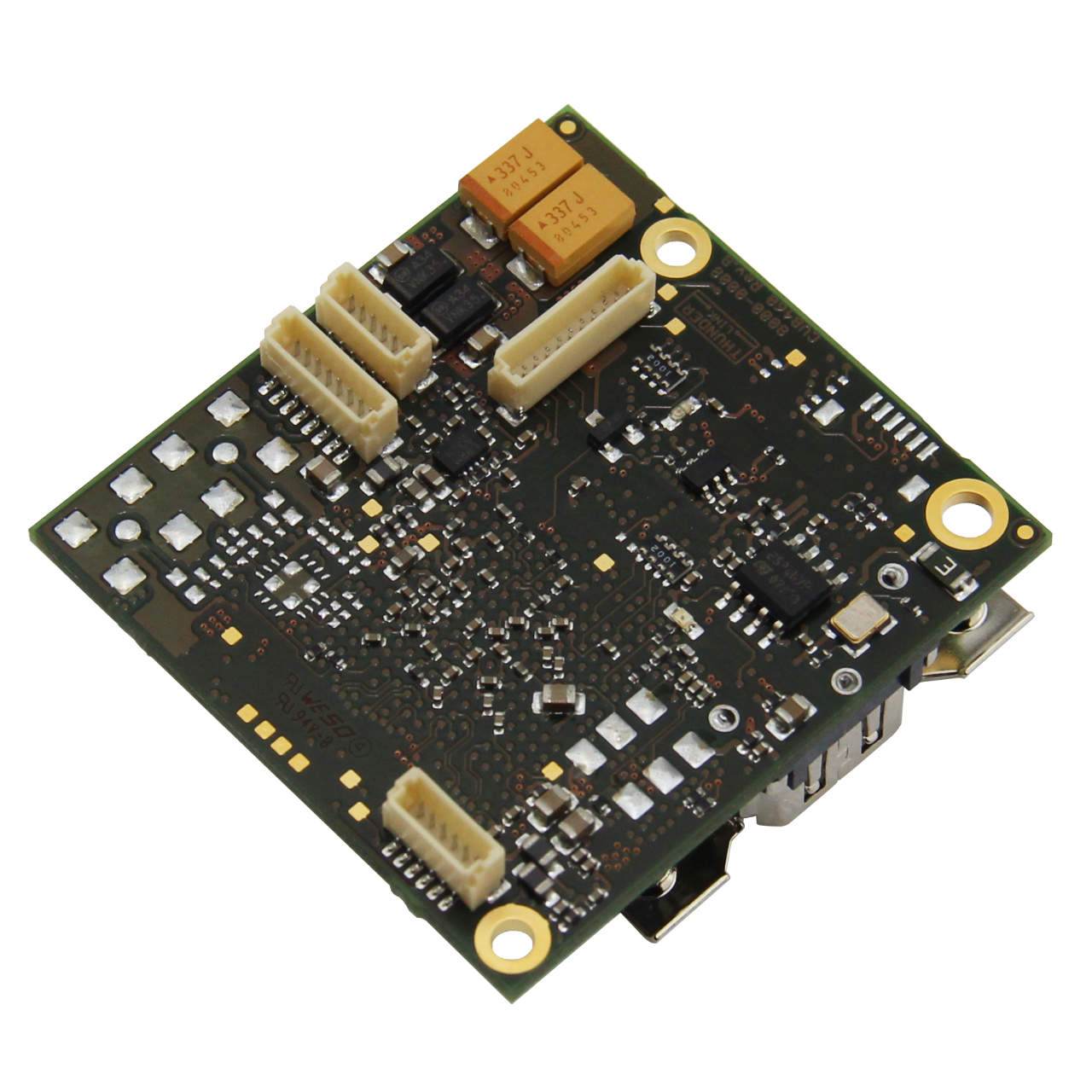

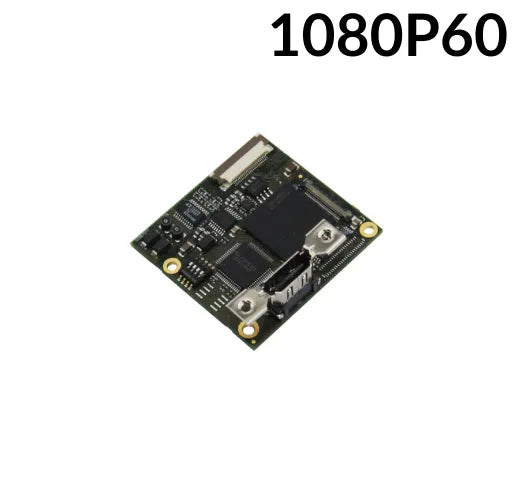

TL7052 3G/HD DVI - HDMI Output Video Transceiver with LVDS Input for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras
TL7052 3G/HD DVI - HDMI Output Video Transceiver with LVDS Input for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras
Couldn't load pickup availability
The TL7052 is a high-performance 3G/HD DVI (HDMI) video transceiver designed for Sony FCB-EV9520L, FCB-EV9500L, and Tamron MP3010M-EV block cameras, offering superior digital video transmission. Featuring 4/8-channel LVDS input, it delivers 1080p and 720p output at 60Hz, 59.94Hz, 50Hz, 30Hz, 29.97Hz, and 25Hz, along with 1080i at 60Hz, 59.94Hz, and 50Hz. The unit integrates a native digital processing chain for optimal image quality and supports full automatic video input detection for seamless operation. Video is output via a 3G/HD DVI interface with an HDMI connector, ensuring reliable signal transmission.
With RS232 and TTL serial control interfaces, the TL7052 enables full camera control and integration into automation systems. It also provides an analog breakout for YPbPr and CVBS signals, expanding its application range. Advanced temperature monitoring with an alert function ensures stable operation in demanding environments (-5°C to 60°C). Supporting 5V or 12V DC regulated power input, the TL7052 maintains energy efficiency with power consumption ranging from 3.96W to 4.56W. Ideal for surveillance, broadcasting, industrial imaging, and medical applications, this transceiver is a versatile solution for high-quality video transmission.
Features:
- Supports Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV block cameras
- 4/8-channel LVDS digital video input
- 1080p/720p output at multiple frame rates (60Hz, 59.94Hz, 50Hz, 30Hz, 29.97Hz, 25Hz)
- 1080i output at 60Hz, 59.94Hz, and 50Hz
- Full automatic video input standard detection
- 3G/HD DVI video output via HDMI connector
- Native digital signal processing for superior image quality
- Analog YPbPr & CVBS video breakout
- RS232 & TTL serial control interface
- Temperature monitoring with alert function
- Wide operating temperature range (-5°C to 60°C)
- 5V or 12V DC regulated power input (low power consumption)
Applications:
- Surveillance & security camera systems
- Industrial & machine vision imaging
- Medical imaging & diagnostics
- Broadcast & live streaming
- Remote camera control systems
- Video monitoring & analysis
Specification Camera Interface
INPUTS:
DATA 8/4 CH. LVDS digital video (from camera)
CLOCK LVDS (from camera)
CONTROL Rx 3.3V TTL serial control interface
ANALOG YPbPr and CVBS video 1Vpp into 75 ohms
OUTPUTS:
CONTROL Tx3.3V TTL serial control interface
RESET3.3V TTL, active low
Power and Environment
POWER INPUT:
5V DC regulated (5.8V DC absolute maximum) when using FCB-SE600
7V to 12V DC regulated (13V DC absolute maximum) for other camera blocks
Power consumption (FCB-EV7500 + TL7052) 4.2W (cam motors inactive)
Power consumption (FCB-EV7100 + TL7052) 4.56 W (cam motors inactive)
Power consumption (FCB-EV5500 + TL7052) 3.96 W (cam motors inactive)
Power consumption value conditions:
Power 12V DC, video mode 1080p59.94 (720p59.94 for FCB-EV5500)
Ambient temperature +25°C/77°F
Humidity 30%
OPERATING CONDITIONS:
Ambient temperature (min/max): -5°C/+60°C = 23°F/140°F
Humidity: 20%-80%
STORAGE CONDITIONS:
Temperature (min/max): -20°C/+60°C = -4°F/140°F
Humidity: 20%-80%
