TL7055 3G-SDI + Analog YPbPr Output Video Transmitter with LVDS Input and RS232 Control for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras

TL7055 Spec Sheet

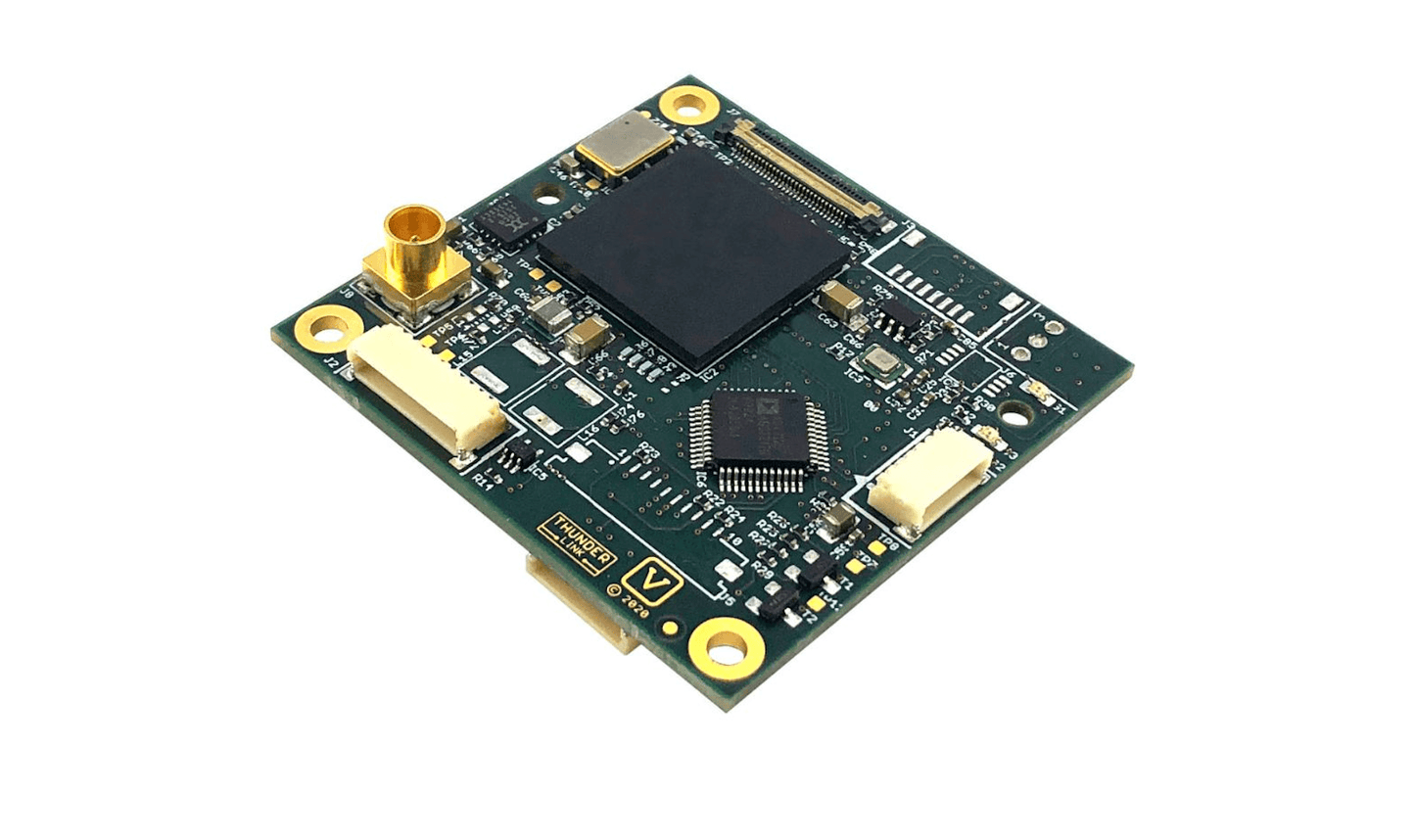

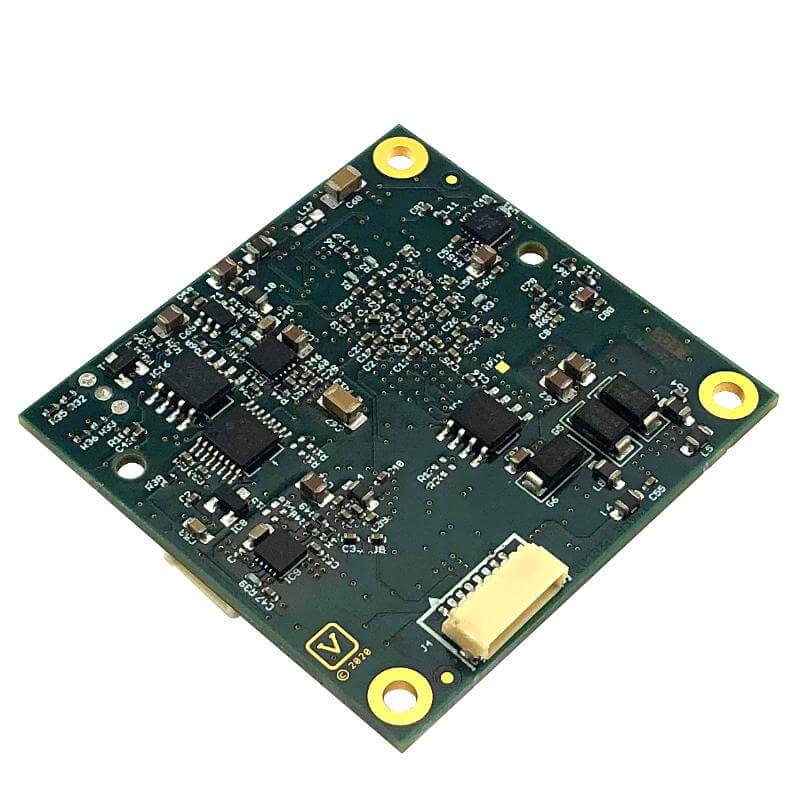

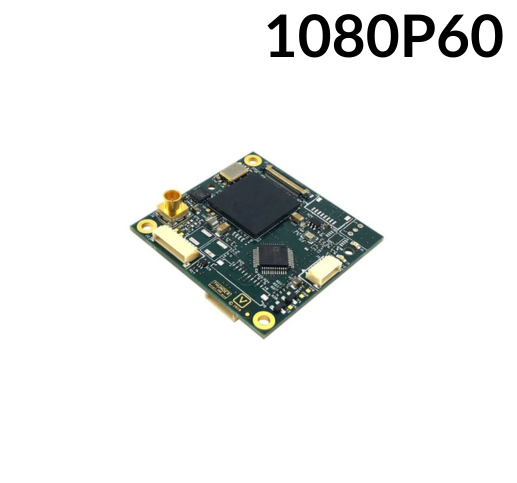

The TL7055 is a compact, high-performance video transmitter designed for seamless video output from Sony FCB-EV9520L, FCB-EV9500L, and Tamron MP3010M-EV HD block cameras. It delivers Full HD (1920x1080p) resolution at 60fps via 3G-SDI and analog YPbPr outputs, supporting a wide range of video formats including 1080p, 720p, and SDI-only formats like 1080i and 720p at multiple frame rates. Ideal for industrial, medical, and security applications, the TL7055 operates with a 9V to 12V DC power supply, consuming just 5.6W, and is compliant with RoHS and UL/UR standards. This versatile device features a built-in RS232 serial interface for camera control and transparent full-duplex communication. A comprehensive cable kit (TLCK-B6) is included for easy integration, providing all the necessary connections for LVDS input, power supply, and video output.

Features:

• Native HD output up to 1920x1080p @ 60fps
• Supports Sony FCB-EV9520L, FCB-EV9500L, and Tamron MP3010M-EV block cameras
• SMPTE-compliant tri-level sync on Y channel
• Supports multiple video formats: 1080p60, 720p60, 1080i60 (SDI only), and more
• RS232 interface for camera control with full-duplex communication
• 9V to 12V DC supply voltage, with a power consumption of 5.6W
• Compact design with a wide operating temperature range of -10°C to +60°C
• RoHS and UL/UR compliant for global safety and environmental standards
• Comes with TLCK-B6 cable kit for easy integration (LVDS, power, and video cables)

Applications:

• Industrial systems
• Medical imaging systems
• Security and surveillance systems
• Law enforcement and remote camera control applications

Quick Specifications:

• Video outputs: 3G-SDI and Analog YPbPr
• LVDS input: 8CH/4CH on 30-pin microcoax connector
• Power supply: 9V to 12V DC, 5.6W consumption
• Operating temperature: -10°C to +60°C
• Dimensions: 46mm x 44mm
• Humidity: 20% to 80%
• Compliance: RoHS, UL/UR
• Cable kit included: TLCK-B6 (LVDS, power, video)
