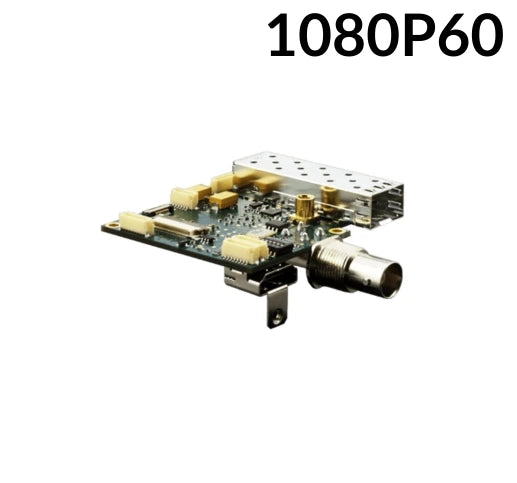

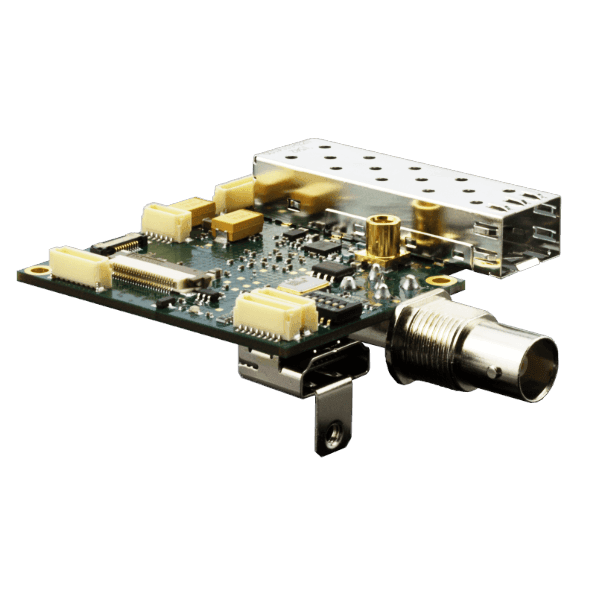

TL7071 3G/HD-SDI Fiber Optic Receiver Interface Board plus Dual Reclocked Coax for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras

TL7071 3G/HD-SDI Fiber Optic Receiver Interface Board plus Dual Reclocked Coax for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras

SKU: TL7071
Tax included.

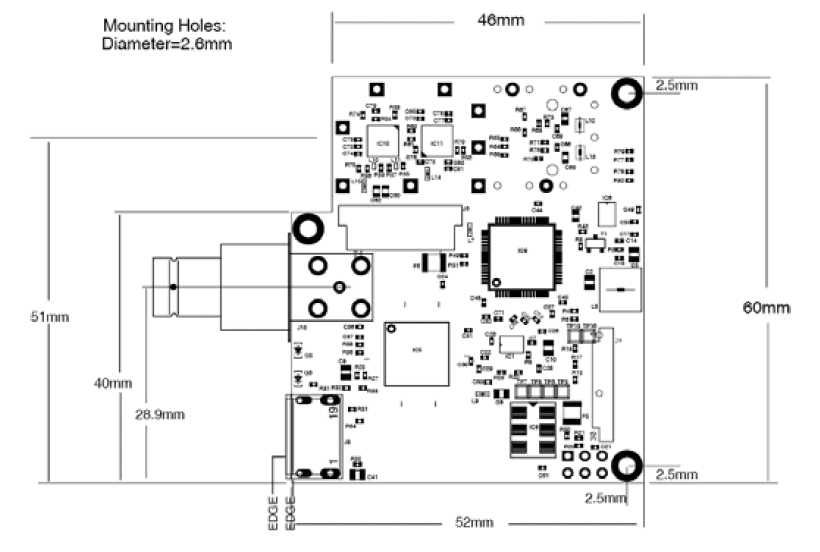

TL7071 Spec Sheet

The TL7071 is a high-performance 3G/HD-SDI fiber optic receiver interface board designed for Sony FCB-EV9520L, FCB-EV9500L, and Tamron MP3010M-EV HD block cameras. It features an SFP optical receiver (1260nm-1620nm, 10km, LC, SMF) for long-range signal transmission and dual reclocked 3G/HD-SDI outputs (BNC & MCX) for stable, SMPTE-compliant video distribution.

Key features include automatic video standard detection, jitter removal, and DVI (HDMI) RGB output conversion for seamless integration with standard display systems. The SMPTE297M-2006 compliant optical input ensures high-quality video transmission, while SMPTE425M/424M/292M/274M/296M compliance guarantees compatibility with professional broadcast and AV equipment.

The RS232 / 3.3V TTL serial control interface allows flexible system integration, and the unit operates on a 5V-12V DC regulated power supply. With power dissipation of 4W in 3G operation mode and an operating temperature range of -5°C to +60°C, the TL7071 is built for demanding environments, including broadcast, video walls, medical imaging, surveillance, AV integration, and industrial inspection applications.

Features:

  • 3G/HD-SDI Optical Input via SFP receiver (1260nm-1620nm, 10km, LC, SMF)
  • Dual Reclocked 3G/HD-SDI Outputs (BNC & MCX) for stable signal distribution
  • DVI (HDMI) RGB Output Conversion for display compatibility
  • Automatic Video Standard Detection for seamless integration
  • Input Signal Jitter Removal for enhanced signal stability
  • SMPTE297M-2006 Compliant Optical Input ensuring professional-grade performance
  • SMPTE425M/424M/292M/274M/296M Compliance for broadcast compatibility
  • Selectable Serial Control Interface (RS232 or 3.3V TTL)
  • 5V-12V DC Regulated Power Input with 4W power dissipation
  • Operating Temperature: -5°C to +60°C, Humidity: 20%-80%

Applications:

  • Broadcast & Live Production
  • Video Walls & Displays
  • Medical Imaging
  • Surveillance Systems
  • AV Integration
  • Industrial Inspection


Power, Environment and optical Input Specification

POWER:

Input operating voltage (DC IN): 5V TO 12V DC regulated

Power dissipation:

-TL7071 in 3G operation mode, video standard 1080p59.94

-BNC and HDMI cables connected

-PD = 4W

Power dissipation value conditions:

-Input operating voltage 12V DC

-Ambient temperature +25°C/77°F

-Humidity 30%

OPERATING CONDITIONS:

Ambient temperature (min/max): -5°C/+60°C = 23°F/140°F

Humidity: 20%-80%

STORAGE CONDITIONS:

Temperature (min/max): -20°C/+60°C = -4°F/140°F

Humidity: 20%-80%

OPTICAL INPUT (SFP module Viita RM3-S1-4103K-R or equivalent):

For single mode fibre (9/125), LC connector, wavelength = 1260nm up to 1620nm

Optical receiver sensitivity @2.97Gb/s: -18dBm minimum
