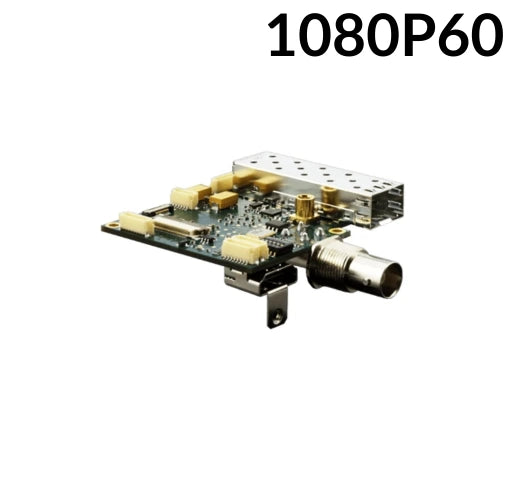

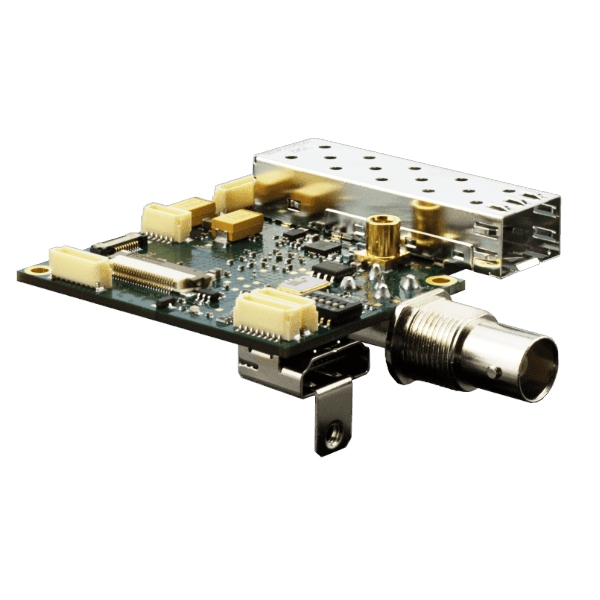

TL7076 3G/HD-SDI Fiber Optic Receiver 3Gbit/s Link Solution Interface Board for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras

TL7076 Spec Sheet

The TL7076 Fiber Optic Receiver delivers 3G/HD-SDI & HDMI video output for Sony FCB-EV9520L, FCB-EV9500L, and Tamron MP3010M-EV HD block cameras, supporting long-distance transmission via 1550nm SFP single-mode fiber (SMF) LC with up to 10 km range. Compliant with SMPTE 297M-2006, 425M, 424M, 292M, 274M, and 296M standards, it ensures seamless broadcast-quality video transmission with automatic video standard detection and input signal jitter removal for ultra-low-latency output.

Featuring bidirectional RS232/3.3V TTL serial control, the TL7076 enables real-time camera control over the same fiber connection, optimizing AV, live production, and remote camera operations. Dual reclocked 3G/HD-SDI BNC + MCX outputs with format conversion for HDMI/DVI (RGB) deliver maximum flexibility across professional video systems. The unit operates with a 7V-12V DC regulated input (6V max for FCB-SE600) and withstands extreme environments from -5°C to +60°C.

Features:

• 3G/HD-SDI & HDMI Output – Supports Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV
• 1550nm SFP Transceiver – Single-mode fiber (SMF) LC connector, up to 10 km range
• SMPTE Compliant – Meets SMPTE 297M-2006, 425M, 424M, 292M, 274M, 296M standards
• Automatic Video Detection – Seamless format compatibility with various video signals
• Jitter Removal & Reclocking – Ensures stable, low-latency, high-quality video transmission
• Dual Serial Control Interface – RS232 or 3.3V TTL for real-time camera remote control
• Reclocked 3G/HD-SDI BNC & MCX Outputs – Supports HDMI/DVI (RGB) conversion
• Compact & Low-Power Design – 7V-12V DC input (6V max for FCB-SE600), 4.3W power draw
• Wide Operating Range – -5°C to +60°C, 20%-80% humidity for harsh environments

Applications:

• Long-Distance HD Video Transmission
• Broadcast & Live Production
• Remote Camera Control
• Studio & Field Video Setups
• SMPTE-Compliant Optical Video Solutions
• HD/SD-SDI Signal Conversion
• Surveillance & Industrial Imaging
