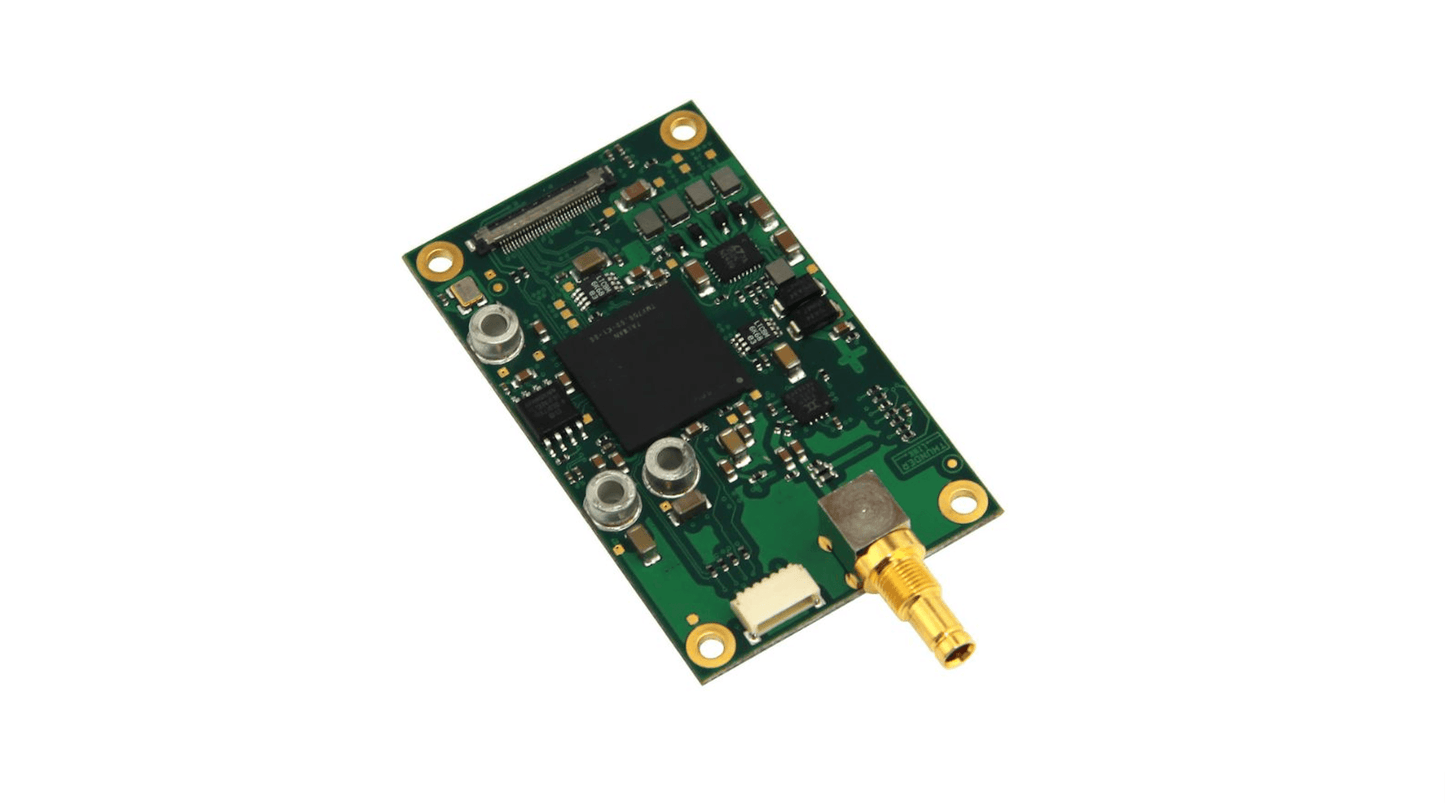

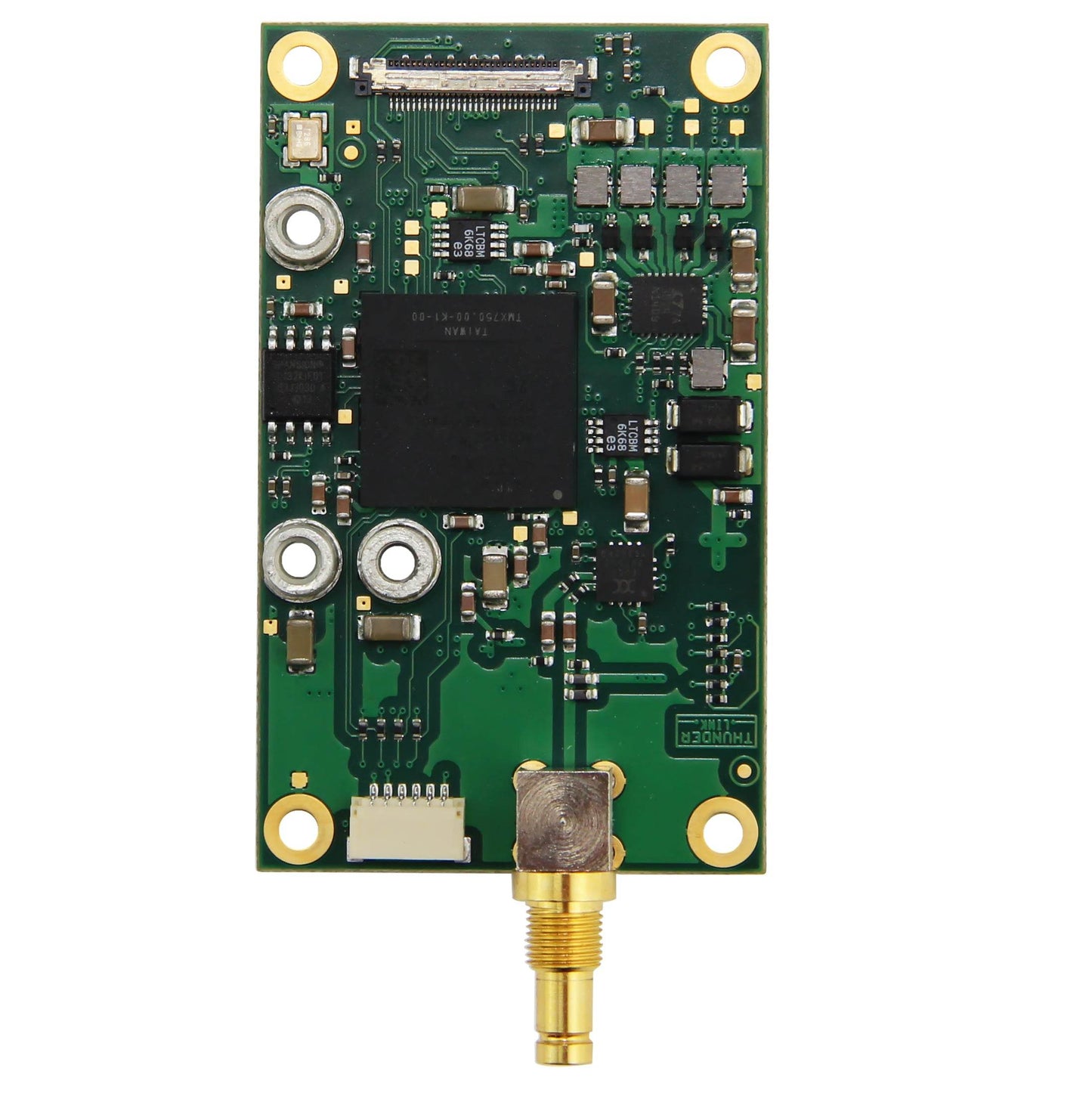

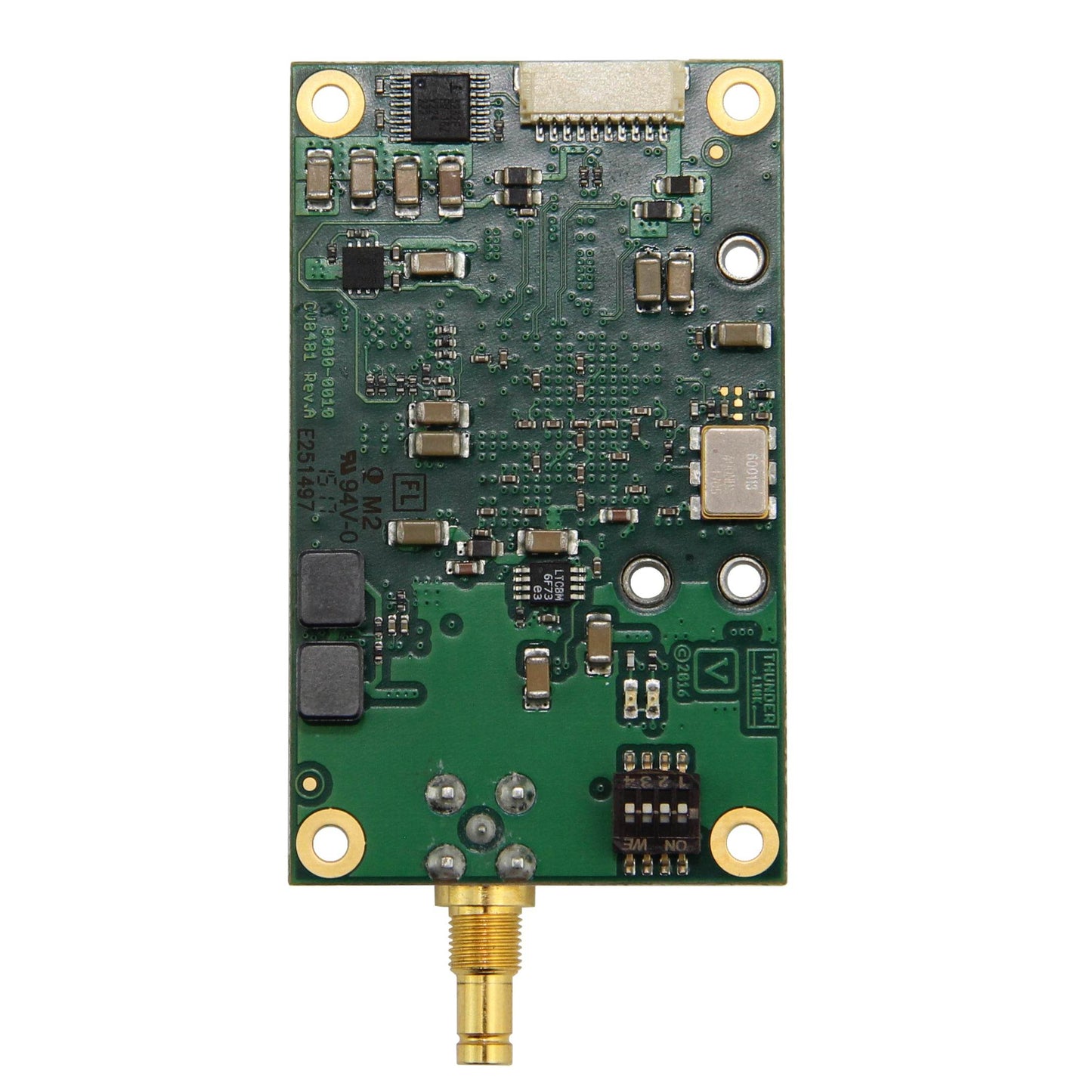

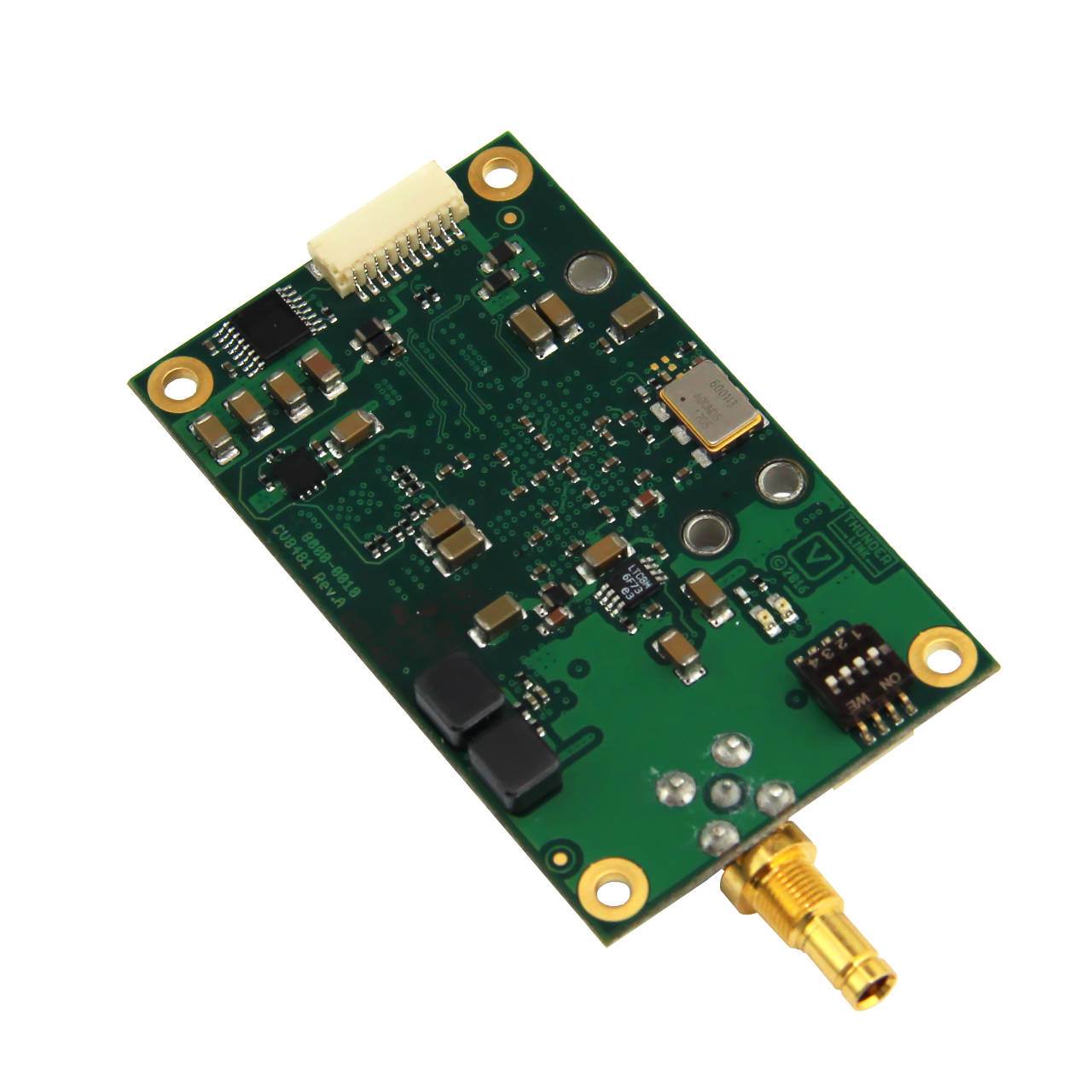

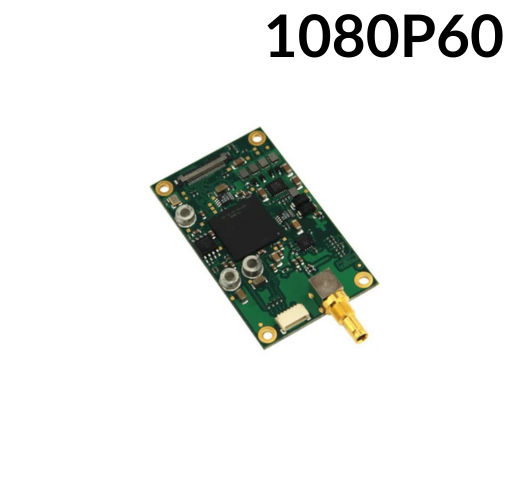

TL8651 3G/HD-SDI Output Video Transceiver with LVDS Input and RS232/TTL Control for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras

TL8651 Spec Sheet

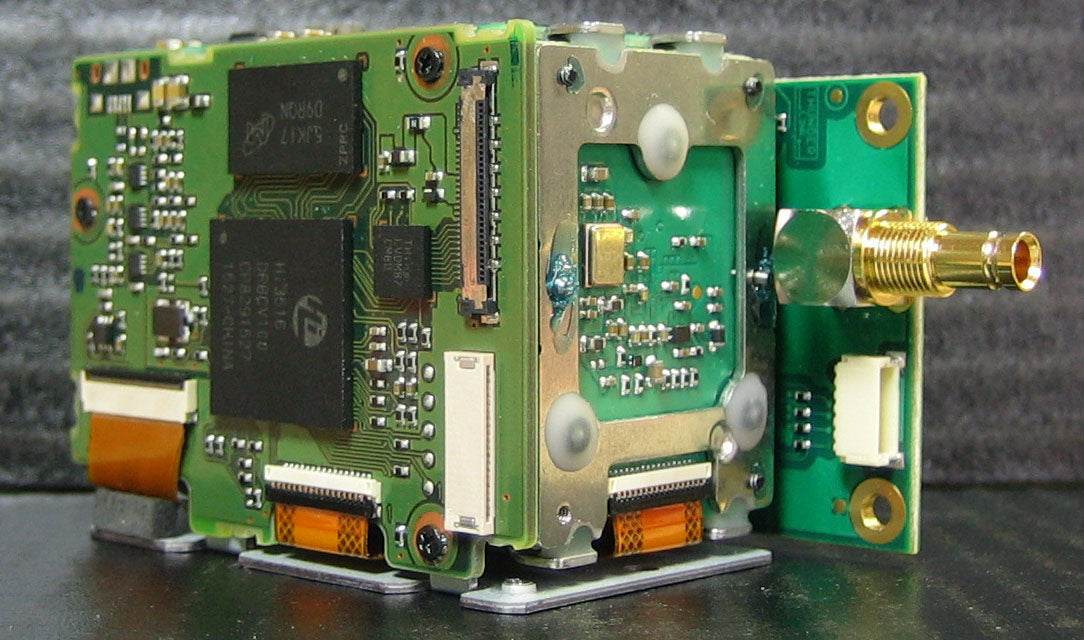

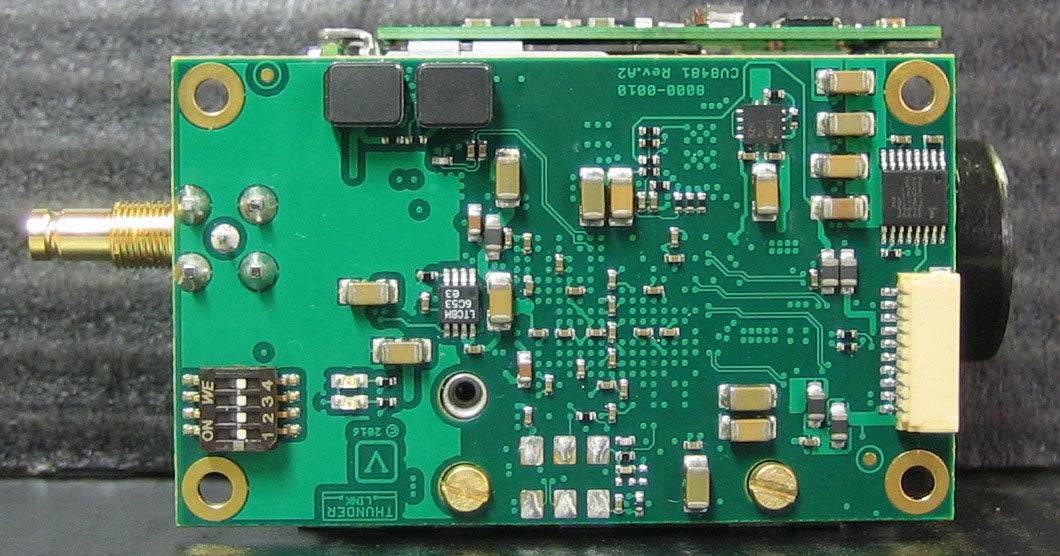

The TL8651 is a high-performance digital video processor designed for seamless integration with Sony FCB-EV9520L, FCB-EV9500L, and Tamron MP3010M-EV block cameras. Featuring 4-channel LVDS input, it delivers full 1080p, 720p, and 1080i video output at multiple refresh rates (60Hz, 59.94Hz, 50Hz, 30Hz, 29.97Hz, 25Hz). The module provides 3G/HD-SDI output, compliant with SMPTE ST424M Level A and ST292M, ensuring professional-grade signal transmission.

This transceiver supports full automatic video input standard detection and includes a CVBS loop-out connector for additional output flexibility. It features RS232 and TTL-level serial control for easy integration into custom systems. Designed for reliability, the TL8651 operates on a regulated 12V DC supply with low power consumption (1.5W typical) and supports a wide temperature range (-5°C to +60°C). Its compact board-side mount design makes it ideal for broadcast, surveillance, industrial imaging, and machine vision applications where space and performance are critical.

Features:

• 4-channel LVDS digital video input for high-quality signal processing
• 1080p output at 60Hz, 59.94Hz, 50Hz, 30Hz, 29.97Hz, and 25Hz
• 720p output at 60Hz, 59.94Hz, 50Hz, 30Hz, 29.97Hz, and 25Hz
• 1080i output at 60Hz, 59.94Hz, and 50Hz
• Full automatic video input standard detection for seamless integration
• 3G/HD-SDI output, compliant with SMPTE ST424M Level A and ST292M
• Native digital signal processing for superior image quality
• CVBS loop-out connector (MP1110M-VC only) for additional video output flexibility
• RS232 and TTL-level serial control for system integration
• Operates on 12V DC regulated power supply, with low 1.5W power consumption
• Wide operating temperature range (-5°C to +60°C) for reliable performance in various environments
• Compact board-side mount design for easy installation in space-constrained applications

Applications:

• Video broadcasting
• Security cameras
• Industrial imaging
• Medical imaging
• Surveillance systems
• Broadcast production
• Remote monitoring
• Machine vision

Specification Camera Interface

INPUTS:

DATA 4 CH. LVDS digital video (from camera)

CLOCK LVDS (from camera)

CONTROL Rx 3.3V TTL serial control interface

OUTPUTS:

CONTROL Tx3.3V TTL serial control interface

RESET3.3V TTL, active low

Power and Environment

POWER INPUT:

9.5V to 12V DC regulated (12.5V DC absolute maximum)

Power consumption (MP1110M-VC + TL8651) 4.7W (cam motors inactive)

Power consumption TL8651: 1.5W, 125mA @ 12V DC (typ.)

Power consumption value conditions:

Power 12V DC, video mode 1080p60

Ambient temperature +25°C/77°F

Humidity 30%

OPERATING CONDITIONS:

Ambient temperature (min/max): -5°C/+60°C = 23°F/140°F

Humidity: 20%-80%

STORAGE CONDITIONS:

Temperature (min/max): -20°C/+60°C = -4°F/140°F

Humidity: 20%-80%
