TL8652 4-Channel LVDS Input Video Transceiver with HDMI Output, RS232/TTL Control for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras

TL8652 Spec Sheet

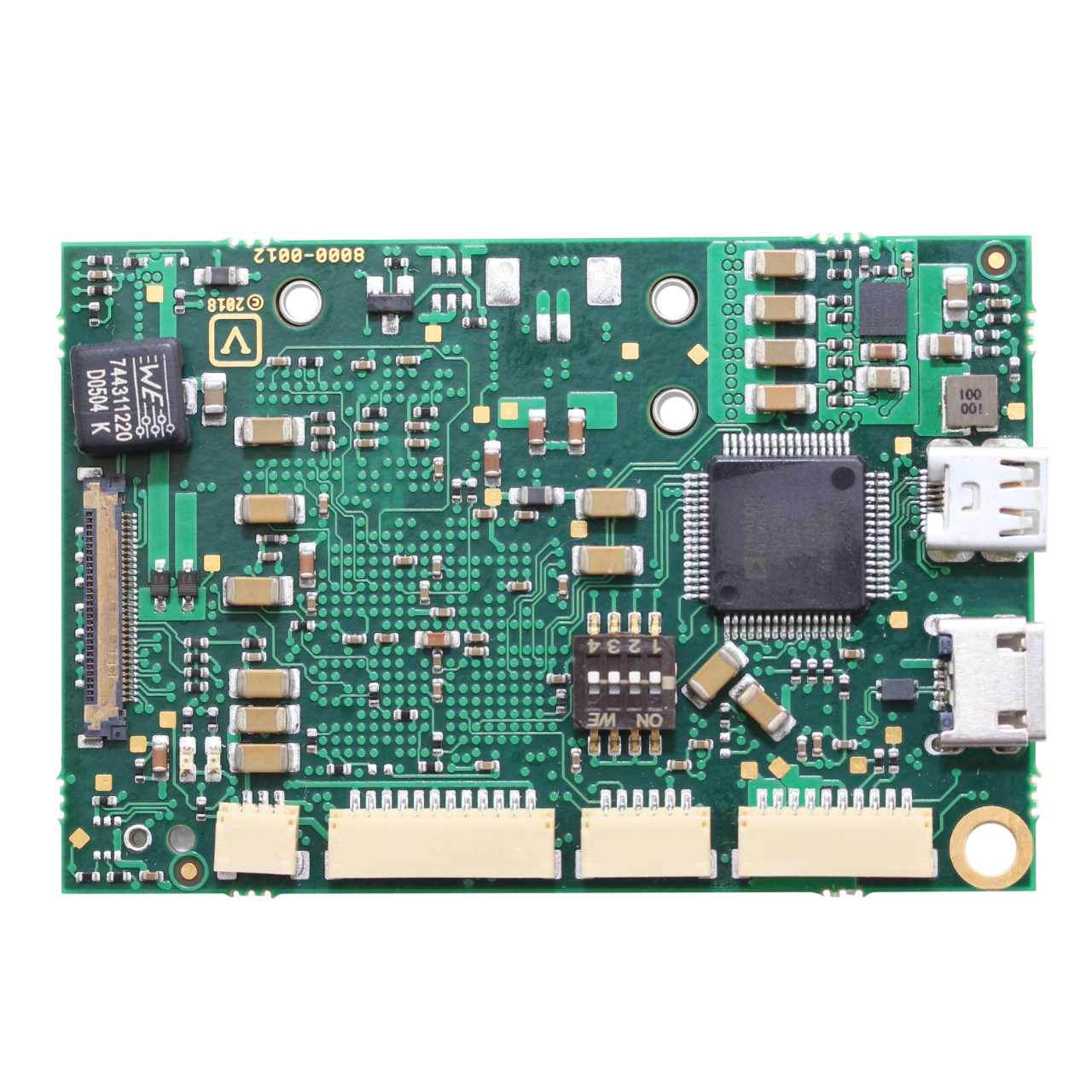

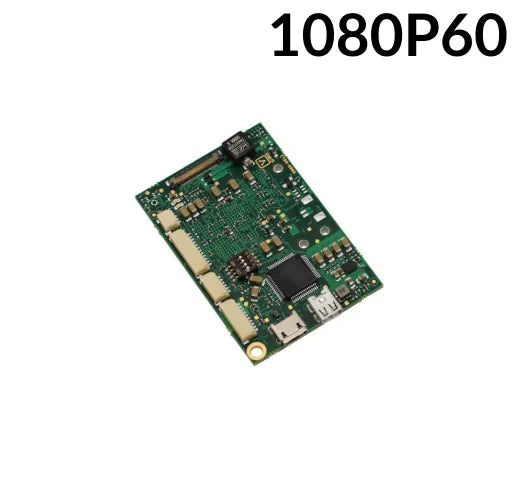

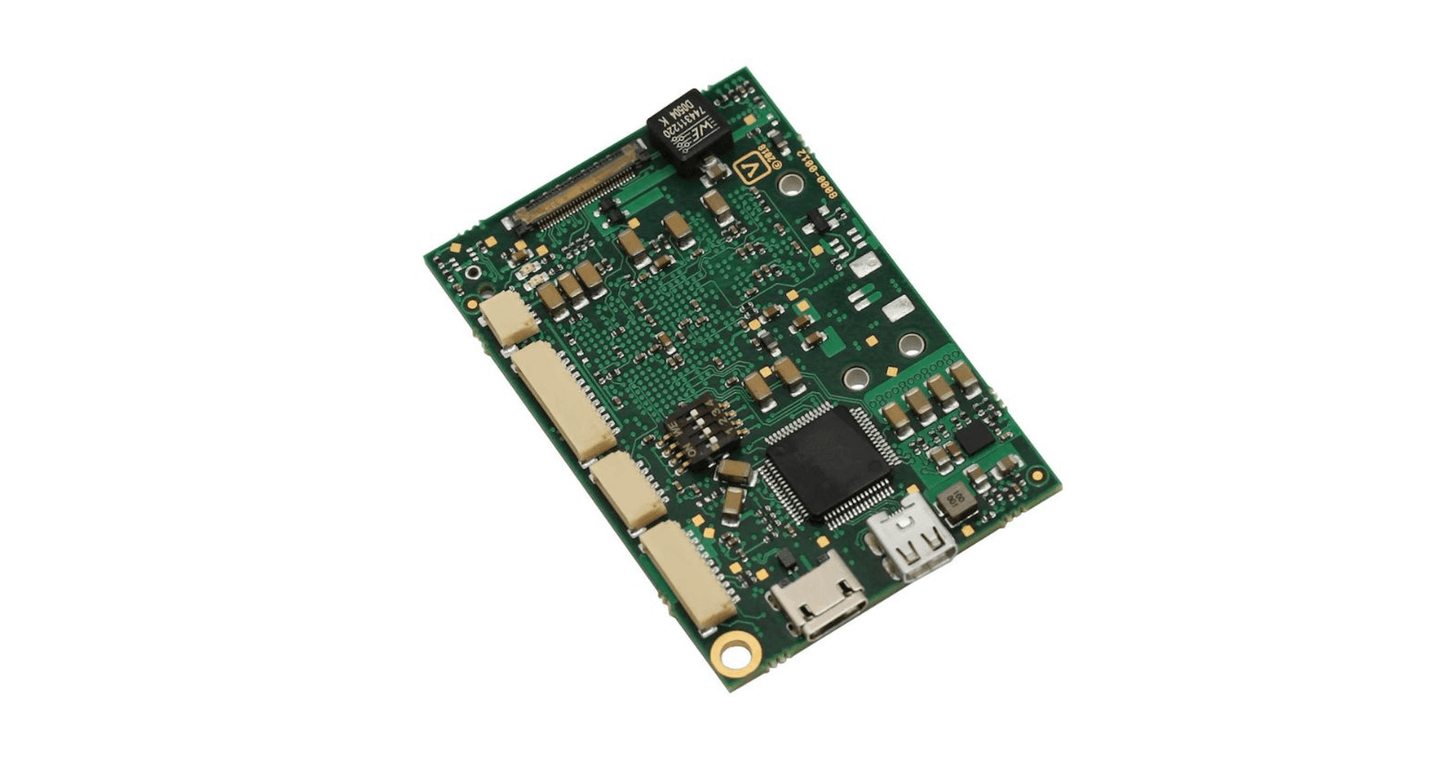

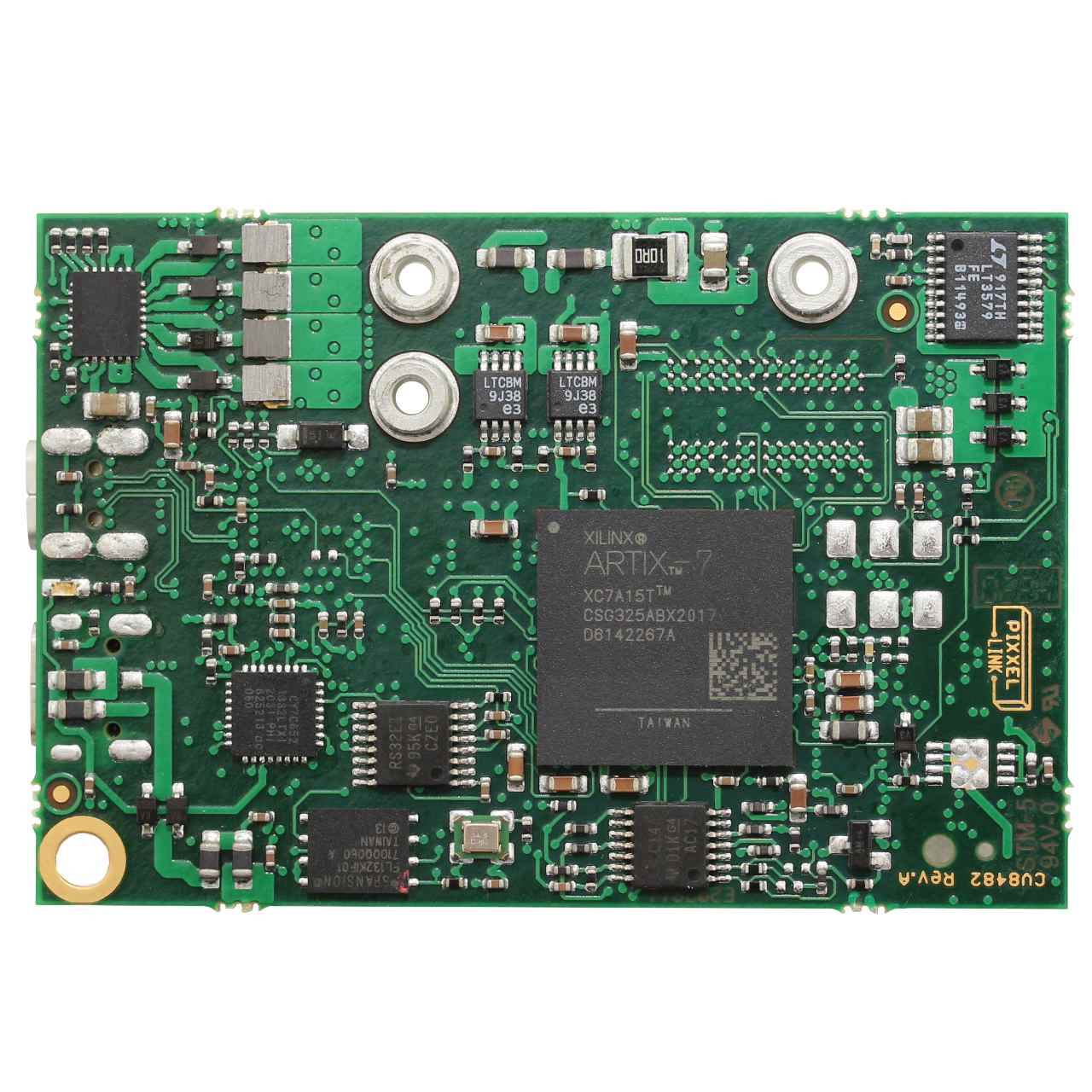

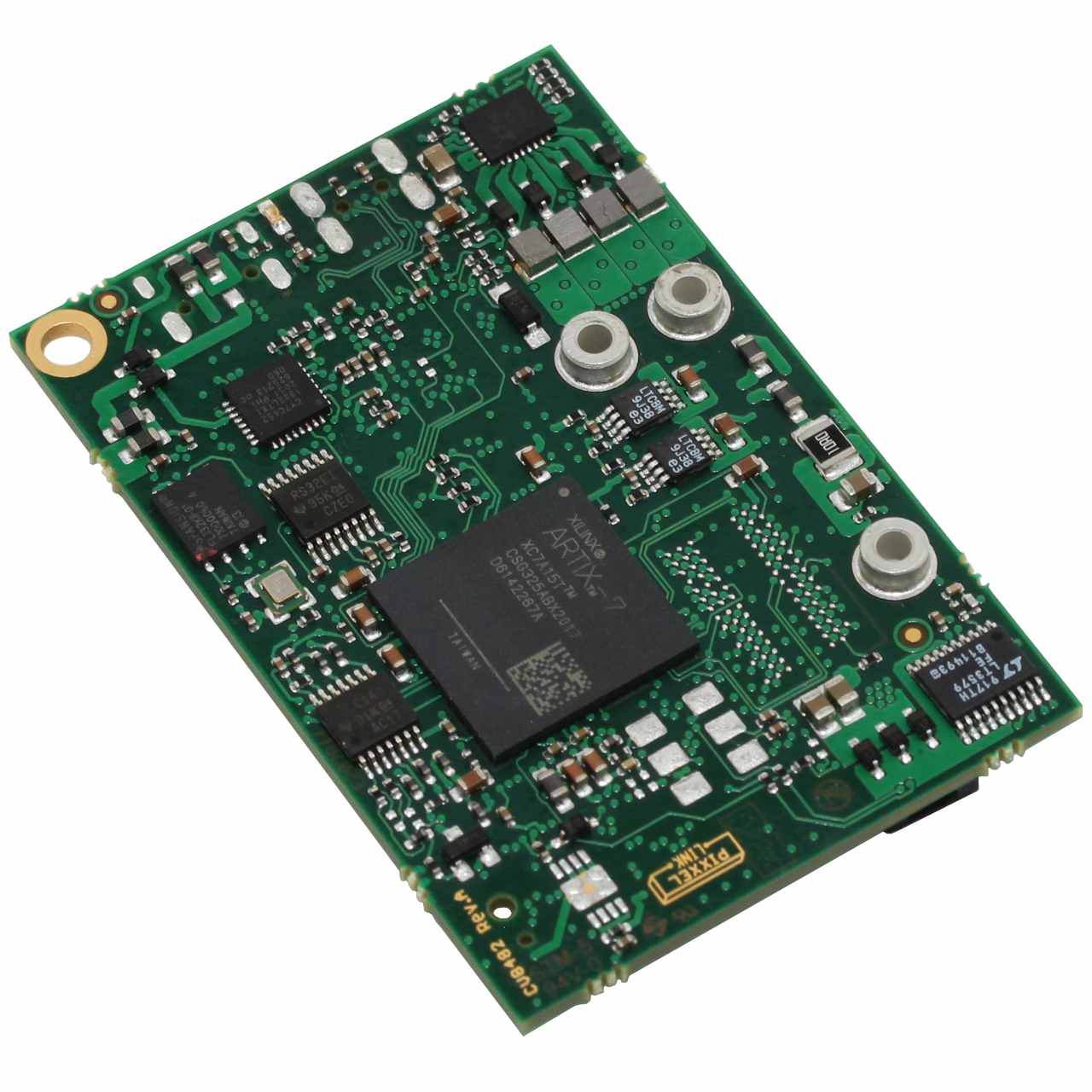

The TL8652 is a high-performance interface module designed for seamless integration with Sony FCB-EV9520L, FCB-EV9500L, and Tamron MP3010M-EV block cameras. Featuring 4-channel LVDS digital video input, it supports multiple video output resolutions, including 1080p60, 1080p50, 1080p30, 1080p25, 720p60, 720p50, 1080i60, and 1080i50. Equipped with HDMI 1.4 output, users can select between RGB444 and YCbCr422 color formats for optimal image processing.

For control, the TL8652 integrates USB2 UART, RS232, and TTL-level serial interfaces, enabling direct camera adjustments. Power is supplied via 5V DC USB, consuming just 1.5W (300mA) under typical conditions. Engineered for reliability, it operates in temperatures from -5°C to +60°C with humidity tolerance from 20% to 80%.

This module includes a CVBS loop-out connector (MP1110M-VC models only) and features a 30-wire micro-coaxial cable (20cm) for streamlined connectivity. Designed for industrial, security, and machine vision applications, the TL8652 delivers robust performance for demanding environments.

Features:

• 4-Channel LVDS Input – Supports Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV block cameras
• 1080p HDMI 1.4 Output – Resolutions: 1080p60/50/30/25, 720p60/50, 1080i60/50
• Selectable Color Formats – RGB444 or YCbCr422 for flexible integration
• USB2 UART, RS232 & TTL Control – Multiple interfaces for camera control
• Low Power Consumption – 1.5W (300mA @ 5V DC via USB)
• Wide Operating Range – -5°C to +60°C, 20%-80% humidity
• Compact & Lightweight – Includes 30-wire micro-coaxial cable (20cm)
• CVBS Loop-Out (MP1110M-VC only) – Additional analog video output

Applications:

• Industrial & OEM Camera Systems
• Security & Surveillance
• Machine Vision & Robotics
• Automated Inspection
• Embedded Systems
• Broadcast & Live Streaming

Specification Camera Interface

INPUTS:

DATA 4 CH. LVDS digital video (from camera)

CLOCK LVDS (from camera)

CONTROL Rx 3.3V TTL serial control interface

OUTPUTS:

CONTROL Tx3.3V TTL serial control interface

RESET3.3V TTL, active low

Camera Power9.5V (typ.)

30 wire micro coaxial cable is supplied with TL8652 (length=20cm).

Power and Environment

POWER INPUT:

5V DC over USB2 micro connector (USB3 host port or powered USB3 hub required)

Power consumption (MP1010M-VC + TL8652) 4.5W/900mA (cam motors inactive)

Power consumption TL8652: 1.5W, 300mA @ 5V DC (typ.)

Power consumption value conditions:

Power 5V DC, video mode 1080p60

Ambient temperature +25°C/77°F

Humidity 30%

OPERATING CONDITIONS:

Ambient temperature (min/max): -5°C/+60°C = 23°F/140°F

Humidity: 20%-80%

STORAGE CONDITIONS:

Temperature (min/max): -20°C/+60°C = -4°F/140°F

Humidity: 20%-80%
