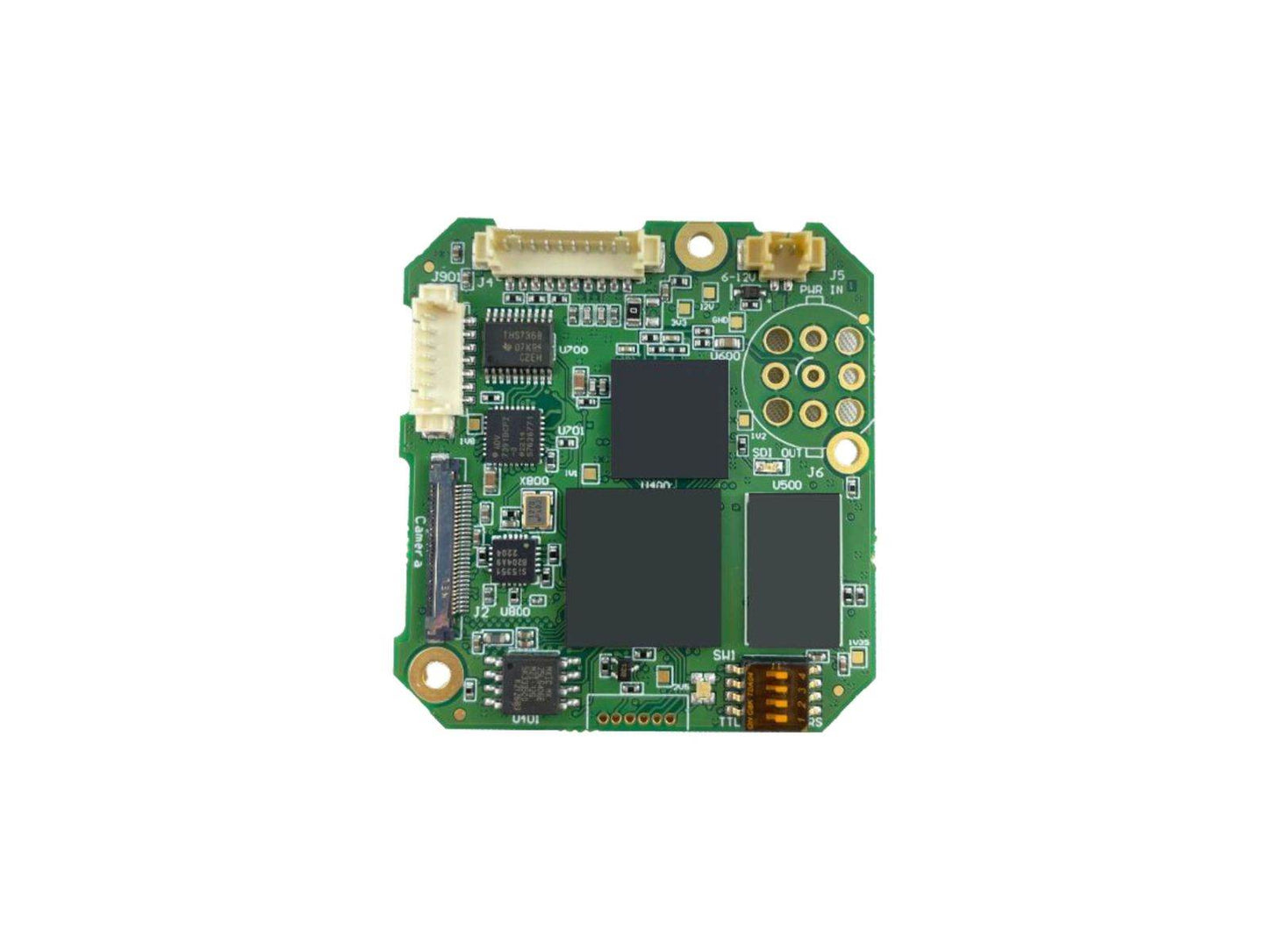

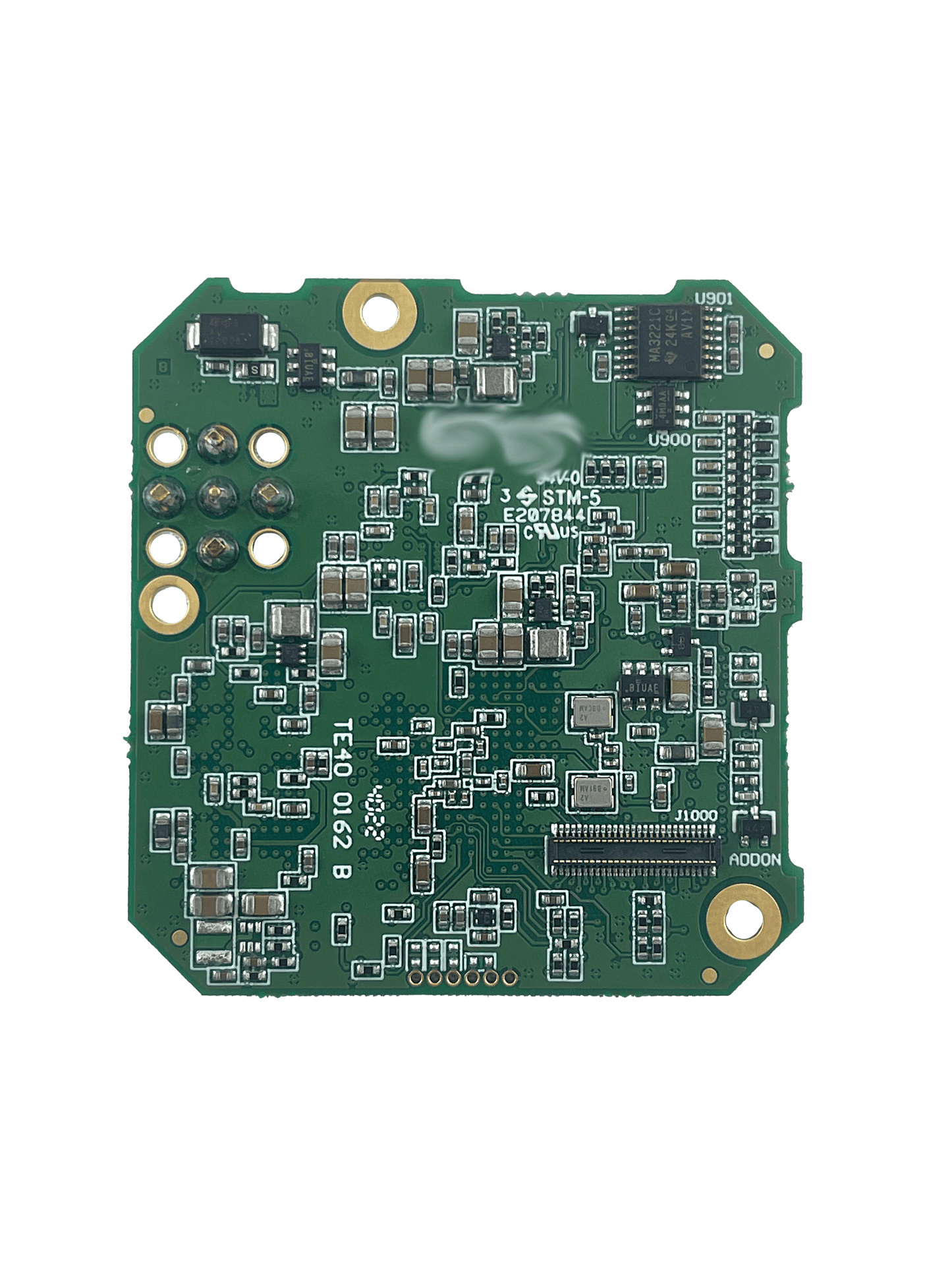

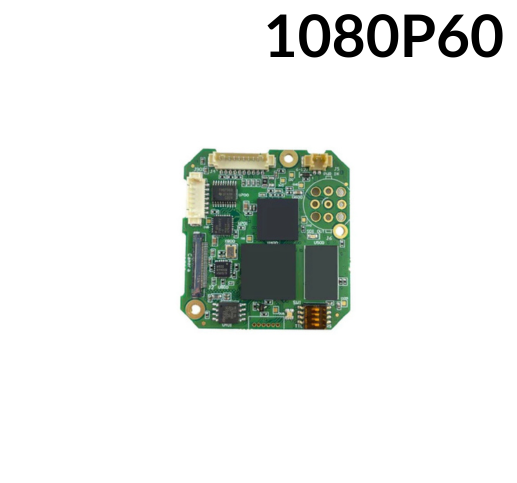

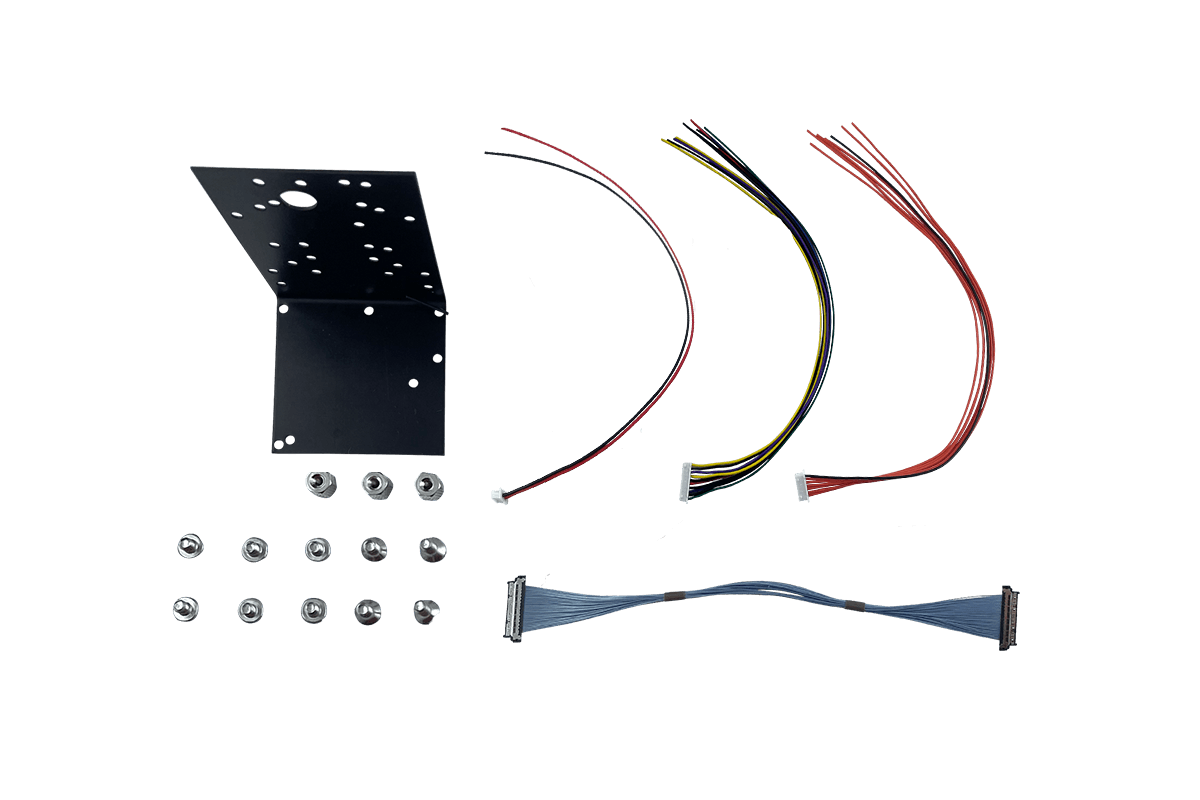

TV10 0090 Premium 3G/HD-SDI for LVDS Zoom Block Cameras

The TV10 0090 Premium module efficiently converts LVDS camera signals to 3G/HD-SDI and analog outputs, supporting resolutions up to 1080p60 in SMPTE 424M and 292M standards. It employs an FPGA and DDR3 memory for real-time image processing, including colorimetry tests, contrast enhancement, and On-Screen Display (OSD) functions, all with low jitter and uncompressed video transmission. Dual video outputs (3G-SDI and Analog) reduce the need for multiple boards, streamlining design and lowering system costs.

With automatic LVDS format recognition and customizable DIP switch configurations, the module simplifies integration into various camera systems. An add-on connector allows for further customization, enabling features like integrated RTC, audio embedding, and secondary video inputs. Powered by a 7-12V DC supply, it supports long-distance video transmission (up to 300 meters) with equalization at the receiver, making it ideal for professional applications where flexibility, reliability, and high performance are essential.

Features:

• 3G/HD-SDI video output
• Automatic LVDS & format camera recognition
• Video resolution up to 1080p60 Analog video output
• Composite video (CVBS)
• S-Video (Y/C)
• Component video (YPbPr)
• Multiple format possibilities:
      o Letter box
      o Squeeze
      o Crop
• UART Communication – RS232/TTL using VISCA
• Setup & Update via UART
• Video mode selection by DIP switches
• Power supply 7V-12VDC

Applications:

• Colorimetry Tests
• Measurements
• Reticules
• Contrast Enhancement
• ROI extraction
