TV10 0097 HDMI 4K60 Interface Board for Sony FCB-ER9500 & ER8530

TV10 0097 Spec Sheet

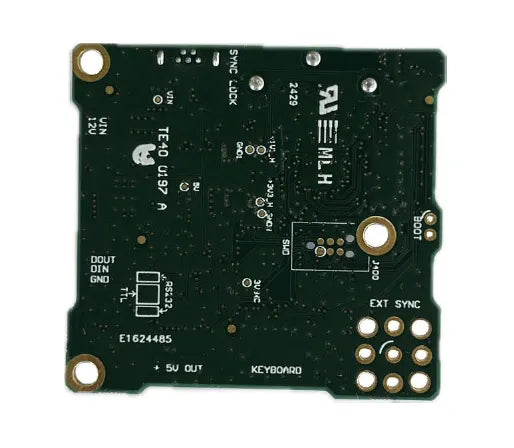

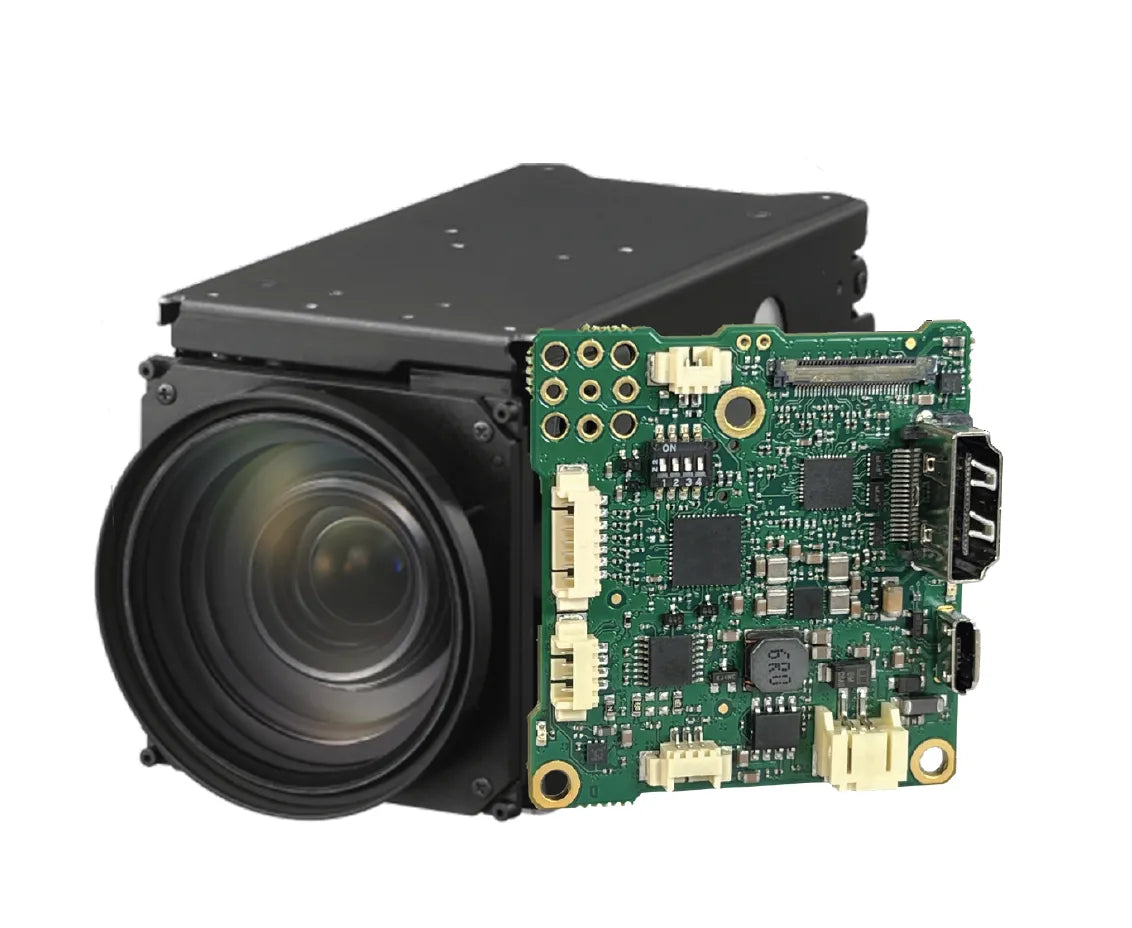

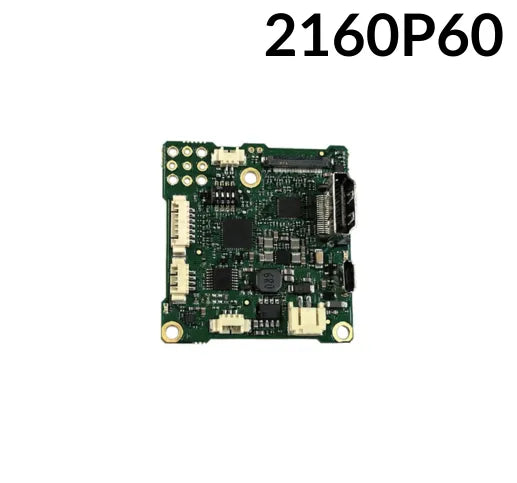

The Twiga TV10 0097 HDMI 4K60 Interface Board converts native video signals from compatible Sony FCB 4K zoom block cameras into uncompressed HDMI 2.0b video. Designed for the Sony FCB-ER9500 and FCB-ER8530, the compact board supports video formats from Full HD through Ultra HD 4K, including output up to 2160p60 when used with the FCB-ER9500.

The board also provides VISCA camera control through micro-USB or UART RS232/TTL, DIP-switch video-format selection, GPIO camera commands, a 5V/1A auxiliary power output and an external synchronization input specifically supported by the Sony FCB-ER8550.

HDMI 2.0b Interface for Sony FCB 4K Block Cameras

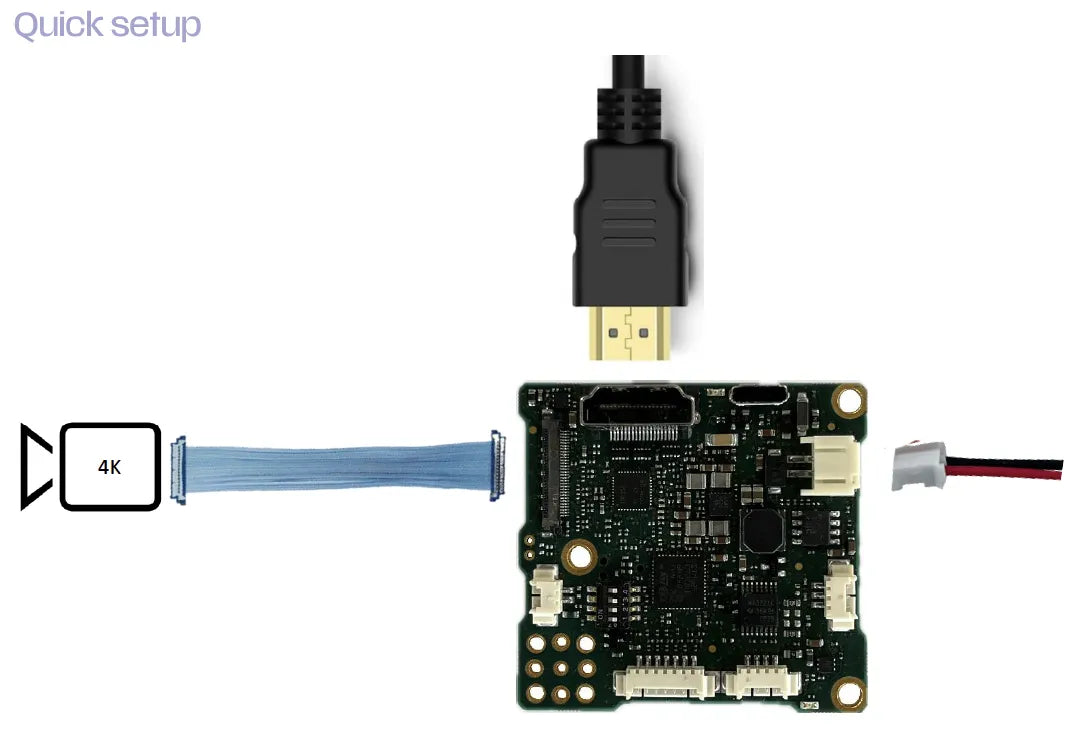

The TV10 0097 provides a compact HDMI interface for integrating compatible Sony FCB 4K zoom block cameras with monitors, recorders, video encoders, capture devices and other equipment requiring a standard HDMI Type A connection.

It delivers an uncompressed digital video stream from Full HD through 3840 × 2160 Ultra HD. When paired with the Sony FCB-ER9500, the board supports video output through 2160p60. When used with the FCB-ER8530, the maximum available 4K frame rate is determined by the camera and extends through 2160p29.97.

Video-output formats are selected through onboard DIP switches. Camera functions can be controlled using Sony VISCA commands through the micro-USB connection or UART communication configured for RS232 or TTL levels. GPIO connections provide an additional interface for camera commands.

External Synchronization for Multi-Camera Imaging

The TV10 0097 includes an external synchronization input specifically documented for use with the Sony FCB-ER8550. This capability can support synchronized multi-camera systems used for image stitching, 3D imaging, coordinated image acquisition and visible/thermal sensor integration.

The external synchronization connection is available through Molex and an optional coaxial BNC or MCX connector. The coaxial connector is not mounted by default and should be specified when planning the system configuration.

Key Features:

• HDMI 2.0b digital video output
• Standard HDMI Type A output connector
• Uncompressed video from Full HD through Ultra HD 4K
• Supports video output up to 2160p60 with the Sony FCB-ER9500
• Compatible with Sony FCB-ER9500 and FCB-ER8530 4K block cameras
• External synchronization input specifically supported with the Sony FCB-ER8550
• VISCA camera control through micro-USB or UART
• UART communication configurable for RS232 or TTL levels
• DIP-switch camera-output format configuration
• GPIO interface for camera commands
• Micro-USB connection for camera communication and board updates
• 6 to 12 VDC power input
• 5V DC, 1A auxiliary power output
• Compact rear-mountable design

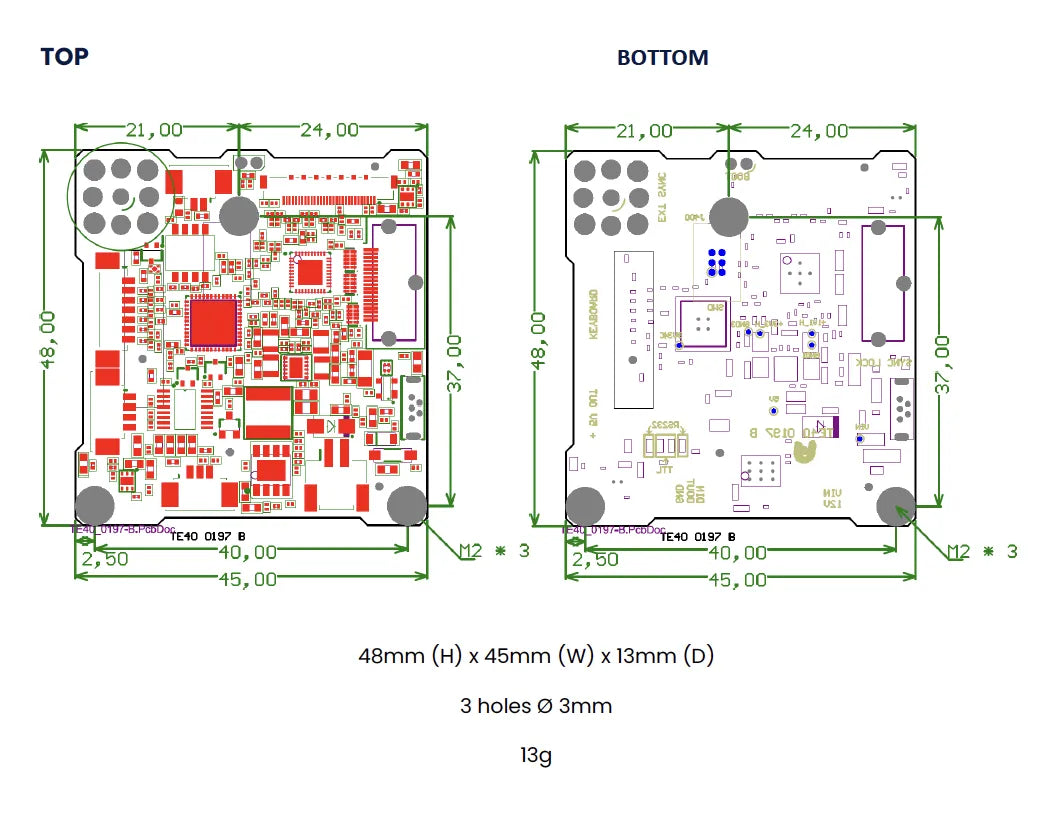

• Measures 48 × 45 × 11 mm
• Lightweight 13 g board construction

Camera Compatibility and Maximum Output

The interface board does not increase a camera’s native frame rate. The available resolution and frame rate depend on the connected Sony FCB camera model and its selected output format.

Typical Applications:

• Industrial vision and inspection systems
• Machine vision and factory automation
• Robotics and remotely operated imaging platforms
• UAV and drone camera integration
• Broadcast and live video production
• Security and long-range surveillance
• Scientific and laboratory imaging
• Medical and technical imaging equipment
• Multi-camera image stitching
• 3D imaging and reconstruction
• Visible and thermal sensor fusion
• High-resolution HDMI recording and monitoring

Specifications

Optional Integration Accessories

• TV50 0029 mounting kit: Includes a 30-way camera cable assembly, power-supply cable, RS232/UART TTL cable, GPIO cable, right-angle anodized aluminum bracket, mounting screws and spacers.
• TV50 0008 cable kit: Includes a 30-way camera cable assembly, power-supply cable and RS232/UART TTL cable.

Confirm accessory availability and the required connector configuration when requesting a quote.

Frequently Asked Questions

What does the TV10 0097 interface board do?

The TV10 0097 converts video signals from compatible Sony FCB 4K block cameras into uncompressed HDMI 2.0b video through a standard HDMI Type A connector.

Does the board support 4K video at 60 fps?

Yes, when connected to a camera that natively supports 4K60 output, such as the Sony FCB-ER9500. The board supports video output through 2160p60.

Will the FCB-ER8530 output 4K60 through this board?

No. The Sony FCB-ER8530 supports 4K output through 2160p29.97. The interface board does not increase the camera’s native maximum frame rate.

Which camera supports external synchronization?

The manufacturer specifically documents the external synchronization input for the Sony FCB-ER8550. External synchronization should not be assumed for other camera models without confirmation.

How is the Sony block camera controlled?

The board supports Sony VISCA commands through micro-USB or UART communication. UART operation can be configured for RS232 or TTL levels.

Can the board be mounted directly behind the camera?

Yes. Its compact 48 × 45 × 11 mm design is intended for rear-mounted integration with compatible Sony 4K block cameras. The optional TV50 0029 mounting kit provides the bracket, cables and mounting hardware.

Does the board include the optional BNC or MCX sync connector?

The coaxial external-sync connector is optional and is not mounted by default. Confirm whether a BNC or MCX configuration is required before ordering.
