TV20 0012 Blue Mamba Neo IP Encoder for Sony FCB-EV9520L/FCB-EV9500L & Tamron MP3010M-EV

TV20 0012 Spec Sheet

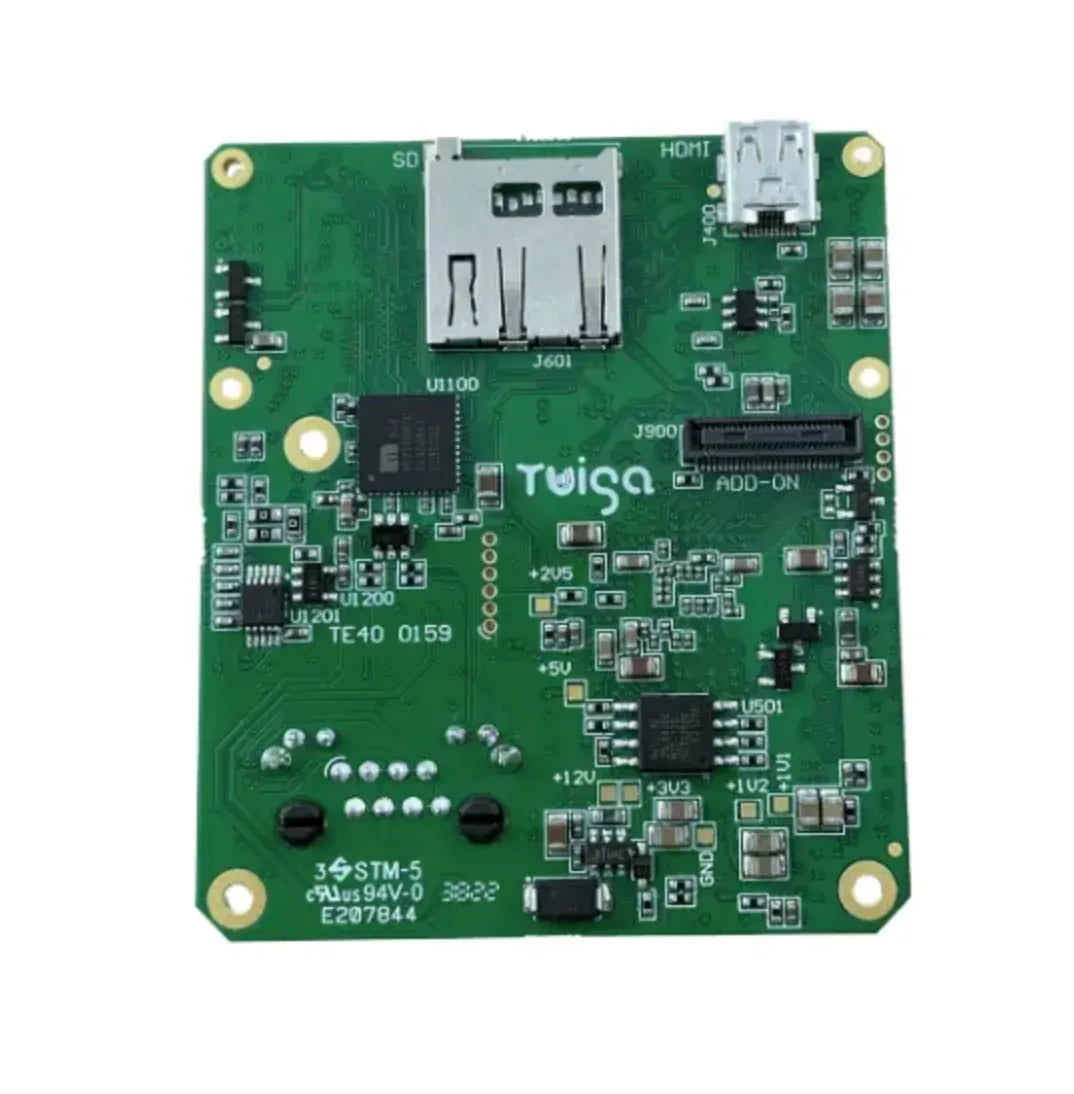

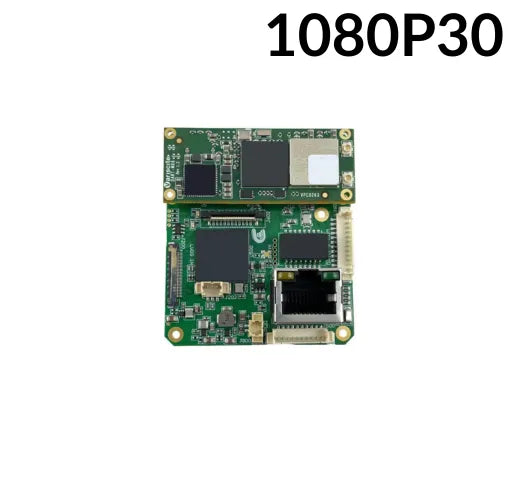

The Twiga TV20 0012 Blue Mamba Neo is a compact, wired IP video encoder and streaming interface designed for integration with LVDS zoom block cameras, including the Sony FCB-EV9520L, Sony FCB-EV9500L and Tamron MP3010M-EV.

Blue Mamba Neo converts the camera’s native LVDS video into a low-latency H.264 IP stream at resolutions up to 1080p30. It also provides a separate Micro HDMI 1.4a output through 1080p60 for local display, monitoring or recording.

With RTSP, RTP multicast, RTP MPEG2TS, ONVIF Profile S, local recording, snapshot capture, camera control and a browser-based configuration interface, TV20 0012 provides a flexible video-streaming platform for industrial, security, robotic and embedded imaging systems.

Wired H.264 IP Streaming for LVDS Block Cameras

The Blue Mamba Neo converts high-definition LVDS video from compatible Sony and Tamron zoom block cameras into compressed H.264 video for transmission over a wired Ethernet network. The module supports IP streaming through 1080p30 and offers selectable bitrates for balancing video quality, network bandwidth and latency.

Streaming options include RTSP, RTP multicast and RTP MPEG2TS. ONVIF Profile S compliance supports integration with compatible video-management and surveillance systems.

The Blue Mamba Neo is the wired version of the Mamba Neo platform. It provides 10/100 Mbps Ethernet connectivity through an onboard RJ45 connector or remote Ethernet connection. Wi-Fi hardware is not included on TV20 0012.

Separate HDMI Output Through 1080p60

In addition to the H.264 IP stream, the board provides a Micro HDMI 1.4a output for connecting a local monitor, recorder or video-capture device. HDMI output supports resolutions through 1920 × 1080 at 60 fps.

The HDMI specification should not be confused with the encoded IP-stream specification: HDMI output supports up to 1080p60, while H.264 IP encoding and streaming support up to 1080p30.

Confirm the camera model, LVDS pinout, selected video format and required cable assembly before installation.

Key Features:

• Converts LVDS video from zoom block cameras into IP and HDMI output
• H.264 IP video encoding through 1080p30
• Low-latency wired video streaming
• Automatic LVDS camera video-format detection
• RTSP video streaming
• RTP multicast support
• RTP MPEG2TS support
• ONVIF Profile S compliant
• Micro HDMI 1.4a output through 1080p60
• 10/100 Mbps wired Ethernet
• LVDS and four-lane MIPI CSI-2 video inputs
• Add-on connector for optional HD-SDI, analog or USB interfaces
• RS485 communication with VISCA and Pelco protocol support
• UART TTL communication
• Configurable GPIO connections
• Video recording to internal eMMC or microSD storage
• Still-image snapshot capability
• Browser-based setup, configuration and updates
• Embedded Yocto Linux operating system
• NXP i.MX6 dual-core ARM Cortex-A9 processor
• 6 to 12 VDC input power
• Compact 50 × 57 × 15 mm design

H.264 Video Encoding and Streaming

The Blue Mamba Neo includes hardware-based H.264 encoding for real-time IP video transmission. The current manufacturer specification identifies H.264 Baseline Profile encoding at resolutions through 1080p30.

• Maximum encoded IP resolution: 1920 × 1080 at 30 fps
• H.264 encoding profile: Baseline Profile
• RTSP bitrate range: 128 to 20,000 kbit/s
• Streaming protocols: RTSP, RTP multicast and RTP MPEG2TS
• Network interface: 10/100 Mbps Ethernet
• ONVIF support: ONVIF Profile S

Video Inputs and Expansion

TV20 0012 provides multiple interfaces for video acquisition and system expansion:

• LVDS: One KEL 30-way input for compatible zoom block cameras
• MIPI CSI-2: One four-lane MIPI input through a 22-way FFC connector
• Add-on connector: Expansion interface supporting optional HD-SDI, analog or USB input hardware

The standard LVDS input supports digital video formats from 720p25 through 1080p30. Optional video formats require the corresponding add-on hardware and system configuration.

Recording and Local Storage

Video can be recorded to internal eMMC storage or a removable microSD card. The embedded web interface also provides snapshot capture and recording controls.

• Up to 64GB internal eMMC storage, depending on configuration
• One microSD card slot
• MicroSD cards tested through 512GB according to the technical manual
• Local video recording
• Still-image snapshot capture

Camera and System Control

The Blue Mamba Neo supports camera and peripheral communication through RS485, UART TTL and configurable digital I/O. RS485 can be configured for half- or full-duplex operation, while supported camera-control protocols include VISCA and Pelco.

The module includes an embedded browser-based interface for configuring video, streaming, network and recording functions. Firmware and software updates can also be performed through the interface.

Applications:

• Real-time security and surveillance video
• Industrial inspection and process monitoring
• Robotics and remotely operated imaging systems
• UAV and drone video streaming
• Embedded vision equipment
• Remote-site monitoring and control
• Live video production and streaming
• OEM camera and imaging systems
• Traffic and transportation monitoring
• Laboratory and scientific imaging
• Medical video integration where system requirements and regulatory obligations are independently validated
• Machine vision monitoring where compressed H.264 video is appropriate

Specifications

Optional Cable and Evaluation Kits

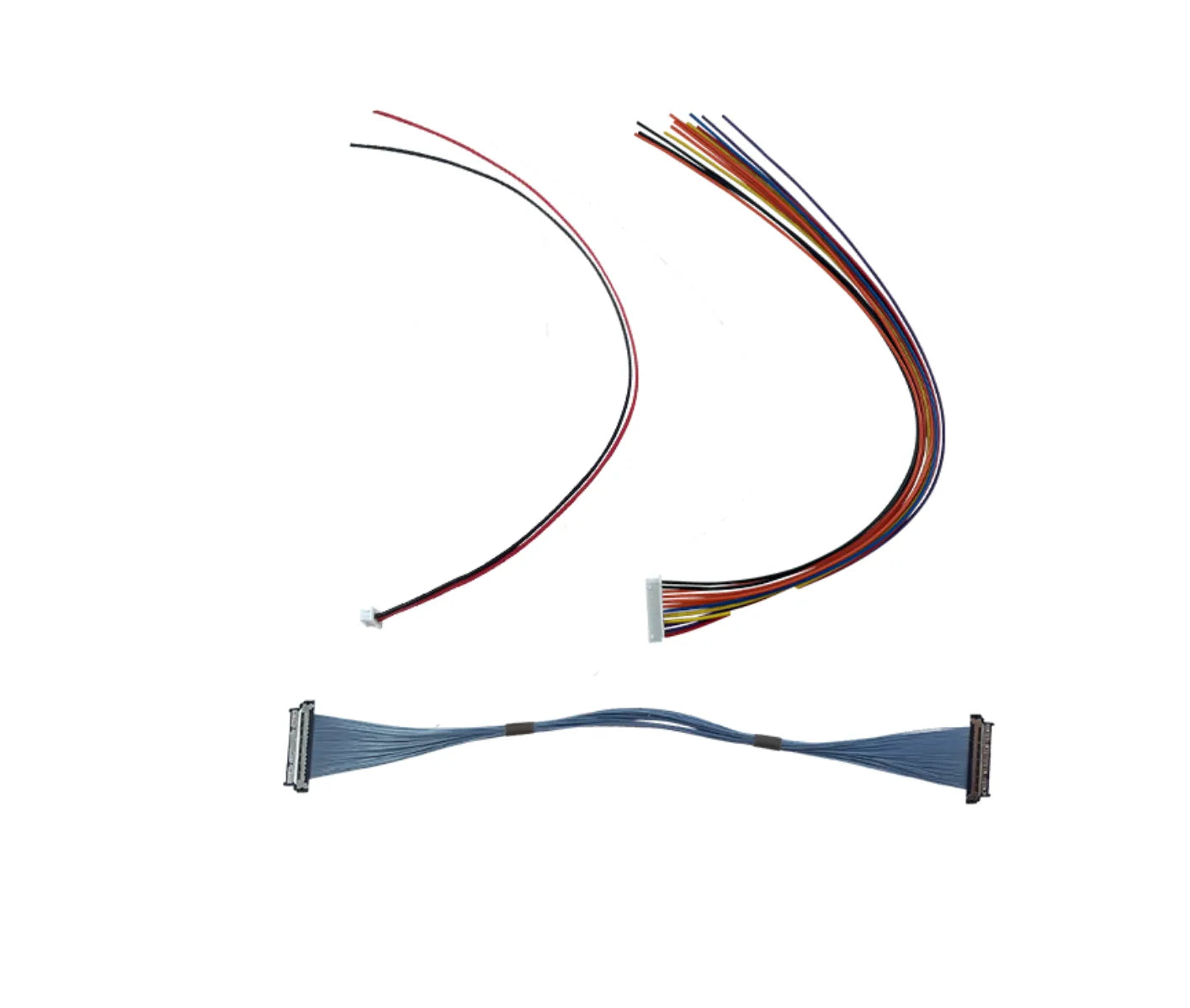

• TV50 0012 Blue Mamba cable kit: Includes a 30-way micro-coaxial camera cable, 2-way power cable and 12-way RS485/TTL/GPIO cable.
• TV50 0013 evaluation kit: Includes the camera, power and control cables plus an Ethernet cable, HDMI Type A-to-Micro HDMI cable and 12V/2A universal power supply.

Confirm whether a cable kit or evaluation kit is included with the board or must be ordered separately.

Frequently Asked Questions

What does the TV20 0012 Blue Mamba Neo do?

It converts video from compatible Sony and Tamron LVDS zoom block cameras into an H.264 IP stream and provides a separate Micro HDMI output for local video.

Does Blue Mamba Neo encode H.264 video at 1080p60?

No. The maximum H.264 encoded IP-stream resolution is 1080p30. The separate Micro HDMI output supports video through 1080p60.

Does TV20 0012 support Wi-Fi?

No. Blue Mamba Neo is the wired Ethernet model. Its 10/100 Mbps network connection is available through onboard or remote Ethernet. Wi-Fi is associated with the Red Mamba Neo version.

Which streaming protocols are supported?

The board supports RTSP, RTP multicast and RTP MPEG2TS streaming. It is also ONVIF Profile S compliant for integration with compatible video-management systems.

Can the Blue Mamba Neo record video locally?

Yes. It can record video to internal eMMC storage or a microSD card. Still-image snapshots are also supported.

How is the camera controlled?

The module provides RS485 and UART TTL communication. RS485 supports VISCA and Pelco camera-control protocols. Configurable GPIO connections are also available.

Can HD-SDI, analog or USB video be connected?

The board includes an add-on connector that can support optional HD-SDI, analog or USB input hardware. These formats require the appropriate expansion board and configuration.

How is the encoder configured?

Video, network, streaming, recording and system settings are managed through the Blue Mamba Neo’s embedded browser-based interface. The interface can also be used for board updates.
