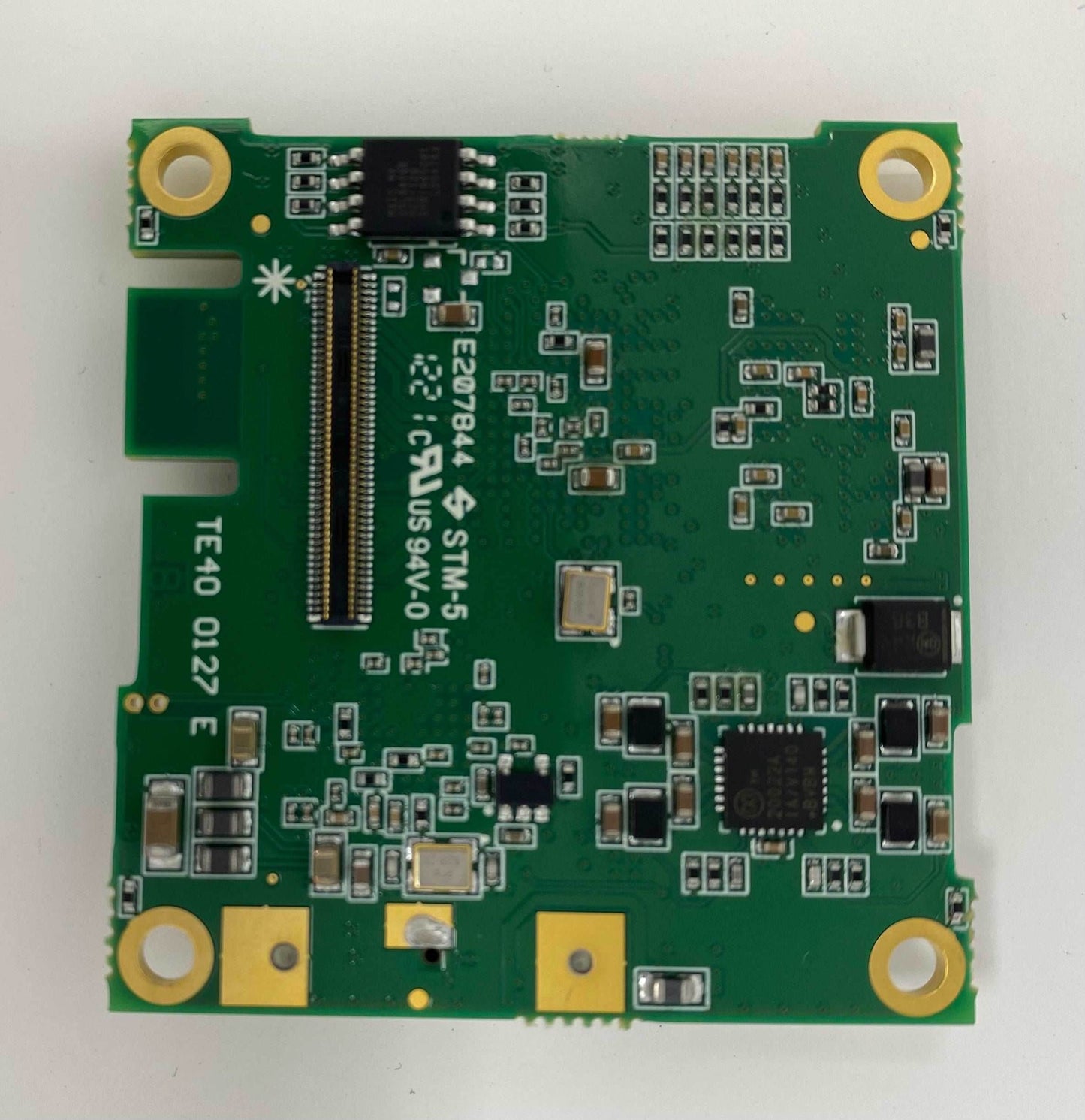

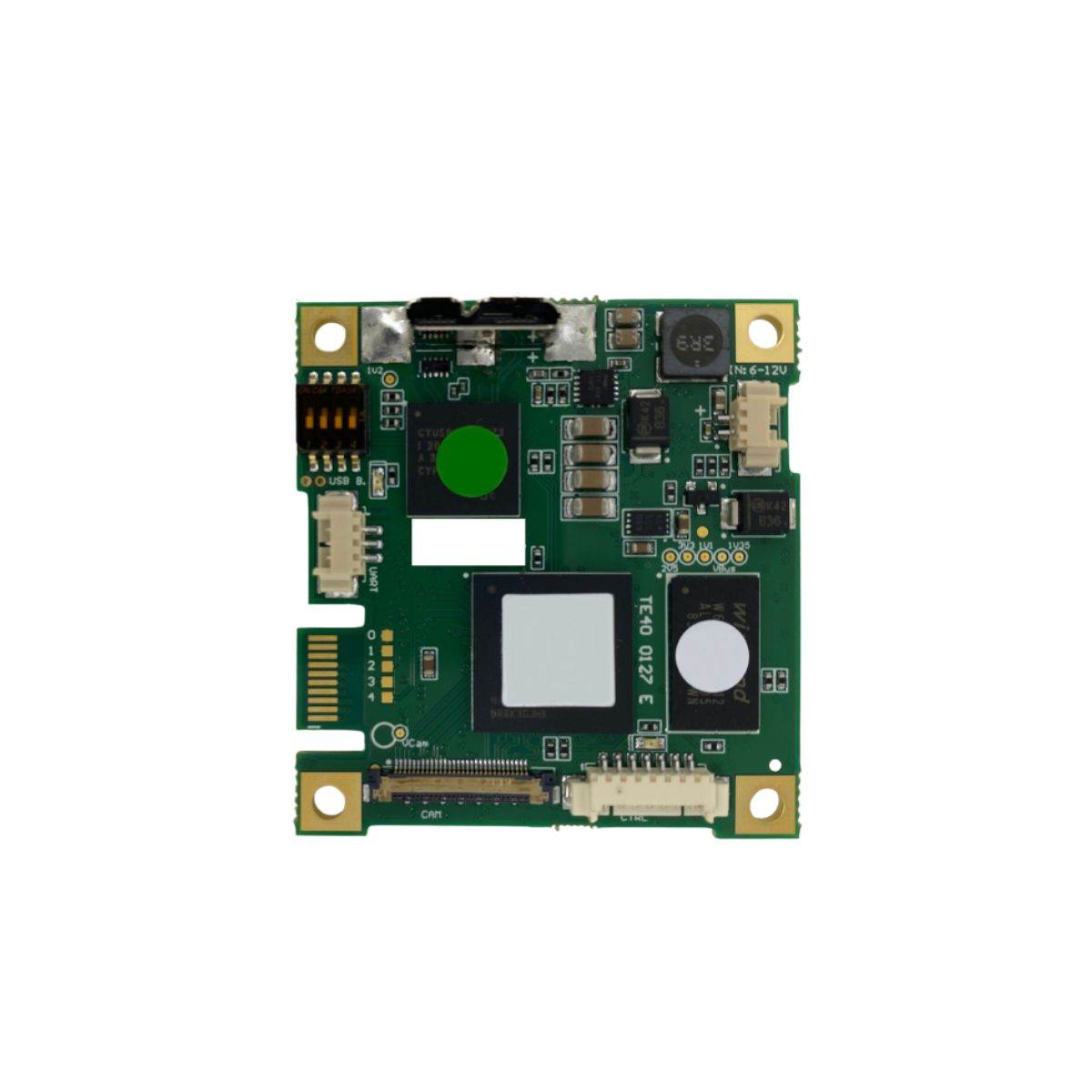

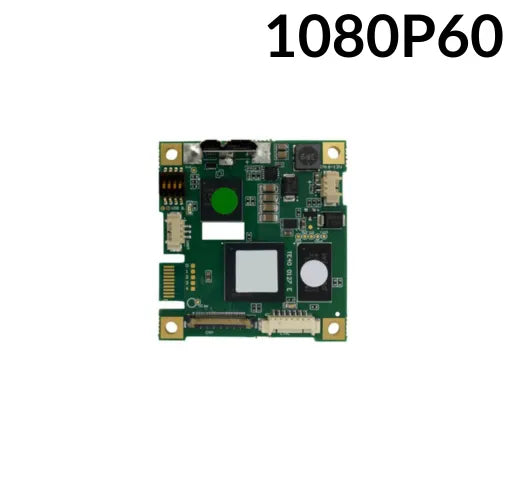

TV10 0083 USB 3.0 Interface Boards for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras

TV10 0083 USB 3.0 Interface Boards for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras

SKU: TV10 0083
Tax included.

TV10 0083 Spec Sheet

The TV10 0083 USB 3.0 Interface Board is a high-performance video conversion device designed for seamless integration with Sony FCB-EV9520L, FCB-EV9500L, and Tamron MP3010M-EV HD Block Cameras. It converts LVDS video signals to a USB 3.0 format, supporting uncompressed HD video streaming up to 1080p60 for real-time applications such as surveillance, medical imaging, industrial vision systems, and robotics.

Featuring the latest USB 3.2 Gen 1 interface, this device delivers high-speed, uncompressed HD video with resolutions up to 1080p60, ensuring superior image quality. It is UVC (USB Video Class) compliant for plug-and-play functionality with both Windows and Linux operating systems. The TV10 0083 also supports USB CDC for serial communication, enabling direct camera control via GPIO pins or VISCA protocol over UART or USB CDC.

With a compact form factor (48 x 45 x 11 mm) and low weight (13 grams), it offers flexible powering options—via USB3 or an external 6V-12VDC supply. This interface board is ideal for a wide range of applications, including security, medical imaging, industrial automation, and more. It operates efficiently in a temperature range from 0°C to 60°C and is CE EMC compliant for enhanced reliability and durability.

Features:

  • Interface: USB 3.2 Gen 1, UVC Compliant
  • Video Resolution: Up to 1080p60 (Uncompressed HD)
  • Power Supply Options: USB3 cable or external 6V-12VDC
  • Camera Control: VISCA Protocol via USB CDC or UART TTL
  • GPIO Pins: For keypad control and camera commands
  • Connector: USB3 micro B-type for digital video output
  • Operating Temperature Range: 0°C to 60°C
  • Storage Temperature Range: -20°C to 60°C
  • Dimensions: 48 x 45 x 11 mm
  • Weight: 13 grams
  • Regulation: CE EMC Compliant, PCB: UL 94 V0

Applications:

  • Surveillance & Security Systems
  • Medical Imaging & Diagnostics
  • Industrial Vision & Quality Control
  • Robotics & Automation
  • Broadcast & Videography
  • Machine Vision & Inspection Systems


Digital video output USB3.2 Gen 1 – UVC compliant
Camera setting and control VISCA protocol via USB CDC or UART TTL
GPIO's Camera commands
Digital Video Output Connector USB3 micro B-type
Camera Power Supply USB3 cable or external 6 to 12 VDC
Operating Temperature Range 0°C to 60°C
Storage Temperature Range -20°C to 60°C
Regulation CE EMC compliant, PCB : UL 94 V0
Dimensions 48 (H) x 45 (W) x 11 (D)
Weight (g) 13
