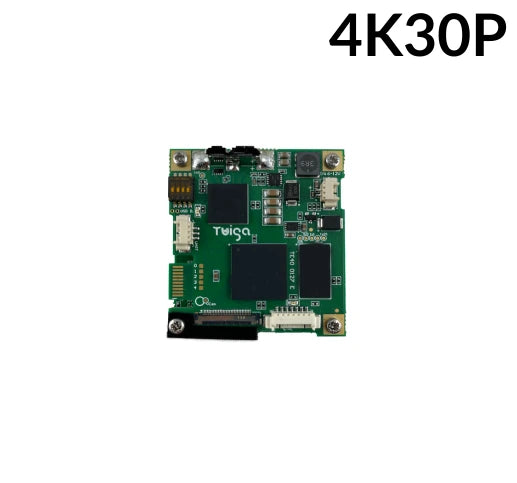

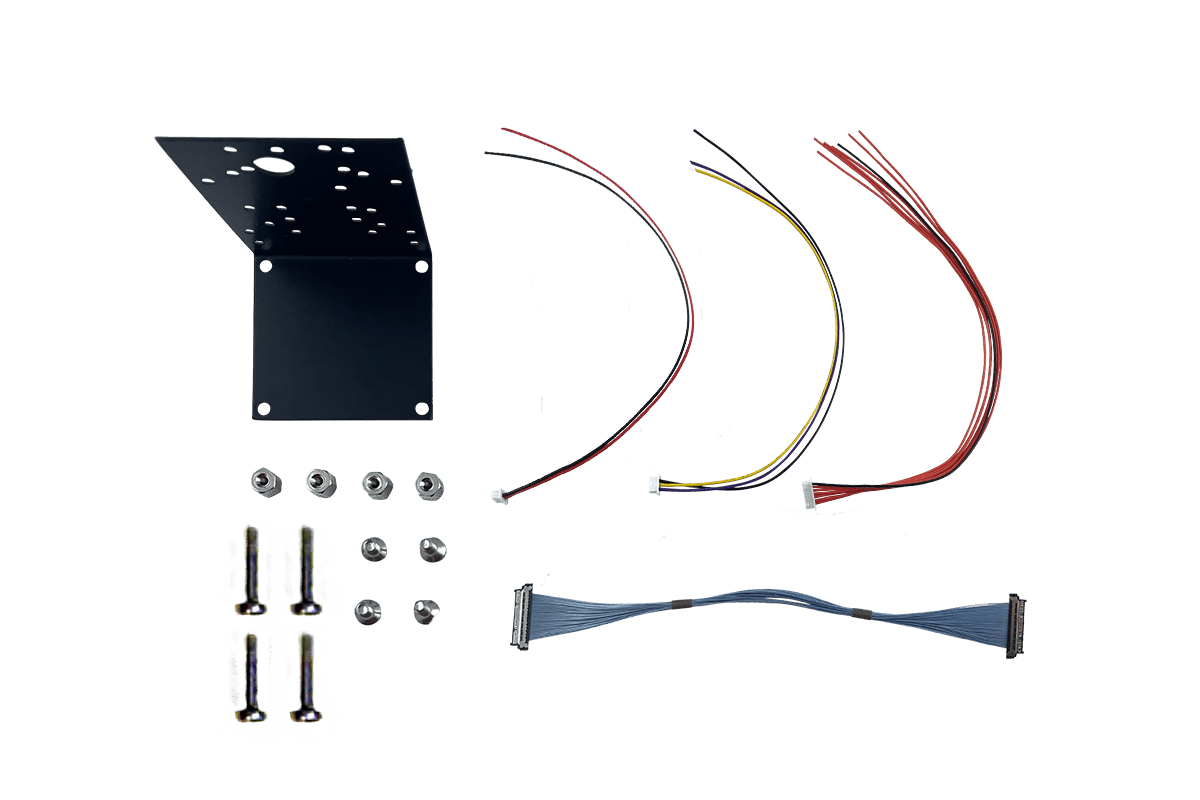

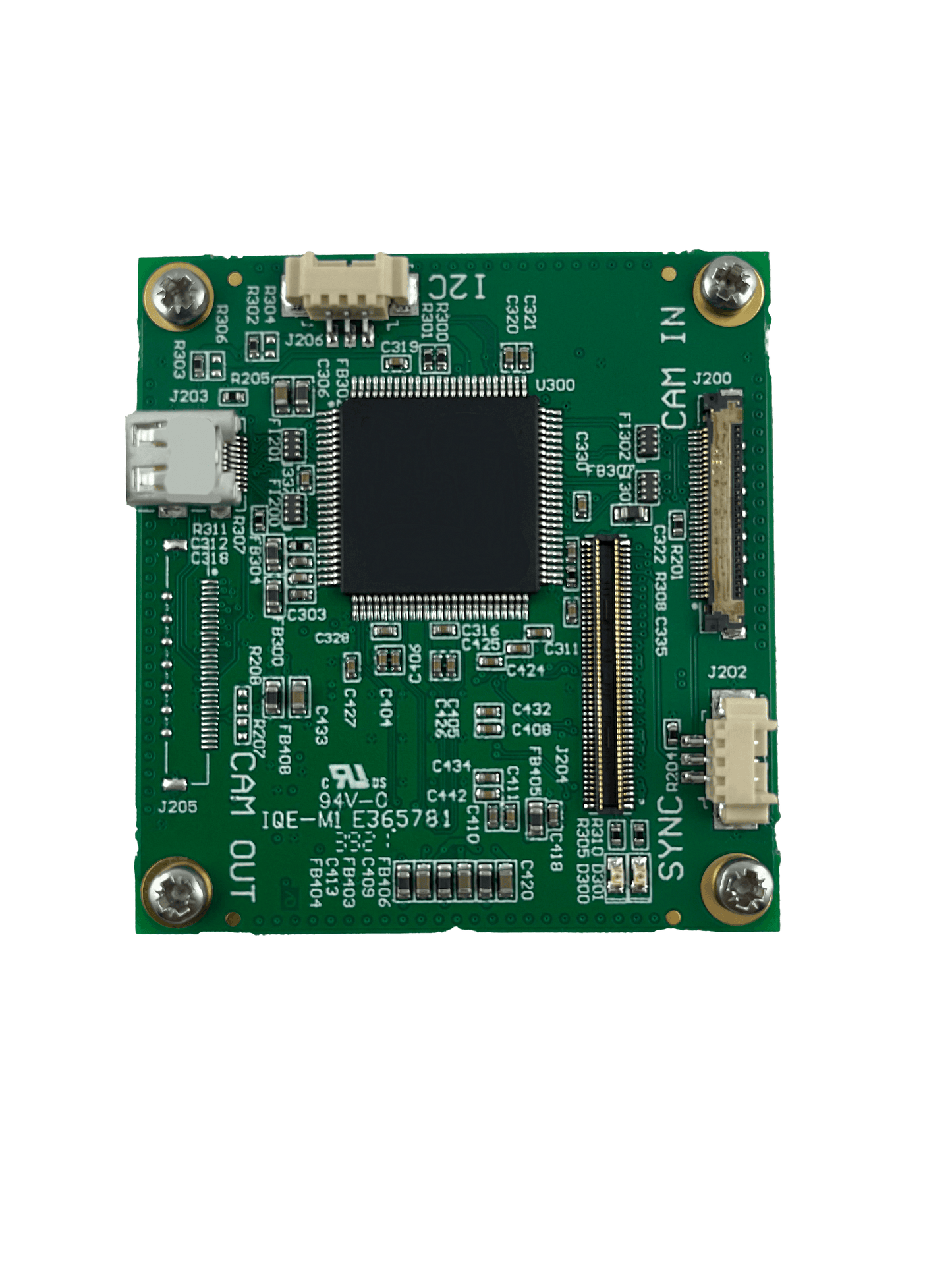

USB3.2-HDMI-4K Interface Board for Sony FCB-ER9500 & FCB-ER8530 4K Block Cameras

USB3.2-HDMI-4K Spec Sheet

The USB3.2-HDMI-4K Interface Board is a high-performance, compact solution for capturing uncompressed 4K video streams from Sony FCB-ER9500 and FCB-ER8530 block cameras. It seamlessly transmits 3840x2160p video at 30fps over a single USB3.2 Gen 1 cable, ensuring ultra-HD quality for demanding applications. Featuring an HDMI 2.0 output for simultaneous live display and UVC compliance for easy integration, this interface board simplifies video capture and camera control. With support for VISCA camera control, GPIO pins for user-defined functions, and compatibility with Windows and Linux, it’s perfect for live video streaming, machine vision, broadcast, and industrial use. Powered by an external 6V-12V DC supply, the board operates reliably within temperatures from 0°C to 60°C.

Features:

• Uncompressed 4K Video: Supports resolutions up to 3840×2160p at 30fps.
• USB3.2 Gen 1 Interface: UVC compliant for plug-and-play compatibility with Windows and Linux OS.
• Simultaneous HDMI 2.0 Output: For external monitor or broadcast integration.
• VISCA Camera Control: Via UART for remote operation and full camera functionality.
• Flexible GPIO Connectivity: For custom control via keypad or external devices.
• Compact and Lightweight: Small form factor (48x45x18mm, 24g) for easy integration into tight spaces.
• External Power Supply: 6-12V DC for continuous, stable operation.
• Industrial-Grade Reliability: CE EMC compliance, UL 94 V0 PCB.

Applications:

• Live Video Streaming & Broadcast
• Machine Vision & Industrial Automation
• Video Capture for Post-Production
• Remote Monitoring & Surveillance
• Interactive Kiosk & Digital Signage
• Telemedicine & Remote Diagnostics
