Videology SCAiLX-SOM-AI Universal SoM Edge Vision AI Board for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras
Videology SCAiLX-SOM-AI Universal SoM Edge Vision AI Board for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras
Couldn't load pickup availability
SCAiLX-SOM-AI Spec Sheet

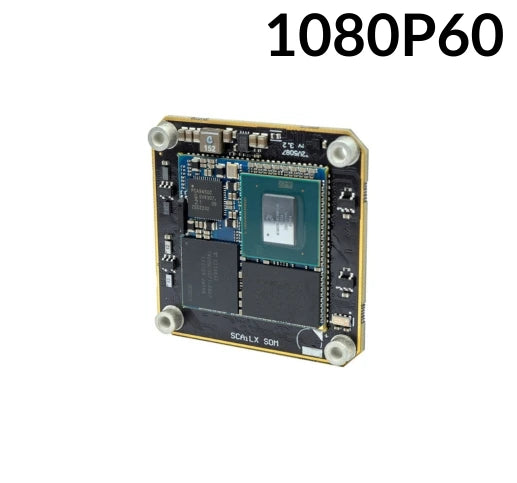

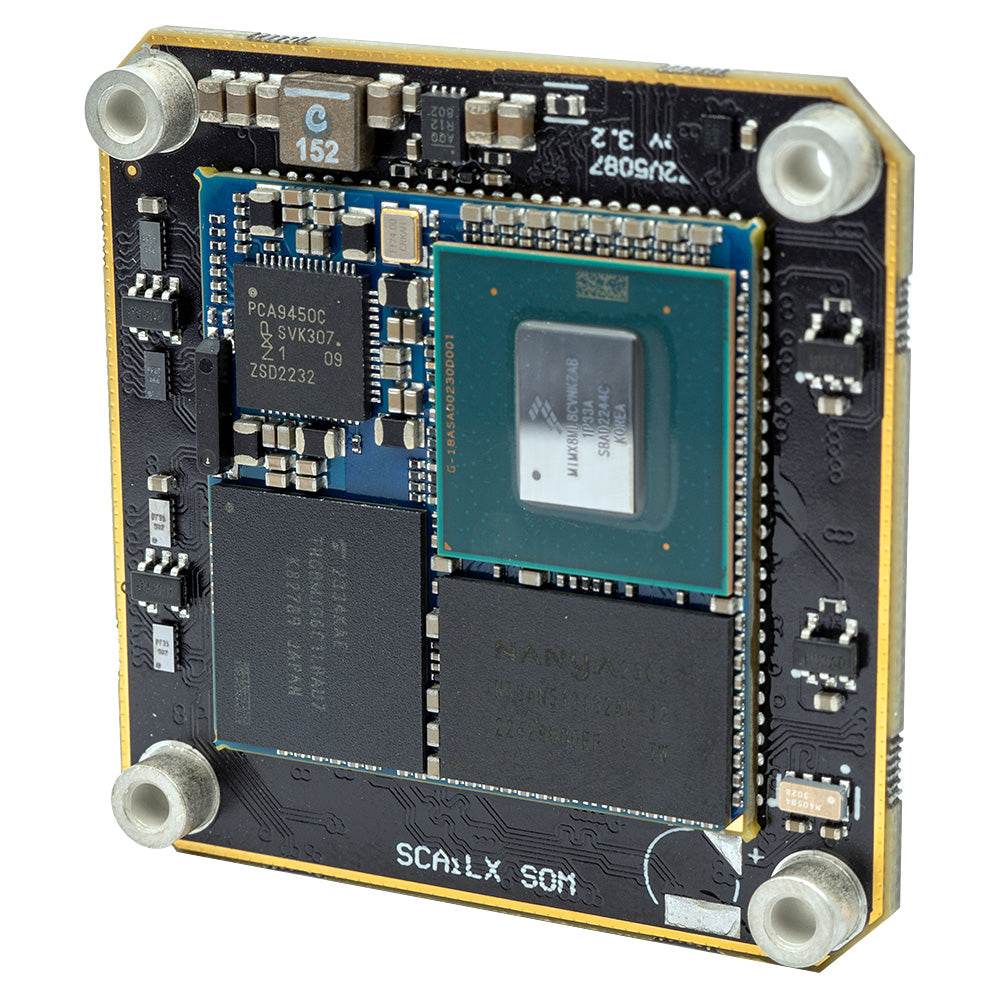

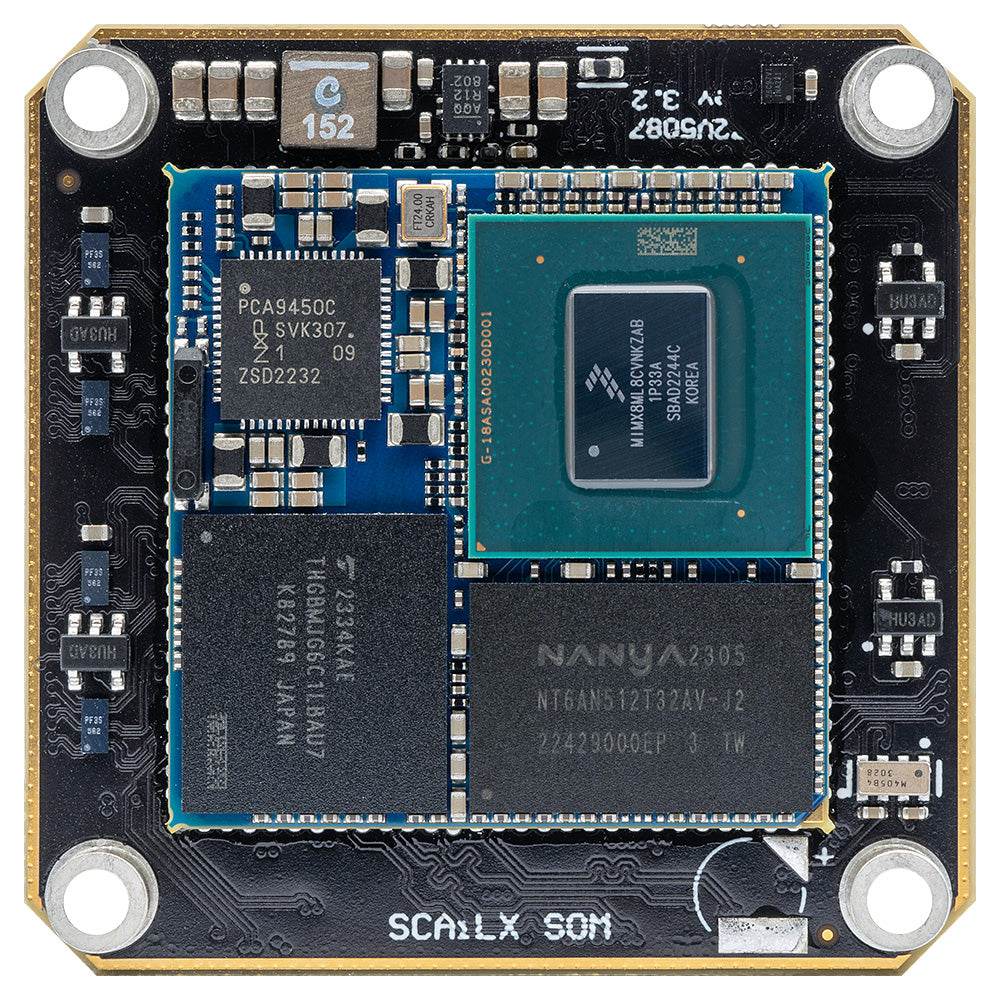

The Videology SCAiLX-SOM-AI is a high-performance System-on-Module (SoM) designed for real-time Edge Vision AI applications in industrial, surveillance, and machine vision systems. Powered by the NXP i.MX8M Plus processor with a 1.6 GHz quad-core Cortex-A53 and a 2.3 TOPS Neural Processor Unit (NPU), this 42x42mm module provides exceptional AI processing capabilities for demanding environments.
This compact board supports 2GB LPDDR4 RAM, 8GB eMMC flash storage, and dual MIPI-CSI interfaces, capable of handling 1080p@60fps video input for high-resolution imaging. Its robust hardware features H.264/H.265 encoding/decoding for efficient video processing, while compatibility with LVDS and MIPI cameras ensures versatility across various applications.
Offering extensive connectivity options, including GPIO, UART, I2C, SPI, USB2.0, USB3.0, and PCIe, the SCAiLX-SOM-AI integrates seamlessly with a wide range of peripherals. It operates in challenging environments with an operating temperature range of -20°C to 60°C, making it suitable for industrial automation, medical imaging, robotics, and more.
The SCAiLX-SOM-AI is optimized for software flexibility, supporting Yocto Linux development and remote software updates. Ideal for edge AI deployments in manufacturing, surveillance, quality control, retail analytics, and beyond, the SCAiLX-SOM-AI offers a powerful, scalable, and reliable solution.
Features:
- Processor: NXP i.MX8M Plus, 1.6 GHz Quad-Core Cortex-A53
- Neural Processor: 2.3 TOPS NPU for real-time AI processing
- Memory: 2GB LPDDR4 RAM, 8GB eMMC flash storage
- Video Input: Dual MIPI-CSI, supports 1080p@60fps or 12MP@30fps
- Video Processing: Hardware H.264/H.265 encoder/decoder
- Connectivity: GPIO, UART, I2C, SPI, USB2.0, USB3.0, PCIe, MIPI, LVDS
- Operating Temp: -20°C to 60°C for demanding environments
- Software: Supports Yocto Linux, remote updates, and AI demo applications
- Size: Compact 42x42mm module, 23g weight
Applications:
- Industrial Automation
- Machine Vision
- Surveillance Systems
- Medical Imaging
- Robotics
- Smart Factories
- Automated Quality Control
- Traffic Monitoring
- Retail Analytics
- Environmental Monitoring
| System-On-Module | |
| Processor | NXP i.MX8 M Plus 1.6 GHz Quad Cortex ®-A53 |
| Memory | 2 GB LPDDR 1066 MHz |
| Flash | 8 GB eMMC |
| Micro SD card | Max. 1 TB |
| Neural Processor | 2.3 TOPS |
| Video Processing | Hardwired H.264 / H265 encoder Hardwired H.264 / H265 decoder |
| Sensor MIPI port | 2x 1080p@60fps max. or 1x max. 12 MP@30fps |
| OS | Embedded Linux |
| SDK | YOCTO development environment |
| Electrical | |
| Supply Voltage | 12 V ± 0.75 V (via RGMII connector) |
| Current typical/high load | 166 mA / <2100 mA |
| Power typical/high road | Typ. 2 W / <5.5 W (CPU/NPU stress test) |
| Communication | |
| Serial debug port | UART TXD/RXD on GPIO-B |
| Enviromental | |
| Operating Temp. | -20 °C ~ 60 °C (-4 °F ~ 140 °F) |
| Storage Temp. | -30 °C ~ 85 °C (-22 °F ~ 185 °F) |
| Operating Humidity | 30% ~ 90% RH |
| Storage Humidity | <85% RH |
| Mechanical | |

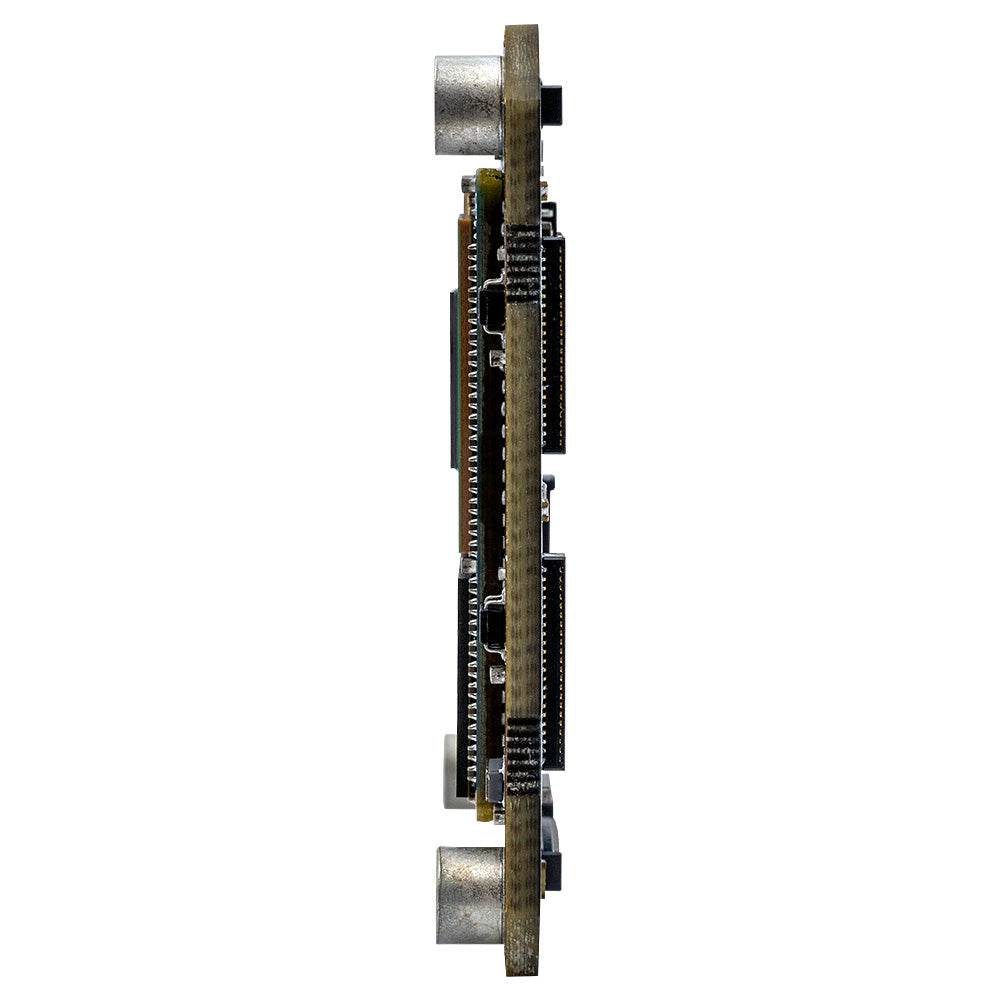

| Dimensions WxH | 42x42 mm, height see drawing on page 1 - 3 mm spacer on top side, - board-to-board connectors for add-on interface boards on bottom side via SCAILX-FLEX-xxx flexible connectors. |
| Weight | 23 g |

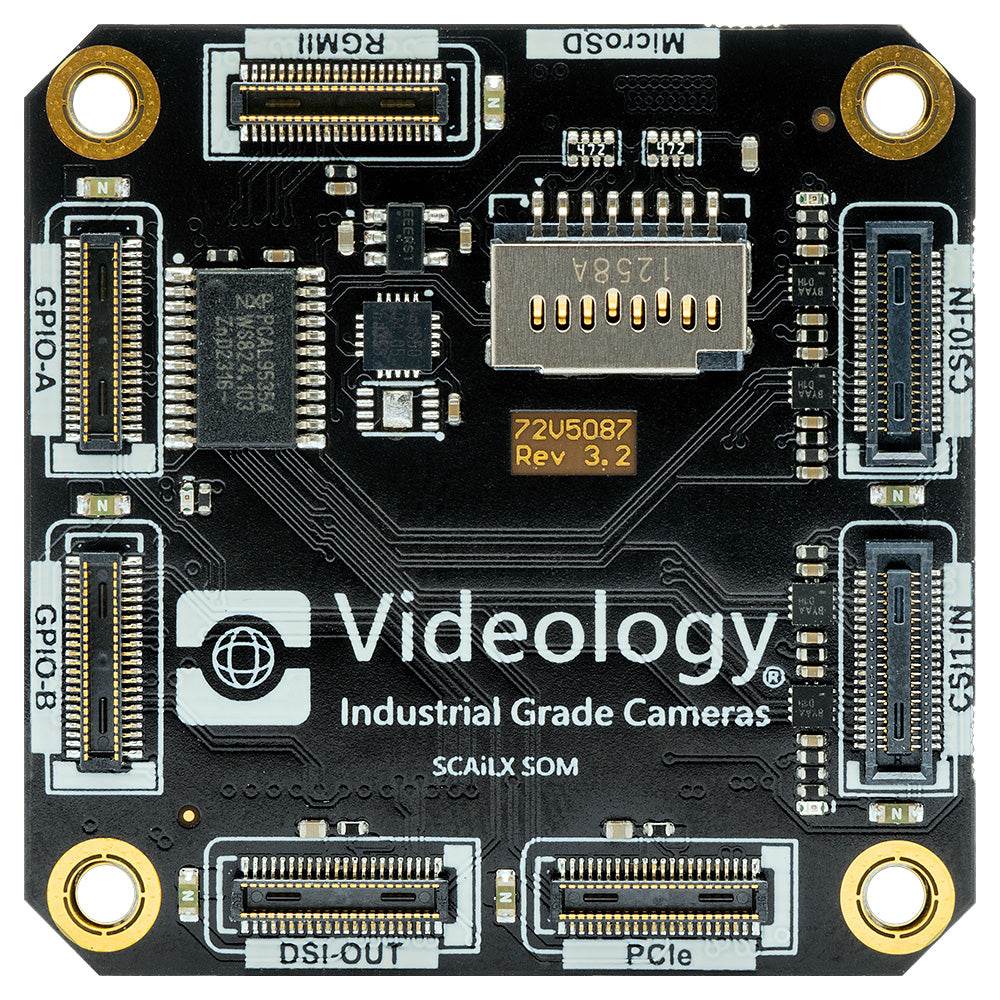

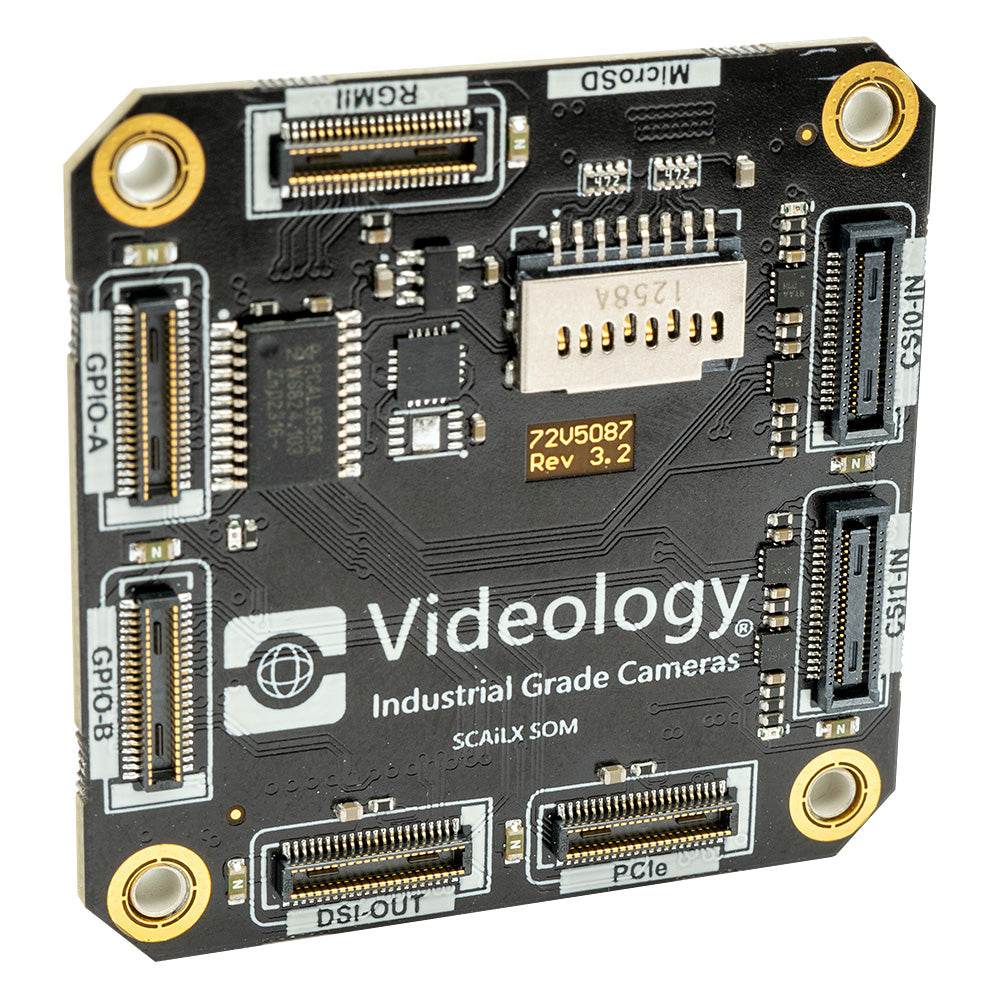

| Connectors (bottom side) | RGMII - DF40C-40DP-0.4V(51) GPIO - DF40C-40DP-0.4V(51) MIPI - DF40C-40DS-0.4V(51) DSI - DF40C-40DP-0.4V(51) PCIe - DF40C-40DP-0.4V(51) |
