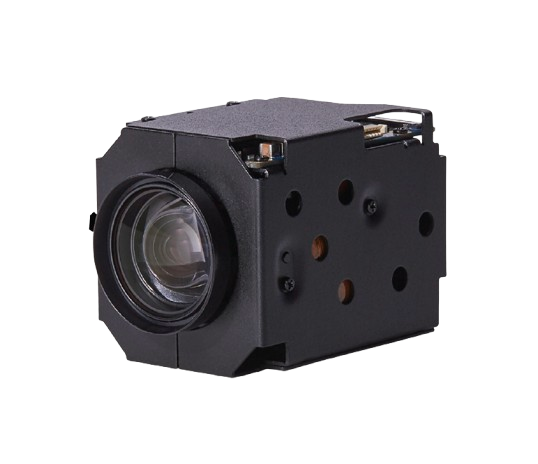

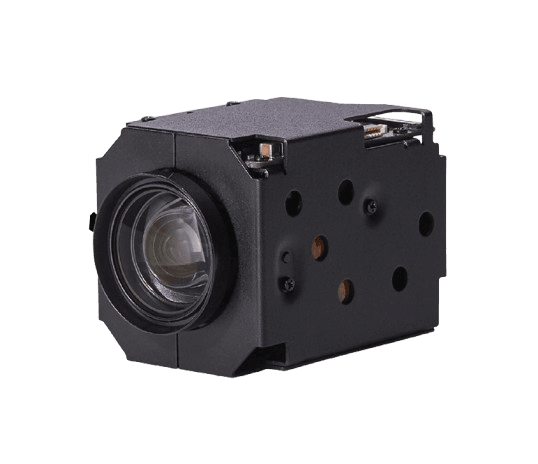

WonWoo MC-G105 (MCG105) 3MP Global Shutter HD 10x Zoom Block Camera Module with Sony CMOS Sensor

MC-G105 Spec Sheet

The WonWoo MC-G105 is a high-performance 3MP block camera module featuring a 1/3.1" Sony CMOS sensor, offering superior imaging with a global shutter. It captures HD video at 1080p (60/30fps) and 720p (60/30fps) resolutions, making it ideal for high-quality surveillance, industrial inspection, and robotic vision systems.

Equipped with a 10x optical zoom lens (4.7mm to 47mm focal length) and 32x digital zoom, the MC-G105 provides precise, clear zooming capabilities for both wide and telephoto applications. Its Day & Night (ICR) function adapts to various lighting conditions with minimum illumination of just 0.1 lux in color and 0.01 lux in black and white, ensuring reliable performance in low light.

Advanced features include 2D+3D noise reduction, digital image stabilization, and defog capabilities, enhancing visibility even in challenging environments such as fog or low-light conditions. The camera supports VISCA, Pelco-D/P protocols, and offers LVDS and CVBS video outputs, enabling easy integration into diverse surveillance and automation systems.

Compact yet powerful, the MC-G105 operates within a temperature range of -10°C to +50°C, measuring just 43.6mm x 47mm x 66mm and weighing 165g. It is engineered for applications that demand durability, high-quality imaging, and precise control.

Features:

• 1/3.1" 3MP Sony CMOS sensor
• 10x optical zoom (focal length: 4.7mm to 47mm)
• 32x digital zoom for detailed views
• 1080p/60fps, 720p/60fps video resolution
• Day & Night (ICR) functionality for low-light environments
• Minimum illumination: 0.1 lux (color), 0.01 lux (B/W)
• 2D+3D noise reduction for clearer images
• Digital image stabilization and defog features
• Privacy masking (8 regions) and motion detection
• Supports VISCA and Pelco-D/P protocols
• Video output: LVDS, CVBS
• Operating temperature: -10°C to +50°C

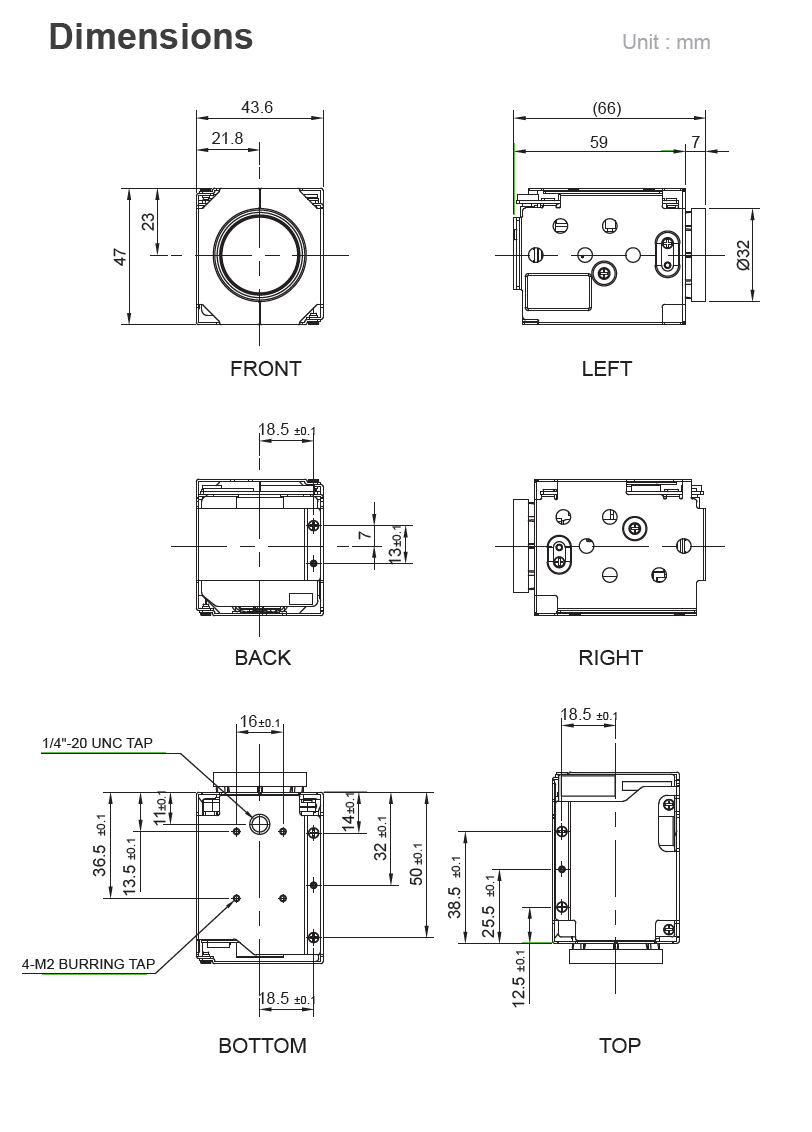

• Compact design: 43.6mm x 47mm x 66mm, Weight: 165g

Applications:

• Industrial inspection and monitoring
• Surveillance and security systems
• Traffic monitoring and license plate recognition
• Robotics and vision systems
• Low-light imaging and remote observation
• Environmental and outdoor monitoring
• Remote observation in foggy or low-visibility conditions
