WonWoo MC-G305 (MCG305) 3MP Global Shutter HD 30x Zoom Block Camera Module with Sony CMOS Sensor
WonWoo MC-G305 (MCG305) 3MP Global Shutter HD 30x Zoom Block Camera Module with Sony CMOS Sensor
Couldn't load pickup availability

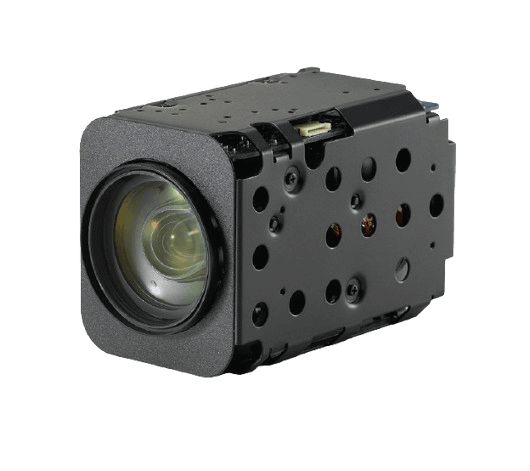

The WonWoo MC-G305 is a high-performance block camera module featuring a 1/3.1" 3MP Sony CMOS sensor, designed for optimal imaging in a variety of applications. With its 30x optical zoom (4.6mm to 136mm focal length) and 32x digital zoom, this camera offers outstanding precision and versatility for capturing detailed images even at significant distances.
Supporting full HD 1080p at 60fps and 30fps, as well as 720p at 60fps and 30fps, the MC-G305 ensures smooth, high-quality video output, making it ideal for professional surveillance, industrial, and broadcasting applications. Its Day/Night (ICR) functionality, 2D+3D Digital Noise Reduction, and Defog features enable it to perform optimally in low light and challenging environments. The Digital Image Stabilization keeps the footage stable and distortion-free, while the motion detection and privacy masking functions ensure enhanced security.
This camera also supports VISCA, Pelco-D, and Pelco-P protocols, making it compatible with a wide range of control systems, and offers LVDS and CVBS video outputs for easy integration into existing setups. It operates in a wide temperature range from -10°C to +50°C, ensuring durability in harsh environments, and delivers excellent low-light performance, with a minimum illumination of just 0.01 lux in black & white mode.
Compact and lightweight at just 278g, the WonWoo MC-G305 camera is perfect for demanding surveillance and imaging applications, offering unmatched flexibility and performance.
Features:
- Sensor: 1/3.1" 3MP Sony CMOS sensor
- Resolution: 1080p at 60fps, 720p at 60fps
- Zoom: 30x optical zoom, 32x digital zoom
- Lighting: Day/Night (ICR), 2D+3D Digital Noise Reduction, Defog
- Stabilization: Digital Image Stabilization for clear, steady footage
- Control: VISCA, Pelco-D, Pelco-P protocol support
- Outputs: LVDS and CVBS for diverse system integration
- Low-light performance: 0.01 lux (B/W mode)
- Operating temperature: -10°C to +50°C
- Size: 50(W) x 60(H) x 93(D) mm, 278g weight
- Power consumption: Max 510mA at 12VDC
Applications:
- Surveillance: High-definition monitoring with motion detection and privacy masking
- Industrial Imaging: Precision and durability in extreme conditions
- Broadcasting: Stable full-HD video with long-range zoom for remote setups
- Research: Detailed imaging for laboratory or environmental studies
| Image Sensor | 1/3.1" Sony CMOS Sensor |
| Total Pixels | 2,064 (H) x 1,592 (V) = 3.28M Pixels |
| Active Pixels | 2,064 (H) x 1552 (V) = 3.20M Pixels |
| Scanning System | Progressive Scan |
| Sync. System | Internal |
| Resolution | Digital: 1080p/60(50)fps, 1080p/30(25)fps, 720p/60(50)fps, 720p/30(25)fps Analog: CVBS |
| Min. Illumination (50%) | Color (1/30s, 79.5dB): 0.1 lux, BW (1/30s, 79.5dB): 0.01 lux Color DSS (1/1s, 79.5dB): 0.01 lux, BW DSS (1/1s, 79.5dB): 0.001 lux |
| Video Output | Digital : BT.1120, LVDS(Single / Dual) Analog: CVBS |
| S/N Ratio | More than 50dB (AGC off) |
| Lens Type | 30x Day & Night Zoom Lens |
| Zoom Ratio | Optical 30x, Digital 32x Zoom |
| Focal Length | f = 4.6mm ~ 136.0mm |
| Aperture Ratio | F1.63 (wide) ~ F4.85 (tele) |
| Angle Of View (D, H, V) | Wide: 73.3°(±5%) - 65.4°(±5%)- 38.3°(±5%) Tele: 2.6°(±5%) - 2.2°(±5%) - 1.3°(±5%) |
| Trigger Polarity | Active Low / Active High |
| Trigger Delay | 0 ~ 255.9ms |
| Strobe Polarity | Active Low / Active High |
| Strobe Delay | Ext-Trigger: 0 ~ 255.9ms / Free run: 0 ~ (1V period – Width)ms |
| Strobe Width | Ext-Trigger: 0 ~ 255.9ms / Free run: 0 ~ (1V period – Delay)ms |
| Shutter Speed (Ext-trigger) | 1/30(25) ~ 1/40,000 sec |
| AGC (Ext-trigger) | 0 ~ 10 steps |
| Iris (Ext-trigger) | Close ~ F1.6 |
| Day & Night (Ext-trigger) | Day / Night |
| AF Mode | Auto / One Push / Manual |
| Min. Distance | 0.5 / 1.5 / 3.0 / 10.0 m |
| Lens Refresh | One Push / 1 ~ 10Day |
| Digital Zoom | Off / MAX 2x ~ 32x |
| Exposure | Auto / Iris.P / Shut.P / Manual |
| Digital Slow Shutter(DSS) | Off / 2x / 4x / 8x / 16x / 32x (/64x : 60 or 50fps mode only) |
| Brightness | 0 ~ 14 steps |
| Back Light | Off / BLC / HLC |
| White Balance | Auto / One Push / Manual / Indoor / Outdoor / Auto-Ext |
| DNR | 2D/3D, 2D+3D |
| Mirror | Off / H / V / H&V |
| Sharpness | 0 ~ 15 steps |
| DWDR | Off / Manual / Auto |
| Defog | Off / Manual / Auto |
| Privacy Mask | Off/On (8 points) |
| Motion Detection | Off/On (4 points) |
| Defect Detection | Off/On |
| System | NTSC/PAL |
| Communication | Baud Rate : 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 Protocol : Pelco-P / Pelco-D / VISCA |
| Power Source | 9V to 15V DC |
| Power Consumption | MAX 510mA (@ 12VDC) |
| Power Input | Connector |
| Video Output | Connector |
| Storage Temperature | -20℃ ~ +60℃ (Humidity : 0%RH ~ 90%RH) |
| Operating Temperature | -10℃ ~ +50℃ (Humidity : 0%RH ~ 90%RH) |

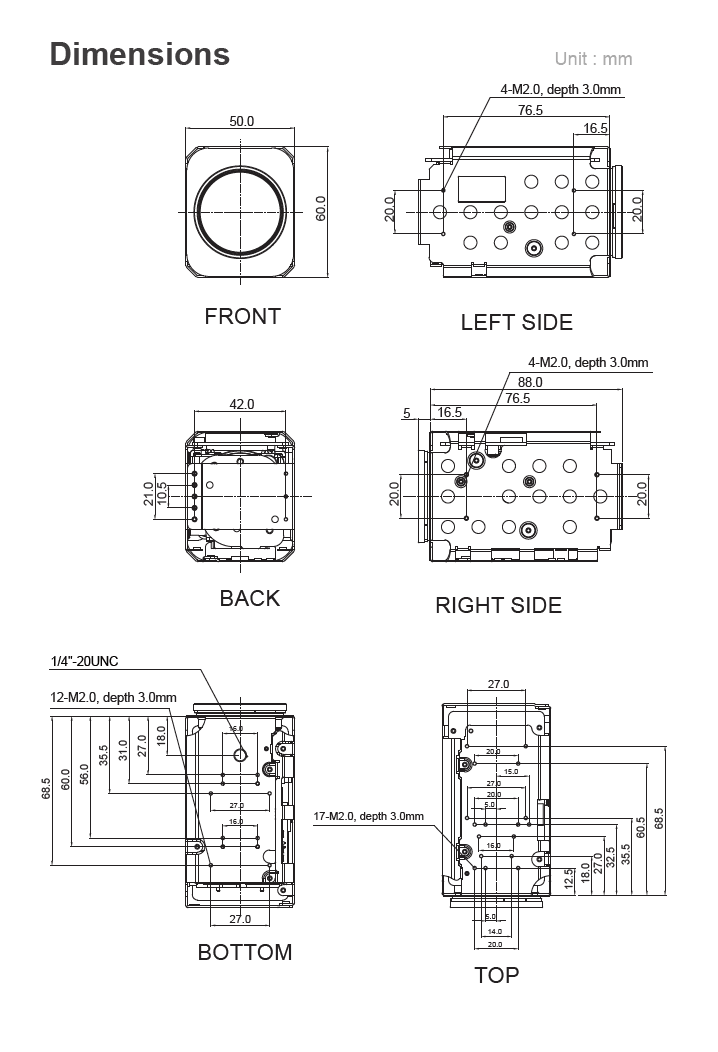

| Dimensions | 50(W) x 60(H) x 93(D) |
| Weight | 278g |
