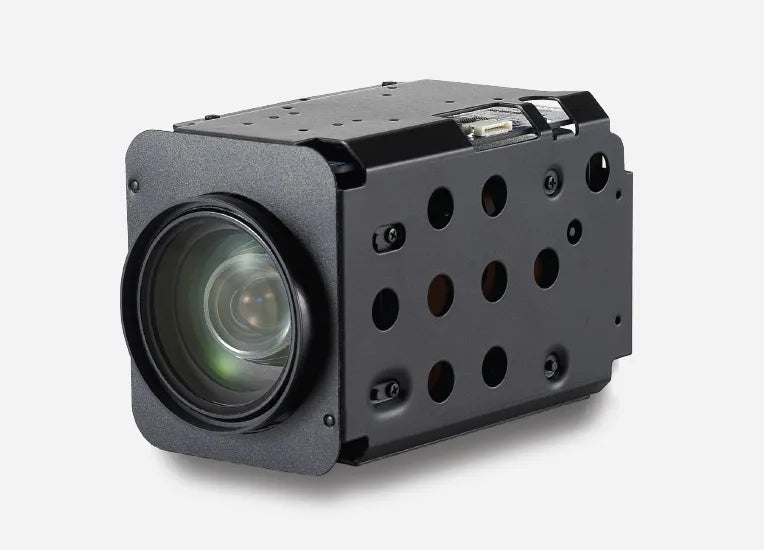

Wonwoo MM-G405 3MP Global Shutter 40x Zoom Block Camera Module with Sony CMOS Sensor

MM-G405 Spec Sheet
MM-G405 Technical Manual

Engineers building custom PTZ, traffic, and inspection systems will appreciate the Wonwoo MM-G405 global shutter 40x zoom camera module. Its 1/3.1" 3 MP Sony CMOS sensor delivers 1080p video at up to 60 fps with excellent clarity across the full 4.25–170 mm zoom range. With digital slow shutter, robust 2D/3D noise reduction, and digital image stabilization, the module maintains usable images even in challenging low‑light and high‑motion scenes.

This compact block camera includes day/night ICR switching, privacy masking, high light compensation, DWDR, motion detection, and defog to handle real‑world environments without additional processing hardware. LVDS and CVBS outputs plus VISCA and Pelco‑D/P protocols make the MM-G405 easy to drop into existing controller, DVR, or encoder designs, cutting development time for security, ITS, and industrial OEM projects worldwide.

Features:

• 1/3.1" 3 MP Sony CMOS global shutter sensor for crisp HD video
• 40x optical zoom (4.25–170 mm) plus 32x digital zoom for long‑range coverage
• 1080p and 720p output up to 60 fps for smooth motion capture
• Day & Night (ICR), DSS, 2D/3D DNR, and digital image stabilization for low‑light use
• Privacy mask, DWDR, high light compensation, and defog for difficult lighting
• Intelligent motion detection and defect detection built in
• LVDS digital and CVBS analog outputs for flexible integration
• VISCA and Pelco‑D/P protocol support with multiple baud rates

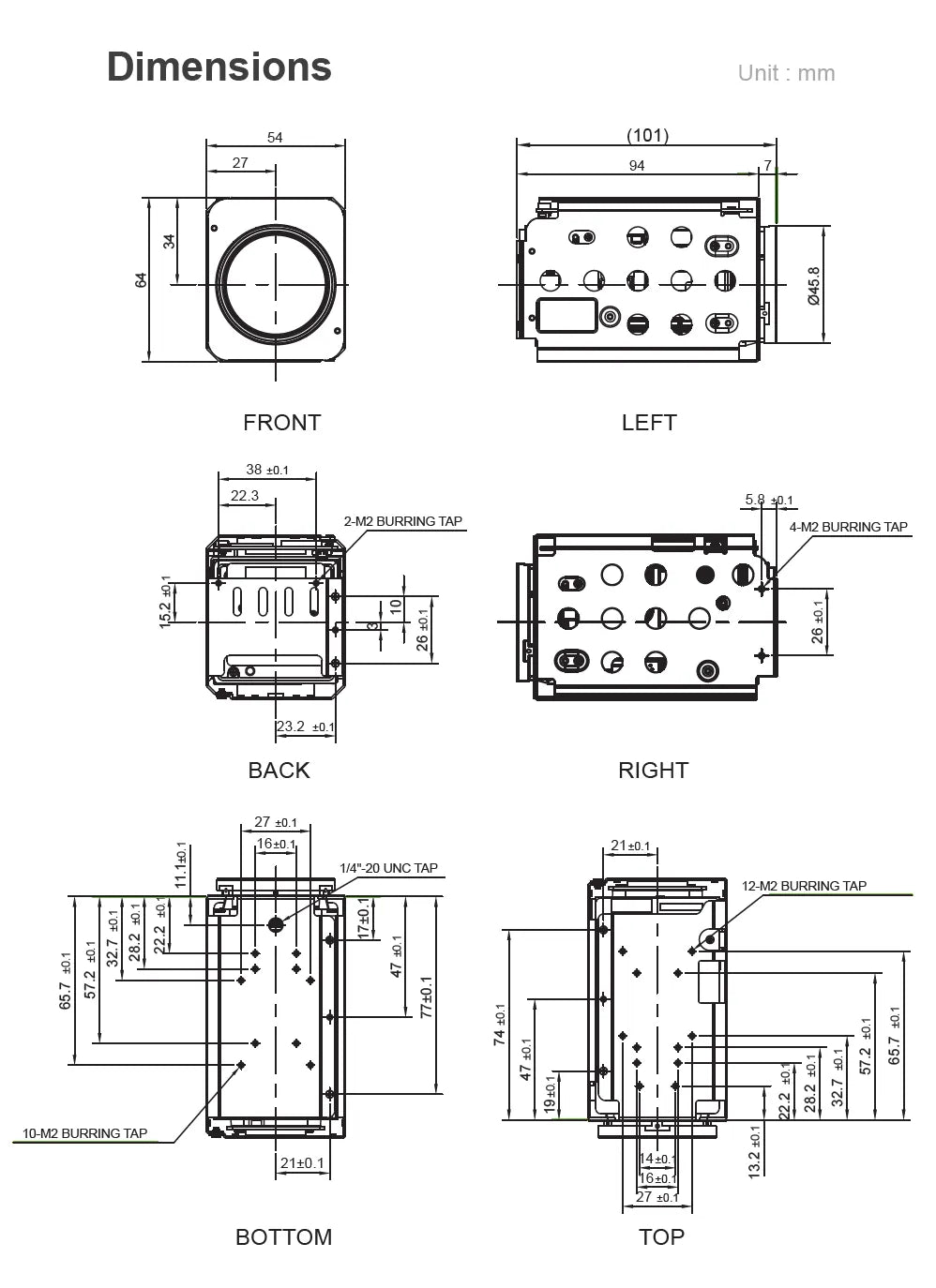

• 9–15 VDC operation in a compact 54 × 64 × 101 mm housing

Applications:

• PTZ domes
• Traffic cameras
• Machine vision
• Perimeter security
• Long‑range zoom
• Test equipment
