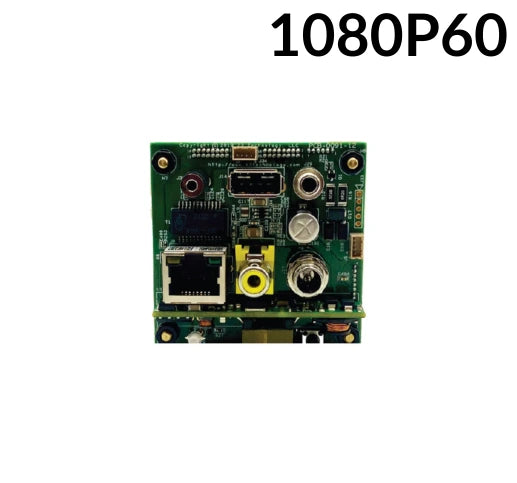

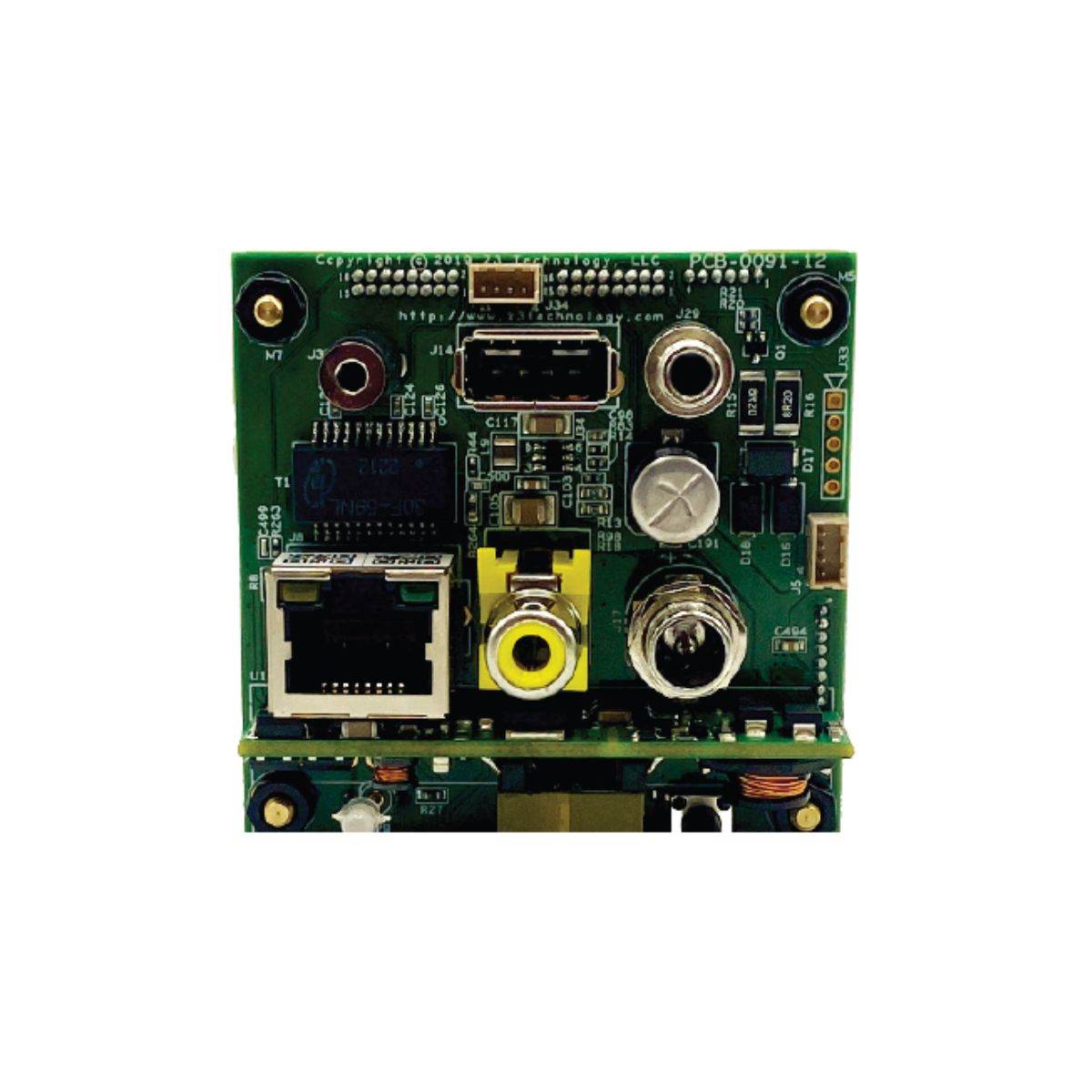

• FSDI-13A Front View - Connections

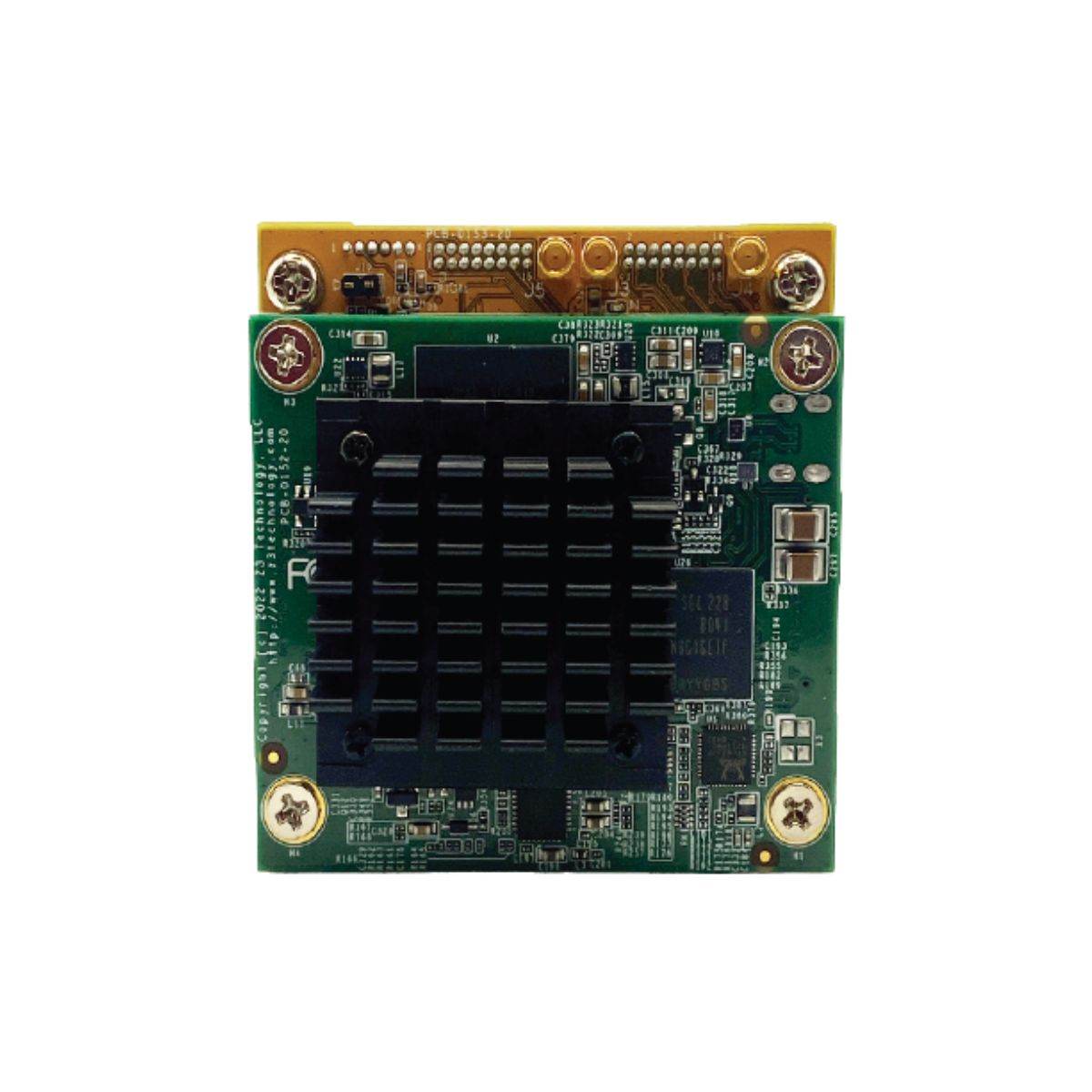

  • FSDI-13A Back View
1 2

block-cameras

Z3 Technology FSDI-13A Dual Camera Full 3G-SDI Encoder for Sony FCB-EV9520L, FCB-EV9500L, Tamron MP3010M-EV HD Block Cameras & Boson IR Cameras

Z3 Technology FSDI-13A Dual Camera Full 3G-SDI Encoder for Sony FCB-EV9520L, FCB-EV9500L, Tamron MP3010M-EV HD Block Cameras & Boson IR Cameras

SKU: FSDI-13A
Tax included.

FSDI-13A Spec Sheet

The Z3 Technology FSDI-13A is a dual-camera encoder engineered for high-performance video encoding, streaming, and recording across a wide range of industrial, military, and UAV applications. It supports both visible and thermal cameras, offering versatility for diverse setups, including HD 3G-SDI block cameras like the Sony FCB-EV9520L, FCB-EV9500L, and Tamron MP3010M-EV, as well as infrared cameras such as the FLIR Boson and Tau 2.

This low-latency, AI-capable encoder provides simultaneous streaming and recording in H.264/H.265 video formats. It offers multiple connectivity options, including 3G-SDI, LVDS, and composite inputs, alongside versatile outputs for enhanced integration into various systems. The encoder is designed for efficient operation with PoE support, Gigabit Ethernet, and multiple output formats such as RTP, RTSP, MPEG-2 TS, and RTMP.

For streamlined control, the FSDI-13A allows camera adjustments via IP and integrates KLV metadata, making it suitable for complex surveillance, inspection, and unmanned systems. Additionally, with its compact 58 x 58 x 46 mm size and 79g weight, this encoder delivers reliable performance in rugged environments, ensuring exceptional quality for both real-time streaming and recorded content.

Features:

  • Dual-camera support (Visible & Thermal)
  • H.265/H.264 video encoding
  • Low latency streaming and recording
  • Simultaneous streaming & recording to USB, Micro SD, or NFS
  • 3G-SDI, LVDS, and Composite camera compatibility
  • Supports Sony FCB-EV9520L, FCB-EV9500L, Tamron MP3010M-EV, and FLIR Boson IR cameras
  • PoE, Gigabit Ethernet, SDI Loop Out, Audio Input, RS-485, Composite Output, HDMI Output
  • ONVIF® Profiles S & T compliant
  • KLV metadata support (MISB 0601 compliant)
  • High precision timestamps (MISB 0604 compliant)
  • Configurable Region of Interest (ROI) and video overlays
  • Live video preview via web GUI
  • Control via HTTP, API, Serial/SSH

Applications:

  • Unmanned Systems (UAVs, drones)
  • Military and defense systems
  • Industrial inspections and surveillance
  • Remote monitoring and video streaming solutions


Interfaces •1x 3G-SDI Input
•1x LVDS via KEL
•1x Composite Input
Visible Cameras 3G-SDI Cameras - Sony FCB-EV9520L, FCB-EV9500L and Tamron MP3010M-EV
IR Cameras LVDS*, NTSC/PAL/RS170*, Boson, Tau2, Tamarisk, Tenum
Recording USB, Micro SD, or NFS
Additional Interfaces PoE, Gigabit Ethernet, SDI Loop Out, Audio Input, RS-485, Composite Output, HDMI Output, UART, RS232 Serial
Video Codecs H.265, H.264
Encoding Resolutions 1080p (up to 60fps), 720p, NTSC/PAL, VGA, CIF and QVGA
Output Formats RTP, TSRTP, RTSP, MPEG-2 TS, RTMPS, and RTMP
Features

•Low Latency, Low Power
•Ability to Resize HD Camera Input to Lower Resolutions Keeping Full Field of View
•Control via Easy-to-Use HTTP-Based Control Interface, API, or Serial/SSH
•Live video preview in the web GUI
•ONVIF® Profiles S & T Compliant
•Compatible with ZEUS® Video Decoders
•Pass Camera and PTZ Controls over IP
•Embedded KLV Metadata Support via SDI or Serial, MISB 0601 Compliant
•High Precision Timestamps Across Multiple Streams, MISB 0604 Compliant
•Multiline text Overlay via the Web Gui or the API
•Logo or Image overlay via the API
•NMEA GPS Overlay
•Region of Interest: Configurable Field of View
Encoder Board Size 58 x 58 x 46 mm (2.28 x 2.28 x 1.81 in)
Encoder Board Weight 79g (heat pipe is an additional 10g)
Power Consumption 4.5W typical while encoding 2 cameras in H.265 Video
