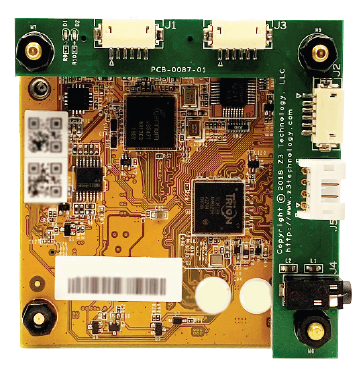

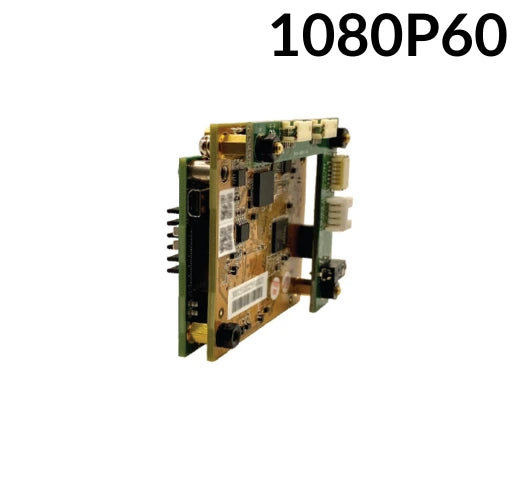

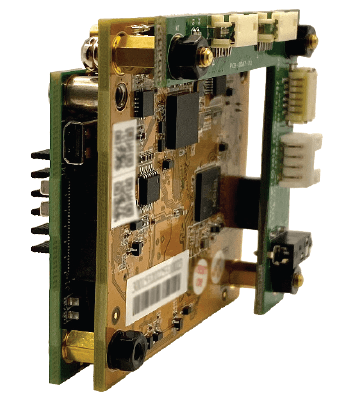

Z3 Technology FSDI-15A Lightweight Dual Camera Full 3G-SDI Encoder for Sony FCB-EV9520L, FCB-EV9500L, Tamron MP3010M-EV HD Block Cameras & Boson IR Cameras

Z3 Technology FSDI-15A Lightweight Dual Camera Full 3G-SDI Encoder for Sony FCB-EV9520L, FCB-EV9500L, Tamron MP3010M-EV HD Block Cameras & Boson IR Cameras

SKU: FSDI-15A
Tax included.

FSDI-15A Spec Sheet

The Z3 Technology FSDI-15A is a highly versatile and lightweight dual-camera encoder optimized for integration with both visible and thermal infrared cameras. Designed for applications in surveillance, unmanned systems, military, and inspection, this encoder supports the Sony FCB-EV9520L, FCB-EV9500L, Tamron MP3010M-EV, and Boson IR cameras, delivering exceptional performance in demanding environments.

The FSDI-15A offers dual outputs, simultaneously streaming and recording 3G-SDI or HD-SDI video in H.264 and H.265 formats. With the ability to encode video at resolutions up to 1080p (60fps), it ensures low-latency, high-quality video delivery. The encoder supports a range of video formats including RTP, RTSP, MPEG-2 TS, and RTMP for flexible streaming options.

Designed with military, industrial, and UAV use cases in mind, the FSDI-15A interfaces with SDI, LVDS, and composite cameras, and features multiple outputs including HDMI, SDI Loop Out, and Ethernet. It supports camera control via IP and passes KLV metadata, ensuring seamless integration in real-time video systems.

Key features include easy-to-use HTTP-based control, ONVIF® compliance, and the ability to overlay text, logos, or images on live video. The encoder can also be configured to record video to micro SD or NFS, ensuring that high-quality footage is captured and stored for later analysis.

Whether for long-range thermal imaging or visible camera applications, the FSDI-15A is an ideal solution for flexible and robust video streaming and recording.

Features:

  • Dual-camera support with simultaneous H.265/H.264 streaming and recording
  • Compatible with Sony FCB-EV9520L, FCB-EV9500L, Tamron MP3010M-EV, and Boson IR cameras
  • Low-latency encoding with 1080p resolution up to 60fps
  • Multiple output formats: RTP, RTSP, MPEG-2 TS, RTMP
  • Interfaces: 3G-SDI, LVDS, Composite, HDMI, Ethernet, GPIO, RS232
  • KLV metadata support (MISB 0601/0604 compliant)
  • ONVIF® Profiles S & T compliant
  • Camera control over IP with PTZ support
  • Multi-overlay options: text, logo, image, NMEA GPS, and Region of Interest
  • Power-efficient: 4.5W typical during dual-camera encoding
  • Compact design: 58 x 58 x 29 mm, 59g (additional 10g for heat pipe)
  • Easy-to-use HTTP-based control interface, API, or Serial/SSH

Applications:

  • Unmanned Aerial Vehicles (UAVs)
  • Military surveillance and reconnaissance
  • Industrial and structural inspections
  • Security and surveillance systems
  • Long-range thermal and visible camera integration
  • Remote monitoring and control in critical environments


Interfaces •1x 3G-SDI Input
•1x LVDS via KEL
•1x Composite Input
Visible Cameras 3G-SDI Cameras - Sony FCB-EV9520L, FCB-EV9500L and Tamron MP3010M-EV, etc.
IR Cameras LVDS*, NTSC/PAL/RS170*, Boson®, Tau® 2, Tenum®
Recording Micro SD or NFS
Additional Interfaces 100 MBPS Ethernet, SDI Loop Out, Composite Output, HDMI Output, LVTTL UART x 2, GPIO x 2, RS232 Serial
Video Codecs H.265, H.264
Encoding Resolutions 1080p (up to 60fps), 720p, NTSC/PAL, VGA, CIF and QVGA
Output Formats RTP, TSRTP, RTSP, MPEG-2 TS, RTMPS, and RTMP
Features

•Low Latency, Low Power
•Ability to Resize HD Camera Input to Lower Resolutions Keeping Full Field of View
•Control via Easy-to-Use HTTP-Based Control Interface, API, or Serial/SSH
•Live video preview in the web GUI
•ONVIF® Profiles S & T Compliant
•Compatible with ZEUS® Video Decoders
•Pass Camera and PTZ Controls over IP
•Embedded KLV Metadata Support via SDI or Serial, MISB 0601 Compliant
•High Precision Timestamps Across Multiple Streams, MISB 0604 Compliant
•Multiline text Overlay via the Web Gui or the API
•Logo or Image overlay via the API
•NMEA GPS Overlay
•Region of Interest: Configurable Field of View

Encoder Board Size 58 x 58 x 29 mm (2.28 x 2.28 x 1.13 in)
Encoder Board Weight 59g (heat pipe is an additional 10g)
Power Consumption 4.5W typical while encoding 2 cameras in H.265 Video
