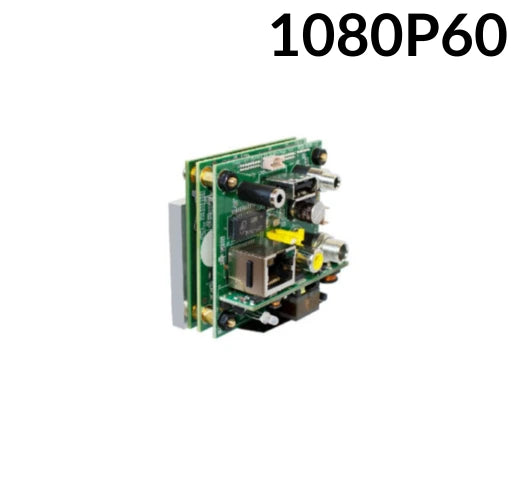

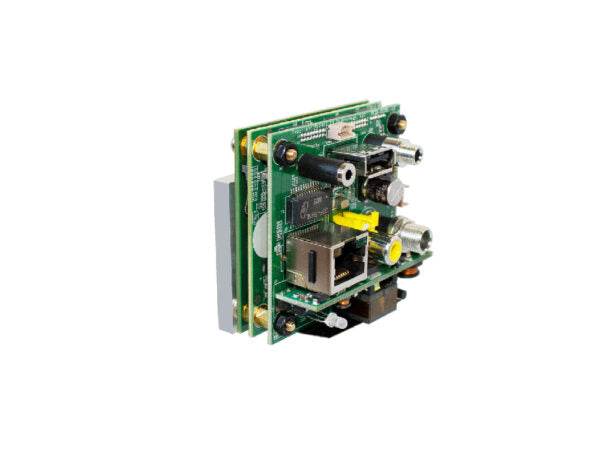

Z3 Technology FSDI2-DCK-13 Dual 3G-SDI Camera Encoder for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras

Z3 Technology FSDI2-DCK-13 Dual 3G-SDI Camera Encoder for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras

SKU: FSDI2-DCK-13
Tax included.

FSDI2-DCK-13 Spec Sheet

The Z3 Technology FSDI2-DCK-13 is a dual 3G-SDI camera encoder designed for Sony FCB-EV9520L, FCB-EV9500L, and Tamron MP3010M-EV block cameras, offering versatile video streaming and recording solutions. It supports dual 3G-SDI inputs or a combination of 3G-SDI and Composite input, allowing for dual visible or mixed visible/infrared camera setups. The encoder handles H.265/H.264 video codecs for efficient compression and can stream up to 1080p60 resolution. It also provides multiple output formats like RTP, RTSP, MPEG-2 TS, and RTMP and offers easy recording to USB or Micro SD storage.

Equipped with a comprehensive set of interfaces, including PoE, GigE, RS-485, GPIO, and I2C, the FSDI2-DCK-13 ensures flexible integration into surveillance, industrial, and UAV systems. It supports low-latency streaming with typical 4.5W power consumption, making it efficient for continuous operation in varied environments. The system features ONVIF® Profile S & T compatibility, remote IP camera control, and easy-to-use HTTP-based controls for straightforward operation. With a compact form factor and a robust temperature range of -5°C to +70°C, it’s designed for reliability in demanding applications.

Features:

  • Dual 3G-SDI inputs or 3G-SDI + Composite input
  • Supports H.265 and H.264 video encoding
  • 1080p60, 720p, NTSC/PAL, VGA, CIF, and QVGA resolutions
  • Simultaneous video streaming and recording to USB or Micro SD
  • Multiple output formats: RTP, RTSP, MPEG-2 TS, RTMP
  • Low-latency and low-power operation (typical 4.5W)
  • PoE, GigE, RS-485, RS-232, GPIO, I2C interfaces
  • ONVIF® Profile S & T compatibility
  • IP camera control and HTTP-based interface
  • Compact 58x58 mm size, 105g weight (with additional 40g heat pipe)
  • Operating temperature range: -5°C to +70°C

Applications:

  • Surveillance
  • Inspection
  • Industrial
  • UAV


Interfaces
  • 2x 3G-SDI Input
  • 1x Composite Input
Visible Camera Formats 3G-SDI, NTSC/PAL/RS170*
HD and SD IR Formats SD/HD/3G-SDI or NTSC/PAL/RS170*
Recording USB or Micro SD
Additional Interfaces  PoE, GigE, Audio Input, RS-485, Composite Output, GPIO, I2C, RS-232
Video Codecs H.265, H.264
Encoding Resolutions 1080p (up to 60fps), 720p, NTSC/PAL, VGA, CIF and QVGA
Output Formats RTP, RTSP, MPEG-2 TS and RTMP
Features • Low Latency, Low Power
• Multiple serial connections available
• Pass Camera Control Commands over IP
• Easy-to-Use HTTP-Based Control Interface
• ONVIF® Profile S & T
• Compatible with ZEUS® Video Decoders
• Simultaneous Streaming and Recording
• Video Image Preview in the Web Gui
• KLV Asynchronous and Synchronous Support
Encoder Board Size 58 x 58 mm (2.28 x 2.28 in)
Encoder Board Weight 105g (aluminum heat pipe is additional 40g)
Power Consumption 4.5W typical while encoding 2 cameras in H.265 video at 1080p60
Power Supply 12V DC
Operating Temperature -5°C to +70°C
