Z3 Technology FV2K-13A Dual Camera HD Encoder for Sony FCB-EV9520L, FCB-EV9500L, Tamron MP3010M-EV HD Block Cameras & Boson IR Cameras

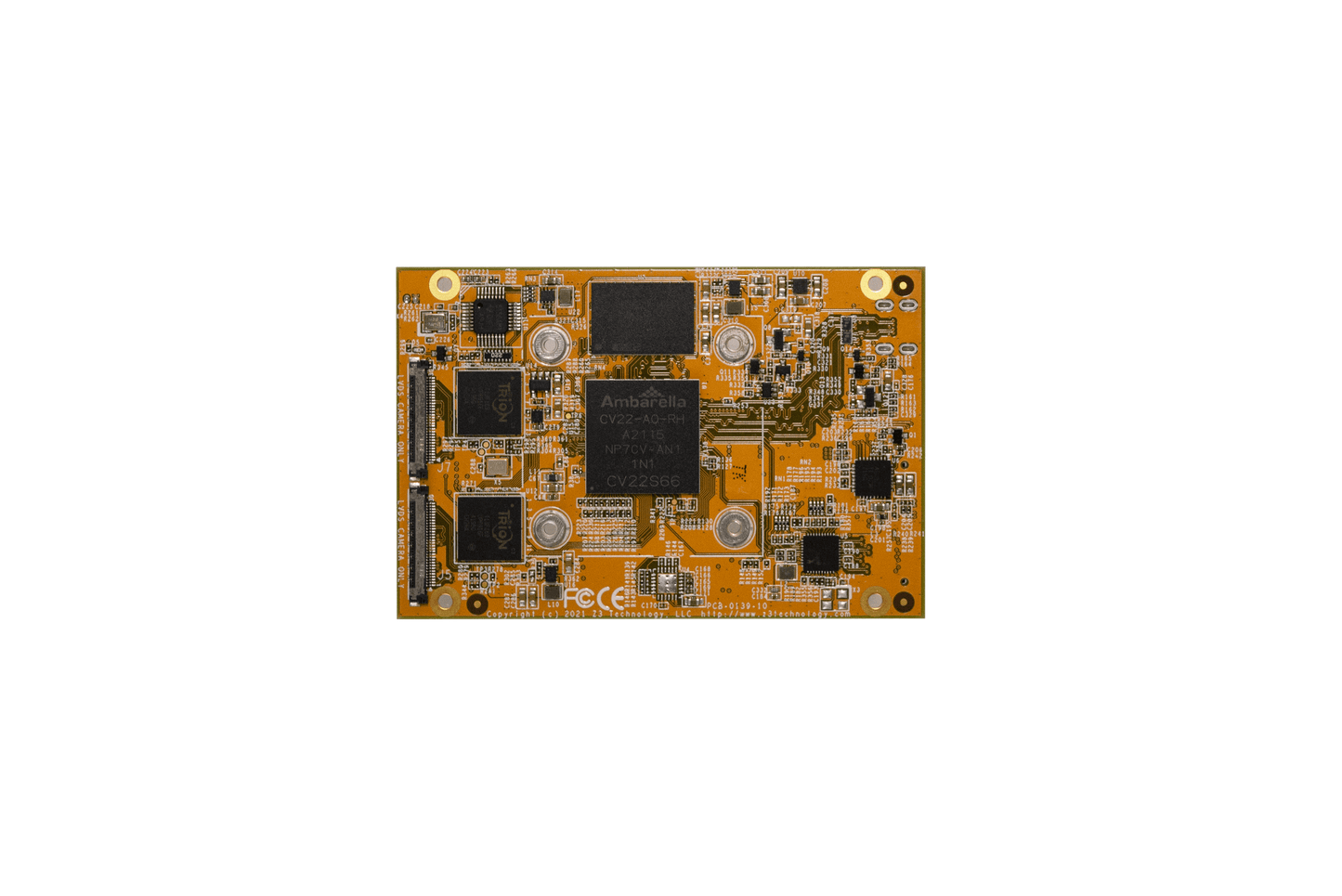

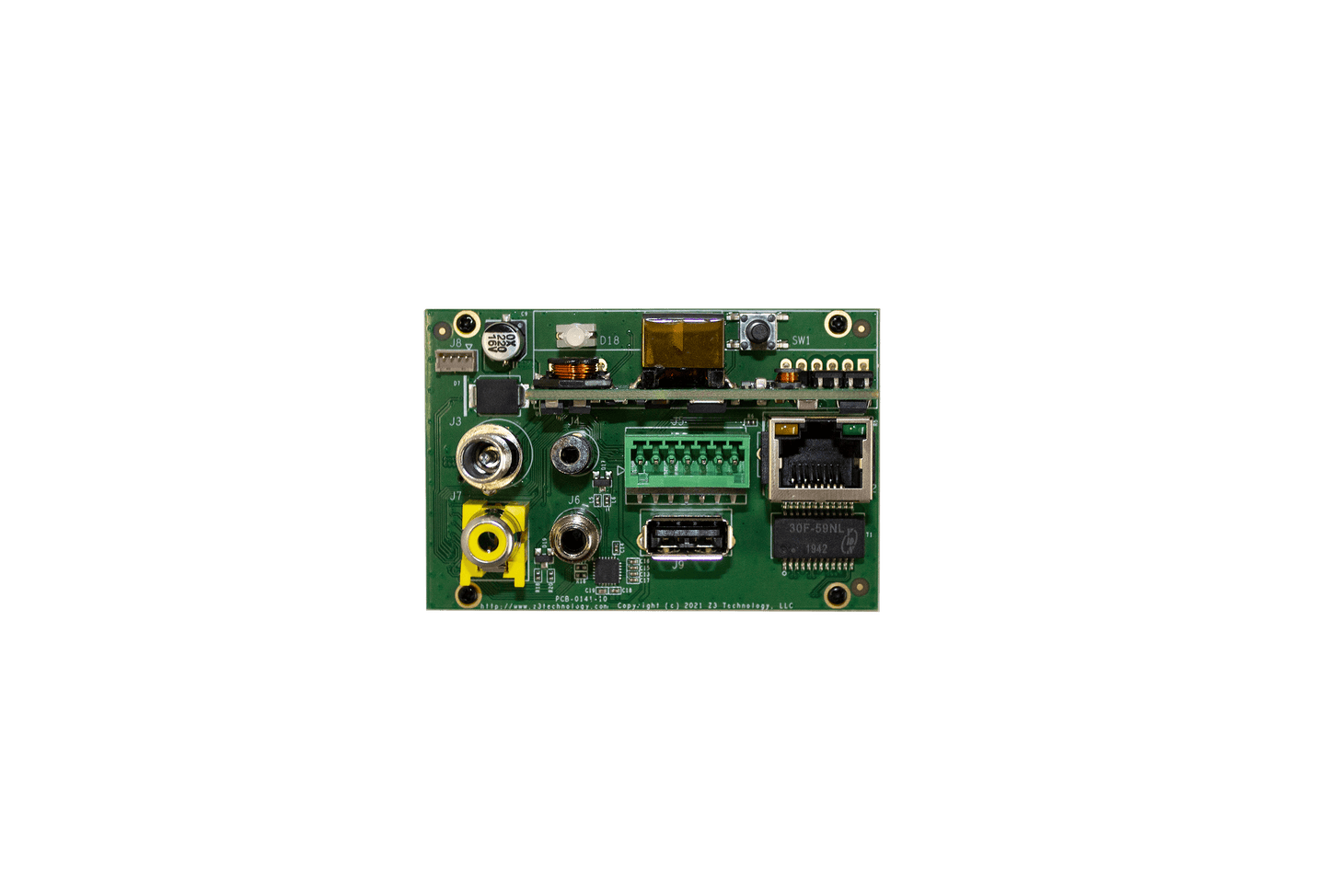

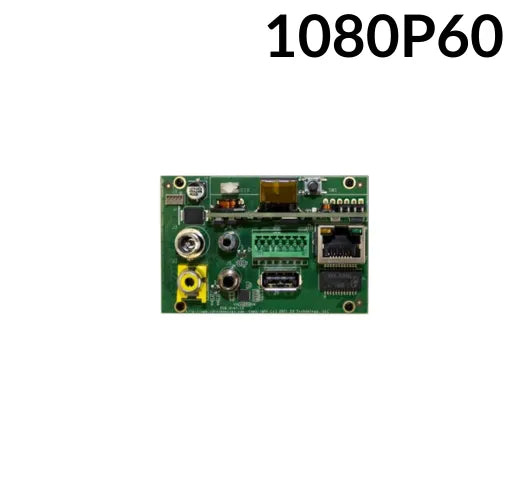

Z3 Technology FV2K-13A Dual Camera HD Encoder for Sony FCB-EV9520L, FCB-EV9500L, Tamron MP3010M-EV HD Block Cameras & Boson IR Cameras

SKU: FV2K-13A
Tax included.

FV2K-13A Spec Sheet

The Z3 Technology FV2K-13A Dual Camera HD Encoder is an advanced encoding solution designed for high-performance applications in surveillance, industrial, and UAV sectors. Compatible with Sony FCB-EV9520L, FCB-EV9500L, Tamron MP3010M-EV, and Boson IR cameras, this encoder supports dual-camera systems, offering seamless integration of visible and infrared (IR) or night vision cameras.

Featuring H.264, H.265, and MJPEG video compression, the FV2K-13A ensures high-quality HD video streaming at resolutions up to 1080p60. The system is equipped with a flexible digital and analog input port, enabling versatile camera control via HTTP/HTTPS, serial/SSH, ONVIF, or Video Management System (VMS) interfaces.

The encoder allows for simultaneous streaming and recording, while also enabling features like Picture-in-Picture, dual display mode, and live video preview. Integration of GPS or NTP data and timestamp overlay via SEI adds to its functionality, making it ideal for mission-critical applications in defense, aerospace, and unmanned systems.

With built-in support for KLV metadata and absolute/relative positioning, the FV2K-13A offers unmatched precision in industrial, robotic, and surveillance applications. It’s also AI-ready, enhancing future-proof scalability. Compliant with ONVIF Profile S and T, FCC, CE, NDAA, and TAA, the FV2K-13A is a reliable, secure choice for a wide range of critical use cases.

Features:

  • Supports Sony FCB-EV9520L, FCB-EV9500L, Tamron MP3010M-EV, and Boson IR Cameras
  • H.264, H.265, and MJPEG video compression
  • Up to 1080p60 HD resolution streaming
  • Simultaneous stream and record capability
  • Flexible digital and analog input ports
  • HTTP/HTTPS web GUI, serial/SSH, ONVIF, and VMS control
  • Picture-in-Picture or dual display mode
  • GPS/NTP data overlay with timestamp via SEI
  • Embedded KLV metadata support
  • AI-ready video encoder
  • Supports relative and absolute positioning
  • Region of Interest (ROI) crop feature
  • Compliance: ONVIF Profile S and T, FCC, CE, NDAA, TAA

Applications:

  • Aerospace
  • Defense video solutions
  • Industrial inspection and monitoring
  • Robotics
  • Surveillance systems
  • Unmanned systems (UAV, UGV, USV)


Cameras LVDS HD Via KEL: Sony® EV7520A EV9500L, EV9520, Tamron, KTNC LVDS Thermal: FLIR® Tau2, Boson, Boson +, DRS Tamarisk® and Tenum
Codecs H.264
H.265
MJPEG
Resolutions Up to 1080p60
Controls Web User Interface, HTTP/S API, Serial/SSH, ONVIF or Video Management System
Compliance ONVIF Profile S and T, FCC, CE, NDAA and TAA
Applications Aerospace
Defense Video Solutions
Industrial
Robotics
Surveillance
Unmanned Systems: UAV, UGV and USV
